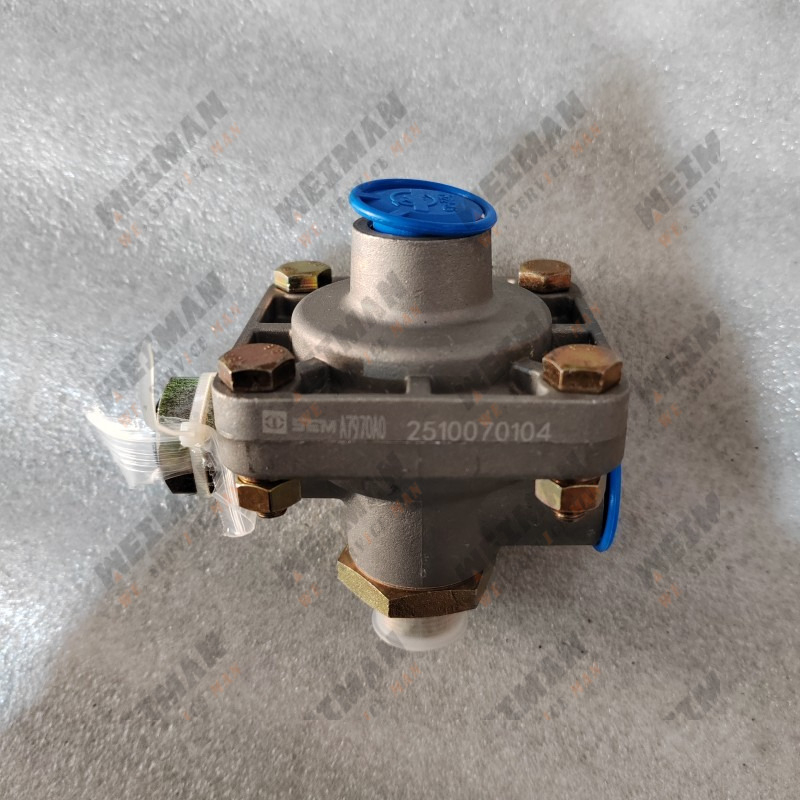

SEM wheel loader part 5217533 Pneumatic shut-off valve

Part Number: 5217533, Matching Drawing Number: W110000140 Standard Name: Auxiliary Brake Control Valve (Industry abbreviation: pneumatic shut-off valve) Made-in-China...
Supporting Brand: SEM (Category Caterpillar)
Related Components: Complete air brake piping system (5334450 tee, 5339073 brake light tee, 5334464 air pressure gauge hose, 5217548 oil-water separator connector, 5360518 brake hose, 5360555 brake copper pipe, 5219660 hollow bolt), ZF 4WG200 gearbox, 5337989 gear oil pump with wmconstruc...
II. Compatible Models
5-ton wheel loader (equipped with ZF4WG200) (Electronic Controlled Transmission)
SEM650B, SEM655D, SEM656D, SEM658F
III. Installation Location and Core Functions
1. Installation Point: The branch node of the vehicle's air brake circuit and transmission brake interlock air circuit, connected in series between the air reservoir and the transmission interlock valve.

2. Two Core Functions:

Air Circuit On/Off Control: Relying on brake air pressure as the control air source, it achieves automatic on/off of the air circuit;

Transmission Brake Interlock Protection: When the driving brake is applied, the valve closes/opens the air circuit, triggering the ZF4WG200 transmission brake lock-up logic to prevent forced gear shifting while the brake is applied; after releasing the brake, the valve resets, releasing the transmission lock-up, and the vehicle can move forward and backward normally.

3. Failures (Easily Misdiagnosed as TCU Transmission Controller Damage)
* Internal valve seal failure, valve body leakage: Air pressure in the reservoir continuously drops, the brake interlock remains locked in the transmission, and the vehicle cannot move forward or backward.
* Stuck valve core, blocked air passage: After releasing the brake, the valve cannot reset, the interlock air passage maintains pressure, and the transmission remains locked in gear.
* Broken internal spring: The valve is normally open/normally closed; there is no brake lock-up when the brake is applied, or the transmission remains locked in gear throughout the entire braking process. Customers can easily diagnose this as a TCU electronic control failure.
