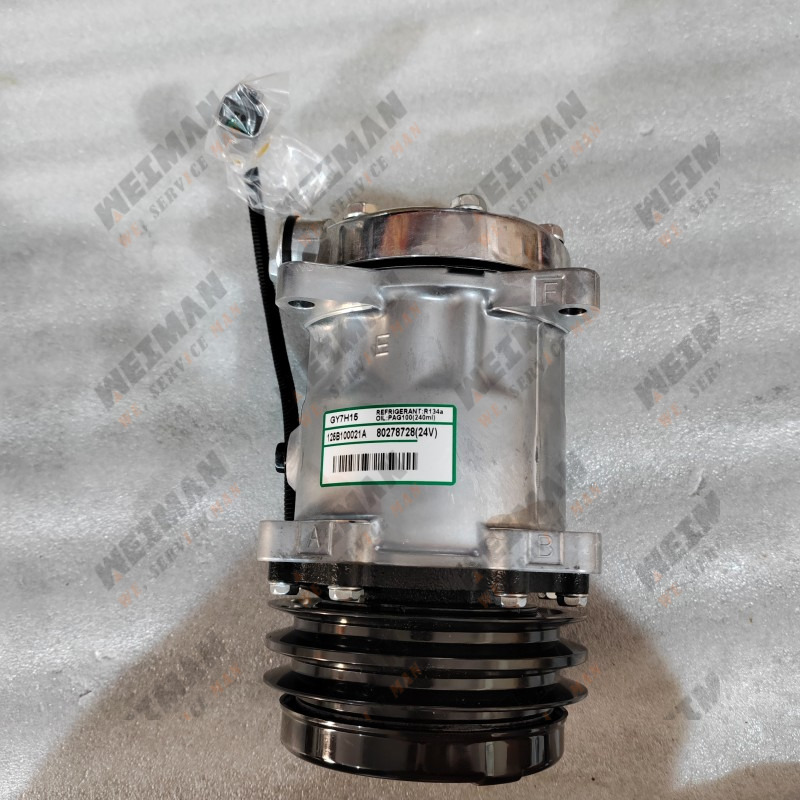

SEM wheel loader AC compressor 5228129 GY7H15
Model: GY7H15 (Guangyu 7H15 series rocker-type fixed displacement air conditioning compressor, comparable to Sanyuan SD7H15) Smart Manufacturing Network
General OE Numbers: 60274921, 80278709, compatible with Shantui loaders, Sany heavy-duty trucks, heavy-duty construction machinery cab air conditioning systems (Wuhan Yich...)
Standard Product Name: GY7H15 A/C Compressor / 7H15 Air Conditioning Compressor, Cab Air Pump
Matching Components: Matching evaporator fan W48000377/5220787, condenser, dryer bottle, air conditioning piping; compatible with the machine's 24V electrical system (matching generator 1001752070), shipped as a complete set with Shantui ZF4WG200 gearbox hydraulic and pneumatic accessories.
II. Compatible Models
Construction Machinery Loaders (Shandong SEM Series)
SEM636D, SEM639B, SEM650B, SEM655D, SEM656D, SEM660D, SEM665F
Other General Equipment
Sany Container Stackers, Heavy-Duty Trucks, Excavators, Graders (24V Cab Air Conditioning Universal Model)
Wuhan Yich...
III. Installation Location and Core Functions
1. Installation Point
Engine side bracket, driven by the engine pulley, connected in series with the air conditioning condenser and evaporator W48000377, forming a complete refrigeration cycle.
2. Core Functions
Refrigerant Compression Refrigeration: The rocker-piston structure compresses R134a refrigerant, increasing the pressure from low-pressure gaseous refrigerant to high-temperature, high-pressure gas. This gas dissipates heat through the condenser and absorbs heat through the evaporator, providing cool air to the cab.
Electromagnetic Clutch On/Off Control: A built-in 24V electromagnetic clutch engages when the air conditioning panel is energized, pulling the pulley and driving the pump. Turning off the air conditioning disengages the clutch, stopping the compressor.
Stable Cooling Under Heavy Loads: The 7H15 large-displacement design provides ample cooling capacity even at low idle speeds, suitable for long-term earthmoving and heavy-duty mining operations of loaders.
