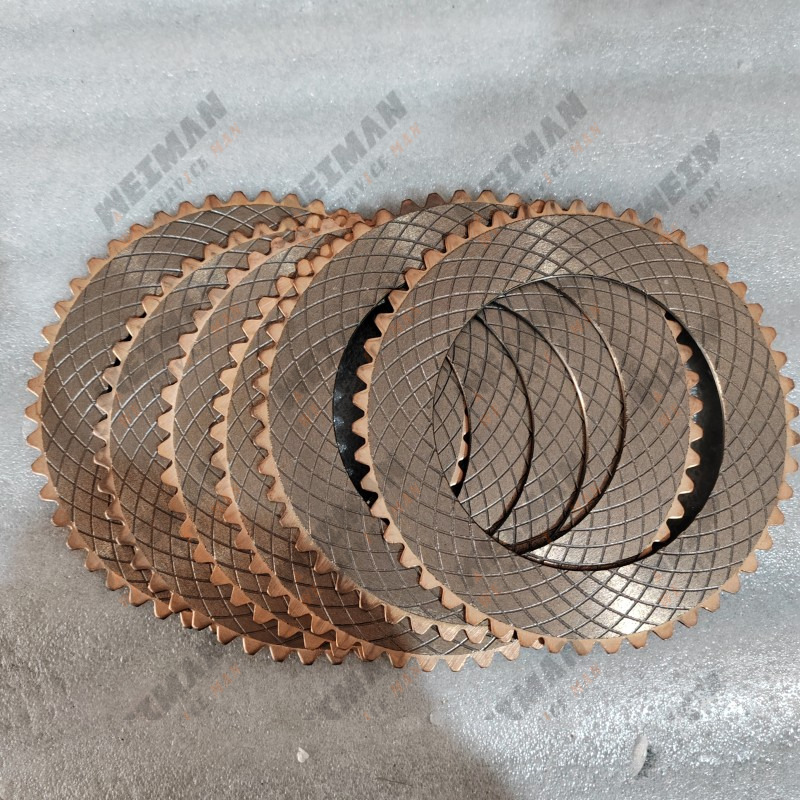

SEM wheel loader part 5382137 outer disc plate

Part Number: 5382137
Standard Name: Outer Clutch Steel Disc (Outer Friction Plate)
Compatible Brand: SEM (Catpillar Genuine Part)
Related Parts: Must be used in conjunction with the 5382132 inner friction plate; compatible with ZF 4WG200 hydraulic-electric transmission; can be used with input flange 5252761, gear oil pump 5337989, complete air piping system, TCU controller for complete Cat® Parts maintenance and replacement...

II. Compatible Models

1. Wheel Loaders (equipped with ZF4WG200 gearbox)
SEM636D, SEM639B, SEM655D, SEM656D, SEM658F

2. Graders (ZF4WG200 electronically controlled gearbox model)
SEM915, SEM918, SEM922

III. Installation Location and Core Functions

1. Installation Point
Inside the ZF4WG200 gearbox forward/reverse clutch assembly, it is alternately stacked with the 5382132 inner friction plate, forming a wet clutch friction pair with one inner and one outer component. 2. Core Functions

Friction Fit and Load Bearing: Hydraulic oil presses the copper-based friction layer of the inner friction plate against the outer steel plate, relying on frictional resistance to transmit engine power and achieve forward and reverse gear engagement;

Heat Dissipation and Pressure Bearing Support: The steel base has high thermal conductivity, quickly dissipating the high temperatures generated by friction and preventing the friction plate from burning; simultaneously, it acts as a rigid support, bearing the hydraulic pressure and ensuring uniform clutch engagement.

3. Failures (Easily Misdiagnosed as TCU, Oil Pump, or Air Circuit Faults)
* **Grooving and Deformation of the Steel Plate:** Poor contact at the friction surfaces leads to severe clutch slippage. The vehicle won't move even at high engine speeds, easily leading customers to diagnose a TCU electronic control fault.
* **Wear and Broken Teeth:** External teeth become stuck in the splines of the clutch drum's outer ring. Wear causes the steel plate to slip and spin freely, resulting in sufficient oil pressure but a complete power interruption.
* **High-Temperature Annealing and Warping:** Prolonged slippage and high temperatures cause warping of the steel plate, resulting in jerky shifting, abnormal transmission noise, and blackened hydraulic oil with a burnt smell.
* **Uneven Wear of the Complete Set:** Replacing only the inner friction plate without replacing the outer steel plate (5382137) causes the old steel plate's grooves to quickly wear down the new inner plate, leading to slippage again shortly after repair.
