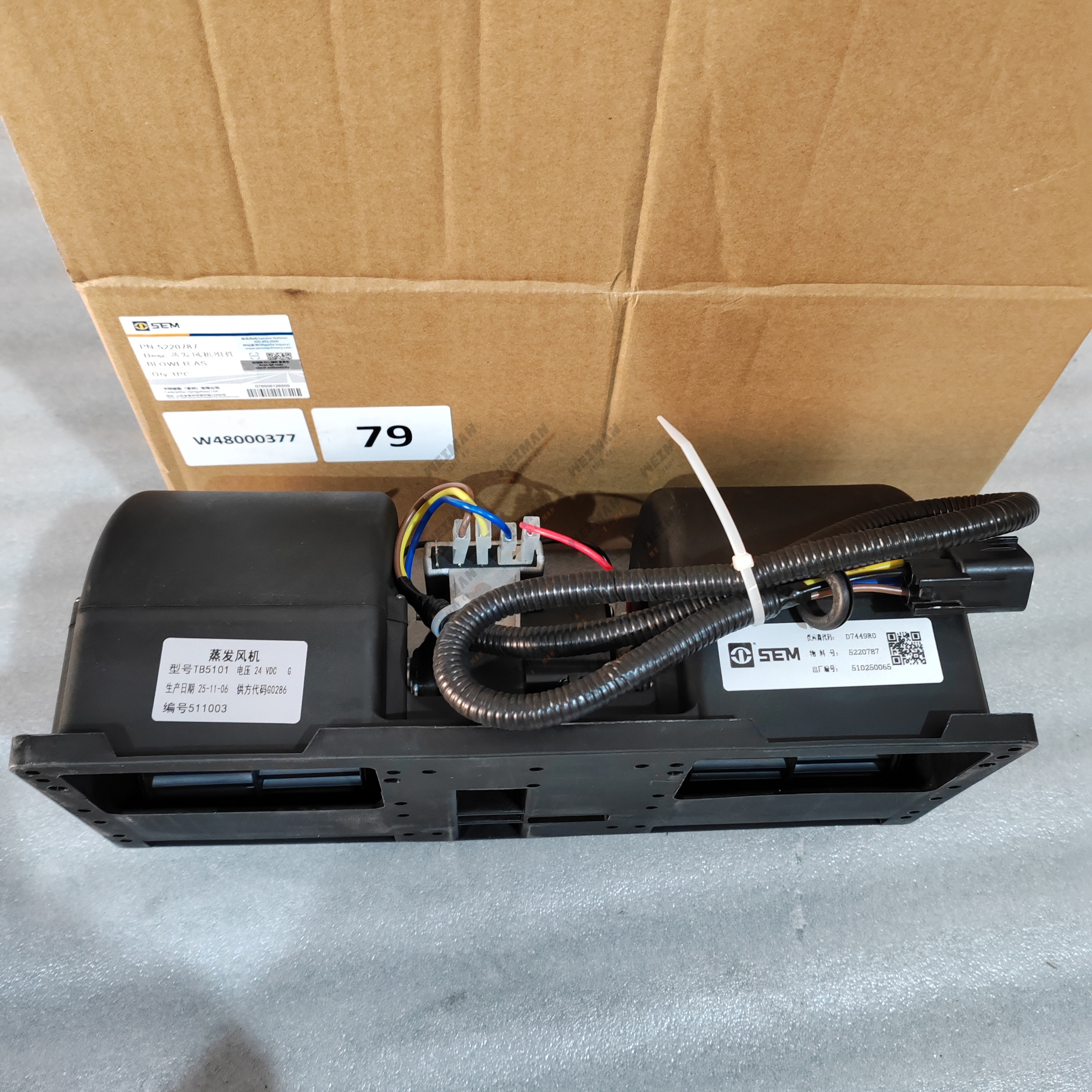

SEM wheel loader parts W48000377 5220787 Evaporator

Dual part numbers correspond to the same assembly
Material drawing number: W48000377 (Shandong internal material code, matching SEM656D) Supplier website
OEM part number: 5220787 (General export model, SEM660D/663D universal) ... Standard product name: Evaporator Blower Assembly (cab heating and cooling blower)
Supporting brands: SEM (Caretour's construction machinery), Shandong Weiman Machinery export parts
Related components: Air conditioning evaporator core, air conditioning control panel, condenser fan 5220801, vehicle 24V electrical system (matching generator 1001752070) II. Compatible machine models
Shandong wheel loader (ZF4WG200) (All Gearboxes)
SEM656D, SEM656F, SEM660D, SEM663D, SEM665FMade-in-Ch...
III. Installation Location and Core Functions
1. Installation Location: Behind the dashboard in the cab, inside the air conditioning evaporator housing, integrated assembly of dual impellers + DC motor + speed-regulating resistor module.

2. Core Functions:
* Cooling Air Supply: The motor drives the dual impellers, and airflow passes through the evaporator core to carry away the cold air, delivering cool air to the cab;
* Heating Air Circulation: In winter, airflow passes through the heater core, delivering warm air;
* Airflow Level Adjustment: Equipped with an integrated speed-regulating resistor, supporting multi-level airflow control, matching the cab air conditioning control panel;
* Vehicle Electrical Matching: 24V DC power supply, working in conjunction with a 24V on-board generator and battery.
