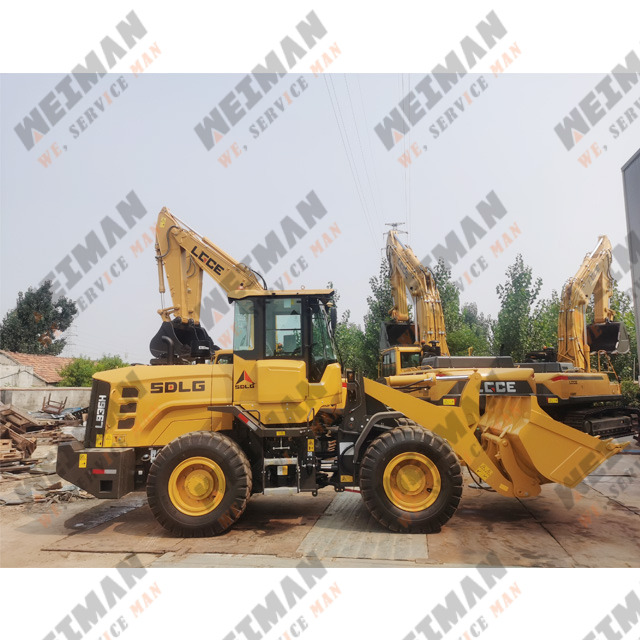

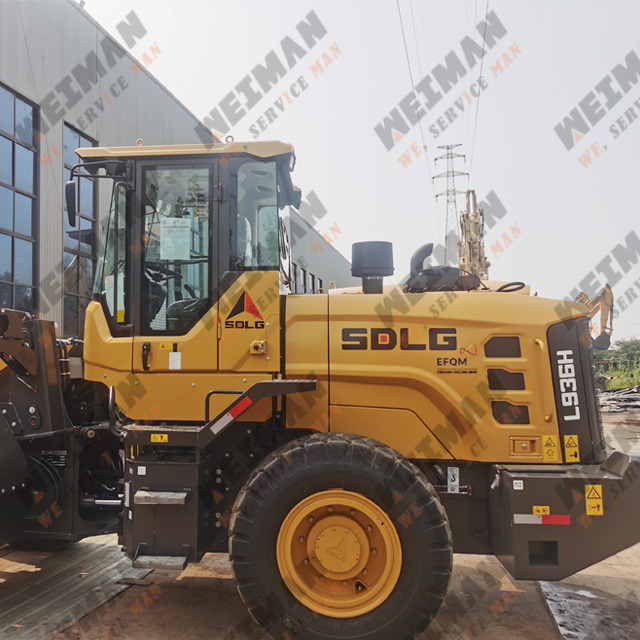

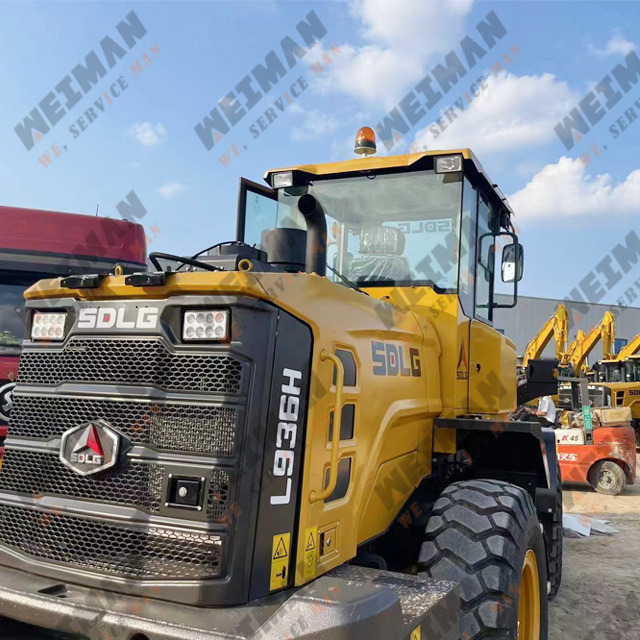

Wheel Loader L936H

Parameter

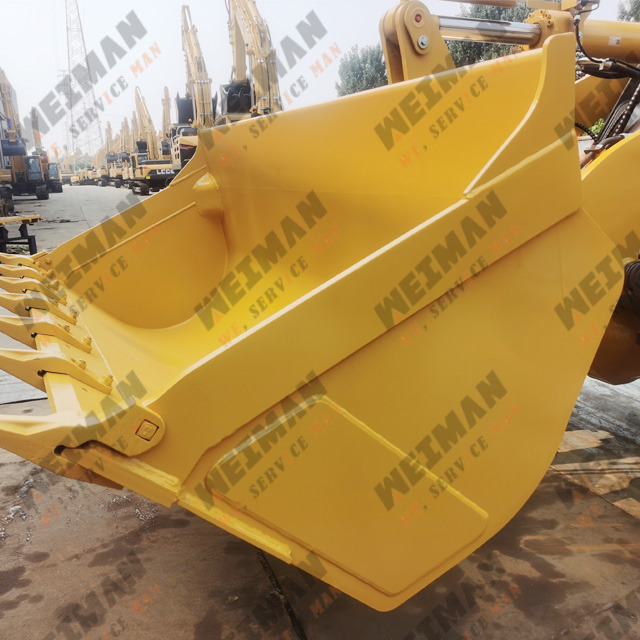

Rated bucket capacity

2.1(1.5～3.0)

Minimum steering radius (outside of rear wheel)

5250 mm

Rated carrying-capacity (kg)

3500

Transverse passing radius (outside of bucket)

6065 mm

Maximum traction force (kN)

100 kN

Altitude（m）

-

Tipping load

≥70 kN

Environmental temperature（℃）

-

Maximum breakout force

≥96 kN

Water wading depth（mm）

-

Forward I

0～13 km/h

Forward Ⅱ(km/h)

0～38 km/h

Forward Ⅲ(km/h)

-

Forward Ⅳ(km/h)

-

Reverse I (km/h)

0～17 km/h

Reverse II

-

Reverse III

-

Reverse IV

-

Dimension

Overall length (mm)

7320

Overall width (mm)

2520

Outside width of wheel

2310 mm

Wheel track

-

Overall height (mm)

3170

wheelbase（mm）

2850

Dumping angle

-45°

Maximum dumping height

2930 mm

Number of axles

2

Corresponding dump reach

1140 mm

Maximum lifting height of fork horizontal section(mm)

-

Total mass (kg)

11230

Minimum ground clearance

370 mm

Axis pin at maximum lift height

3790

Wheelbase (front/rear) (mm)

-

-

-

Engine

Engine model/Drive Motor Model

WP6G140E22

Number of cylinders

6

Engine type

In-line、 water-cooled、 four-stroke、 direct injection

Bore/stroke

105/130 mm

Engine power (KW)

105

Minimum fuel consumption

215  g/kw.h

Rated engine speed

2200 r/min

Maximum torque (N.m)/rotation speed (r/min)

560/1400～1600

Displacement (ml)

6750

Emission standard

GB 20891-2007(Country 2)

Transmission system

Type of torque converter

Single-stage four-element twin turbine torque converter

Torque ratio

4.0

Oil cooling mode

Water cooling

Oil pressure of torque converter inlet

0.5～0.6MPa

Oil pressure of torque converter outlet

0.21～0.26 MPa

Transmission type

Planetary power shift

Shifting gears

forward 2 reverse 1

Gear ratio of forward I

2.547

Gear ratio of forward Ⅱ

0.683

Gear ratio of forward Ⅲ

-

Gear ratio of forward Ⅳ

-

Gear ratio of reverse I

1.864

Gear ratio of reverse II

-

Gear ratio of reverse III

-

Gear ratio of reverse IV

-

Model of variable-speed pump

LG03-BSB

Working pressure of shifting

1.1～1.5 MPa

Main drive type

First reduction of spiral bevel gear

Main drive reduction ratio

3.9

Wheel reduction type

One-stage planetary reduction

Wheel reduction ratio

4.94

Drive type

CHANGCHAI four-wheel drive

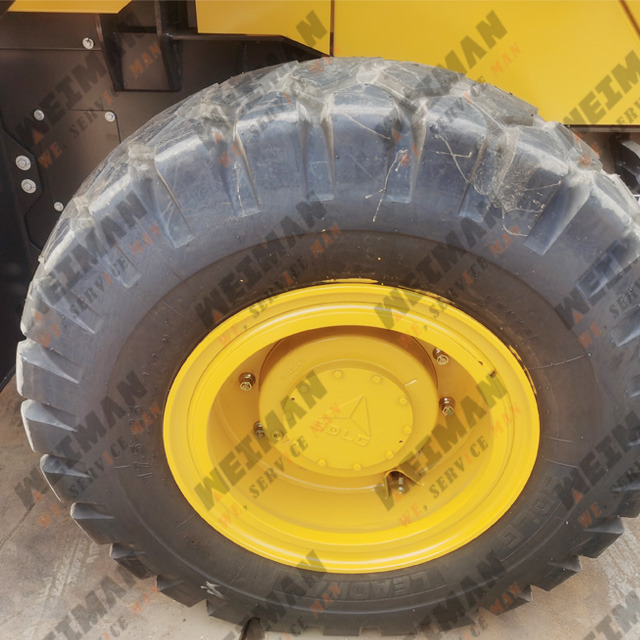

Tyre size

17.5-25

Front tyre pressure

0.32～0.33 MPa

Rear tyre pressure

0.28～0.29 MPa

Type of foot brake

Air-over-oil caliper disc brake

Brake pressure (MPa)

14 MPa

Parking brake type

Electric air-controlled internal expansion shoe

Steering system

Type of steering system

Load-sensing full hydraulic articulated steering

Model of priority valve

VLE-150

Steering pump model

CBGj2063A

Steering cylinder - bore x rod diameter x stroke

HSGL-80×45×327 mm

Steering gear model

BZZ6-500A

Steering angle (°)

37°

Working pressure of steering system

12 MPa

-

-

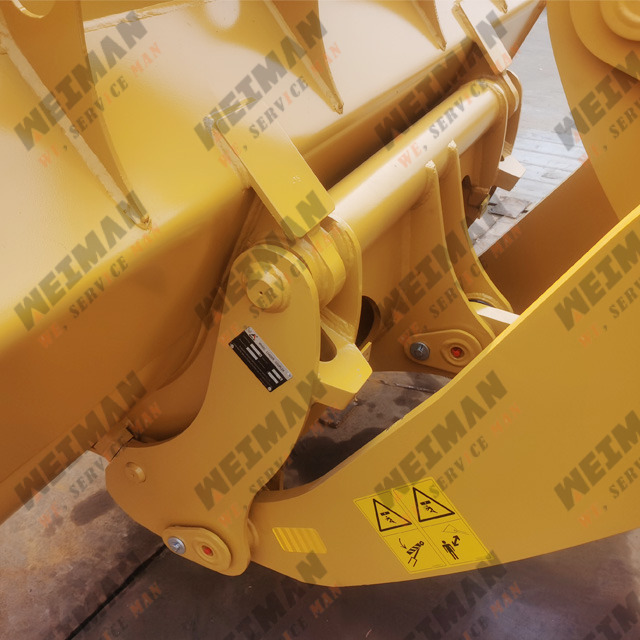

Working equipment

Type of working device

Hydraulic pilot control

Boom cylinder - bore × rod diameter × stroke

HSGF-125×70×771 mm

Turning bucket cylinder - bore x rod diameter x stroke

HSGF-140×80×502 mm

Model of working pump

HJP3125100110-XF

Displacement of working pump (ml/r)

-

Model of multi-way valve

DFSY-25-17.5

Model of pilot valve

GDXS2-DT

Working pressure of working device hydraulic system

17.5 MPa

Bucket lift time (full load)

≤5.3 s

Bucket fall time (no load)

≤2.9 s

Bucket dumping time (no load)

≤1.0 s

Time sum of three items

≤9.2 s

Oil filling amount

Diesel filling capacity of fuel tank

200 L

Oil filling capacity of axles (main drive and wheel reducer)

28+28 L

Oil tank filling capacity

128L

Engine oil filling capacity

18 L

Transmission oil filling capacity

44 L

Refueling of antifreeze coolant

25L

Oil filling capacity of braking system

-

-

-
