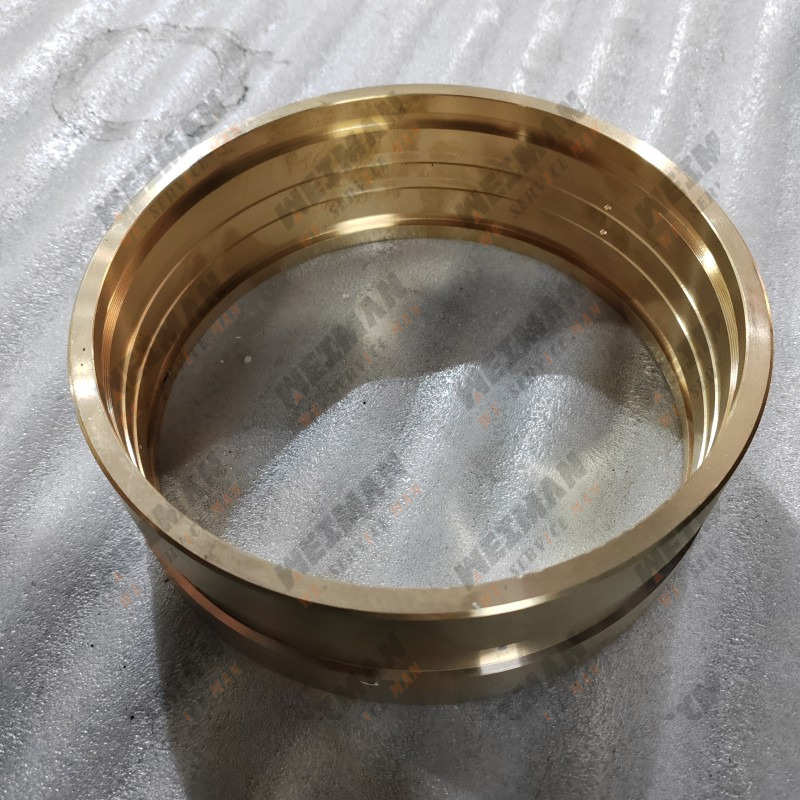

Support Sleeve 4110001903161 For SDLG G9138 G9220 Motor Grader Brake Shoe

Original Part Number: 4110001903161
English Product Name: Brake Shoe Spacer Sleeve / Support SleeveShandong W...
Matching Assembly: Lingong Grader Drum Brake Shoe Assembly (4110001903100 Brake Shoe Accessory Parts)
Compatible Models: SDLG Lingong Graders G9138, G9165, G9180, G9190, G9220 (all models)
II. Function and Purpose: Installed at the brake shoe pin position, it acts as a support spacer bushing, isolating the brake shoe from the brake base plate, reducing pin friction and wear, limiting the brake shoe opening and closing stroke, and ensuring even opening and smooth braking of the drum brake. It is a wear-prone accessory for the brake shoe and must be replaced simultaneously when inspecting the brake shoe.

III. Matching Small Parts for the Braking System (Part Number Comparison within the Same Series)

4110001903120: Standard Spacer Sleeve (Same as basic structure) Shandong W...
4110001903162: Brake Adjusting Shim (Matches with support sleeve to adjust clearance) Shandong W...
4110001903026: Brake Dust Cover Shandong W...
