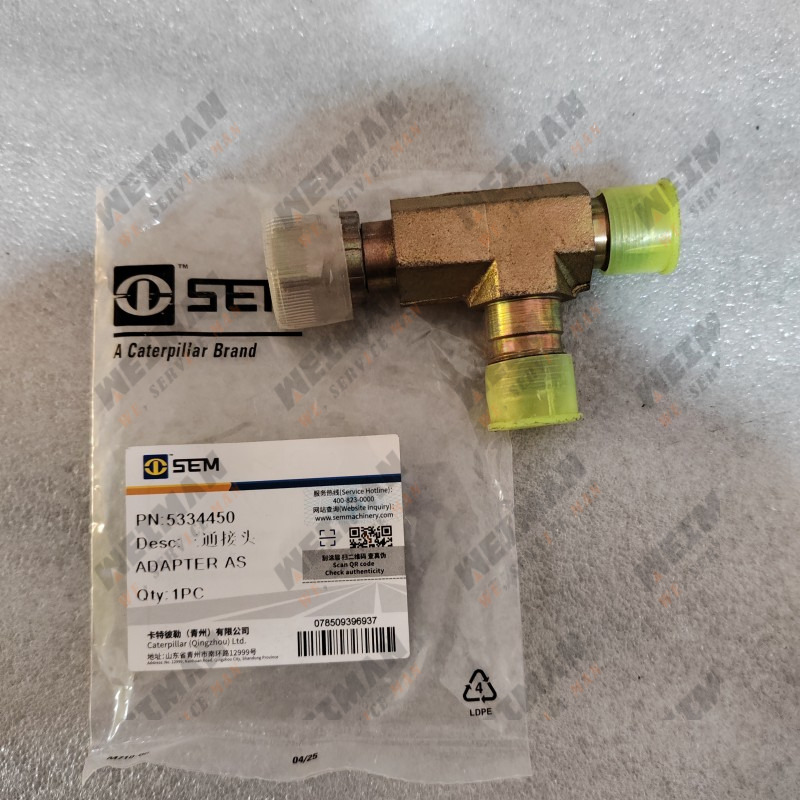

SEM wheel loader parts 5334450 T-connector

Part Number: 5334450
Standard Name: Air Brake Tee (Pure splitter tee, no brake light switch, different from 5339073 tee with switch)
Compatible Brand: SEM (Category Caterpillar)
Related Parts: Compatible with 5339073 brake light tee, 5217548 oil-water separator connector, 5360518 brake hose, 5360555 brake copper hose, and 5219660 hollow bolt for complete air brake piping systems. Suitable for loaders and graders equipped with ZF 4WG200 electronically controlled transmissions (Made-in-Ch...).

II. Compatible Models

1) 5-ton wheel loaders: SEM650B, SEM655D, SEM656D, SEM658F

2) Graders (ZF4WG200 gearbox model): SEM915, SEM918, SEM922

III. Installation Location and Core Functions

1. Installation Point: Pipeline splitting node between the air tank, oil-water separator, brake master valve, and brake light tee (5339073), T-shaped three-way air distribution.

2. Core Function: Pure pipeline splitting, dividing a single compressed air path into two, supplying the braking system, gearbox brake interlock valve, and air pressure detection branch respectively; no pressure sensor, no electrical switch, only responsible for air path splitting and conduction.
