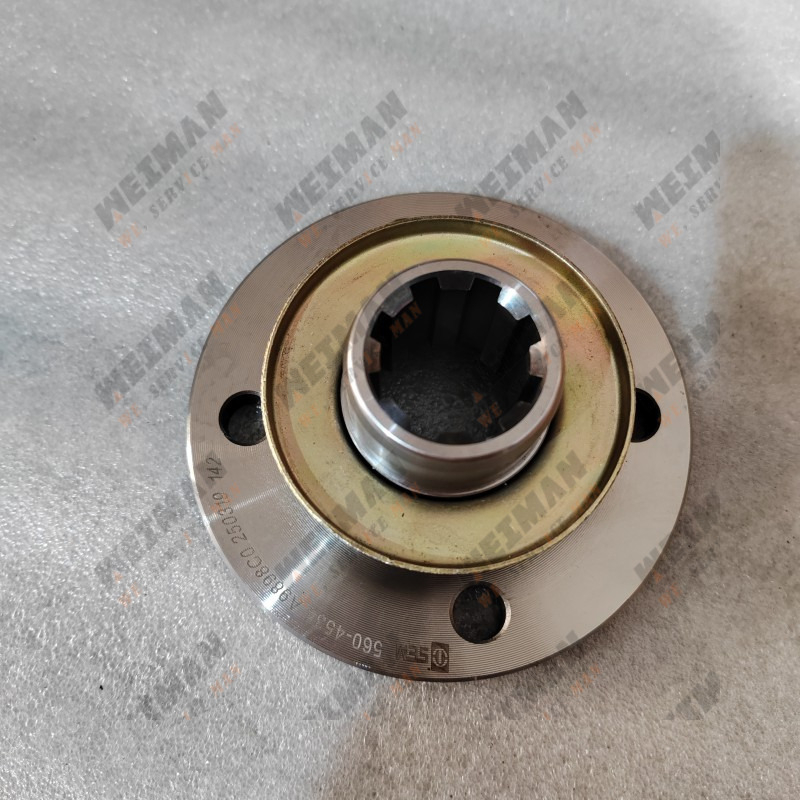

SEM wheel loader bucket part input flange 5252761 Z3204706901
Function: One end connects to the torque converter turbine output, and the other end engages with the transmission input shaft, transmitting all engine power; bolt holes are pre-drilled on the outer ring of the flange for fixing the connecting housing.
Material and Manufacturing Process: 40Cr forged blank, overall tempering + high-frequency quenching of the end faces, wear-resistant and impact-resistant, preventing flange end face wear and spline chipping under heavy load conditions.
Vulnerable Failure Manifestations:
Flange end face pitting/grooving: Abnormal torque converter engagement clearance, power vibration, abnormal noise;
Internal spline wear/key rolling: Engine idling, no transmission power, vehicle unable to move forward or backward (highly similar to your customer's TCU failure symptoms, easily confused);
Flange cracking: Breakage caused by severe impact during heavy-load climbing or digging, directly breaking the load.
