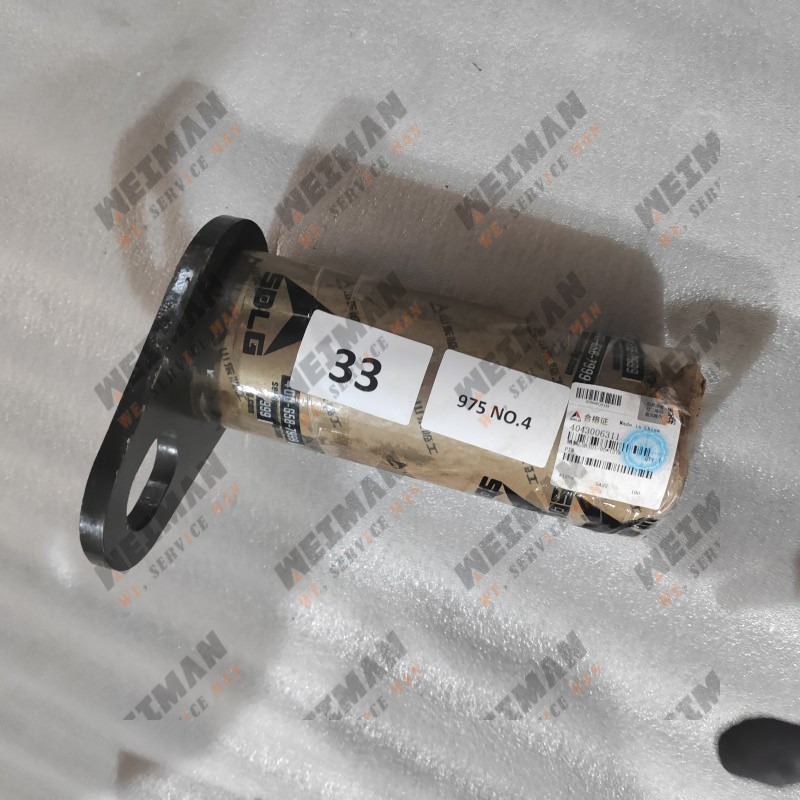

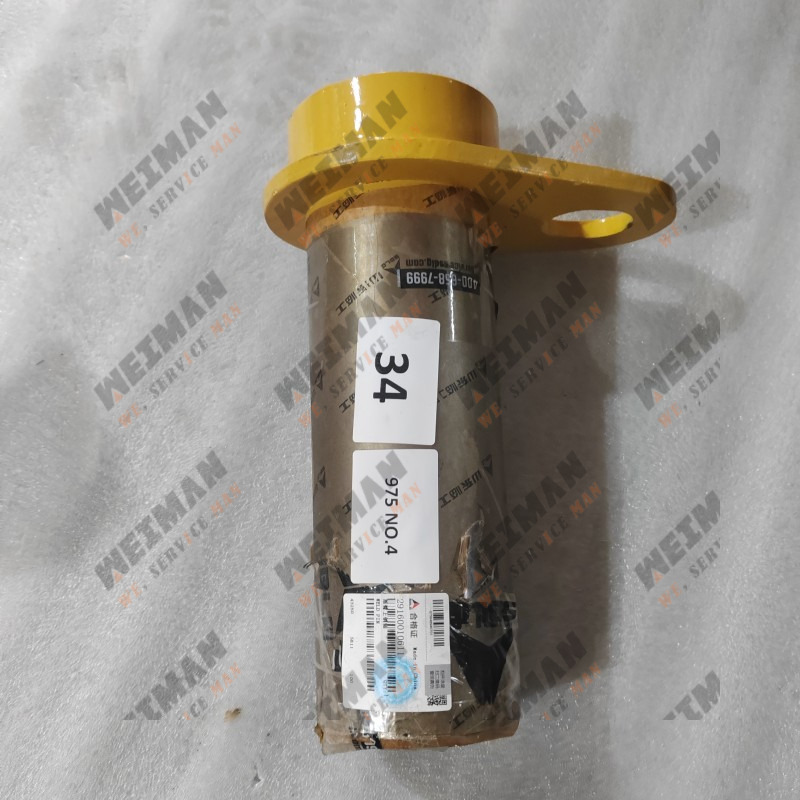

SDLG WHEEL LOADER L975F WELD PIN 29160010611 4043006311 4043000254

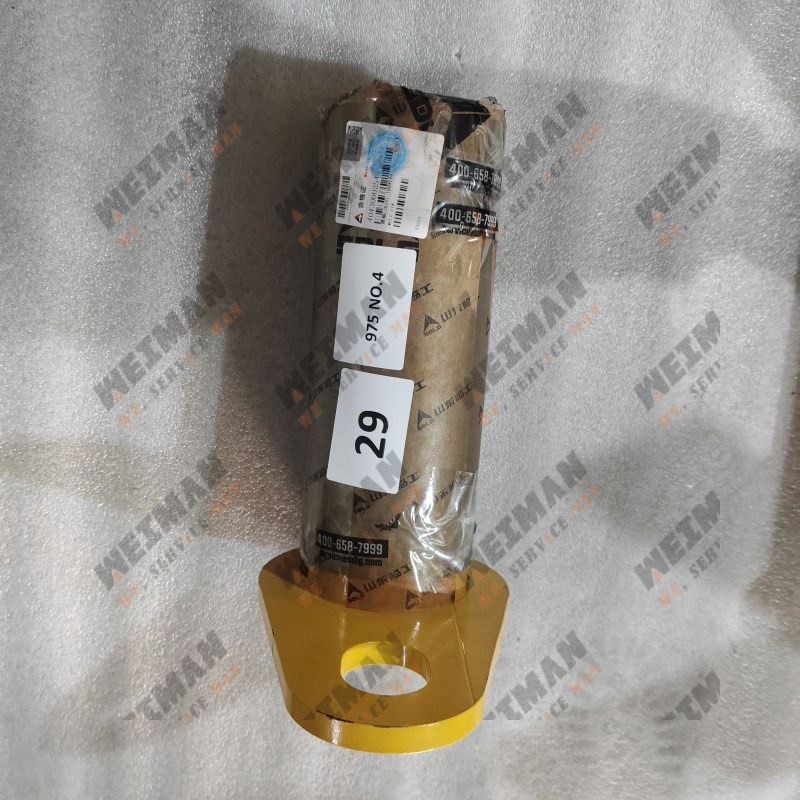

OEM Part Number: 4043000254
Standard Name: Weld Pin with Ear / Boom Link Pin
Common English Abbreviation: Weld Pin / Boom Link Pin (Customer Abbreviation PIN)
Original Specifications: Φ100×275, Model Code LGB301-100148275, Material: 40Cr Alloy Steel (Tempered and Quenched)
Compatible Models: SDLG L975F, LG968F, LG978F 7-ton Heavy-Duty Loaders, Large-Diameter Pin Exclusive for Mining Machines
Installation Location: Hinge point on the main boom, connecting the frame and the boom, the hinge pin with the highest stress on the entire machine
Quantity per Vehicle: 1 piece / vehicle
II. Structural and Working Advantages
Integrated Structure: Pin body + single-sided yellow welded positioning ear plate to prevent circumferential rotation and loosening of the pin during heavy-duty operations
Built-in grease channel + external grease nipple for daily lubrication, reducing dry friction of the bushing
40Cr Overall heat treatment, surface fine grinding for wear resistance, resistant to impact from mining gravel and heavy-duty alternating loads.
Wear scenarios: Long-term heavy-duty lifting easily wears down the shaft diameter and causes ear plate cracking; parts must be replaced during boom overhaul.
Matching wear parts: Matching copper bushings, dust rings, and adjusting shims are stocked in sets.
III. L975F Complete Vehicle Matching System
Working device hydraulic system (brake valve 4120005158, high-pressure hose 4120004417) → Boom articulation pin 4043000254
Chassis transmission matching: ZF4WG208 gearbox, 29070200551 rear main drive, 29070200431 wheel-side reducer, four-wheel disc brake system
