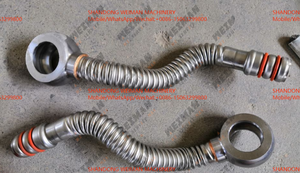

Weichai Engine Parts 13035193 Pipe

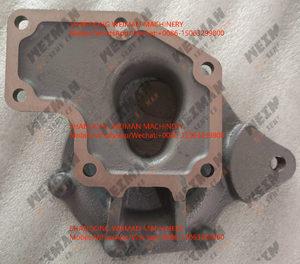

Weichai Engine Parts 13033562 Water Pump Base

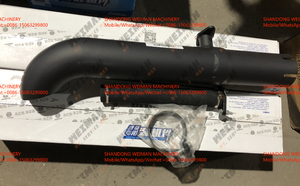

Weichai Engine Parts 13033256 Muffler Exhaust Pipe

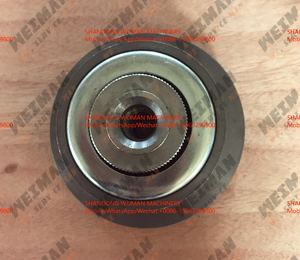

Weichai Engine Parts 13031840 Belt Tensioner Pulley

SDLG LG958L L958F PARTS AC FAN 4190002907003 4130015120001 GKL33-5.0H-30

4190002863 Receiver Drier for sdlg wheel loader

Spare Parts Cell Core 4190002827 for SDLG wheel loader

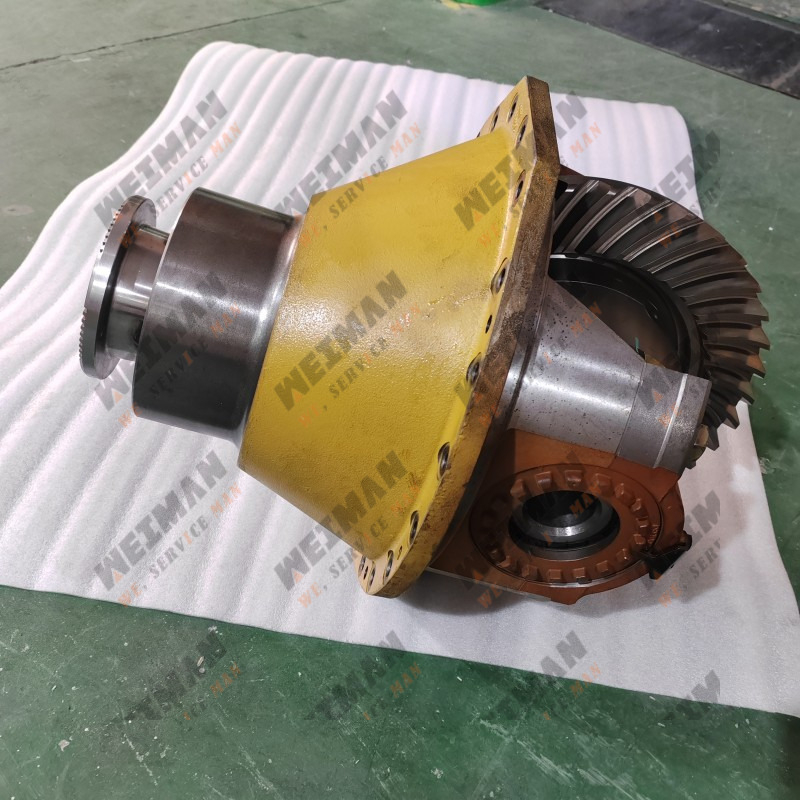

L975F Wheel loader part main drive assy 29070200551

L975F Wheel loader part main drive assy 29070200551

OEM Part Number: 29070200551
Chinese Name: Rear Axle Main Drive Assembly / Rear Axle Main Reducer (Differential Carrier Assy)
English Name: Rear Axle Main Drive Assembly / Differential Carrier Assy
Compatible Models: SDLG Lingong L975F, L968F 7-ton Heavy Duty Loaders
Quantity per Vehicle: 1 set for the rear axle; front axle part number is different, this part is only for the rear axle
Complete Transmission Matching Link:
ZF 4WG208 Gearbox → Driveshaft → 29070200551 Rear Main Drive → Half Shaft → 29070200431 Wheel-side Reducer → 4110015663 Wheel Rim + 26.5-25 Tire
II. Internal Structure and Function
Complete Integration: Spiral Bevel Gear (Pellet Gear) + Differential Housing + Cross Shaft + Integrated assembly of differential planetary gears, half-shaft gears, bearings, and oil seals

First-stage reduction: Significantly amplifies the transmission output torque, suitable for heavy-duty mining and loading applications.

Differential function: Differentiates the rotational speed of the left and right wheels when the vehicle turns, preventing tire drag and wear.

Power distribution: Distributes the rear axle power evenly to the wheel-side reducers on both sides, serving as the core power hub of the axle.

III. Supporting chassis components (same as L975F complete vehicle)

Wheel-side reducer: 29070200431 (4 units/vehicle)

Wheel rim: 4110015663 (22.00/3.0-25)

Tire: 26.5-25 28PR L3, part number 4110002092

Radiator: 4110003909 (L975F dedicated water tank)

Transmission: ZF 4WG208

Quantity:
Availability:





Inquire Add to Basket

Product Description

1	SDLG 975 NO.3	4110015663	Wheel rim	轮辋LC22.00/3.0-25	2
2	SDLG 975 NO.3	29070200431	Hub reduction	轮边减速器总成	2
3	SDLG 975 NO.3	29070200451	Brake disc	制动盘	2
4	SDLG 975 NO.3	29070200541	Shaft half	右半轴1198	1
5	SDLG 975 NO.3	29070023071	Breather cap	透气嘴	2
6	SDLG 975 NO.3	4013000078	Nut	螺母GB6173-M10*1EpZn-05	4
7	SDLG 975 NO.3	29070200531	Shaft half	左半轴1108	1
8	SDLG 975 NO.3	4110015302	Brake caliper	制动钳	4
9	SDLG 975 NO.3	29070200561	Differential	差速器总成	1
10	SDLG 975 NO.3	29070013471	Roller bearing	轴承	1
11	SDLG 975 NO.3	29070027361	Dust cover	防尘罩	1
12	SDLG 975 NO.3	4190003889	Sealing ring	盒式油封cassette3-189.823015.5	1
13	SDLG 975 NO.3	29070200441	Hub	轮毂	1
14	SDLG 975 NO.3	29070029081	Flange plate	轮边连接盘	1
15	SDLG 975 NO.3	29070029111	Gear ring	内齿轮总成	1
16	SDLG 975 NO.3	29070201811	Planet gear kit	行星轮架总成	1
17	SDLG 975 NO.3	29070029621	Sun gear	太阳轮	1
18	SDLG 975 NO.3	29070013401	Engaging sleeve	连接套	1
19	SDLG 975 NO.3	4110003698	Roller bearing	滚动轴承GB297-32034	1
20	SDLG 975 NO.3	29080010651	Propeller shaft	L975F转动轴总成	2
21	SDLG 975 NO.3	4110002923	Propeller shaft	传动轴C52*625	1
22	SDLG 975 NO.3	4110002185	Propeller shaft	中间支撑	1
23	SDLG 975 NO.3	4110002182	Propeller shaft	中间传动轴	1
24	SDLG 975 NO.3	4110004368	Propeller shaft	传动轴C52*539	1
25	SDLG 975 NO.3	4110002923001	Spider	十字轴总成0125-52133-T	4
26	SDLG 975 NO.3	4110003070001	Spider	十字轴0125-53133-T	2
27	SDLG 975 NO.3	29070029662	Wheel ssembly	车轮26.5-25-28PR-L-3	2
28	SDLG 975 NO.3	29090200021	Rear axle assembly	摆动型驱动桥总成AL42A	1
29	SDLG 975 NO.3	29090008541	Sleeve	套	1
30	SDLG 975 NO.3	29090008552	Sleeve	衬套	1
31	SDLG 975 NO.3	29090008951	Sealing cover	密封盖	1
32	SDLG 975 NO.3	4030000286	O-ring	O形圈GB3452.1-180*5.30G	1
33	SDLG 975 NO.3	29090008961	End plate	端盖	1
34	SDLG 975 NO.3	29090008971	Block	垫块	1
35	SDLG 975 NO.3	29090008981	Shim	衬垫	2
36	SDLG 975 NO.3	29090009001	shim	垫片	1
37	SDLG 975 NO.3	29090008992	Sleeve	套	1
38	SDLG 975 NO.3	29090200051	Hub reduction	轮边减速器总成	2
39	SDLG 975 NO.3	29070200451	Brake disc	制动盘	2
40	SDLG 975 NO.3	29090015931	Final drive	主传动总成	1
41	SDLG 975 NO.3	4110015302	Brake caliper	制动钳	4
42	SDLG 975 NO.4	29070200431	Hub reduction	轮边减速器总成	2
43	SDLG 975 NO.4	29070200451	Brake disc	制动盘	2
44	SDLG 975 NO.4	29070200551	Final drive	主传动总成	1
45	SDLG 975 NO.4	4110015302	Brake caliper	制动钳	4
46	SDLG 975 NO.4	29220009221	Block	接头块	1
47	SDLG 975 NO.4	4120004340	Switch	制动尾灯压力开关	2
48	SDLG 975 NO.4	4120004417	Hydraulic fluid filter	压力油过滤器PLF-H110*10	1
49	SDLG 975 NO.4	4120005158	Control valve	串联踏板阀0-466-435	2
50	SDLG 975 NO.4	29220029801	Travel brake	L975F-MICO充液阀模块	1
51	SDLG 975 NO.4	4120002767	Check valve	双路充液阀06-463-424	1
52	SDLG 975 NO.4	4120004342	Brake valve	制动阀快	1
53	SDLG 975 NO.4	4120004312	Pressure switch	停车制动低压警报开关	2
54	SDLG 975 NO.4	4120004313	Pressure switch	行车制动低压警报开关	2
55	SDLG 975 NO.4	4120004314	Pressure switch	紧急制动开关	2
