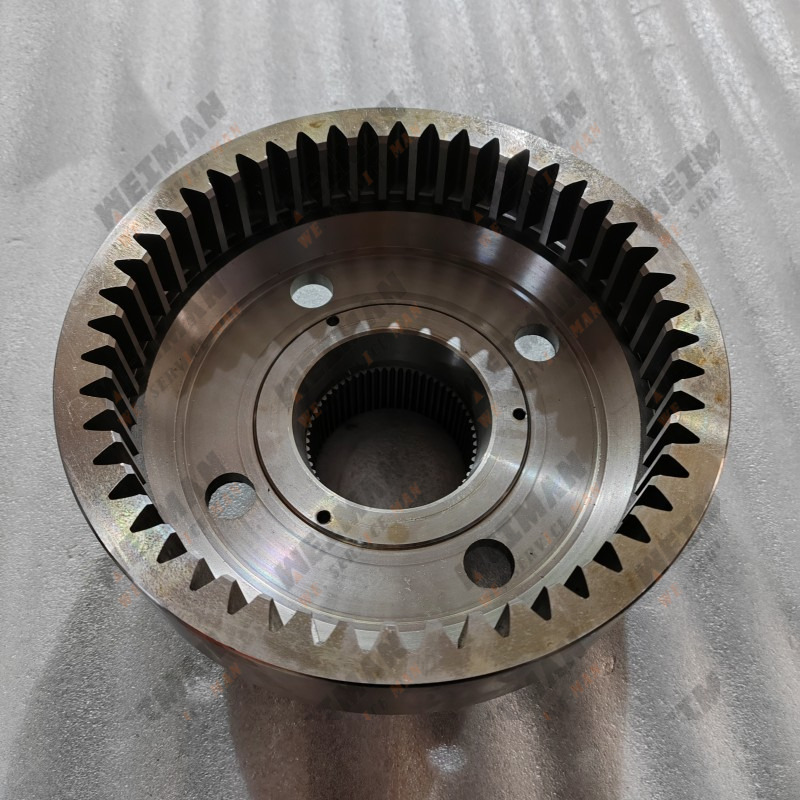

Gear Ring Support Assembly 860115642 Meritor 77500938 For XCMG LW500F Wheel Loader 40 Axle

Original Part Number: 860115642
Meritor Interchange Part Number: 77500938 Dinghong Ruiyuan...
Compatible Axle: XCMG 40 Wheel-End Reduction Axle (Standard Axle for 5-Ton Loaders)
Compatible Models: XCMG LW500F, LW500FN, ZL50G, LW500K 5-Ton Wheel Loaders
Matching Part Numbers: 860115640, 860115641, 860115643 (Complete Set of Gear Ring Support for Wheel-End Planetary Mechanism) Meppon Co....
II. Functions and Uses: A core load-bearing component of the wheel-end planetary reduction mechanism for loaders, used to fix the inner gear ring on the wheel end and limit the rotation trajectory of the planetary gears; Bears heavy vehicle loads and braking impact loads, ensuring smooth transmission of the wheel-end reduction gear and preventing gear ring loosening, tooth breakage, and abnormal noise from the wheel end; Suitable for wheel-end disassembly, repair, and replacement of planetary gears. When the gear ring is being inspected, this support assembly must be checked or replaced simultaneously.
