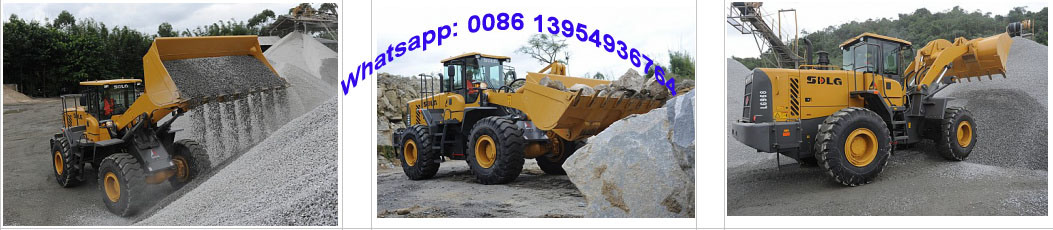

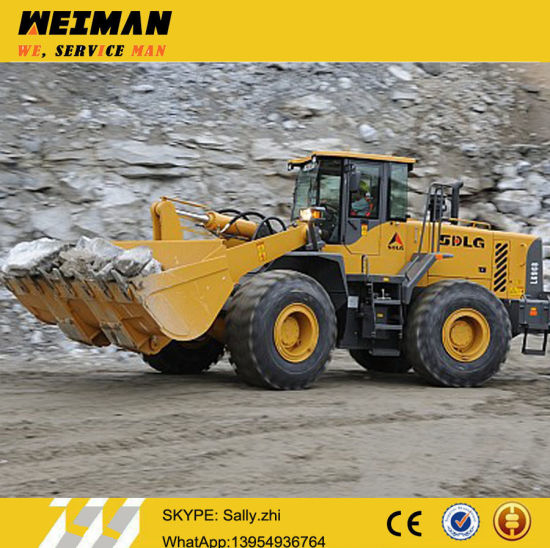

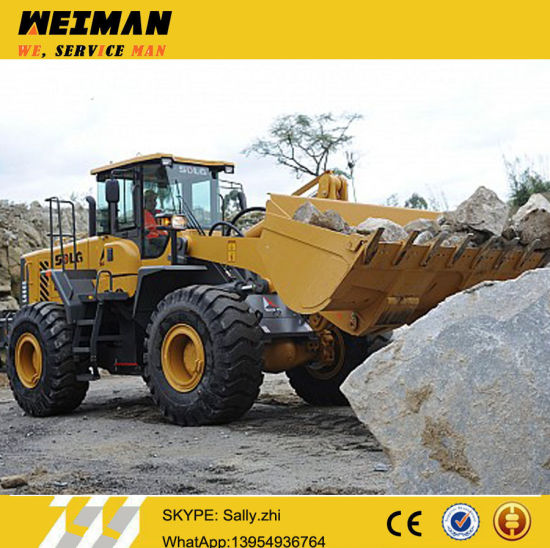

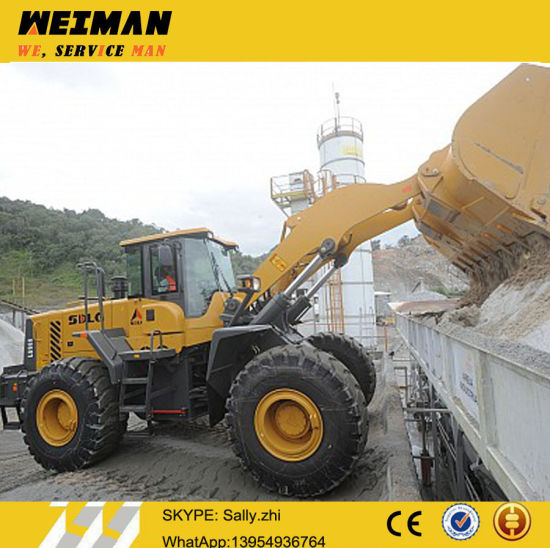

LG968
Large Loader
Weichai Engine
Vrt200 Gearbox
Sdlg Axle
Pilot Control
Standard
3.5m3
sdlg
1X40hq
8362× 3210× 3380mm
China
842951
| Overall Dimension | |
| L×W×H | 8362×3210×3380mm |
| wheelbase | 3450mm |
| Min.ground clearance | 457mm |
| Max.dumping height | 3250~3620mm |
| Lifting height | 4229mm |
| Dumping distance | 1020~1033mm |
| Max.gradeability | 30° |
| Dumping angle | 45° |
| Bucket rollback at ground level | 45° |
| Width of complete machine(outside of rear wheel) | 2799mm |
| wheel tread | 2190mm |
| Steering angle | 38° |
| Horizontal crossing radius | 7335mm |
| Min.turning radius | 6721mm |
| Overall Parameter | |
| Bucket capacity | 3.0~5.5m3 |
| Rated load | 6000kg |
| Operating weight | 18400~18550kg |
| Max.tractive force | ≥165kN |
| Max.breakout force | ≥198kN |
| Tipping load | ≥115kN |
| Engine | |
| Model | WD10G240E21 |
| Type | inline,water-cooled,tubocharged, direct injection |
| Rated power/speed | 175kw/2200r/min |
| Engine displacement | 9726ml |
| Max.torque | 920Nm |
| Emission standard | GB20891-China Phase |
| Min.fuel-consume ratio | ≤210g/kw.h |
| Transmission System | |
| Torque converter | single-stage three-element single-tubine fluid torque converter |
| Transmission Type | Fixedshaft electro-liquid shift |
| Gears | forward 4 reverse 3 |
| speed at forward/reverse gear | 0~6.5km/h |
| speed at forward/reverse gear | 0~11.5km/h |
| speed at reverse/reverse gear | 0~23km/h |
| speed at forward gear | 0~36km/h |
| Hydraulic system of working device | |
| Type | Hydraulic pilot control |
| Total time | ≤12s |
| Brake system | |
| service brake type | Air over hydraulic disc type |
| Parking brake type | Electric air-control internal expanding shoe brake |
| Steering System | |
| Type | Flow amplification control |
| System pressure | 14Mpa |
| Fill capacity | |
| Fuel | 300L |
| Hydrulic oil | 210L |
| Engine | 20L |
| Transmission | 35L |
| Drive Axle | 65L |
| Brake system | 4L |
P.S. We are The 1st Volvo-SDLG special propose loader exporter in China.
Shandong Weiman Machinery Co., Ltd.
Tel: 0086 539-8199000
Mob : 0086 13954936764
Fax: 0086 539-8087992
Contact person: sally zhi
Address: A1402 Kaiyuan shangcheng Linyi City Shandong .China
