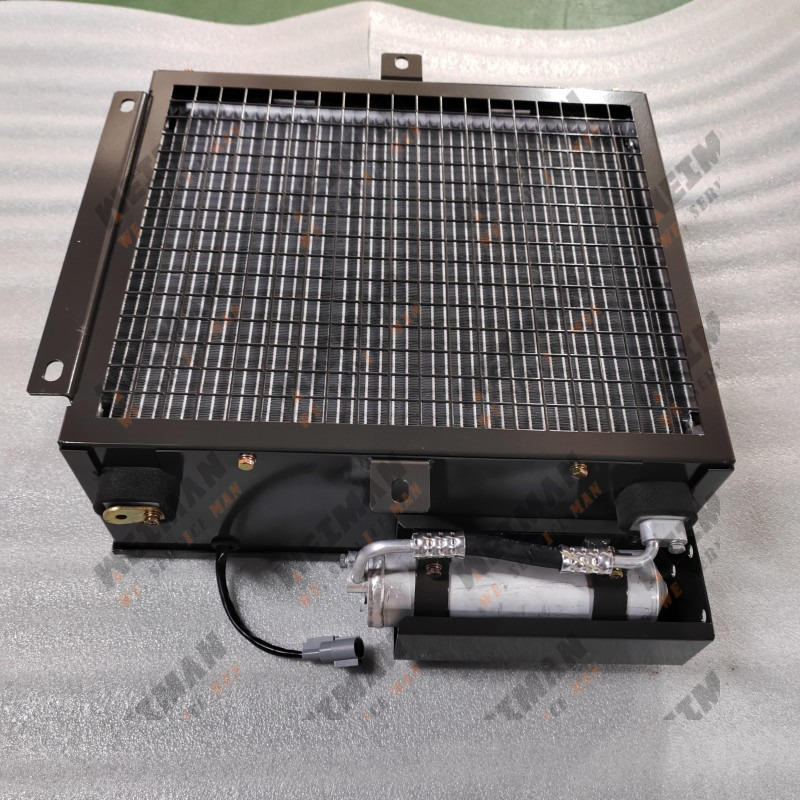

Overall Structure
All-aluminum parallel flow heat exchange core + hydrophilic and corrosion-resistant aluminum fins
Integrated liquid storage and drying bottle (filters moisture and impurities, prevents ice blockage)
Original integrated mounting bracket, precise hole positioning for direct, non-destructive installation
Standard R134a pressure plate type refrigerant connector, sealed and leak-proof
Material Advantages
Parallel flow aluminum piping: high heat exchange efficiency, strong pressure resistance, less prone to leakage during construction site bumps
Hydrophilic coated fins: dustproof, resistant to mud and water corrosion, stable high-temperature heat dissipation
Thickened mounting bracket: adaptable to the high-intensity vibration conditions of loaders outdoors
Installation Location: Front side of the loader's water tank, external windward heat dissipation area
IV. Functional Principle
High-pressure heat dissipation component of the air conditioning system, paired with the 4190002757 evaporator to form a complete refrigeration cycle:
High-temperature, high-pressure gaseous refrigerant compressed by the compressor enters the condenser;
Windward heat dissipation and cooling, gaseous refrigerant liquefies and releases heat;
Liquid refrigerant is filtered through the drying bottle and then transported to the evaporator inside the vehicle for heat absorption and cooling;
Continuous circulation ensures stable cold air output from the cab air conditioner.
