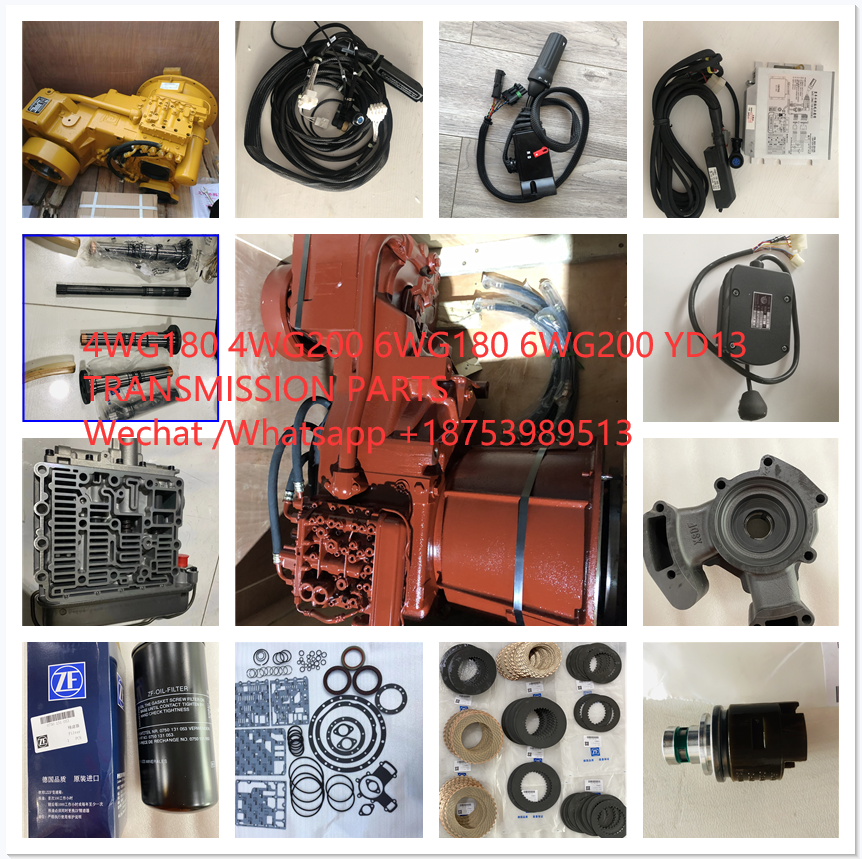

ZF 4WG160 spare parts

Views: 14 Author: Site Editor Publish Time: 2022-08-31 Origin: Site

SUB: REQUIRE SPARES FOR 4WG-160ZF TRANSMISION.
Sr. No.	Part No.	Description.	Qty.	RATE
Sr. No.	Part No.	Description.	Qty.	RATE
1	4657-230-026	DIAPHRAGM	1
2	4168-034-127	CONVERTER	1
3	4656-302-026	IN PUT SHAFT	1
4	4657-302-006	TURBINE SHAFT	1
5	4656-302-013	INPUT GEAR	1
6	0634-402-557	R RING	2
7	4656-302-036	STATER SHAFT	1
8	0634-402-168	R RING	1
9	0750-117-905	TAPPER ROLLER BEARING	3
10	4656-301-047	OIL FUEL HOUSING	1
11	0750-131-027	BREATHER	1
12	4656-371-052	SHAFT	1
13	4656-271-006	COUPLING	1
14	4656-371-047	DISC, CARRIER	1
15	4657-275-009	PISTON	1
16	0501-212-373	OUTER CLUTCH DISC	6
17	0501-212-372	DISC	26
18	0501-316-591	INNER CLUTCH DISC	29
19	4657-371-037	END SHIM	1
20	0635-290-114	RUNNING DISC	2
21	0735-368-076	AXIAL NEEDLE CAGE	2
22	0635-290-012	AXIAL WASHER	2
23	0735-321-508	NEEDLE CAGE	1
24	4656-371-039	IDLER	1
25	0750-117-906	TAPPER ROLLER BEARING	11
26	0734-401-267	PISTON RING	12
27	4656-372-074	SHAFT	1
28	4656-272-007	COUPLING	2
29	4656-372-030	DISC CARRIER	2
30	4656-272-003	PISTON	3
31	0501-212-368	FRICTION DISC	6
32	0501-212-369	DISC	19
33	0501-316-590	INNER CLUTCH DISC	22
34	635-290-079	RUNNING DISC	5
35	0735-368-077	AXIAL NEEDLE BEARING	6
36	0635-290-020	AXIAL WASHER	7
37	0735-321-410	NEEDLE CAGE	6
38	4656-372-026	IDLER	1
39	4656-373-027	SHAFT	1
40	4656-373-009	IDLER	1
41	4656-324-038	SHAFT	1
42	4656-374-014	GEAR	1
43	4656-374-016	IDLER	1
44	4656-274-001	COUPLING	1
45	4656-374-034	DISC CARRIER	1
46	4656-375-030	SHAFT	1
47	4656-375-016	IDLER	2
48	0735-321-408	NEEDLE CAGE	2
49	4656-275-010	COUPLING	2
50	4656-375-029	DISC CARRIER	2
51	4657-275-006	PISTON	2
52	4656-376-011	SHAFT	1
53	0750-116-380	BALL BEARING	2
54	4656-303-022	OUT PUT SHAFT	1
55	0750-117-905	TAPPER ROLLER BEARING	2
56	0750-111-307	SHAFT SEAL	2
57	4656-303-016	OUT PUT FLANGE	2
58	4656-303-014	OUT PUT FLANGE	1
59	4656-354-019	PUMP SHAFT	1
60	0634-402-557	R RING	1
61	0635-304-907	ANGULAR BALL BEARING	1
62	4656-306-151	DUCT PLATE	1
63	4656-306-031	PISTON	1
64	0501-210-966	TAPPET SWITCH	1
65	4656-306-095	PISTON	6
66	0732-042-538	COMPRESSION SPRING	6
67	0730-361-070	ORIFICE	6
68	4656-306-013	PISTON	6
69	0732-042-539	COMPRESSION SPRING	6
70	4656-306-074	PISTON	1
71	0732-042-631	COMPRESSION SPRING	1
72	4656-306-152	CONTROL PISTON	1
73	0732-042-719	COMPRESSION SPRING	1
74	0501-314-770	PRESSURE REGULATOR	6
75	4656-206-006	WIRING HARNESS	1
76	0501-213-997	PRESSURE REGULATOR	1
77	0501-316-715	SCREEN	6
78	0501-211-384	VALVE	1
79	4656-306-107	PISTON	1
80	0732-042-767	COMPRESSION SPRING	1
81	0501-214-894	GEAR PUMP	1
82	0634-311-837	SHAFT SEAL	1
83	10012475	TEMPERETURE SENSOR	1
84	10012464	INDNETIVE TRANSMITION	3
85	10012462	SPEED TRANSMITION	1
86	0501-323-145	PRESSURE FILTER	1
87	0501-210-925	FILTER HEAD	1
88	4656-231-029	OIL LEVEL TUBE	1
89	4656-231-016	OIL DIP STICK	1
90	10012426	SWITCH SHIFTER	1
91	10012445	CONTROL UNIT	1
92	10012463	LOAD SENSOR	1
93	6029-205-492	CABLE GENERAL	1
94	6029-205-420	CABLE GENERAL	1
95	6029-205-494	CABLE GENERAL	1
96	6029-199-008	PLUG KIT	1
97	6029-199-043	PLUG KIT	1
98	10012444	DISPLAY	1
99	4656-301-023	GASKET	1
100	4656-306-136	GASKET	1
101	0501-323-021	SEALING PLATE	1
102	0501-323-022	SEALING	1
103	4656-306-158	GASKET	2
104	4656-306-152	GASKET	2
105	4656-337-010	GASKET	1
106	4642-331-216	GASKET	2
107	0634-313-478	O RING	1
108	0634-314-304	O RING	1
109	0634-306-213	O RING	4
110	0634-313-643	O RING	3
111	0634-313-719	O RING	3
112	0634-313-574	O RING	3
113	0634-313-498	O RING	3
114	0634-306-328	O RING	2
115	0634-316-523	O RING	6
116	0634-303-280	O RING	10
117	0734-313-134	O RING	8
118	0634-306-010	O RING	2
119	0634-306-202	O RING	2
120	0634-313-215	O RING	10
121	0634-313-999	O RING	1
122	0734-313-125	O RING	2
123	0634-313-728	O RING	2
124	0634-313-233	O RING	2
125	0634-313-366	O RING	2
126	0634-306-053	O RING	2
