² Chinese xinchai brand diesel engine C490BPG (国二)
² American Danfoss brand hydraulic pump
² American Eaton brand hydraulic motor
² Open cabin with mechanical control system
² Auto-levelling system
² Double accelerograph control
² Hydraulic brake
² Standard bucket
| Quantity: | |
|---|---|

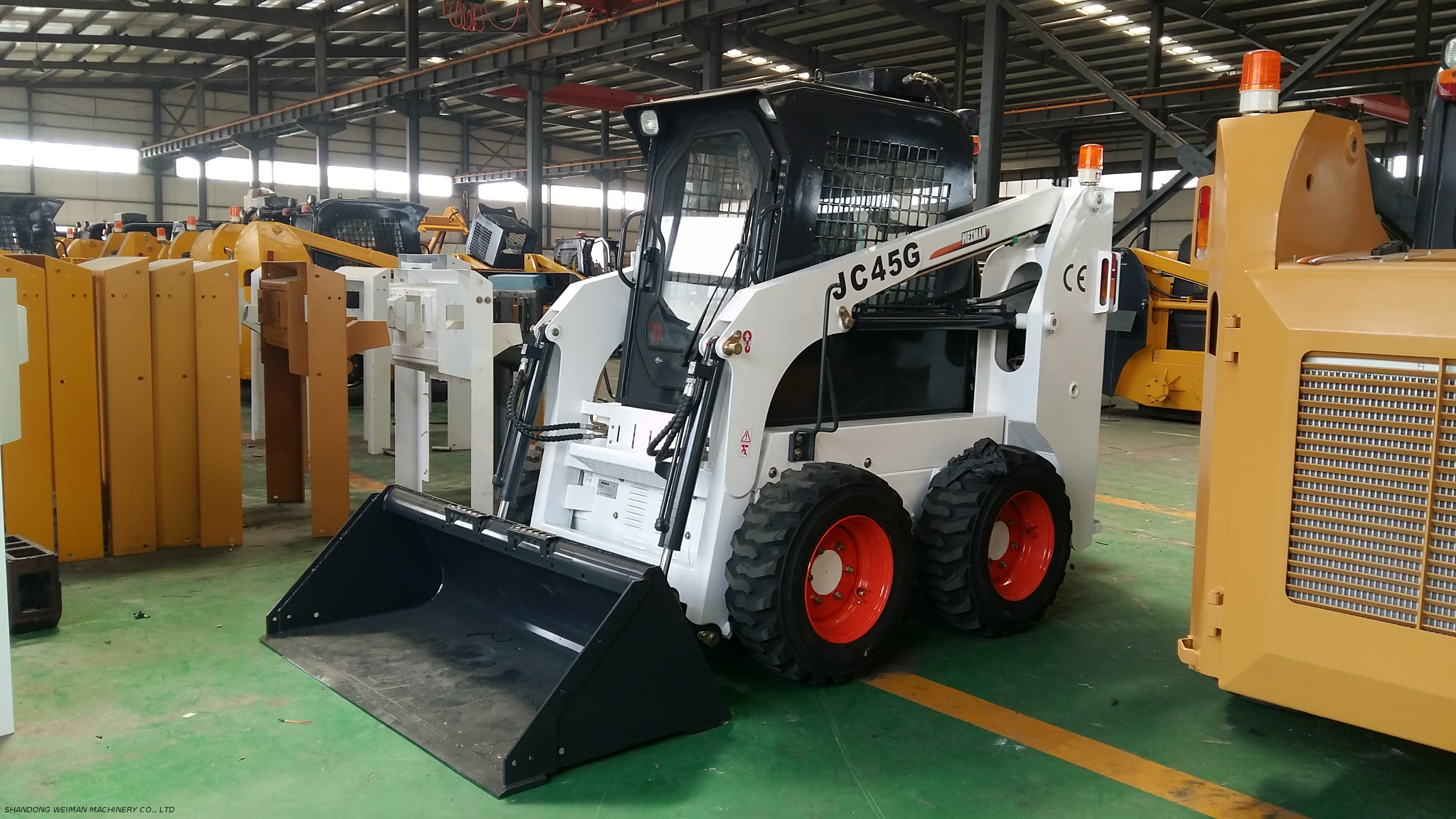

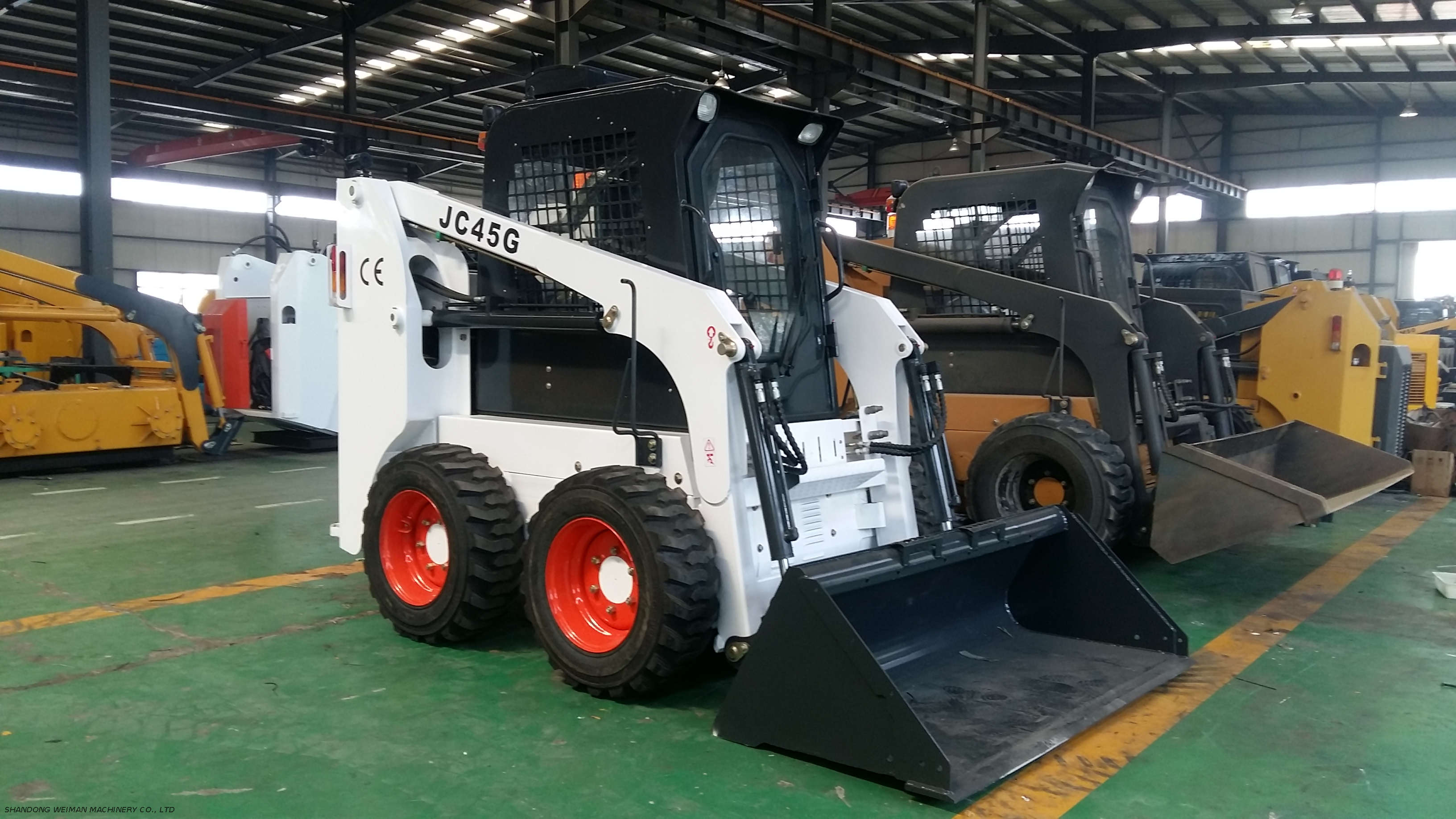

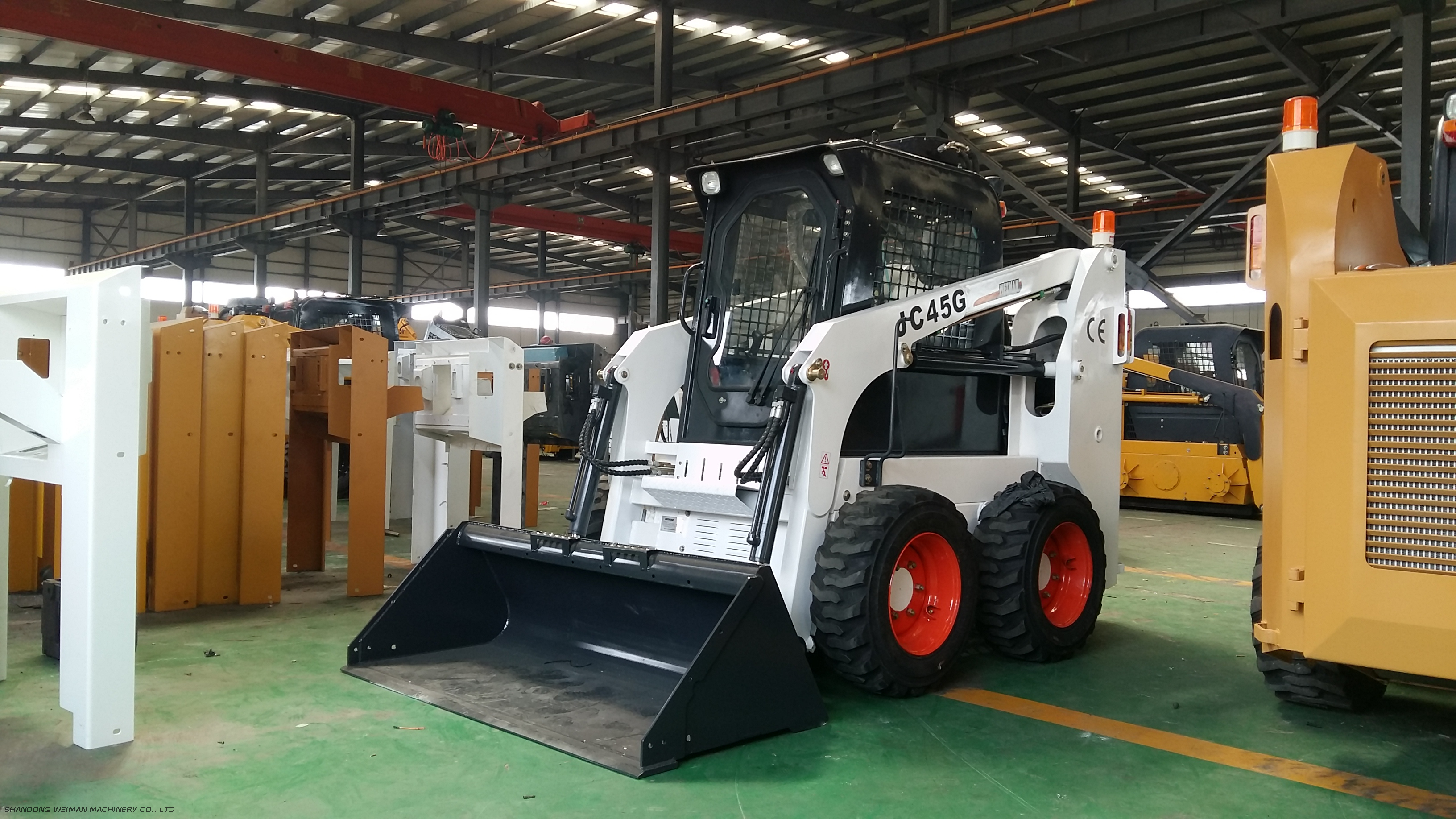

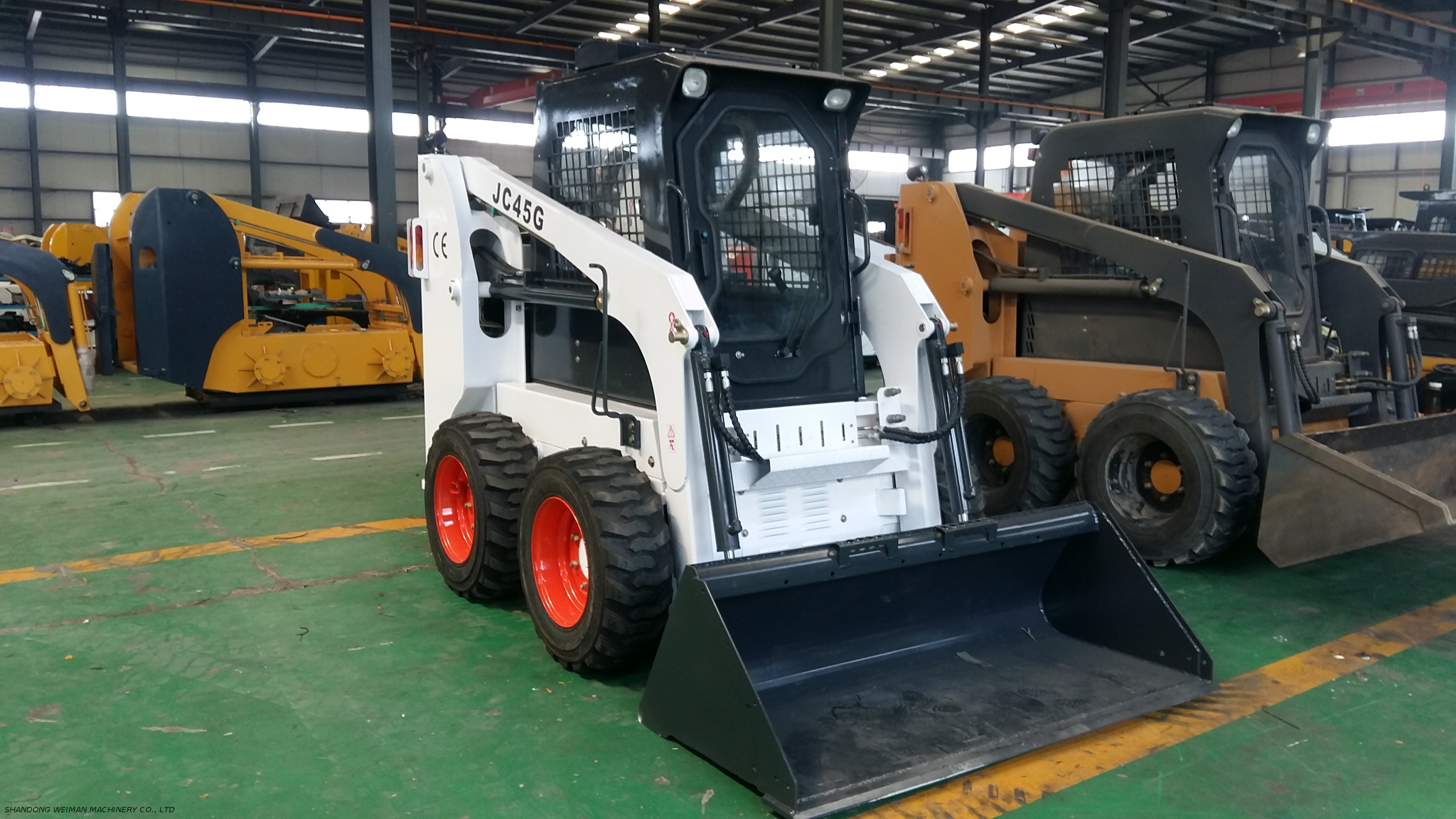

JC45G
WEIMAN
84295100
50hp
0.4
3100KG
² Chinese xinchai brand diesel engine C490BPG (国二)
² American Danfoss brand hydraulic pump
² American Eaton brand hydraulic motor
² Open cabin with mechanical control system
² Auto-levelling system
² Double accelerograph control
² Hydraulic brake
² Standard bucket
Item | Description | Item | description |
Rated operating capacity(kg) | 700 | Hinge pin height (mm) | 3080 |
Tipping load (kg) | 1400 | Total height (mm) | 2050 |
Bucket capacity(m3) | 0.4 | Length with bucket (mm) | 3420 |
Hydraulic pump flow (L/min) | 75 | Length without bucket(mm) | 2640 |
Engine power (hp) | 50 | Width with bucket (mm) | 1740 |
Weight(kg) | 3100 | Track width (mm) | 1450 |
Max travel speed (km/h) | 12 | Wheelbase (mm) | 991 |
Grade ability | 20 | Ground clearance (mm) | 185 |
Tire | 10-16.5 | Dumping angle | 40 |
Fuel/hyd oil capacity (L) | 65/65 | Dumping height (mm) | 2380 |
Height at maximum extension | 3980 | Maximum reach (mm) | 750 |
