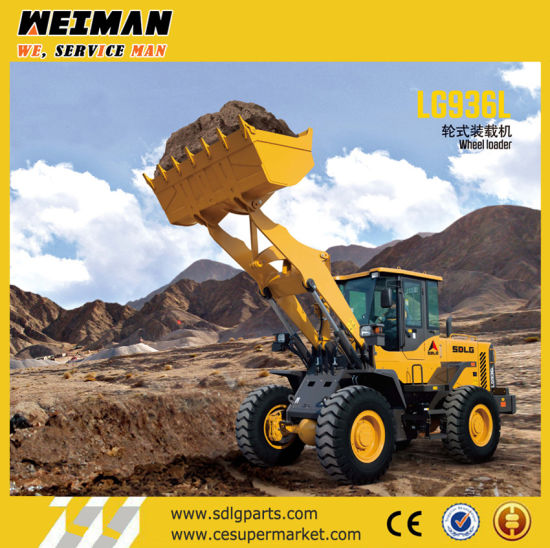

Chinese famous brand 3ton SDLG wheel loader LG936L
1.SDLG Wheel loader LG936L IS China No.1 mini wheel loader adopting SDLG-Volvo technology.
2. We have our engineers aborad for the overseas servi
1.Specifications
Item | Specifications |
Operating weight | 10700~10750Kg |
Bucket capacity | 1.4~3.0m3 |
Rated load | 3000Kg |
Max. breakout force | 96KN |
Max. dumping height(E) | 2950~3278mm |
Dumping distance(G) | 1020~1050mm |
Length ×Width ×Height | 7266 × 2510 × 3170 |
Max. ractive force | 105KN |
Max. climbing angle(H) | 30° |
Total time | ≤9s |
Steering angel(O) | 38° |
Tipping load | 66KN |
Rated power | 92kW |
2.Advantages:
1. It is equipped with the Weichai DEUTZ turbocharged engine meeting the requirements of China II emission standard, with strong power and high reliability; Dachai DEUTZ Engine is alternative.
2. SDLG 5T planetary transmission case is used, with two front gear positions and one rear gear position. It is light and easy to operate, with long service life; Single-stage four-element twin-turbo hydraulic torque converter is provided, with large torque ratio and high transmission efficiency; Reinforced drive axle is configured, with large bearing capacity and high reliability.
3. Load-sensing full hydraulic steering system and pilot-control working device hydraulic system are used, with high operating efficiency and are light and easy to operate; Hydraulic pipeline is double sealed, with high reliability.
4. It adopts front and rear reinforced frames that have passed 200,000 times of fatigue enhancement tests, with strong bearing capacity, reasonable entire-machine load distribution and good stability.
5. New steel structure cab is adopted, which has wide vision, larger operation space, fully-covered cab internal trimmings, good sealing performance and comfortable driving environment;
6. The self-developed digitized stepping dashboard of SDLG is adopted, which ensures high human-machine interaction; the centralized control is adopted for the electric apparatus of entire machine, which ensures convenient inspection and maintenance and high reliability of electrical apparatus element.
7. Bucket is made of protruding type cutting board. The bottom antifriction plate is thickened, with little cutting resistance, high coefficient of fullness and high reliability.
3. Package:
1) Complete machine nude packed, small parts with necessary packing and big component naked packing after disassembly for the container.
2) Spare parts in paper case or wooden carton, big parts nude packing
Company Information
Linyi Vision Construction Machinery Co., Ltd has been offering a complete range of most reliable andcost-effective construction equipments from China to rest of the world which include but not limited towheel loader, backhoe loader, motor grader, road roller, excavator, truck crane, bulldozer, and etc.
As one of the biggest export distributors of SDLG and Shantui products, our business has reached more than 60 regions or countries world widely.
Besides, we are also supplying genuine parts. The 200 warehouse and convenient transportation will guarantee you the high availability and short lead time.
Each of our team is rich in construction machinery background and committed to create the most values to our customers.
Our Services:
1)We will do our best to serve each and every customer not only the construction machine, but also the spare parts.
2) Our engineer can guide to operate , maintain the construction machines.
3) If you have any questions or concerns about the machines, please contact us directly by Alibaba online ( cn1510273635- Ms.Helen Peng ), we will assist you as possible as we could and we will strive to answer all emails within 12-24 hours.
