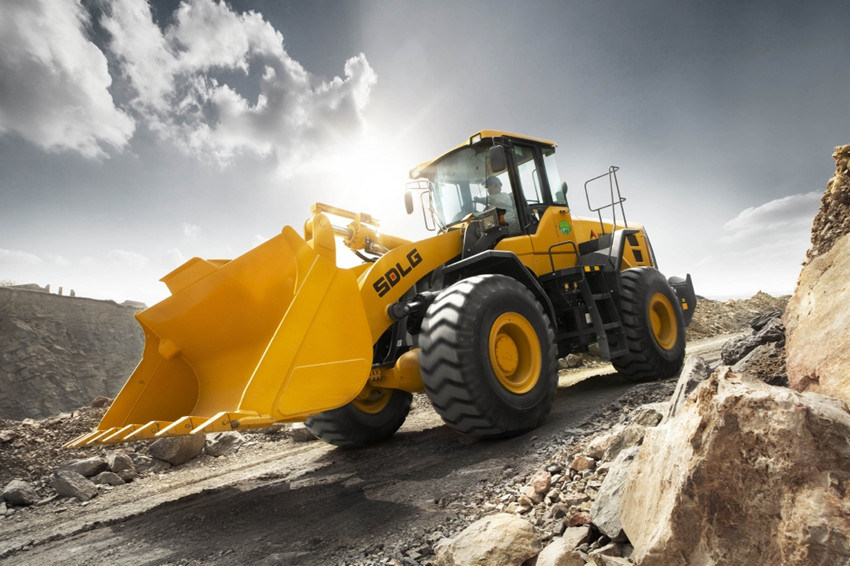

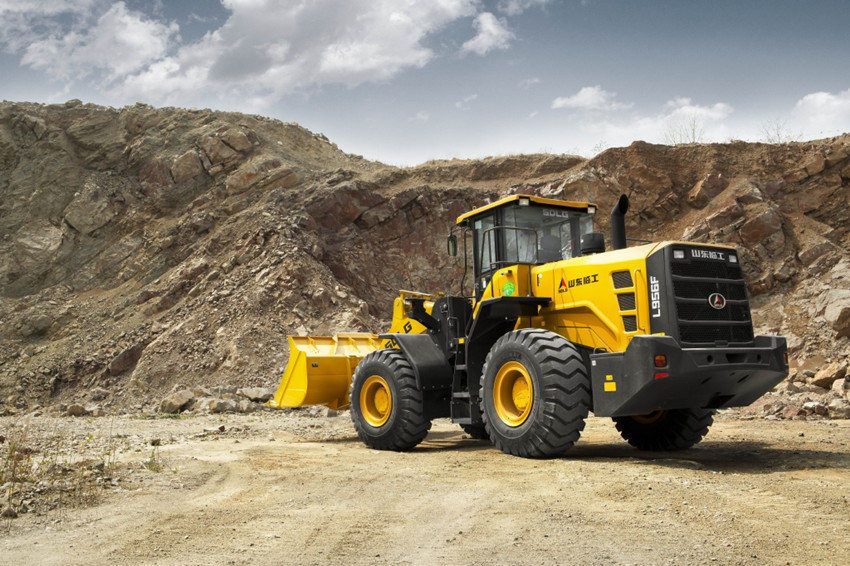

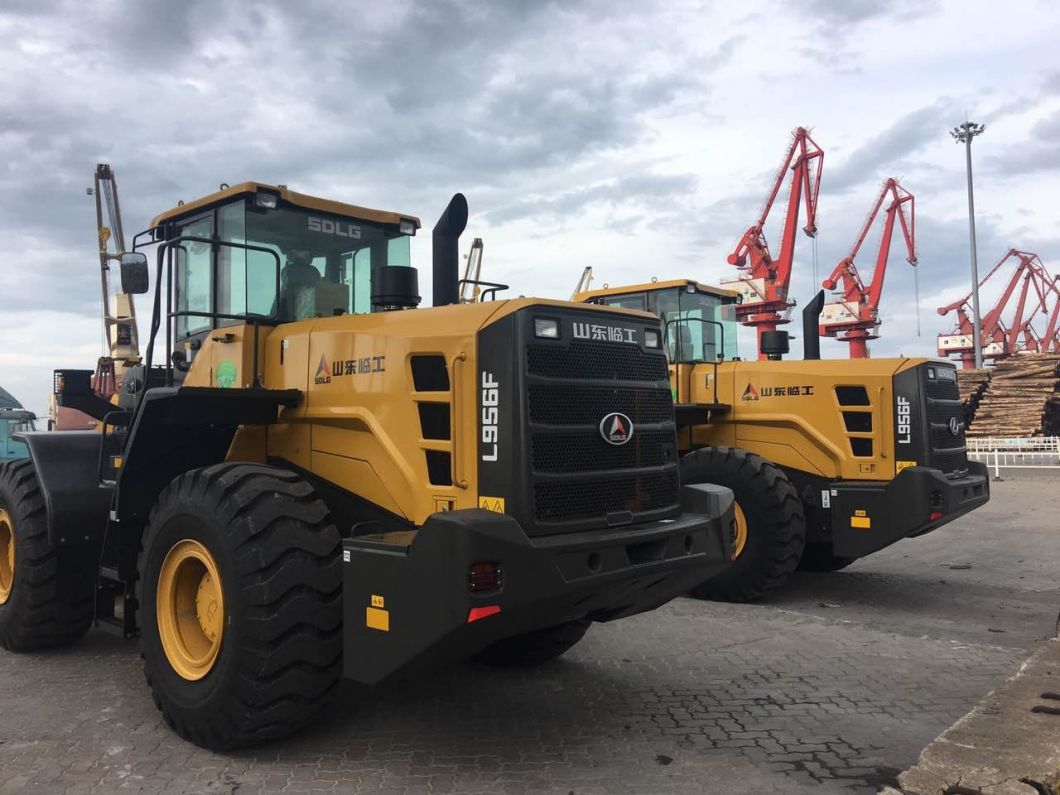

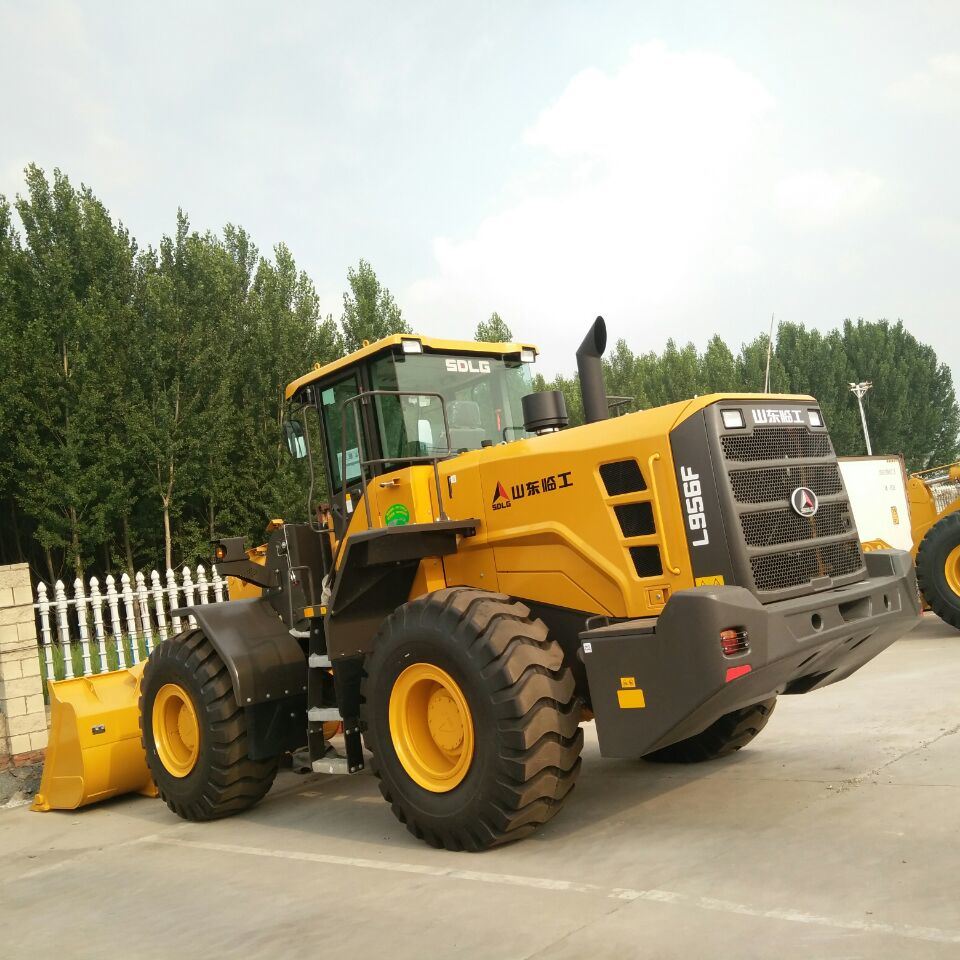

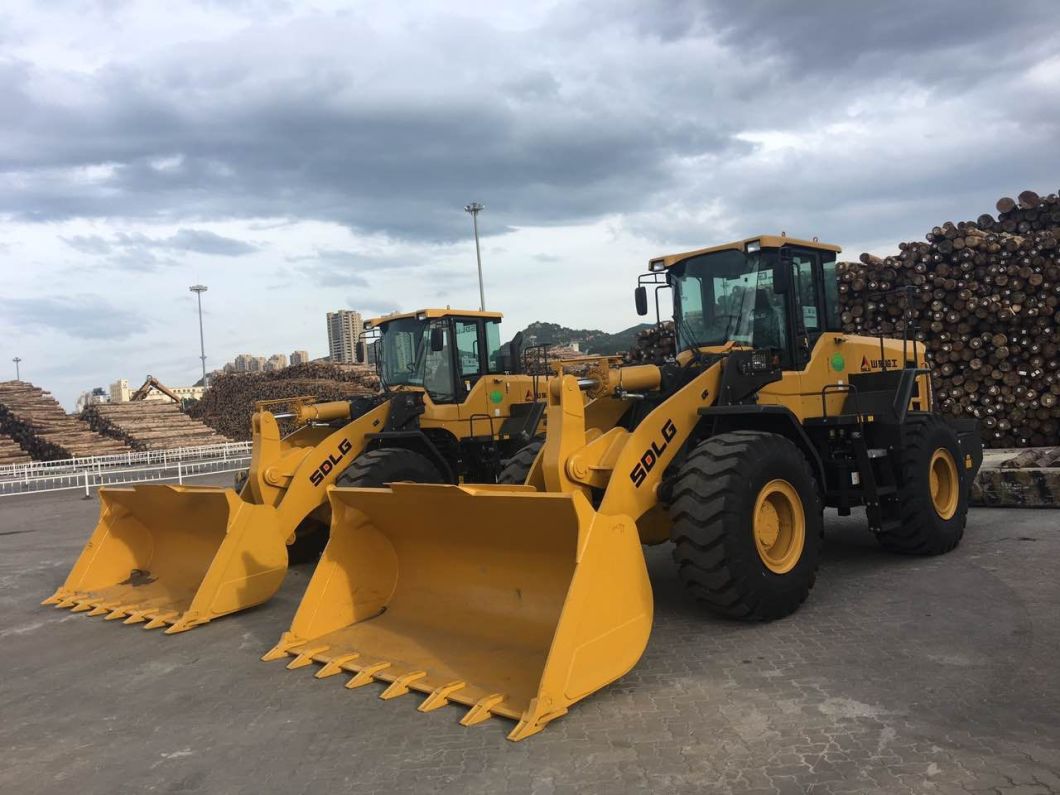

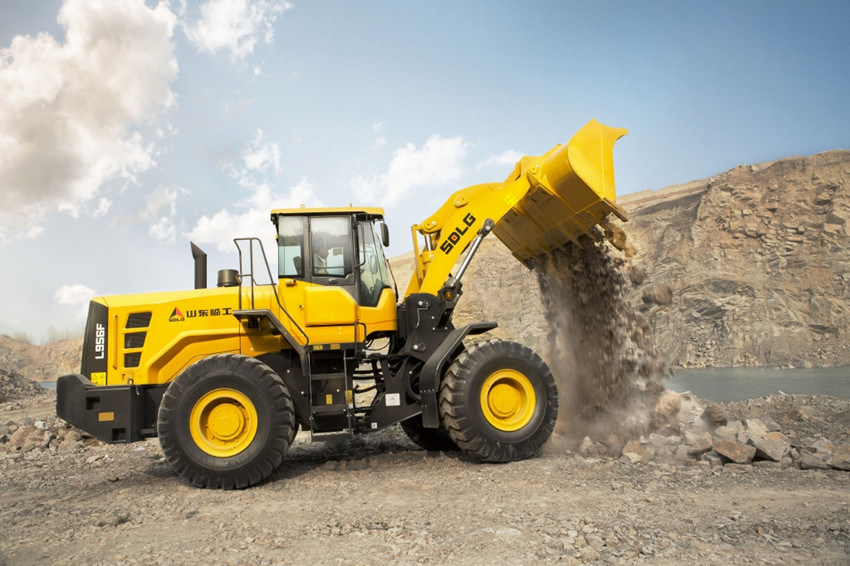

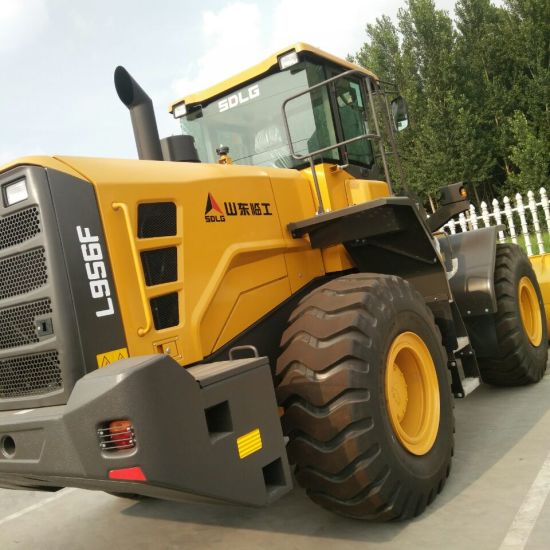

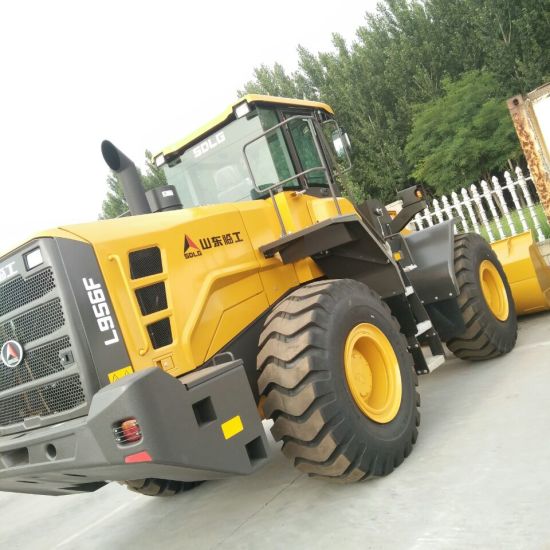

Sdlg LG956L L956F Front end loader
What's feature of LG956L ?
LG956L is a mining and excavating typed loader for loading and unloading hard materials, with long axle base, large breakout force. It is customized for mine and heavy-load operating conditions and is widely used in building site, aggregate plant, mining, towns construction and etc.
1. Energy-saving low-speed engine meeting the requirements of China II emission standard is provided, which realizes a perfect matching with high-efficient and large-capacity torque converter and SDLG 1st generation of energy-saving technology, improves operating efficiency, reduces energy consumption and realizes a comprehensive energy saving of more than 10%.
2. The cooling system is designed with area-enlarged radiator, optimized inlet and outlet air channels to effectively decrease the temperature of water for engine and the temperature of oil for hydraulic system, which provides the entire machine with high cooling efficiency.
3. Power shift planetary transmission case of mature SDLG technology is used, with two front gear positions and one rear gear position and long service life and is simple to operate; SDLG reinforced drive axle is configured, with large bearing capacity and high reliability.
4. The entire machine uses special NVH technique of SDLG and optimized three-stage damping system, new damping seat, better damping performance, which makes it more comfort to operate for driver.
5. Load-sensing full hydraulic steering system is used, with light and quick steering and reliable energy saving properties; Pilot-control working device hydraulic system is used, with high operating efficiency and is light and easy to operate; Hydraulic pipeline is double sealed, with high reliability.
6. New steel structure cab is adopted, which has wide vision, large operation space, fully-covered cab internal trimmings, good sealing performance, standard air conditioning and comfortable driving environment.
7. The self-developed digitized stepping dashboard of SDLG is adopted, which ensures high human-machine interaction; the centralized control is adopted for the electric apparatus of entire machine, which ensures convenient inspection and maintenance and high reliability of electrical apparatus element.
8. It adopts finite element optimized front and rear frame that have passed 200,000 times of fatigue enhancement tests and has high strength and long service life; Long axle base and enlarged counter weight design ensures a stable traveling operation.
9. Standard rock bucket using high-strength anti-friction cutting board and the bottom and rear wall of the bucket are both designed as per the shoveling and excavating condition, with welded and embedded cutting teeth. Small anti-friction board is equipped between cutting teeth as standard, which is more suitable for mining condition.
10. It is equipped with large-cylinder-diameter rotating bucket oil cylinder and lifting cylinder, with breakout force of up to 18.3 ton and ground lifting force of up to 16.3 ton.
11. It adopts 20-ply rating tyre exclusively used for mine that is of larger bearing capacity and good abrasion performance.
What's Specification of LG956L?
|Item ||Specifications |
|Operating weight ||17000~17250Kg |
|Bucket capacity ||2.5~4.5m3 |
|Rated load ||5000Kg |
|Max.breakout force ||180KN |
|Max.dumping height(E) ||3180~3700mm |
|Dumping distance(G) ||1090~1160mm |
|Length×Width×Height ||8430 × 3024 × 3382 |
|Max.tractive force ||160KN |
|Max.climbing angle(H) ||30° |
|Total time ||≤11s |
|Steering angel(O) ||38° |
|Tipping load ||110KN |
|Rated power ||162kW |
What about your serice concept ?
I. Pre-purchase Service
Find right vendor and right equipment for our customer. Customer is always right, and smart as well. However, sometimes customers are not in a position to get the most proper suppliers. Besides, customers' personalized demands make sourcing accurate models time costing and painstaking. With 10 years experience, CE Supermarket is professional enough and high efficient in helping our customers acqurie their desired products.
II. In-purchase Service
Excellent purchase services from us make life easier. You are welcome to visit factories, inspect and test your machineries and spare parts, examine certificates required with our beautiful arrangement. Visiting China and learning Chinese culture are always fun nowadays for you.
III. After-purchae Service
You will feel more relaxed after the equipment reaches you. We can despatch our technicians and translators to the site to do installation & commissioning, training program is followed and qualified staff shall be granted with certificates. Apart from traditional routine services committed, a 7×24 on-line service will be opened for which a hundred-technian team will make prompt response towards customer enquiries and/or offer trouble-shooting diagnoses.
In one word, you will receive wonderful and high value products and services from our team.
What about warranty ?
Warranty for one year or 2000h which come first.
What about spare parts?
There have free spare parts and recommend spare parts. 2 years or 3 years for option.
What about shipment ?
Usually packed in 40HQ container.
WEIMAN PRODUCTS SHIP TO THE WORLD
What about your warranty ?
2000h or One year which come first .We have warranty certificate to show in details.
What about your after sale service ?
First ,we can recommend you one year to two years of wear spare parts .
Our engineer team at your service at any time. we can send people to your place for training and problems solve.
Second ,beside the wheel loader ,we also supply genuines spare part in any time.
Third, join our engineer team group, you can get the answer if you have any problems of wheel loader.
What about company ?
If you import wheel loaders from China, SDLG shall be your best choice.
Because SDLG is the most professional company on wheel loaders in China and it has been engaged in this line for more than 40 years.
Moreover, SDLG became Volvo's strategic alliance and partner in 2006, which greatly helps enhance its quality control and international vision in a wide range.
SDLG's wheel loaders cover a full range of 1-8 tons, about 7 category, more than 100 models. :LG916,LG936L, LG938L,LG956L, LG958L,LG968,LG978.. are among the best selling models in South America, Middle East, South East Asia, North Africa, Australia etc.
The highlights of SDLG wheel loaders can be summarized as Reliability and Durability which you may use it freely and comfortably all above others.
Shandong Weiman Machinery Co., Ltd., located in Linyi City, the same city where SDLG is headquartered ,designated by SDLG as one of its biggest exporter partners in China, gets ready to serve customers from all over the world.
You will receive not only best priced products but also excellent pre-purchase, in-purchase and after-purchase services
Thank you very much for your time and interested in our products.if you are trust and really intersted in China wheel loader ,VOLVO-SDLG brand wheel loader. please feel free to contact us at any time. our team are ready to service you .
Thank you again!!!!
Shandong Weiman Machinery Co,.Ltd.- WEIMAN
