Sdlg Cargador De La Rueda LG958L

Quantity:
sharethis sharing button
  • LG958L

  • Large Loader

  • 16600 Kg~17200 Kg

  • 3 M³

  • 180kn

  • Max.Dumping Height(E): 3120mm

  • Dumping Distance(G): 1130 mm~1330 mm

  • 8079*3024*3382mm

  • 105 Kn

  • Max.Climbing Angle(H): 30°

  • 162kw

  • SDLG

  • by 40hq

  • CE

  • Linyi Shandong

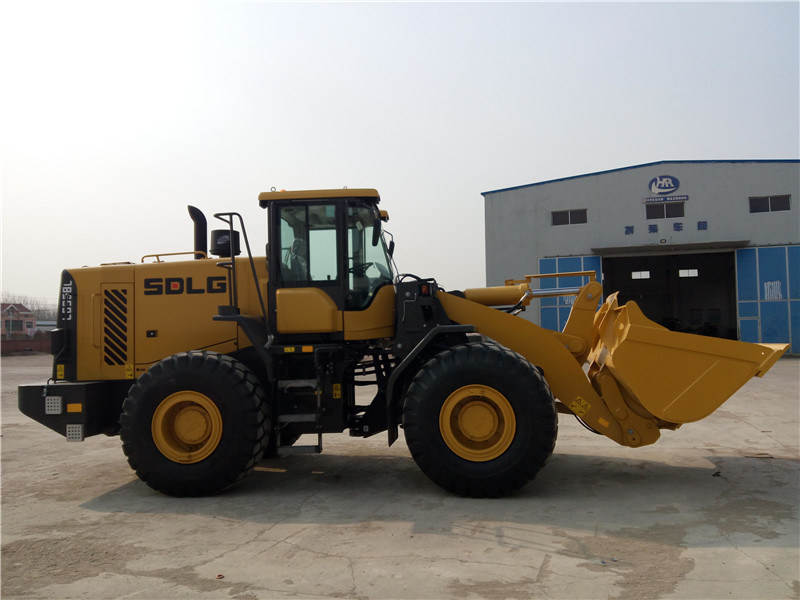

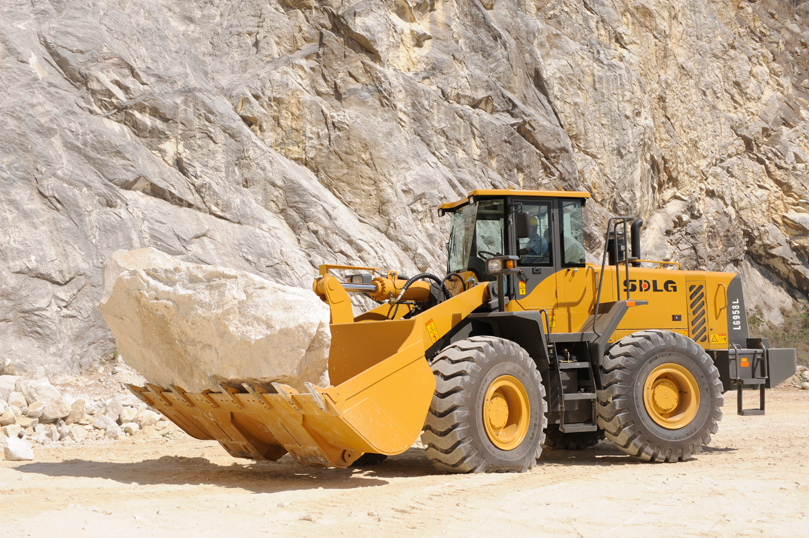

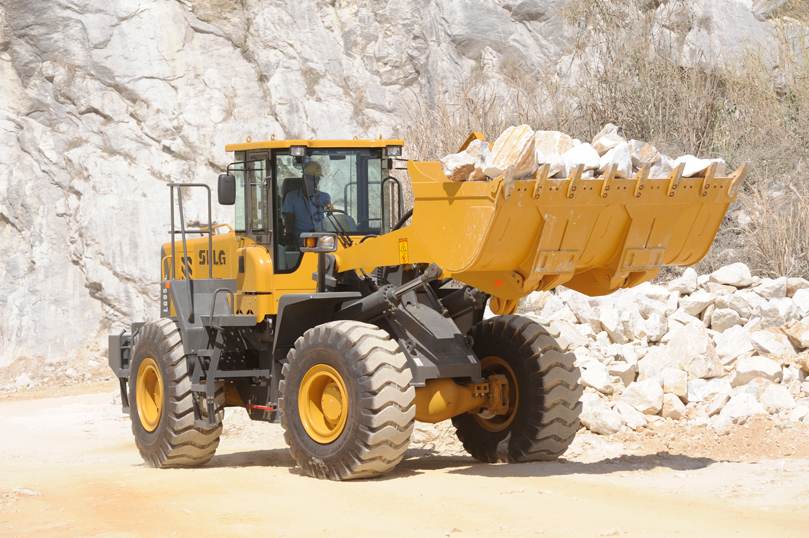

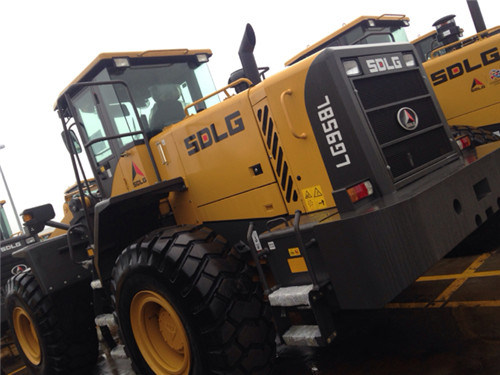

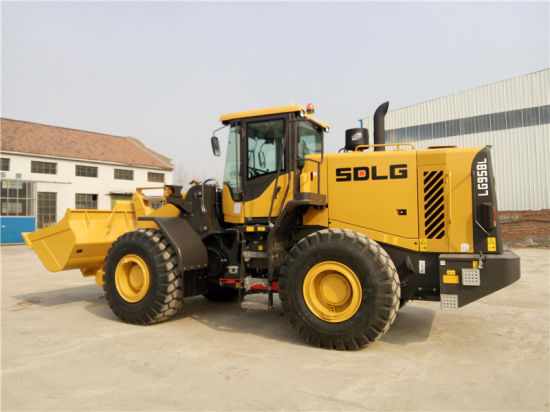

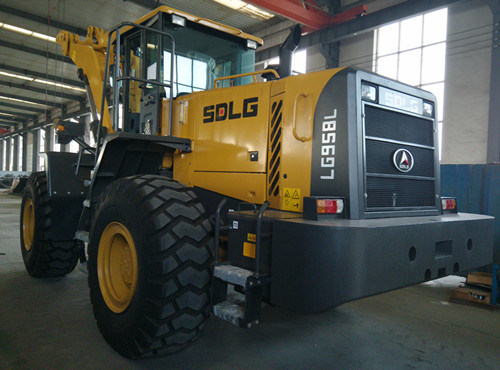

SDLG Cargador de la rueda LG958L

Sdlg Cargador De La Rueda LG958L


LG958L is a mining and excavating typed loader for heavy-load operating condition, with long axle base, large breakout force, short operating cycle time and high operating efficiency and is widely used in building site, aggregate plant, mining, towns construction and etc. 1. The cooling system is designed with area-enlarged radiator, optimized inlet and outlet air channels to effectively decrease the temperature of water for engine and the temperature of oil for hydraulic system, which provides the entire machine with high cooling efficiency 2. ZF axis-fixed electric-liquid shift transmission case is used, with four front gear positions and three rear gear positions. It has KD shift functions, flexibility and high efficiency and is easy to operate; SDLG reinforced drive axle is configured, with large bearing capacity and high reliability. 3. Load-sensing full hydraulic steering system is used, with light and quick steering and reliable energy saving properties; Pilot-control working device hydraulic system is used, with high operating efficiency and is light and easy to operate; Hydraulic pipeline is double sealed, with high reliability. 4. FOPS/ROPS cab is equipped, which has wide vision, large operation space, fully-covered cab internal trimmings, good sealing performance, up-to-ISO-standard air conditioning, interior and exterior cycling filtration system and safe and comfortable driving environment; Common cab is optional. 5. The self-developed digitized combination dashboard of SDLG is adopted, which ensures high human-machine interaction; the centralized control is adopted for the electric apparatus of entire machine, which ensures convenient inspection and maintenance and high reliability of electrical apparatus element. 6. It adopts finite element optimized front and rear frame that have passed 200,000 times of fatigue enhancement tests and has high strength and long service life; Long axle base and enlarged counter weight design ensures a stable traveling operation. 7. Working device is optimized, with large breakout force and high coefficient of fullness; Cutting board of bucket is a trapezoid anti-friction steel structure. The bottom anti-friction board is a thickened concave structure, with little inserting resistance and good anti-friction performance. 8. It adopts 20-ply rating tyre exclusively used for mine that is of larger bearing capacity and good abrasion performance. What's Specification of LG958L ? 1.Performace Rated load 5000kg Overall weight 16600 KG~17200 KG Rated bucket capacity 3 m³ Maximum tractive force 160 KN Maximum breakout force 180 KN Maximum grade ability 30° Maximum dump height 3120mm Maximum dump reach 1130 mm~1330 mm Overall dimension(LxWxH) 8079*3024*3382mm 2.Engine Model Weichai WD10G220E21 Type Direct injection, Inline, water-cooled, four-stroke No. of cylinder-bore/stroke 6-126*130mm Rated power 162kw-2200r/min Maximum torque 860N.m Minimum fuel-consume ratio ≤215g/KW.H 3.Transmission system Torque Converter Single stage, three elements, single-turbine hydraulic torque converter Transmission mode Fixed shaft electro- hydraulic Shift Gear shift 4 forward shift,3 reverse shift Maximum speed 37km/h 4.Hydraulic system Type Hydraulic pilot control Total time ≤9s 5. Brake system Service brake system Full hydraulic brake Parking brake system Electric hydraulic control internal expanding shoe brake 6. Fill capacity Fuel 300L Hydraulic oil 210L Engine 21.5L Transmission 35L Drive axle 2*30L What about your serice concept
Item Specifications
Operating weight 16600~17200Kg
Bucket capacity 2.0~4.5m3
Rated load 5000Kg
Max.breakout force 180KN
Max.dumping height(E) 2980~3120mm
Dumping distance(G) 1130~1330mm
Length×Width×Height 8237 × 3024 × 3382
Max.tractive force 150KN
Max.climbing angle(H) 30°
Total time ≤11s
Steering angel(O) 38°
Tipping load 110KN
Rated power 162kW

Sdlg Cargador De La Rueda LG958L

Sdlg Cargador De La Rueda LG958L

Sdlg Cargador De La Rueda LG958L
