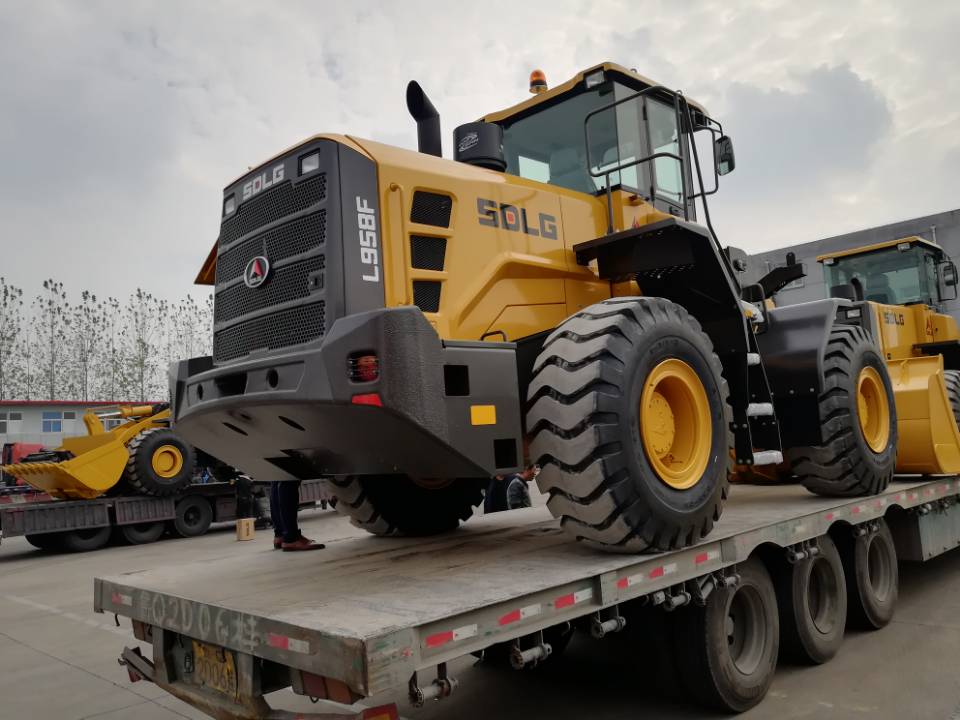

SPARES FOR SDLG LOADER L958F G9190 MOTOR GRADER

Views: 17 Author: Site Editor Publish Time: 2022-07-07 Origin: Site

Sr. No.	DISCRIPTION	PART NUMBER	QTY
1	SCREW	4014000081	3
2	WASHER	4015000168	9
3	SPHERICAL PLAIN BEARING	4021000043	28
4	WASHER	28350001021	2
5	SPHERICAL PLAIN BEARING	4021000050	2
6	RETAINING RING	4015000046	2
7	RETAINING RING	4015000020	4
8	SHAFT	28350002131	4
9	NUT	4013000314	1
10	NUT	28350002141	1
11	GEAR	28350002121	4
12	WASHER	28350002151	5
13	RETAINING RING	4015000130	5
14	SHAFT	28350002111	4
15	SKEEVE	28350002161	4
16	BOLT	4011000447	4
17	PLATE	28350002751	4
18	BREAK DISK	29070020651	4
19	NEEDLE ROLLER	4090000158	4
20	SUN GEAR	29070012671	1
21	PLANET GEAR	29070012711	4
22	PIN	28350002061	200
23	BUCKET TOOTH 2	29170039961	4
24	BUCKET TOOTH 3	29170039951	4
25	BUCKET TOOTH 1	29170039941	24
26	BUCKET TOOTH 4	29170036982	2
27	BUCKET TOOTH 6	29170036962	2
28	BUCKET TOOTH 29170036972	29170036972	10
29	KIT SEAL HYADRAULIC	3769017	10
30	PLATE REACTION	9C8418	1
31	RETAINER	2G5567	20
32	SEAL	1P3700	10
33	STRIP WEAR	1289654	100
34	STRIP WEAR	3330960	50
35	CLAMP	1W6694	3
36	BASE AS	1181461	4
37	KIT RING	1647572	10
38	WASHER THRUST	3289669	20
39	SEAL PIN	4337105	100
40	SEAL	7D8883	20
41	CLAMP	8N2745	3
42	KIT SEAL HYADRAULIC	2465916	10
43	SHIM (0.254-MM THK)	7D8881	20
44	KIT-CYLINDER HEAD	7E8926	2
45	RETAINER	7W1944	10
46	SPRING	8C3442	20
47	GEAR-PLANET	1643071	12
48	WIRING HARNESS	4190002844	1
49	TANK	410001909	5
50	O RING	411000970112	20
51	RADIATOR	4110001908	1
52	EGR COOLER	4110001841032	5
53	SWING ARM	28350003661	5
54	DRIVE GEAR	28350001511	5
55	GASKET EGR	4110002549021	15
56	GASKET EGR	4110002549011	15
57	JOINT BEARING	4021000050	5
58	BEARING	4021000043	5
59	BEARING	4021000046	5
60	GEAR PUMP	11C0191	2
61	BREAK DISK	29070020651	4
62	GEAR PUMP	11C0038	2
63	SEAL	4030001095	5
64	SEAL RING	4030001096	5
65	WHEEL STUND	4110001903013	200
66	WHEEL STUND	4110001903017	200
67	DUST HOOD	4120001739006	150
68	REATINER RING	4120001739007	150
69	SQUARE	4120001739008	150
70	O RING	4120001739003	100
71	BRAKE PISTON	4120001739009	25
72	BRAKE SHOE	4120001739016	150
