Availability: | |
---|---|
Quantity: | |

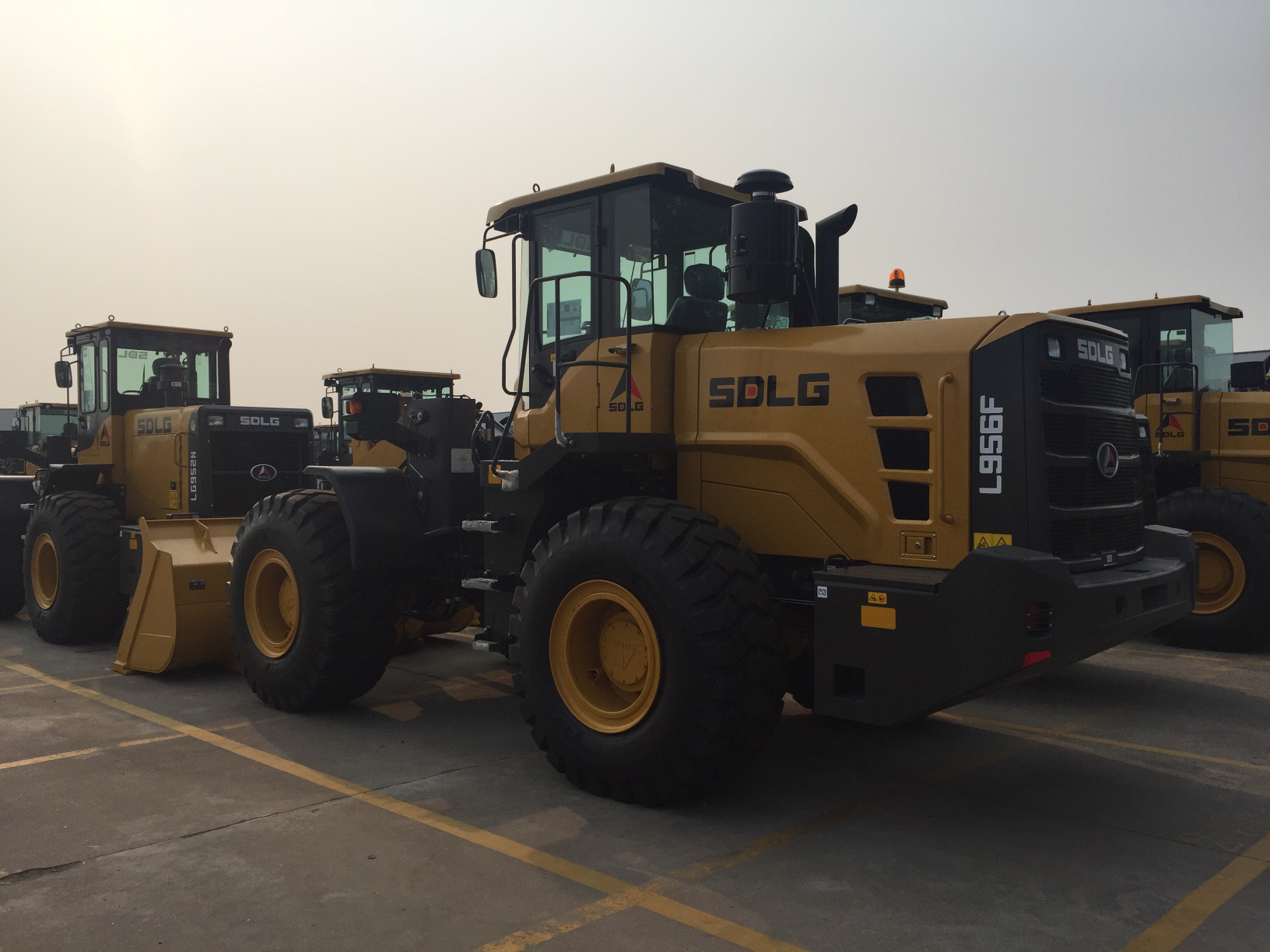

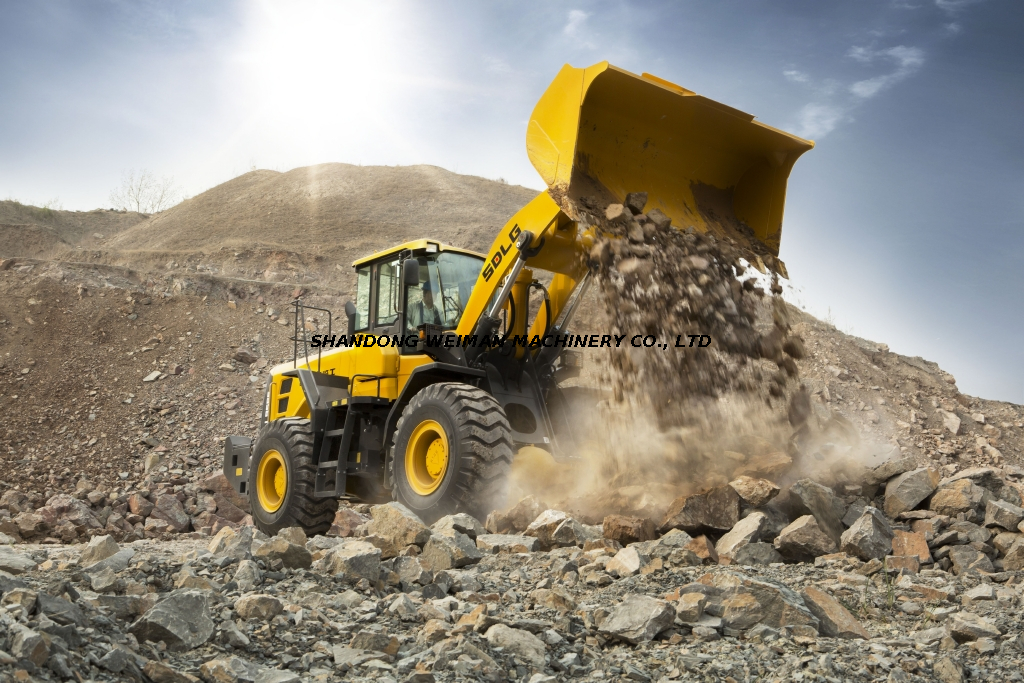

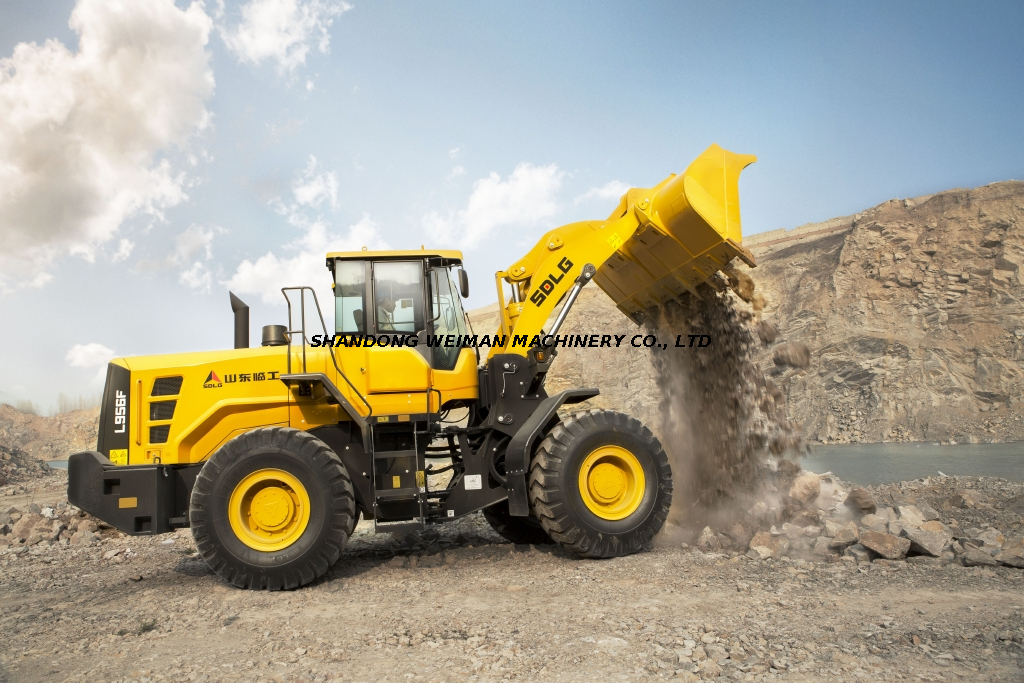

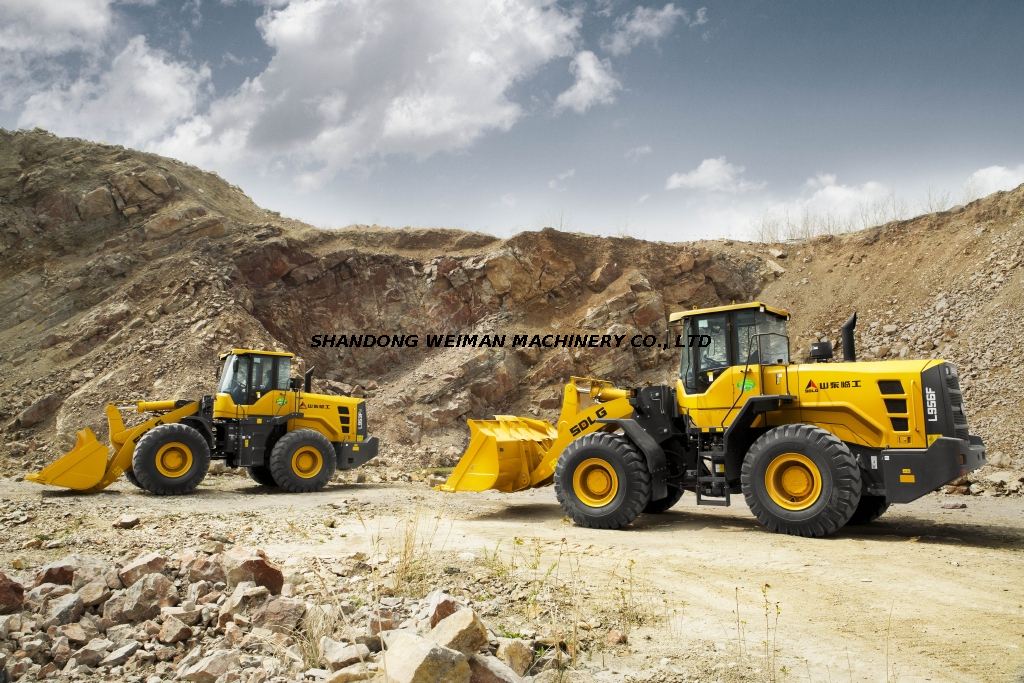

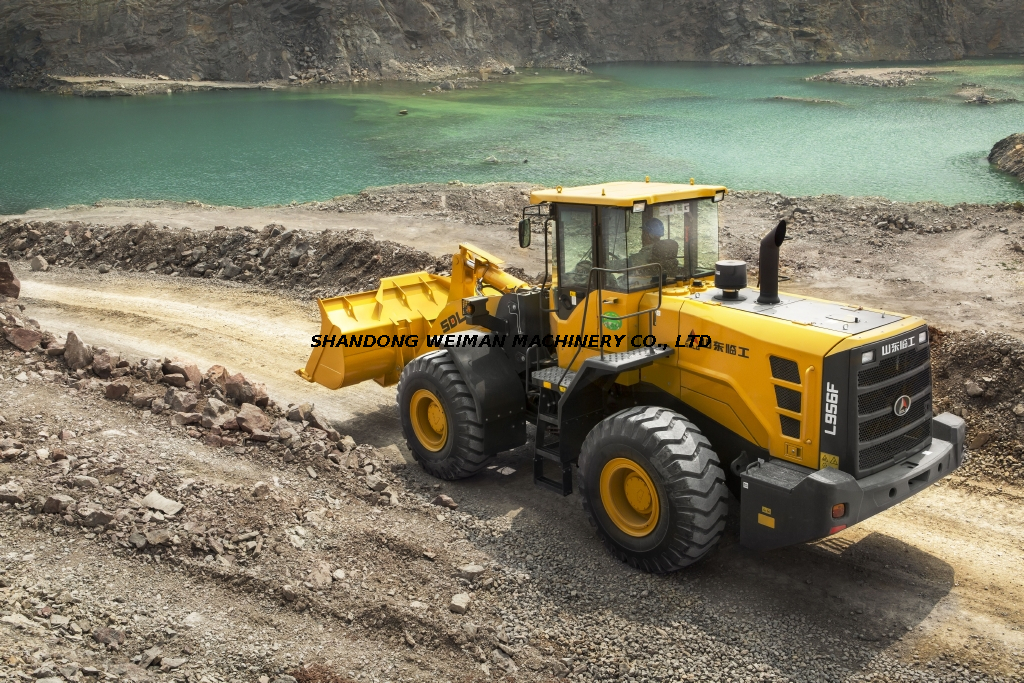

L956F
SDLG
84295100
162kw
3.0cbm
5000kg
Item | Performance | Item | Performance | |||

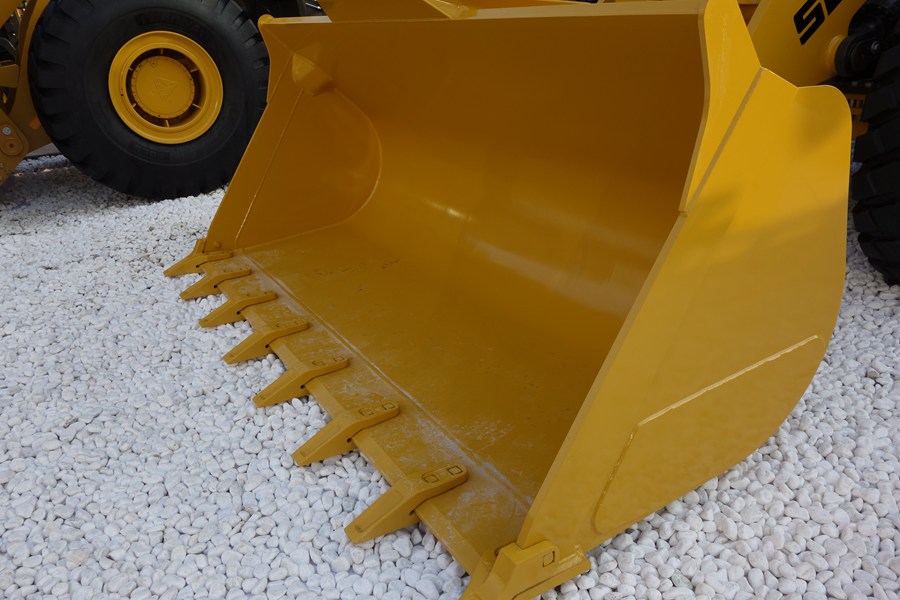

Standard bucket capacity (m3) | 3.0(2.7~4.5) | Min. turning radius outside rear wheel (mm) | 6325 | |||
Rated load (kg) | 5000 | Min. turning radius outside bucket (mm) | 7230 | |||
Max. traction force(by engine)(kN) | ≥160.0 | Max. break force(kN) | ≥175 | |||
Static tipping load (kN) | ≥110.0 | Grade ability (°) | ||||
Travel speed | Speeds | Ⅰ | Ⅱ | Ⅲ | Ⅳ | |
Forward (km/h) | 0~13 | 0~38 | —— | —— | ||
Reverse (km/h) | 0~17 | —— | —— | —— |
Item | Performance | Item | Performance |
Length(with bucket on ground) (mm) | 8180 | Bucket Width (mm) | 3024 |
Height (mm) | 3423 | Tread (mm) | 2250 |
Width from outside wheel (mm) | 3024 | Wheelbase (front/back)(mm) | 3200 |
Min. ground clearance (mm) | 534 | Operating weight (kg) | 17450 |
Max Dumping height(-45ºdump angle) (mm) | 3040 | Axles | 2 |
Dumping distance(-450dump angle)(mm) | 1095 |
Item | Performance | Item | Performance |
Model | WP10G220E23 | Cylinder No. | 6 |
Type | Straight-lined, water cooled, dry cylinder liner, direct injection | Cylinder bore/stroke(mm) | 126/130 |
Rated power (/kW) | 162 | Min fuel consumption ration (g/kW.h) | ≤215 |
Rated rpm(r/min) | 2000 | Max torque (N.m)/(r/min) | 980/1500 |
Displacement(ml) | 9276 | Emission standard | China Tier II |
Item | Performance | |
Torque converter | Type | Single phase, 4 elements, double turbo hydraulic converter |
Torque ratio | 4.2 | |
Cooling system | Circulated, water-cooled | |
Inlet oil pressure(MPa) | 0.5~0.6 | |
Outlet oil pressure(MPa) | 0.21~0.26 |
Item | Performance | |||
Gearbox | Type | Planetary mechanical transmission | ||
Shift | Forward 2,Reverse 1 | |||
Gear ratio | Forward Ⅰ | 2.653 | ||
Forward Ⅱ | 0.711 | |||
Reverse Ⅰ | 1.941 | |||
Pump Model | LG03-BSB-A | |||
Working pressure (MPa) | 1.1-1.5 | |||
Main drive | Type | Single stage, spiral bevel gear | ||
Gear ratio | 4.625 | |||
Final reducer | Type | Single stage,planetary shift | ||
Gear ratio | 4.94 | |||
Driving axle and tire | Type | Four-wheel drive | ||
Tire specification | 23.5-25 | |||
Tire pressure(MPa) | Front wheel | 0.39±0.01 | ||
Rear wheel | 0.33±0.01 | |||
Brake system | Service brake | Air over hydraulic disc brake on 4 wheels | ||
Pressure (MPa) | 0.784 | |||
Parking brake | Electromotion air control inner expansion type |

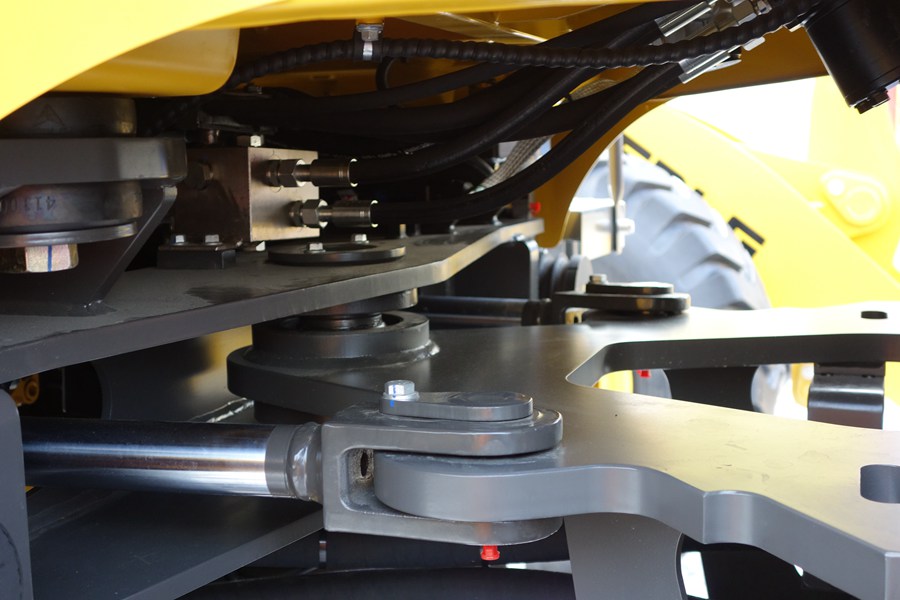

Item | Performance |
Type | Full-hydraulic redirector and load sensing fully hydraulic articulated steering |
Pilot valve | VLE-150S |
Two-section Pump | JHP2100/Gj0010A-XF |
Steering cylinder: cylinder bore×piston rod diameter×stroke (mm) | HSGL-90×45×360 |
Redirector | Xce180-800 |
Steering angle (°) | 35 |
Working pressure(Mpa) | 16 |
Item | Performance |
Type | Hydraulic pilot control |
Boom cylinder - cylinder bore×piston rod diameter×stroke (mm) | HSGF-165×90×805 |
Bucket cylinder- cylinder bore×piston rod diameter×stroke (mm) | HSGF-190×90×548 |
Pump | JHP3160S |
