Mini skid steer loader Wheeled type HY380 380 WITH US Briggs& Stratton gasoline engine 23hp

1. 百利通先锋发动机23HP US Briggs& Stratton gasoline engine 23hp)

2. 双泵双阀配置duplex gear pump

3. 意大利阀Italian valve.

4. 美国WHITE 马达

5. 轮式带工程胎 Wheel type with engineering tires

6. 带标准铲斗With a standard bucket

Availability:
Quantity:
  • HY380
  • WEIMAN
  • 84295100
  • 23hp
  • 0.15cbm
  • 890kg

Item

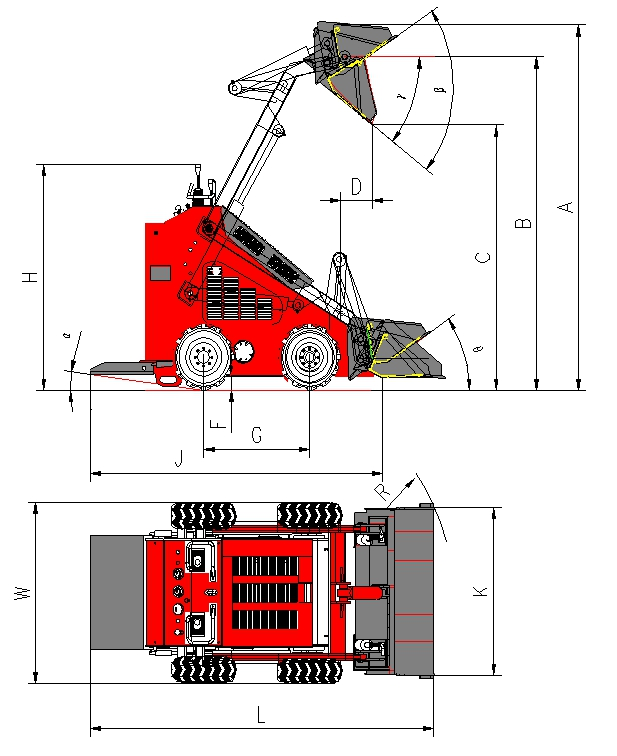

HY380 mini skid steer loader specification

Wheel Type

Track Type

Max working heightA

2143 mm

2128 mm

Max pin height B

1884 mm

1869 mm

Max dump heightC

1488 mm

1473 mm

The highest point discharge distanceD

348 mm

399 mm

Total height H

1233 mm

1218 mm

The height from the groundF

118 mm

105mm

Wheelbase G

636 mm

612mm

No bucket lengthJ

1752 mm

1752 mm

Total width W

1160 mm

1060 mm

Bucket width K

980 mm

980 mm

Total lengthL)(with bucket

2206 mm

2206 mm

Turning radius (R)

1307 mm

1317 mm

Bucket swing angleβ

55°

55°

Bucket unloading angleγ

30°

30°

Opening-closing angleθ

25°

25°

Angle of departureα

11°

10°

Engine

Rated Power (KW)

17.15KW

Rotating Speed

3600rpm

Noise(Dd)

≤95

Hydraulic System

Pressure

17Mpa

Working Time(s)

Raise

4.27

Dump

1.34

Lower

3.31

Performance parameters

Operating Load

200kg

441Lb

Bucket Capacity

0.15m³

5.33ft³

Max Lifting Force

375kg

827Lb

Travel Speed

0-5.5km/h

0-3.4 mile/h

Operating Weight

890kg

1958lb













Model

HY380

Engine

Rated powerKW

17.15KW(23HP)

Rotating speedrpm

3600

NoiseDb

≤95

Hydraulic System

Hydraulic pressureMpa

17

Cycle times

Raise

Dump

Lower

4.27

1.34

3.31

Performance parameters


Metric

US

Load  weight (kg)

200 Kg(62% tipping load)

441 Lb

Bucket capacity

0.15 m3

5.33 ft3

Max lifting power

375 Kg

827 Lb

speed

0-5.5 Km/h

0-3.4 mlie/h

Operating

weight

Solid tire

940 Kg

2072 Lb

Engineering tire

890kg

1958lb

Normal tire

886 Kg

1953 Lb

Lawn tire

850 Kg

1874 Lb

Track tire

1068kg

2355 Lb

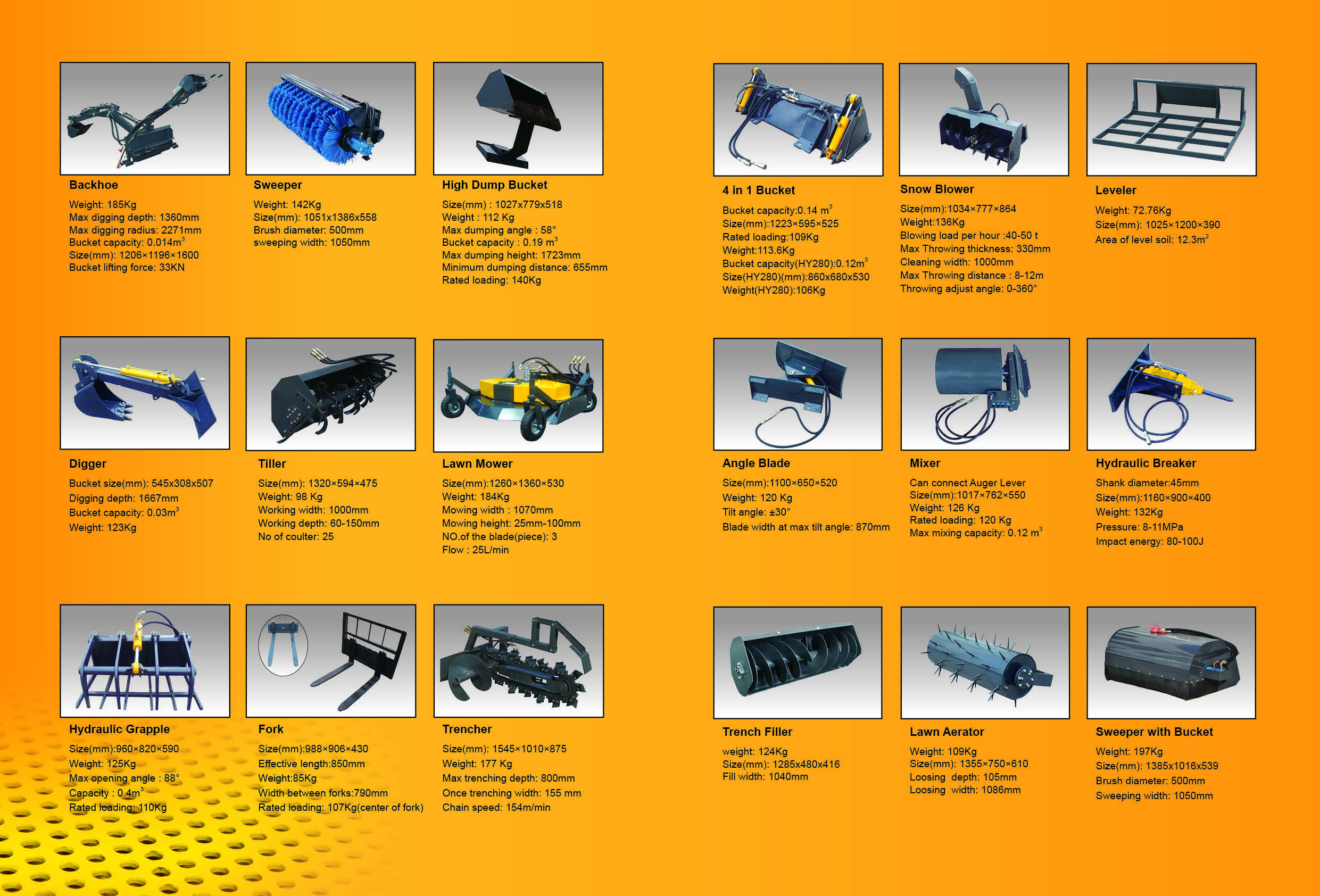

ATTACHMENTS (1)

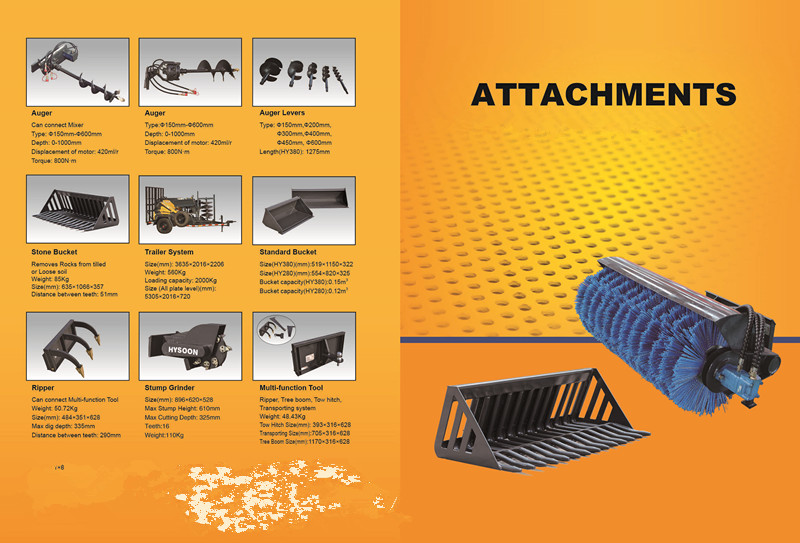

ATTACHMENTS (2)





HY380

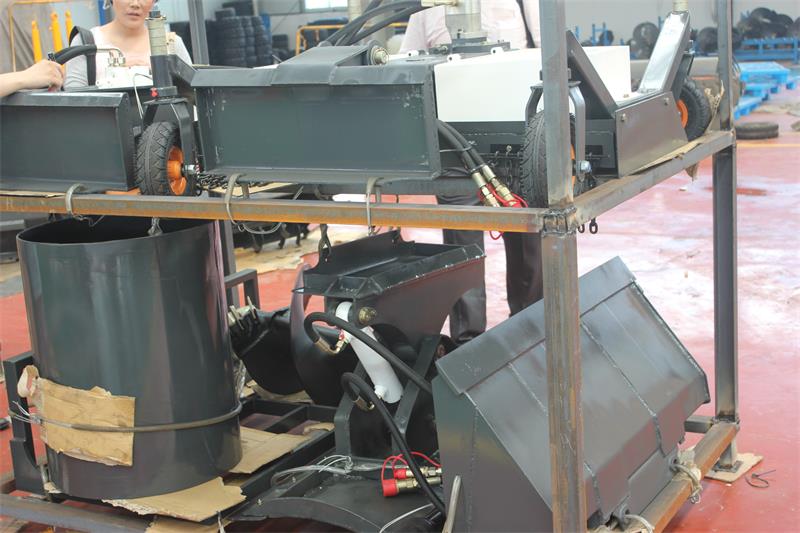

IMG_0843\

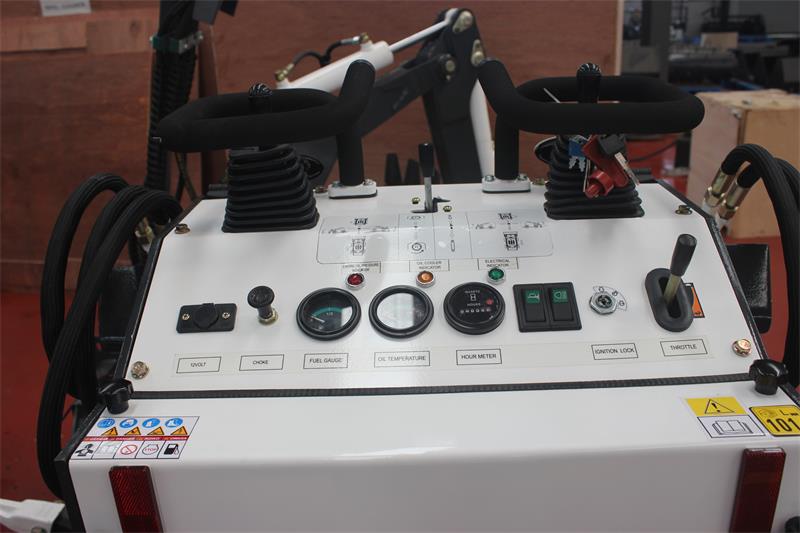

IMG_0773 - 副本

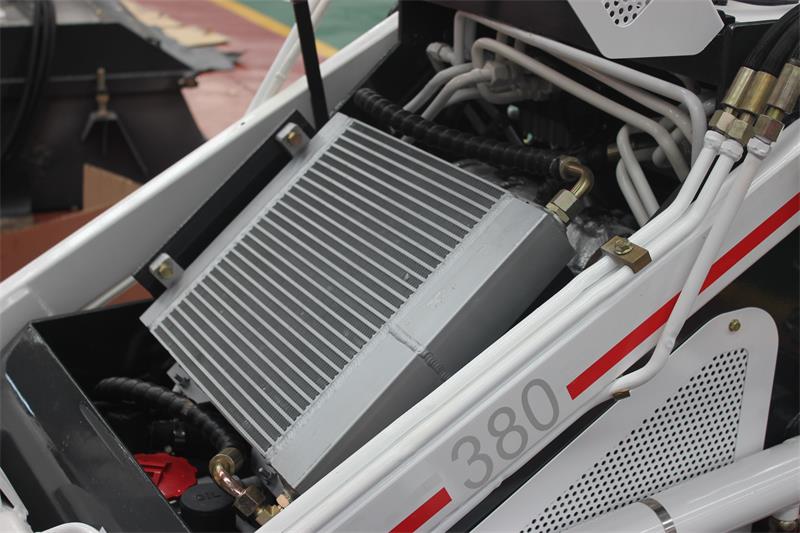

IMG_0835

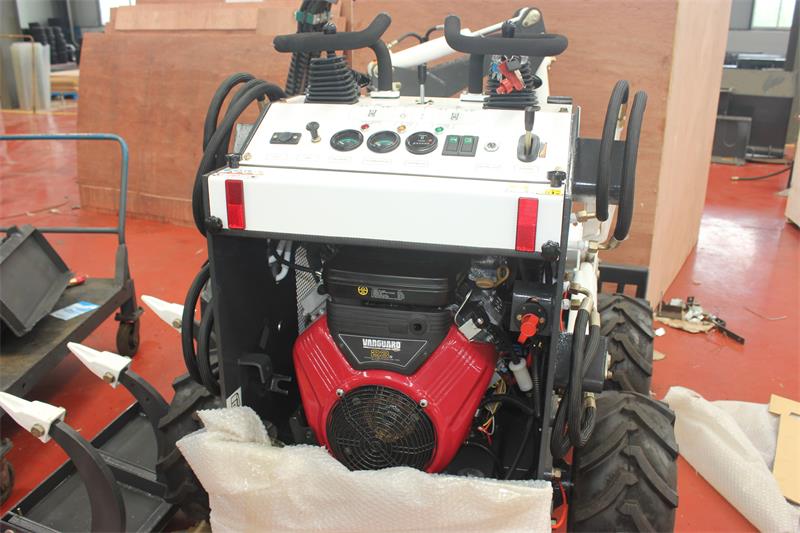

IMG_0772
