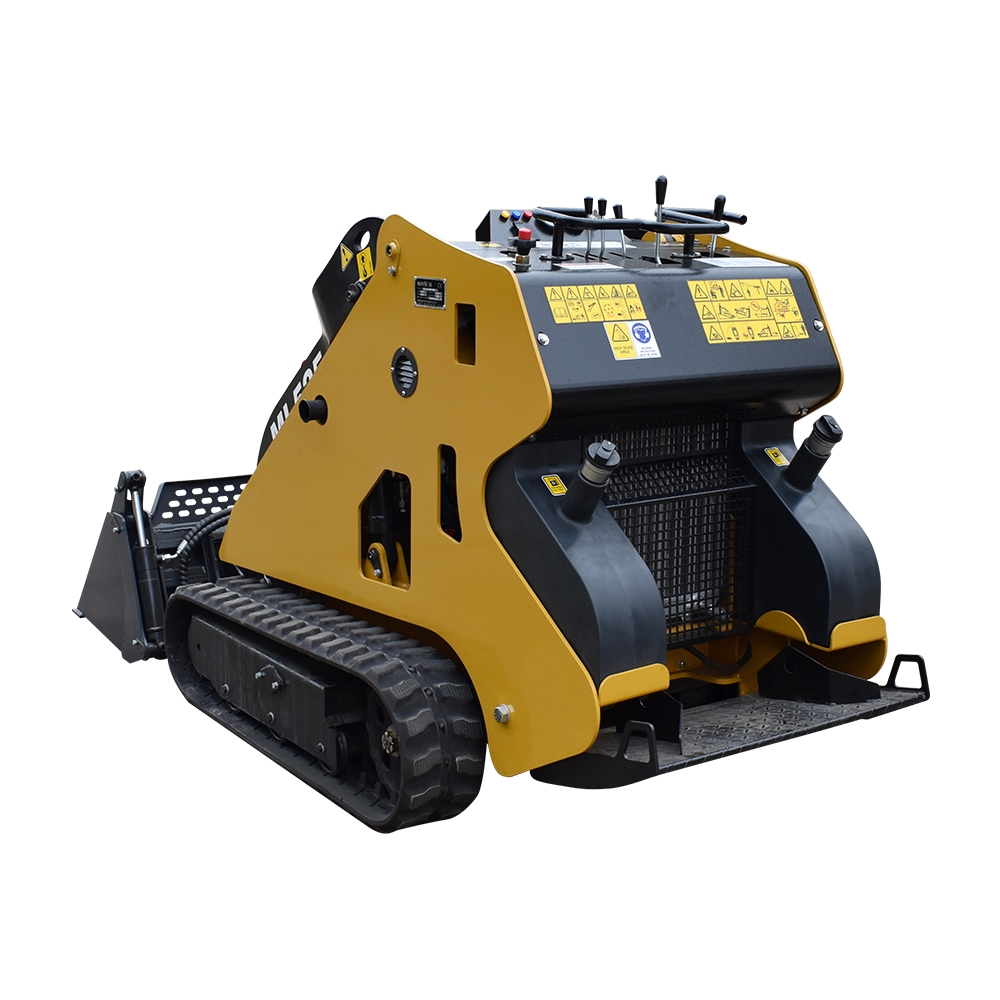

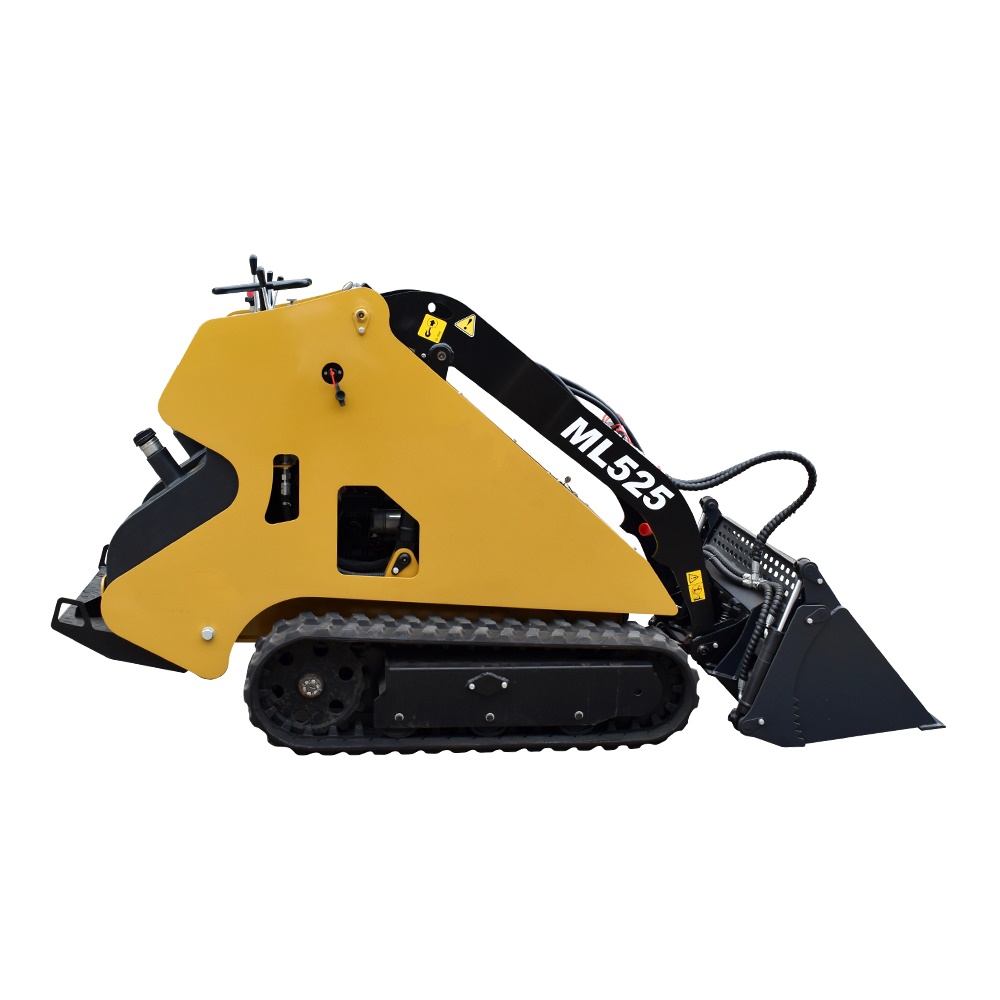

Mini skid steer loader ML525 With Japan kubota engine epa5

Mini skid steer loader ML525 With Japan kubota engine EPA5

Model                     MATTSON  ML525

Description

With a powerful Perkins diesel engine, the new ML525 model is a "little giant" that maneuvers easily in tight places and handles tough construction, agriculture and landscaping challenges with ease.

Machine

Operating weight 1.069 kg

Tip capacity 2.100 / 953 kg

Operating capacity 175 / 79.5 kg

Travel speed      3.5mph (5.6km/h)

Operation

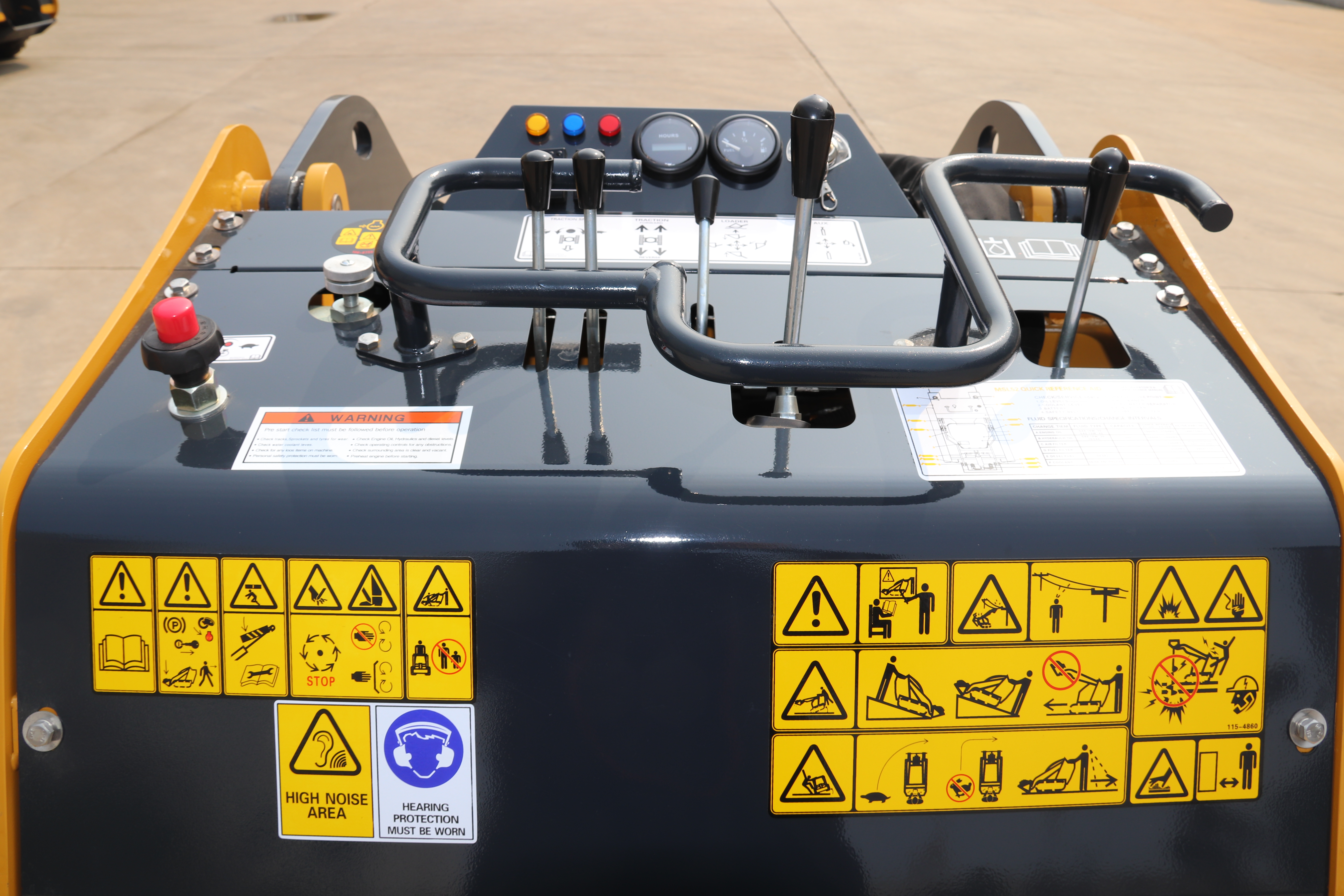

Steering and Drive:direction and speed controlled by single joystick

Lifting and tilt: Raise/lower/and dump controlled by a dual-axis joyctick.

Transmission type: crawler type

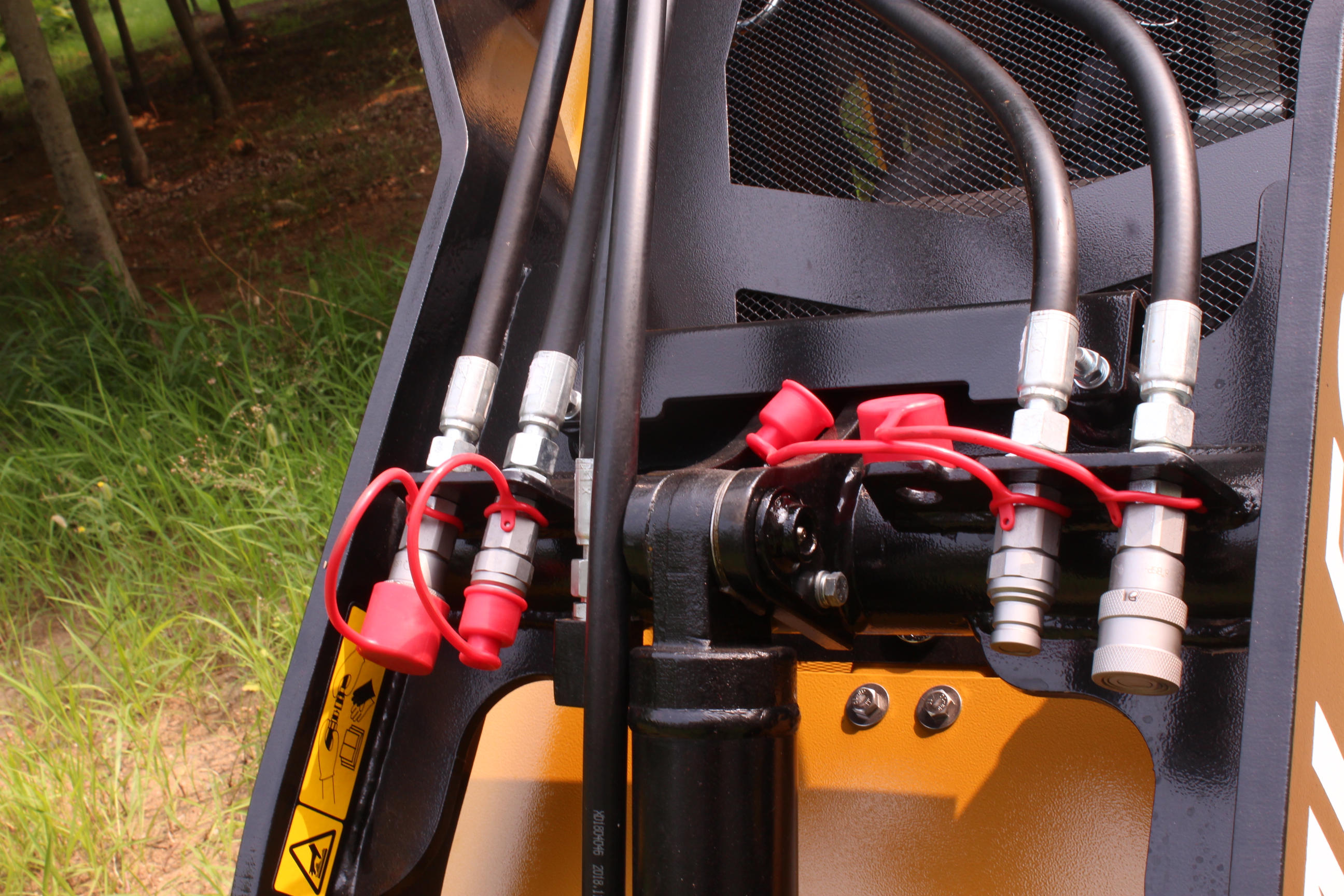

Hydraulic

Hydraulic flow         54.8 l/min

Working hydrostatic pressure 175 bar

Hydraulic tank capacity 53 l

Standard Buckets

Standard buckets – width / volume-

Standard bucket 1.060 mm / 0,36 m³

4 in 1 bucket     1.100 mm / 0,45 m³

Dimensions

Overall Operating Height       1,524mm

Overall Height                 1,524 mm

Ground Clearance to Chassis  169 mm

Overall Length                2, 589 mm w/42" bucket

Overall Length                1,956 mm (without bucket)

Wheelbase                   940 mm

Rollback at Ground 27°

Dump Angle 37°

Overall Width 1,040 mm

Bucket Width 1,060mm

Engine

Manufacturer :KUBOTA

Diesel Engine type: 3 cyliner liquid-cooled

Power output max.25 hp /

Rated speed :3000 rpm/min

fuel capacity 9.0 gal / 47 L

Air cleaner :Heavy-duty dual element
