Manufacturer 4x4 Backhoe Loader Retroexcavadora China Wheel Mini Excavator Backhoe Loader SAM388

Overall Operating Weight 8200KG
Bucket Capacity :1.0
Backhoe Capacity:0.3
Loading Lifting Capacity :2500kg
Bucket Dumping Height:2742mm
Bucket Dumping Distance:925mm
Model: YUCHAI/WEICHAI /CUMMINS
Torque Converter:
Axle:
Steering Device:
Availability:
Quantity:
  • 388
  • WEIMAN
  • 84295100
  • 75kw
  • 1.0cbm
  • 2500KG

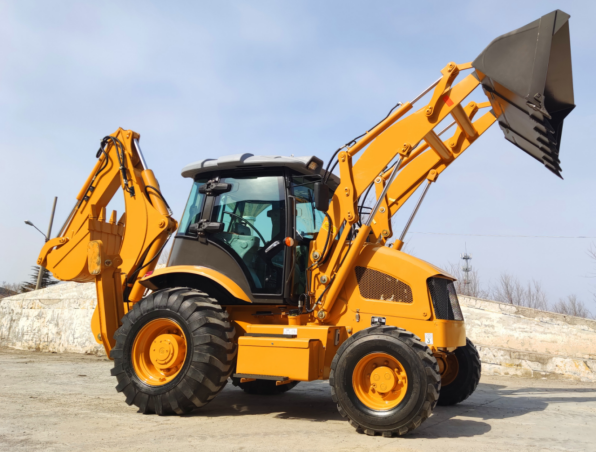

K9P2JF33`4C)WD0413GS

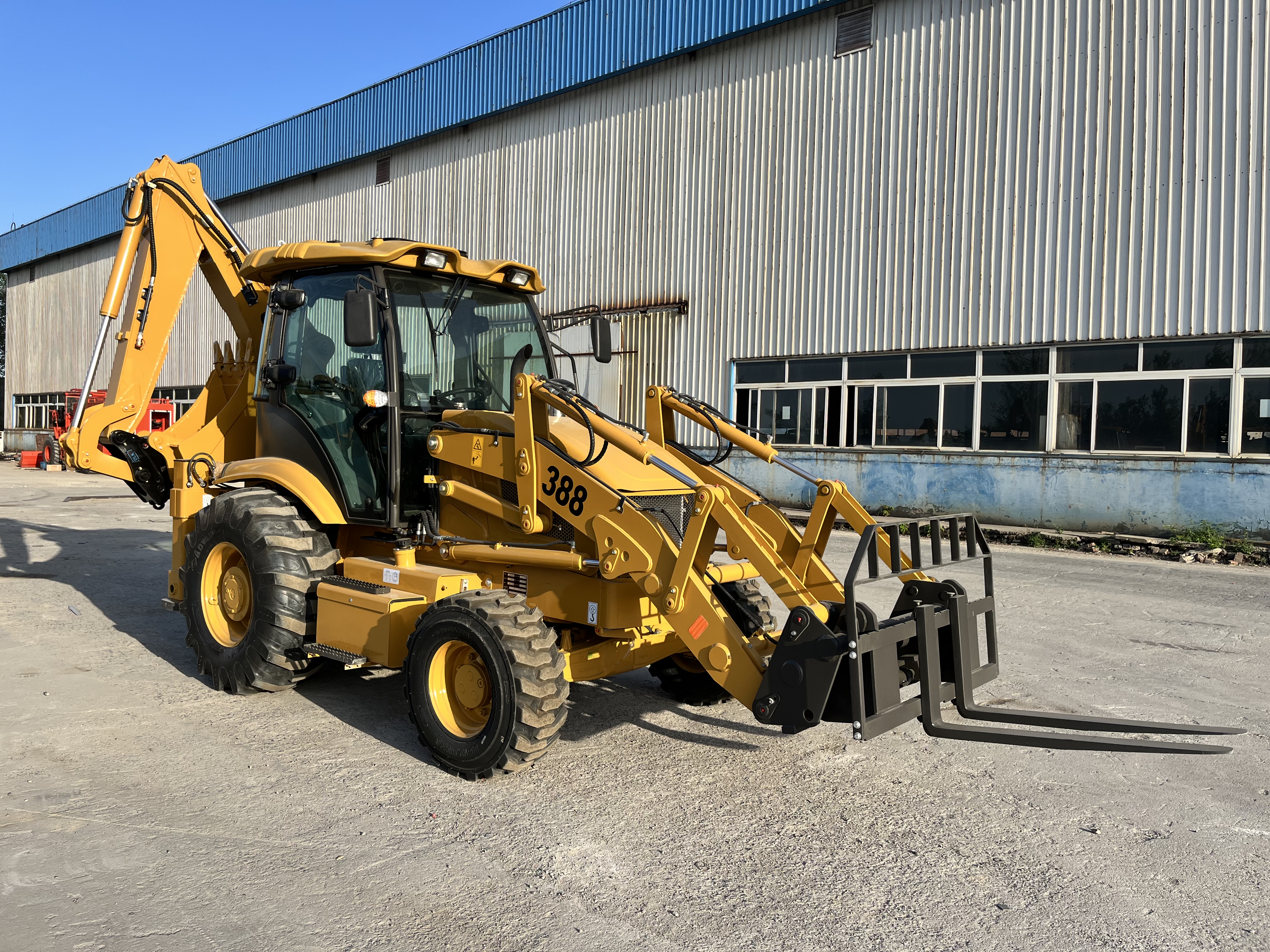

35d723c0fd90994d161aee46a570fd4



整机操作重量Overall Operating Weight 8200KG 轮边减速型式Final Reducer 一级轮边减速Single Stage Final Reducer
运输尺寸Transport Dimension 额定桥载荷Rated Loader of Axle 8/18.5t
长×宽×高mm L*W*H 6100×2365×3752 传动系统Transmission System
轴距 Wheel base 2200mm 变矩器Torque Converter
最小离地间隙 Min. Ground Clearance 300mm 型号Model YJ280
装载斗容 Bucket Capacity 1.0m3 型式Type 单级、单相三元件Single-stage Three Elements
掘起力Breakout Force 58KN 最高效率Max. Efficiency 84.40%
装载举升能力Loading Lifting Capacity 2500KG 进口压力Inlet Pressure 1.3-1.5Mpa
铲斗卸载高度Bucket Dumping Height 2742mm 出口压力Outlet Pressure 0.25-0.3Mpa
铲斗卸载距离Bucket Dumping Distance 925mm 冷却方式Cooling Method 油冷压力循环Oil-cooling Pressure Circulation
铲挖深度 Digging Depth 52mm 变速箱Gearbox
反铲斗容Backhoe Capacity 0.3 m3 型式Type 定轴式动力换档Fixed Shaft Power Transmission
最大挖掘深度Max. Digging Depth 4082/4500mm 离合器操纵油压Oil Pressure of Clutch 1373Kpa—1569 Kpa
挖斗回转角Swing Angle of Excavator Grab 190o 档位数Gears 前进2档,后退2档Two forward, Two reverse gears
最大牵引力Max. Pulling Force 65KN 最高车速Max.Speed 28Km/h
发动机Engine 轮胎Tyre
型号Model YC4A105Z-T20 规格Model 14-17.5/19.5L-24
型式Type 直列、直喷、四冲程、直喷燃烧室In Line Direct injection Four-Stroke and Injection Combustion Chamber 前轮气压Pressure of Front wheel 0.55Mpa
气缸数-内径*行程Cylinder-Inside Diameter*Stroke 4-108×132 后轮气压Pressure of Back Wheel 0.223Mpa
额定功率Rated Power 75KW 制动系统Brake System
额定转速Rated Speed 2200r/min 行车制动Service Brake 气顶油钳盘制动Air Over Oil Caliper Brake
最低燃油率Min. Fuel Consumption ≤230g/km.h 外置式External Type
最大扭矩Max.Torque ≥400N.M 自调节Self-regulation
排量Displacement 4..837L 自平衡Self-balance
转向系统Steering System 驻车/紧急制动Emergency Brake 操纵力实施制动Operation Power Implementing brake
转向器型号Model of Steering Device BZZ5-250 手操纵力解除制动Manual Operation Power Terminating Brake
转向角Steering Angle ±36 o 液压系统Hydraulic System
最小转弯半径Min. turning radius 6581mm 挖斗挖掘力Digging Power of Excavator Grab 60KN
系统压力Pressure of the system 12Mpa 斗杆挖掘力Digging Power of Dipper 44KN
驱动桥Axle 铲斗提升时间Bucket Lifting Time 6.8S
生产厂家Manufacturer 前桥:肥城车桥厂Feicheng Axle Factory 铲斗下降时间Bucket Lowering Time 3.1S
后桥:肥城车桥厂Feicheng Axle Factory
主传动型式Main Transmission Type 双级减速式Double Reduction 铲斗卸载时间Bucket Discharge Time 2.0S

HHTII9H7I%1E%IUP49

A6KNR)Q)CHD0DEV0F(7

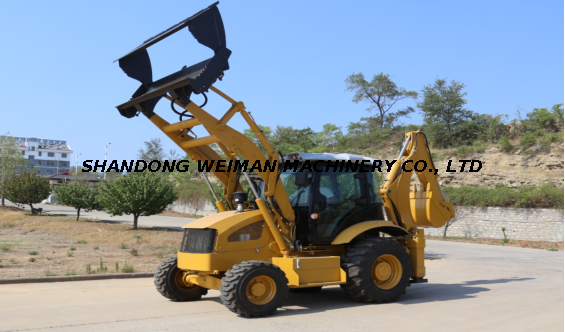

SJDH)JT(E2`6KDS32U8)OH08W_)T9UDX_)1Q3QVM
