| P/N: | |
|---|---|
| MODEL : | |
| Dimension: | |
| Operating Weight: | |
| Quantity: | |
L956H Plus
SDLG
L056HW4115A29A3
178KW
2.7 ～ 5.6m³
18600kg

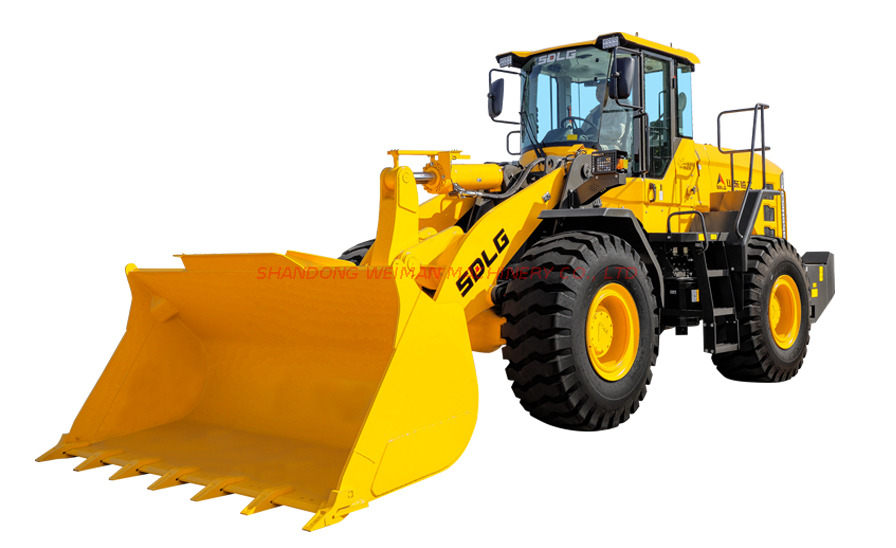

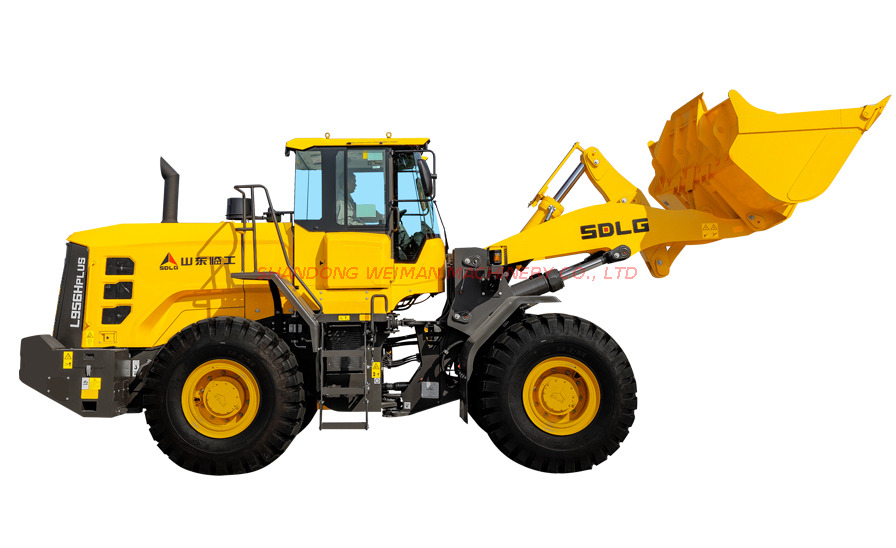

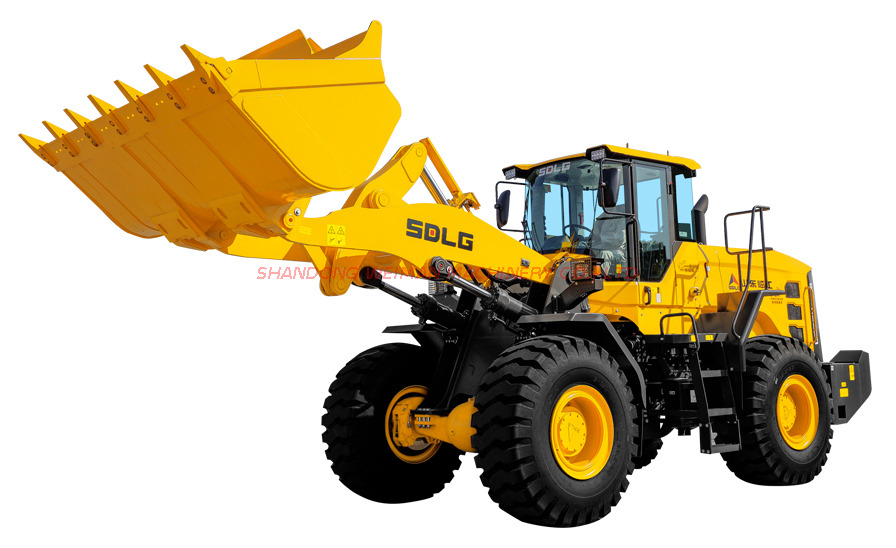

| #L056HW4115A29A3 SDLG L956H Plus Wheel Loader with 178KW WP10HG240E473 Engine | |
| Technical parameter | |
| Model | L956H Plus |
| Order No | L056HW4115A29A3 |
| Operating weight(kg) | 18600kg |
| Bucket capacity(m³) | 2.7 ～ 5.6m³ |
| Rated load(kg) | 5800kg |
| Max.breakout force(KN) | ≥175 kN |
| Max.dumping height(mm) | 3450mm |
| Dumping distance(mm) | 1160mm |
| Length×Width×Height(mm) | 8850×3024×3450mm |
| Max.tractive force(kN) | 180kN |
| Total time(s) | ≤9.5s |
| Steering angel(°) | 38° |
| Rated power(kW) | 178kW |

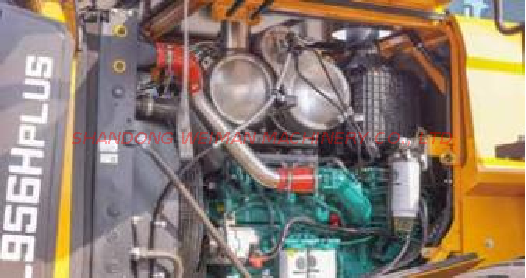

| Engine Model | WP10HG240E473 |
| Emission standard | GB 20891-2014(China IV) |
| #L056HW4115A29A3 SDLG L956H Plus Wheel Loader with 178KW WP10HG240E473 Engine | |
| Technical parameter | |
| Model | L956H Plus |
| Order No | L056HW4115A29A3 |
| Operating weight(kg) | 18600kg |
| Bucket capacity(m³) | 2.7 ～ 5.6m³ |
| Rated load(kg) | 5800kg |
| Max.breakout force(KN) | ≥175 kN |
| Max.dumping height(mm) | 3450mm |
| Dumping distance(mm) | 1160mm |
| Length×Width×Height(mm) | 8850×3024×3450mm |
| Max.tractive force(kN) | 180kN |
| Total time(s) | ≤9.5s |
| Steering angel(°) | 38° |
| Rated power(kW) | 178kW |
| Engine Model | WP10HG240E473 |
| Emission standard | GB 20891-2014(China IV) |
