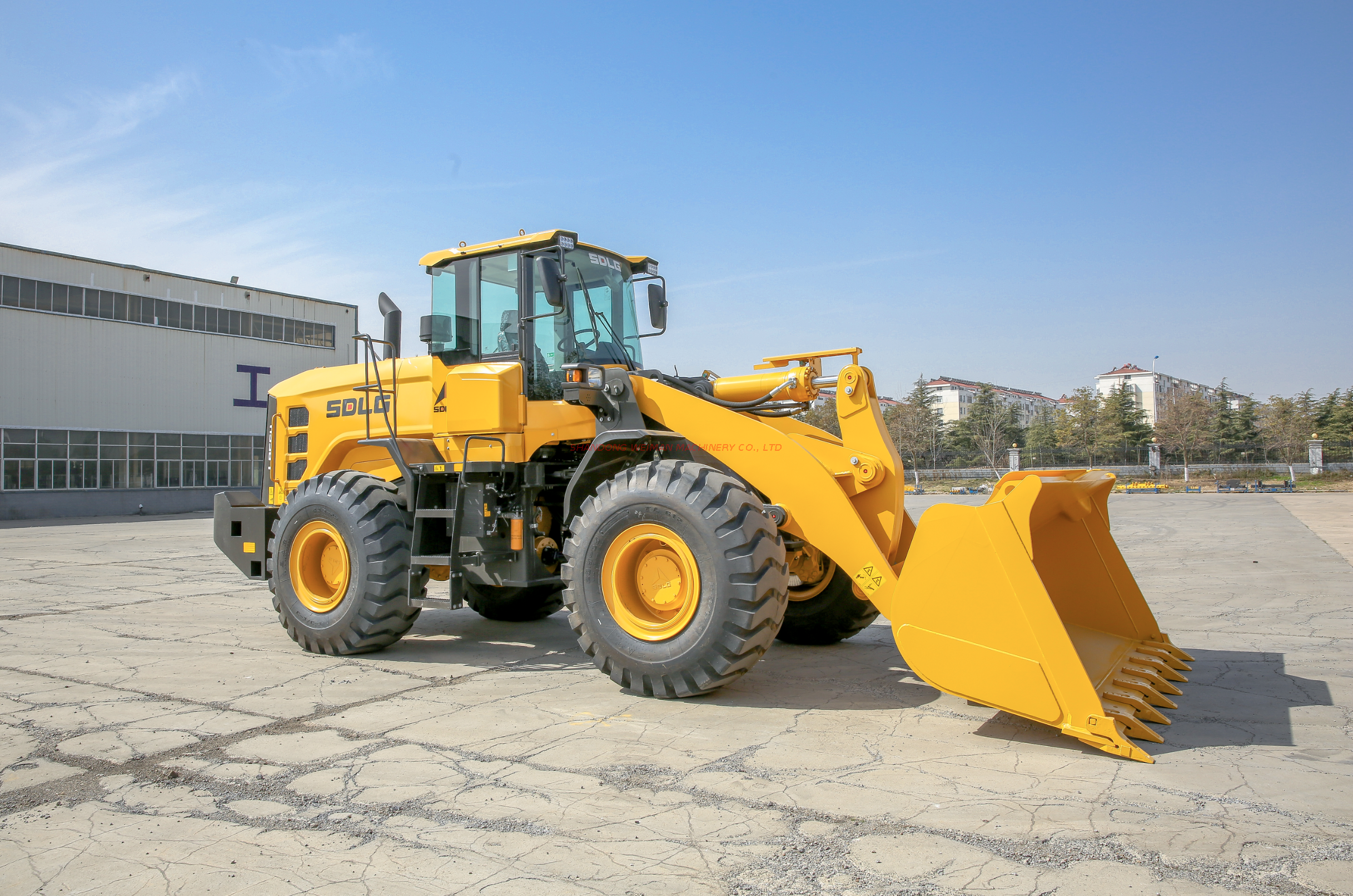

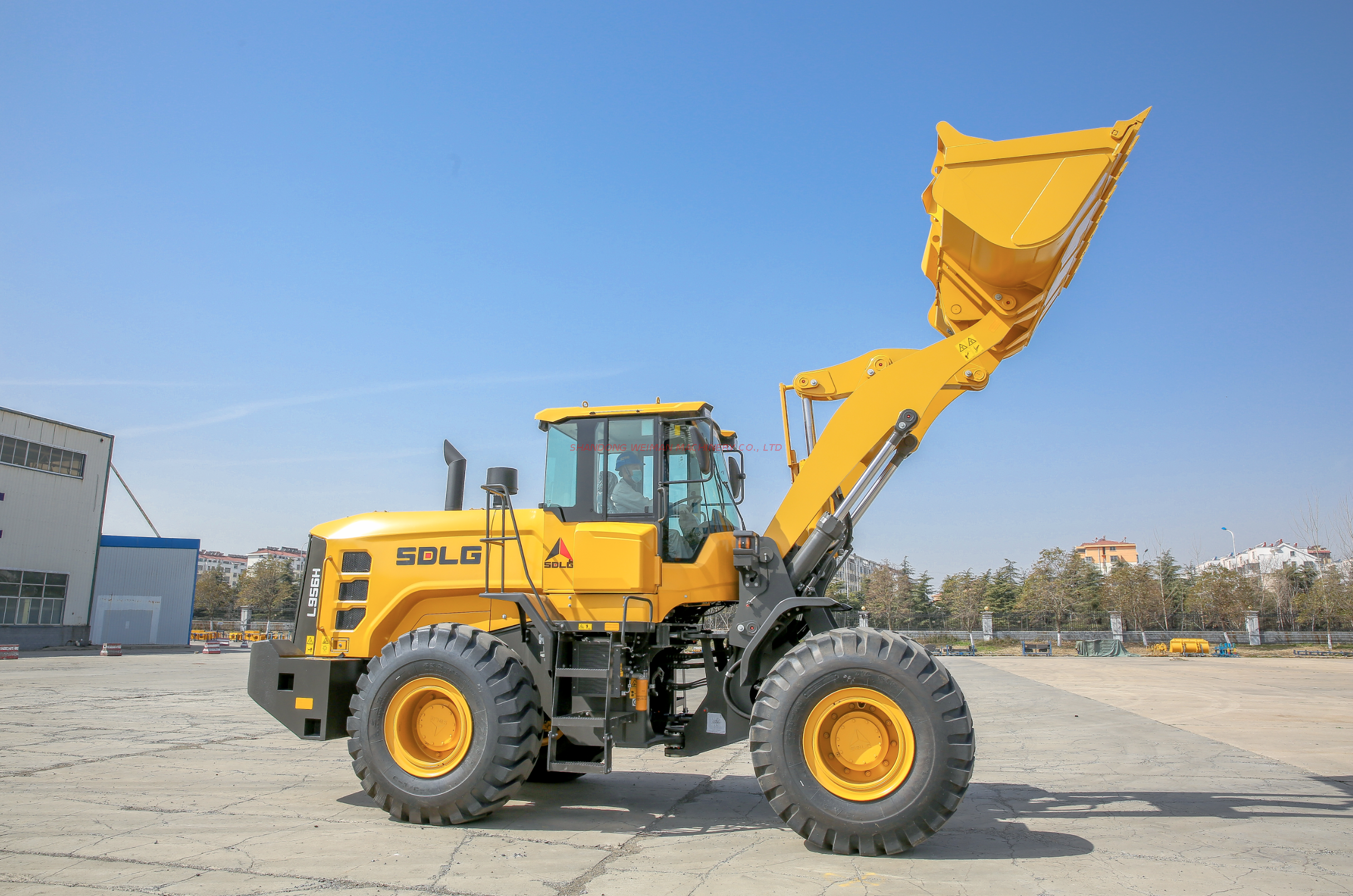

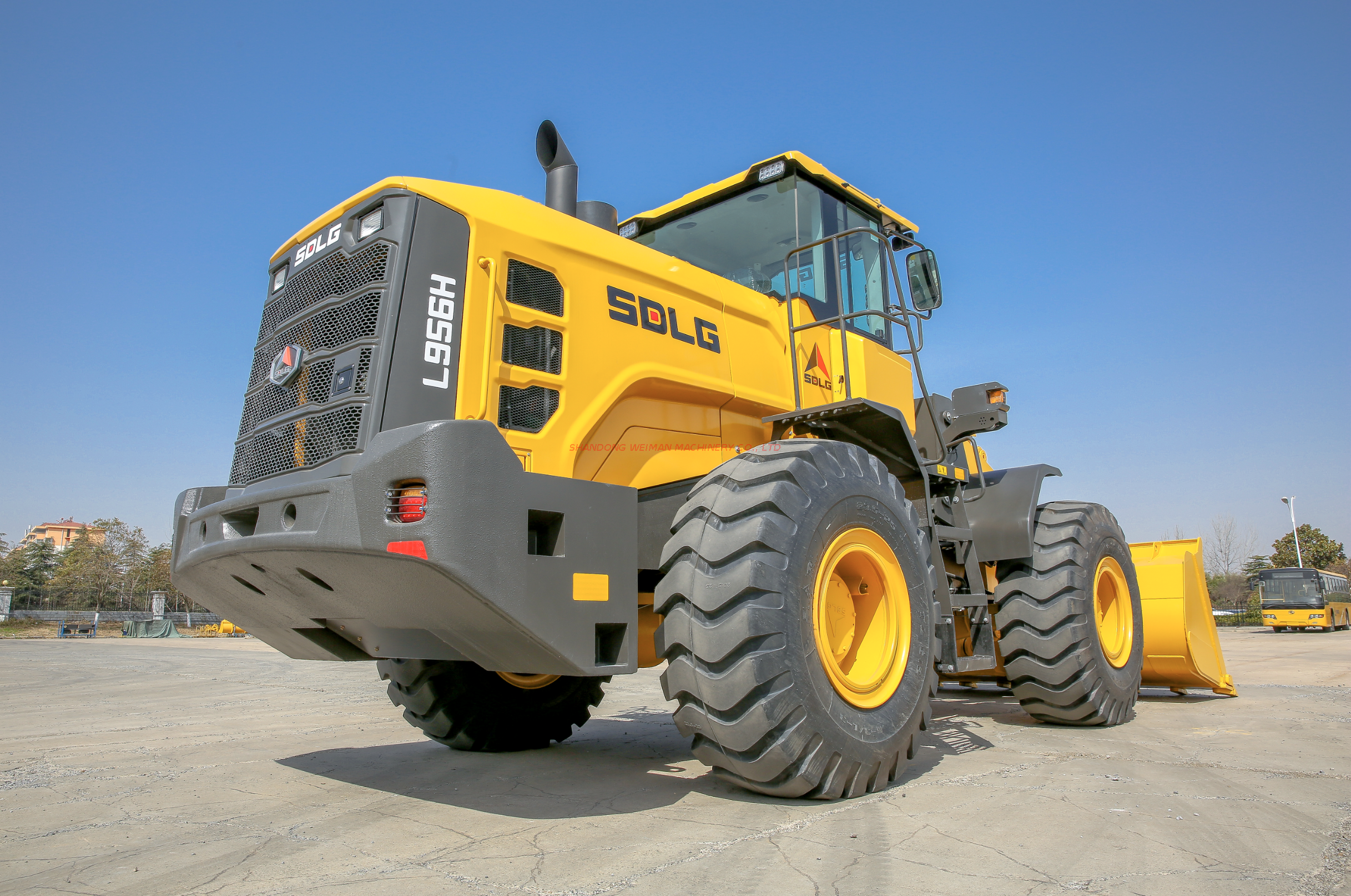

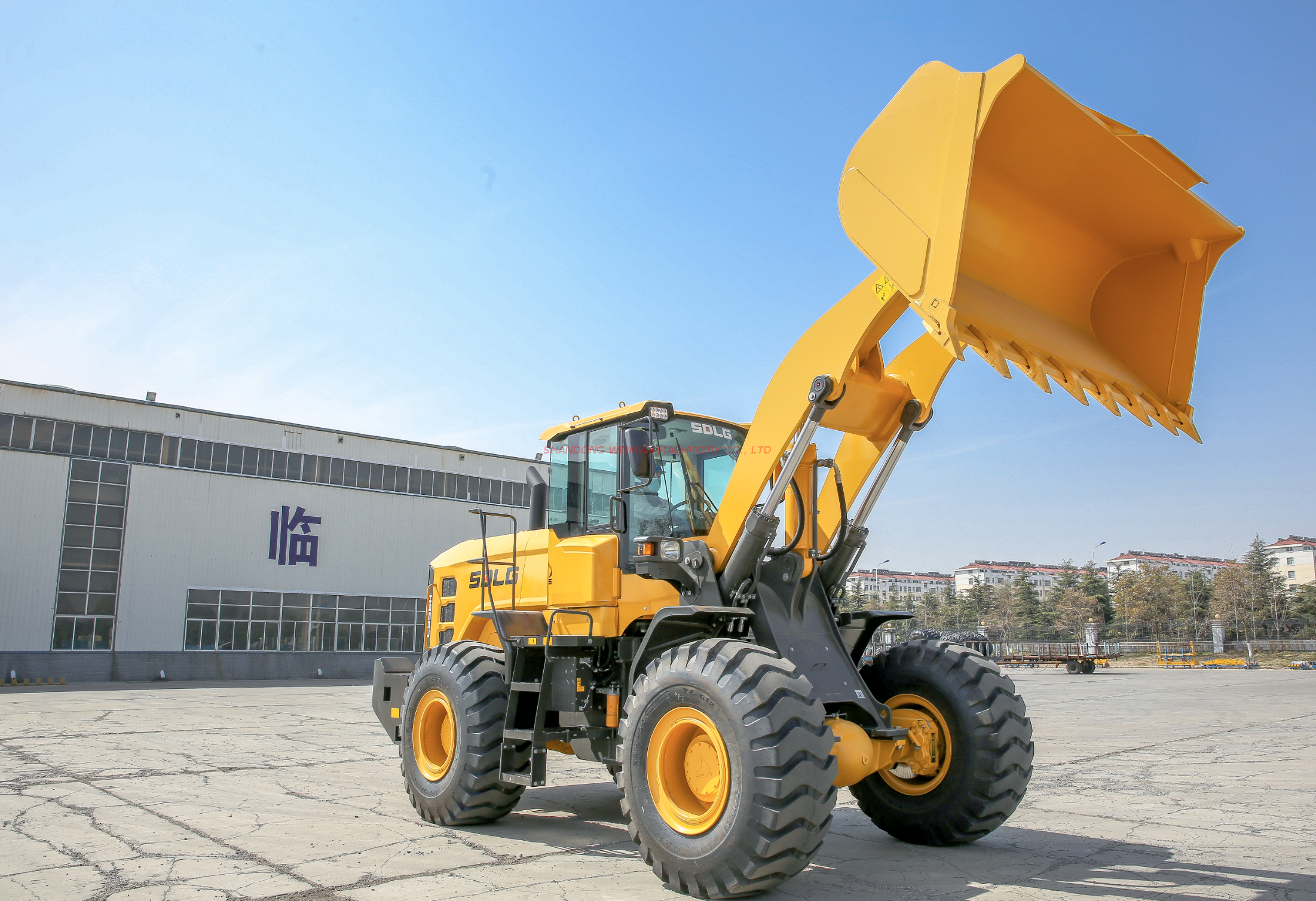

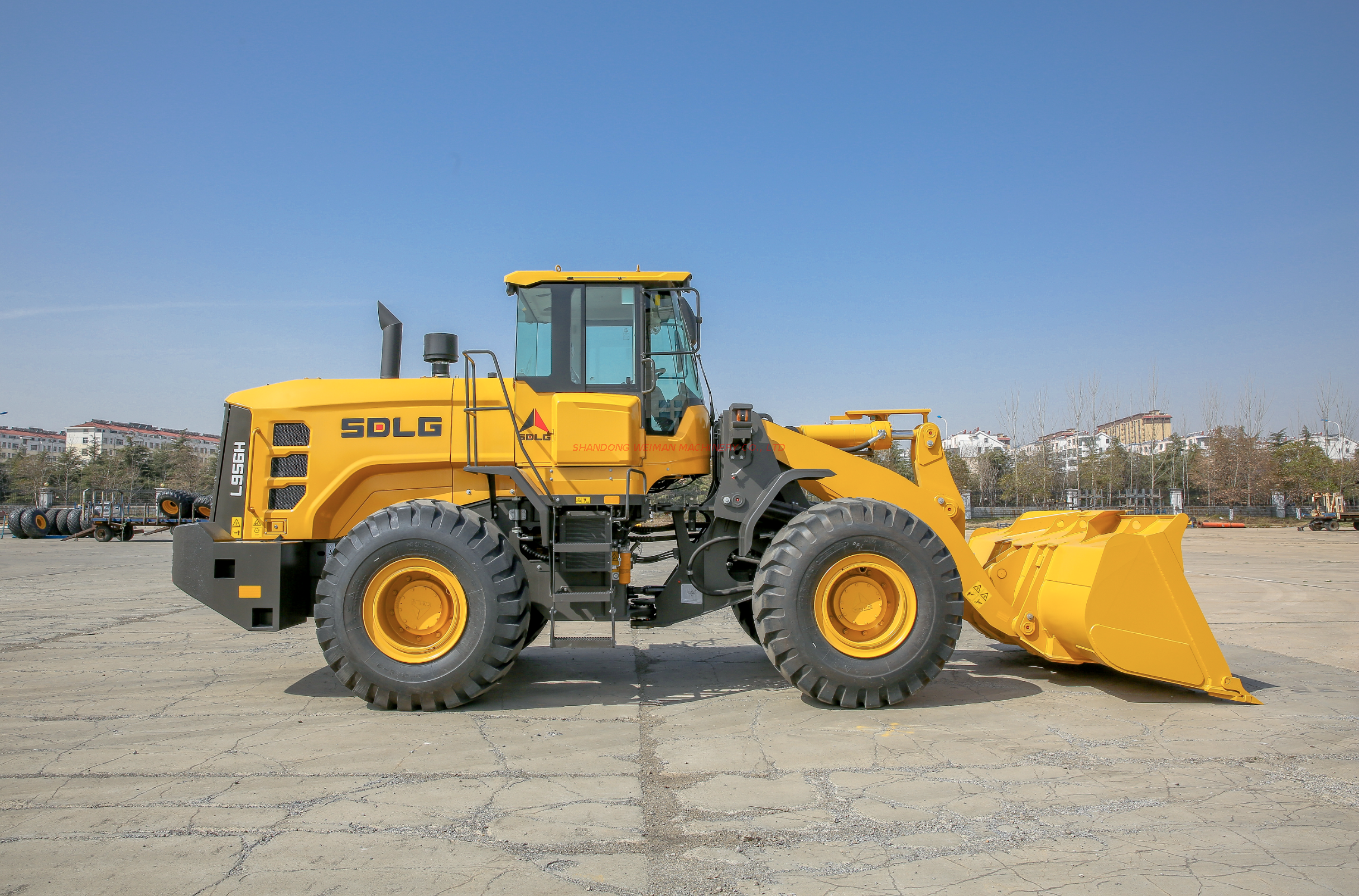

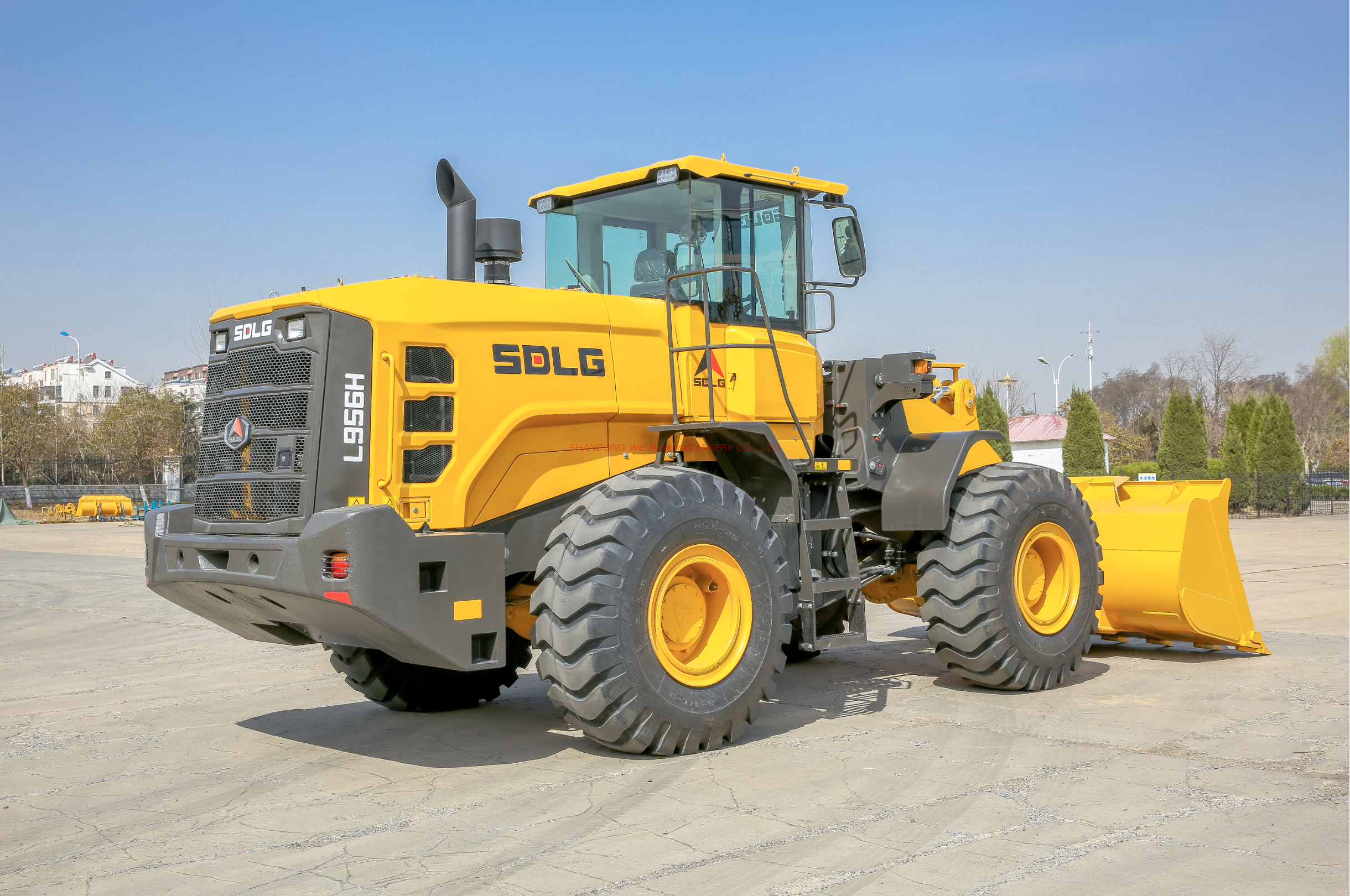

L956H Wheel Loader
SDLG
L056HW2115A29E6
162KW
3.0m³
17220
| Technical parameter | |
| Model | L956H |
| Order No: | L056HW2115A29E6 |
| Operating weight(kg) | 17220 |
| Bucket capacity(m³) | 3 |
| Rated load(kg) | 5000 |
| Rated power(kW) | 162 |
| Length×Width×Height(mm) | 8300x3024x3426 |
| Wheel base(mm) | 3300 |
| Max.dumping height(mm) | 3060 |
| Dumping distance(mm) | 1230 |
| Steering angel(°) | 36 |
| Engine Model | WD10G220E23 |
| Emission standard | GB 20891-2007 |
| Max.tractive force(kN) | 165 |
| Max.breakout force(KN) | 170 |
| Gears() | Forward 2 reverse 1 |
| Total time(s) | 9.8 |
| Fuel tank capacity(L) | 300 |
