| P/N: | |
|---|---|
| MODEL : | |
| Dimension: | |
| Operating Weight: | |
| Quantity: | |

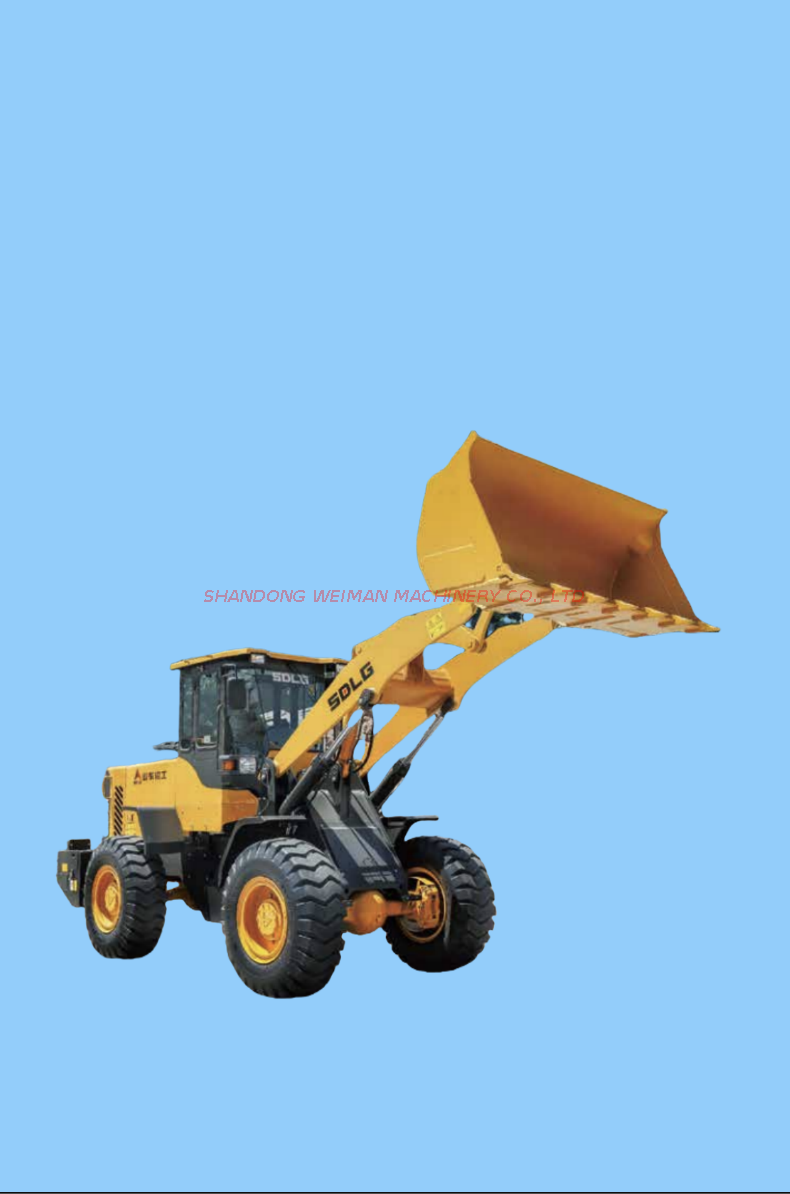

L933H Wheel Loader
SDLG
L033HY4214A29A0
92KW
1.6(1.5-3.0)m³
10300
| Technical parameter | |
| Model | L933H |
| Order No | L033HY4214A29A0 |
| Operating weight(kg) | 10300kg |
| Bucket capacity(m³) | 1.6(1.5-3.0)m³ |
| Rated load(kg) | 3000kg |
| Max.breakout force(KN) | ≥92kN |
| Max.dumping height(mm) | 2950 mm |
| Dumping distance(mm) | 1050 mm |
| Length×Width×Height(mm) | 7130×2520×3240mm |
| Max.tractive force(kN) | ≥96 kN |
| Total time(s) | ≤9.0s |
| Steering angel(°) | 36° |
| Rated power(kW) | 92kW |
| Engine Model | YCA05125-T402 |
| Emission standard | GB 20891-2014(China IV) |
| Technical parameter | |
| Model | L933H |
| Order No | L033HY4214A29A0 |
| Operating weight(kg) | 10300kg |
| Bucket capacity(m³) | 1.6(1.5-3.0)m³ |
| Rated load(kg) | 3000kg |
| Max.breakout force(KN) | ≥92kN |
| Max.dumping height(mm) | 2950 mm |
| Dumping distance(mm) | 1050 mm |
| Length×Width×Height(mm) | 7130×2520×3240mm |
| Max.tractive force(kN) | ≥96 kN |
| Total time(s) | ≤9.0s |
| Steering angel(°) | 36° |
| Rated power(kW) | 92kW |
| Engine Model | YCA05125-T402 |
| Emission standard | GB 20891-2014(China IV) |
