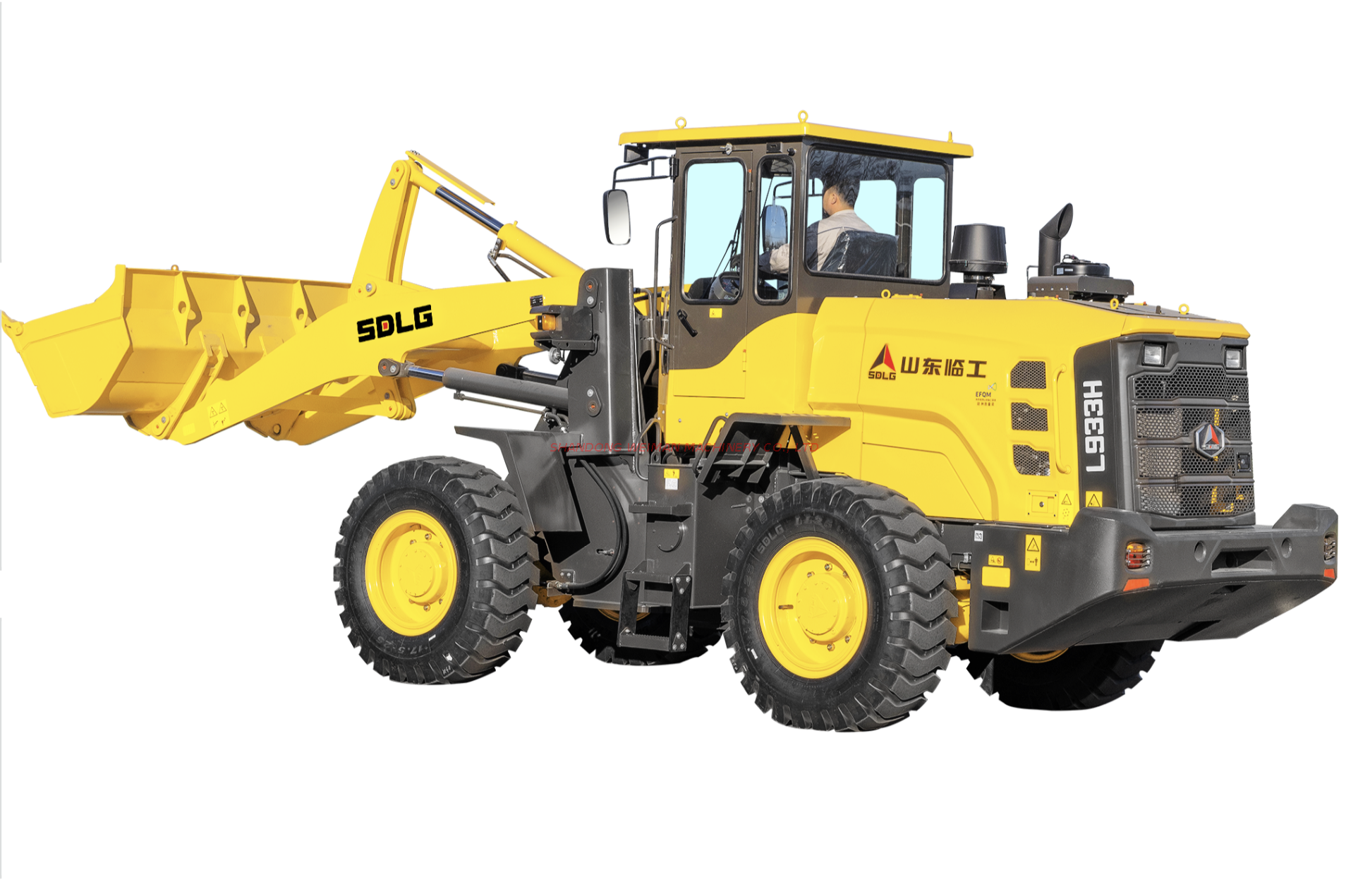

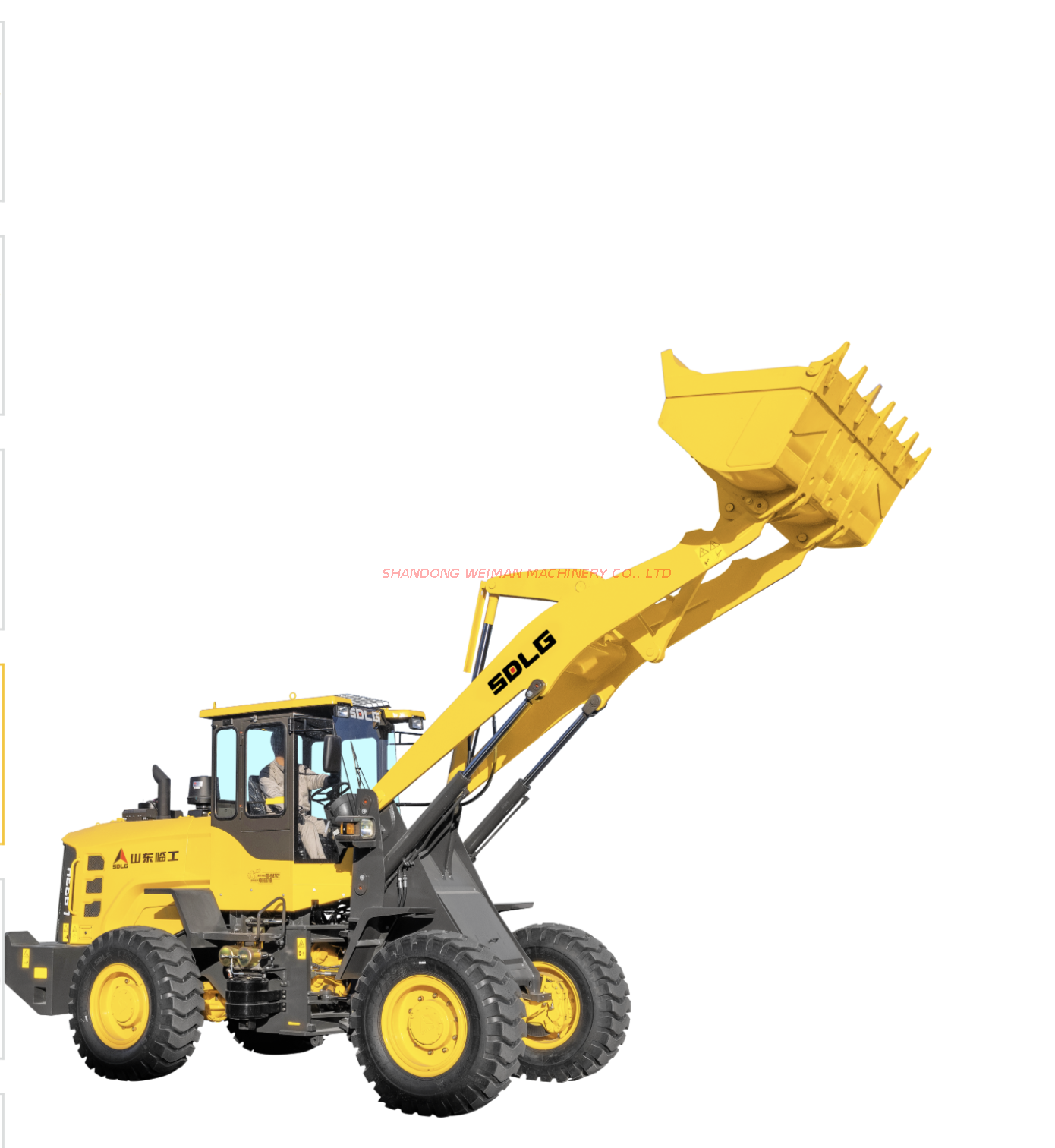

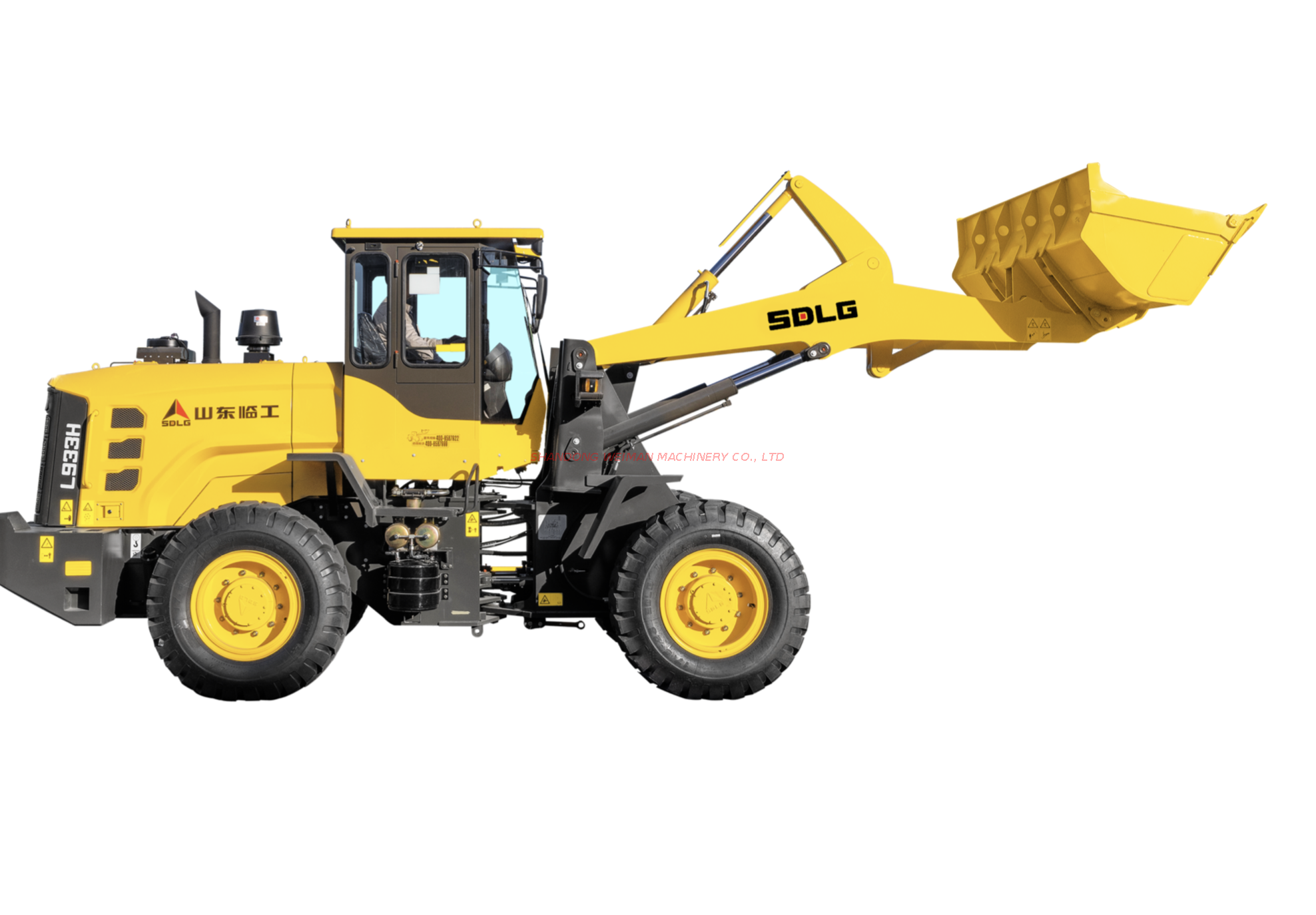

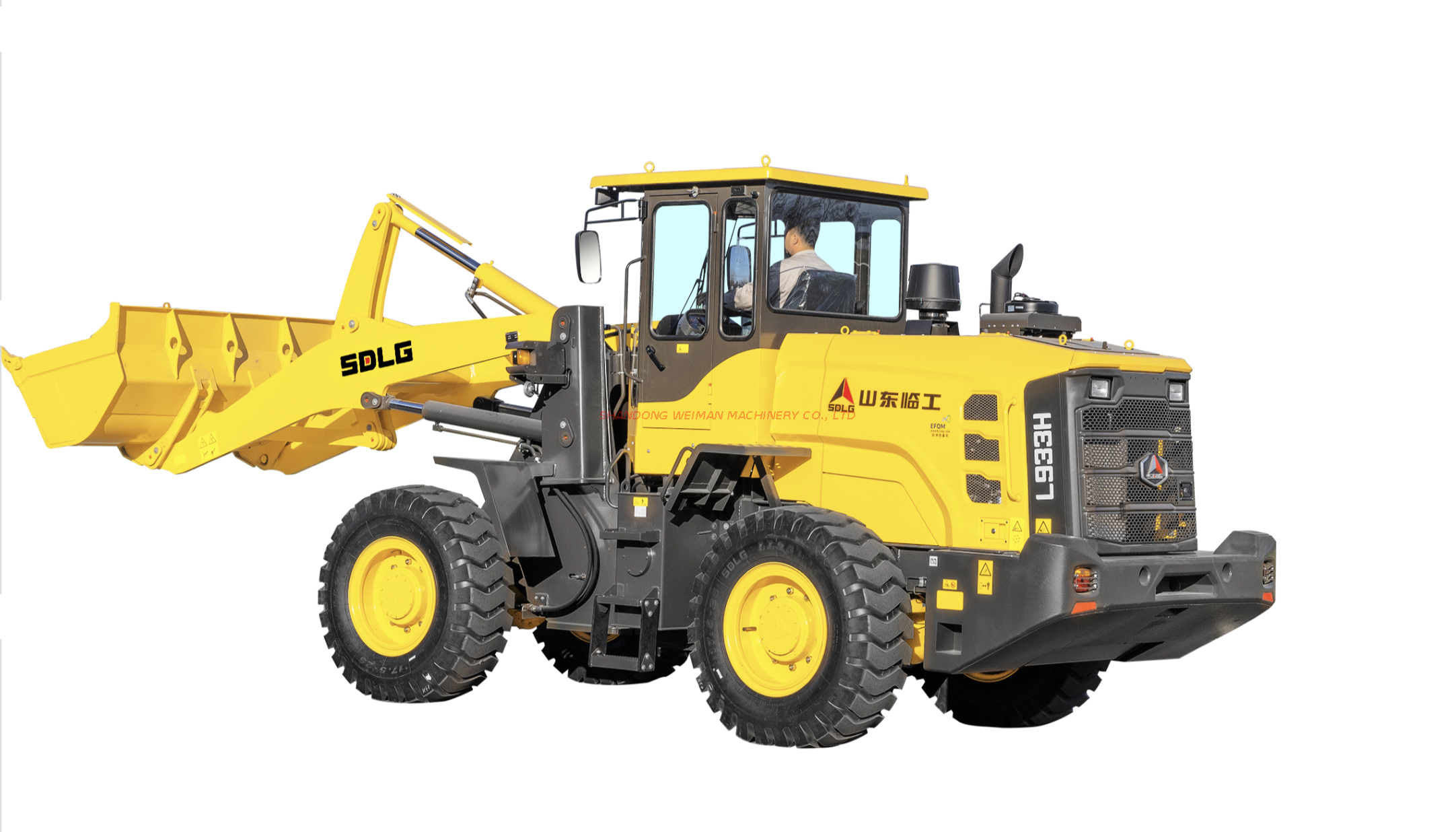

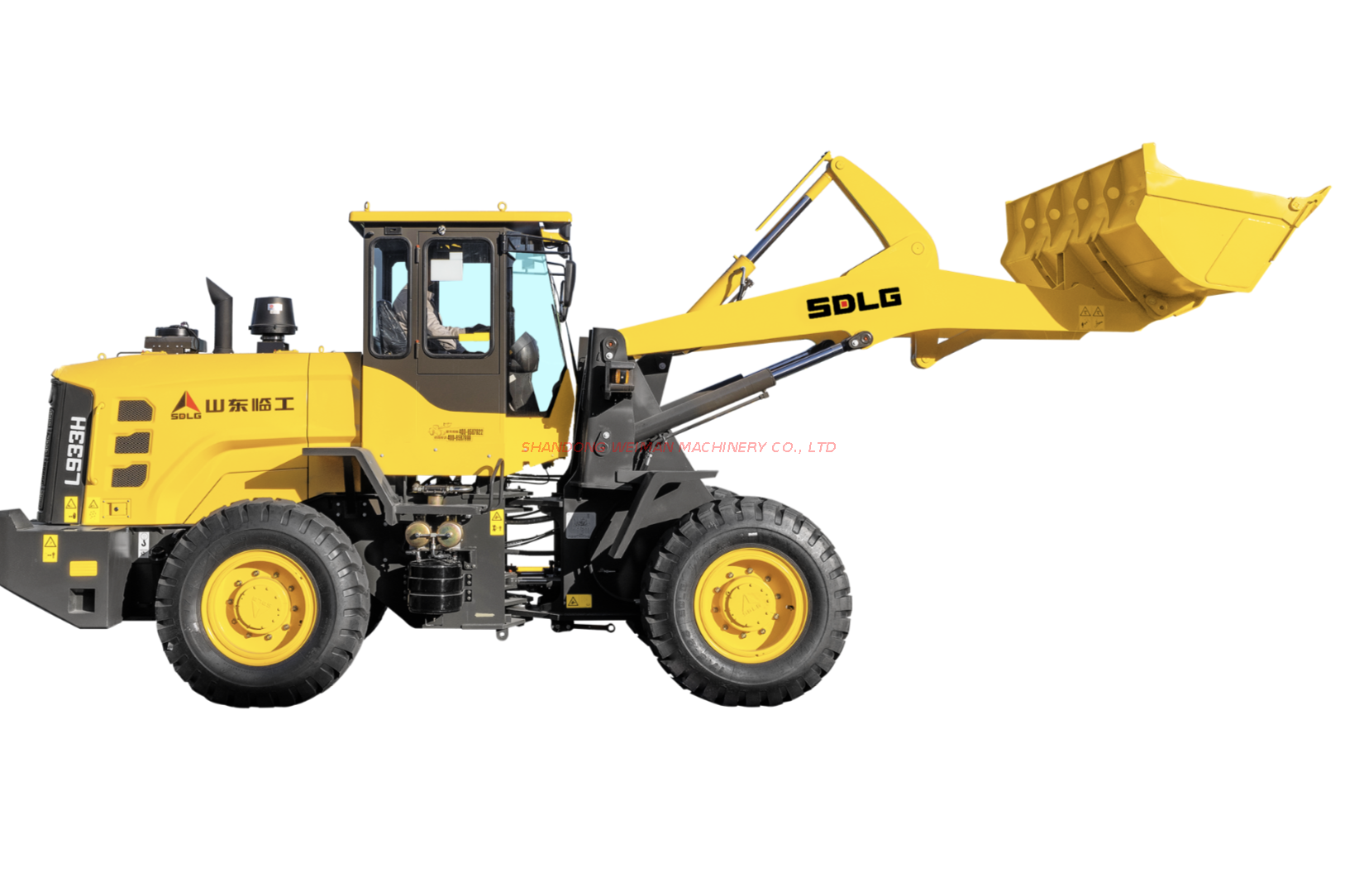

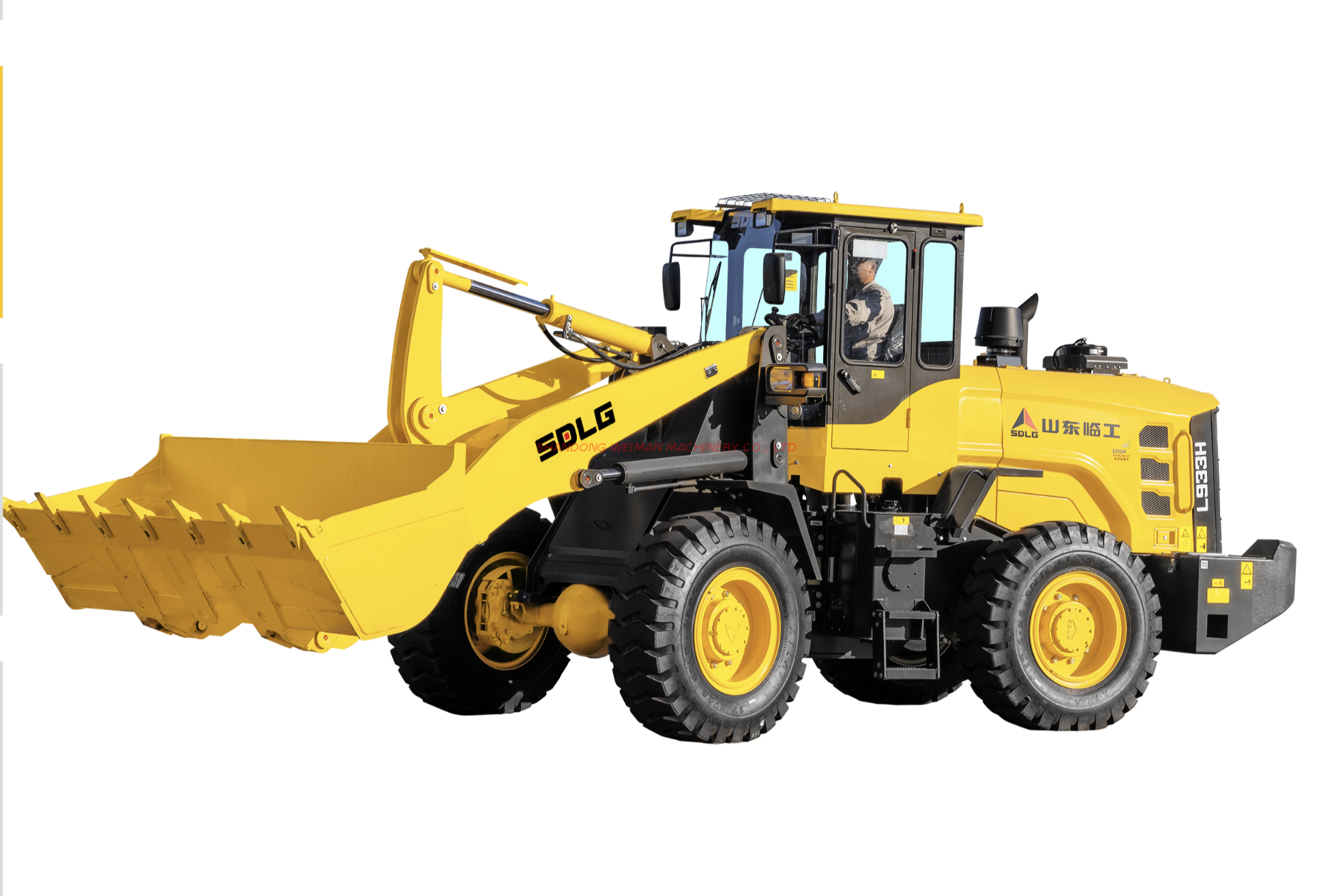

L933 Wheel Loader with High Dumping Height
SDLG
L033HW4114M39A1
99KW
12000
| Technical parameter | |
| Model | L933H Grain Loader(with High Dumping Height 4600MM) |
| Order No | |
| Operating weight(kg) | 11140kg |
| Bucket capacity(m³) | 3.0m³ |
| Rated load(kg) | 2300kg |
| Max.breakout force(KN) | 76kN |
| Max.dumping height(mm) | 4600mm |
| Dumping distance(mm) | 1230mm |
| Length×Width×Height(mm) | 8730×2915×3240mm |
| Max.tractive force(kN) | ≥96kN |
| Total time(s) | ≤10s |
| Steering angel(°) | 36° |
| Rated power(kW) | 99kW |
| Technical parameter | |
| Model | L933H Grain Loader(with High Dumping Height 4600MM) |
| Order No | |
| Operating weight(kg) | 11140kg |
| Bucket capacity(m³) | 3.0m³ |
| Rated load(kg) | 2300kg |
| Max.breakout force(KN) | 76kN |
| Max.dumping height(mm) | 4600mm |
| Dumping distance(mm) | 1230mm |
| Length×Width×Height(mm) | 8730×2915×3240mm |
| Max.tractive force(kN) | ≥96kN |
| Total time(s) | ≤10s |
| Steering angel(°) | 36° |
| Rated power(kW) | 99kW |
