QUALITY
ASSURANCE
ASSURANCE
| P/N: | |
|---|---|
| MODEL : | |
| Dimension: | |
| Operating Weight: | |
| Quantity: | |

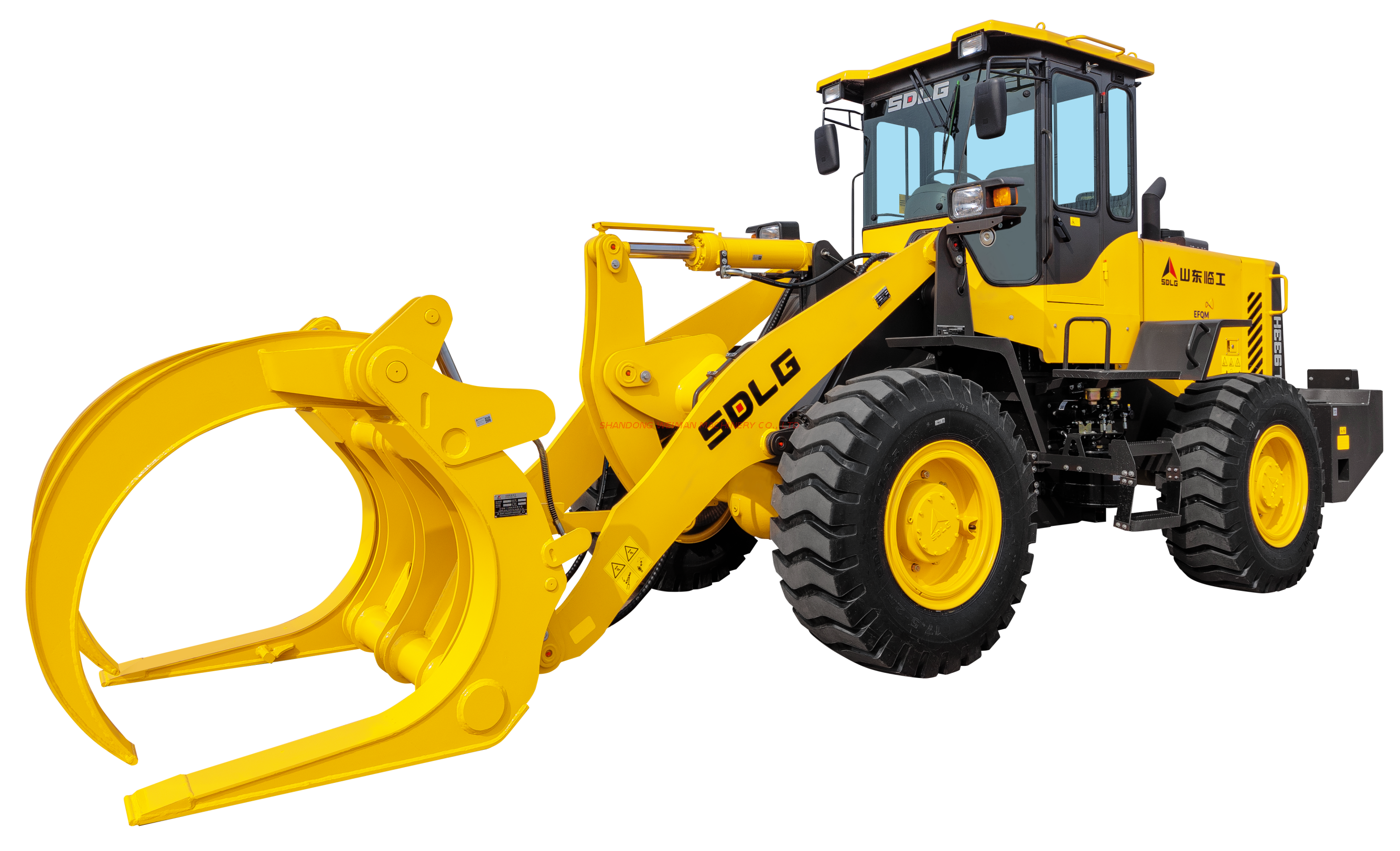

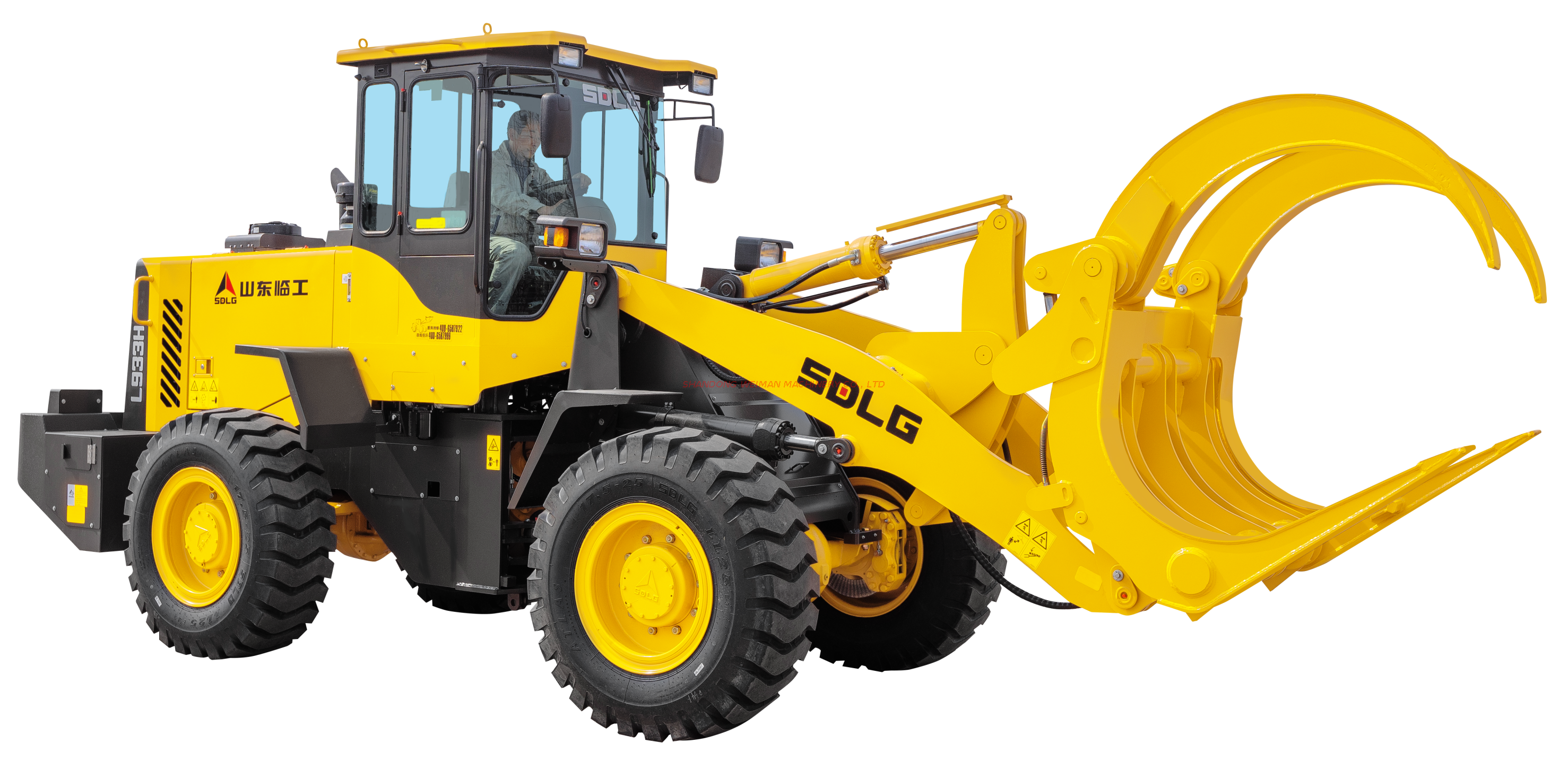

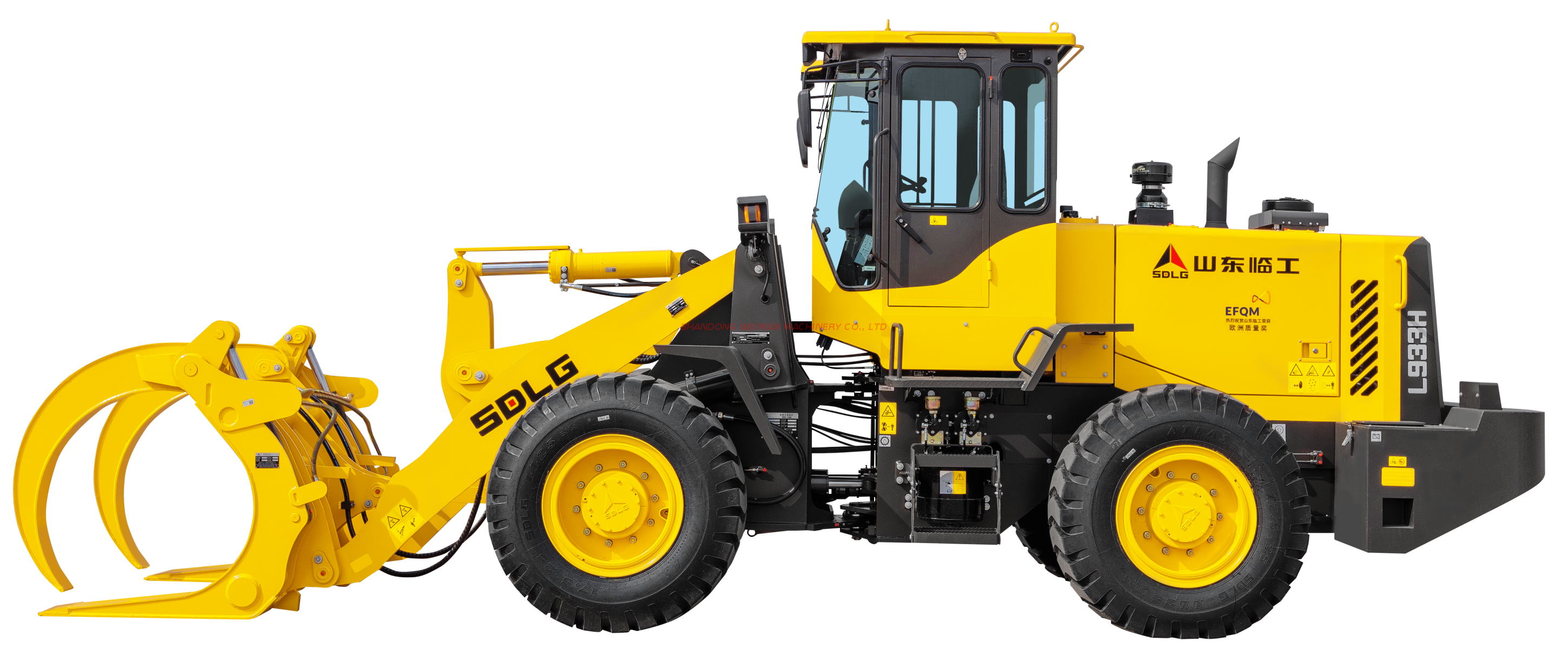

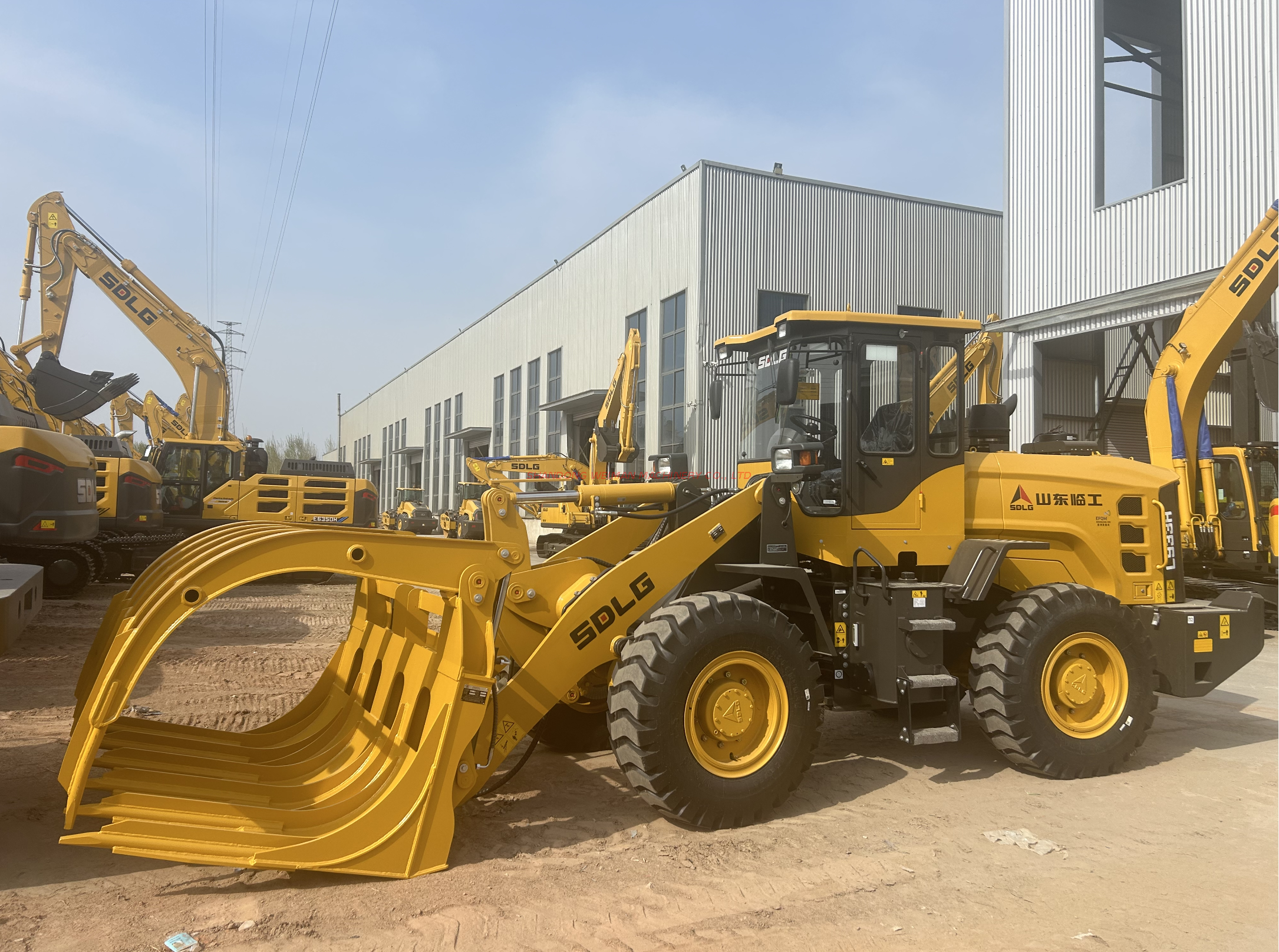

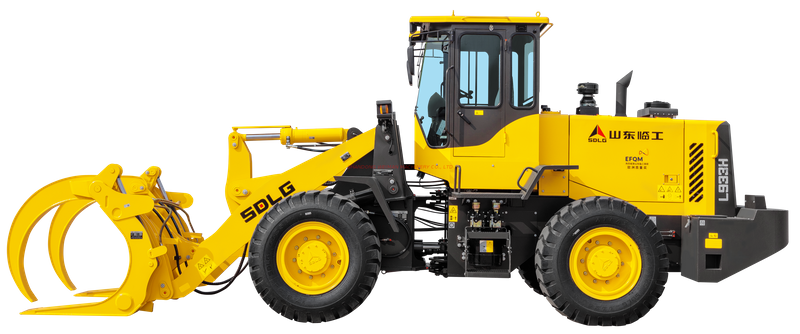

L933 Wheel Loader with Log Grappler
SDLG
L033HW4114M39A0
92KW
12000
| Technical parameter | |
| Model | L933H Log Grappler |
| Order No | L033HW4114M39A0 |
| Operating weight(kg) | 12000kg |
| Bucket capacity(m³) | |
| Rated load(kg) | 3000kg |
| Max.breakout force(KN) | ≥114kN |
| Max.dumping height(mm) | 3050mm |
| Dumping distance(mm) | 1378mm |
| Length×Width×Height(mm) | 7900×2310×3240mm |
| Max.tractive force(kN) | ≥96kN |
| Total time(s) | ≤10s |
| Steering angel(°) | 36° |
| Rated power(kW) | 92kW |
| Engine Model | WP4.6NG125E470 |
| Technical parameter | |
| Model | L933H Log Grappler |
| Order No | L033HW4114M39A0 |
| Operating weight(kg) | 12000kg |
| Bucket capacity(m³) | |
| Rated load(kg) | 3000kg |
| Max.breakout force(KN) | ≥114kN |
| Max.dumping height(mm) | 3050mm |
| Dumping distance(mm) | 1378mm |
| Length×Width×Height(mm) | 7900×2310×3240mm |
| Max.tractive force(kN) | ≥96kN |
| Total time(s) | ≤10s |
| Steering angel(°) | 36° |
| Rated power(kW) | 92kW |
| Engine Model | WP4.6NG125E470 |
