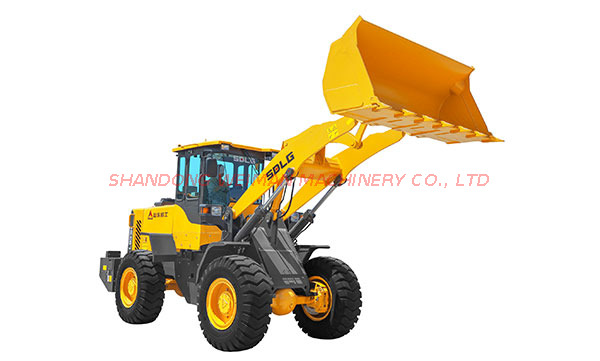

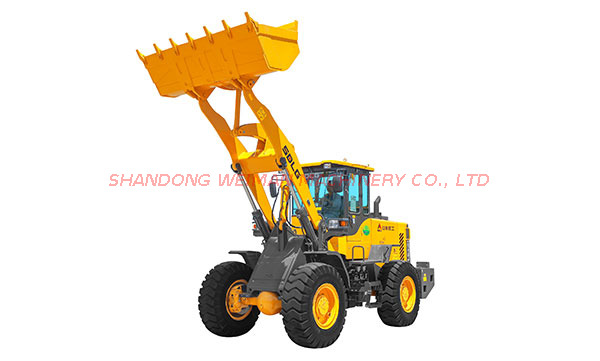

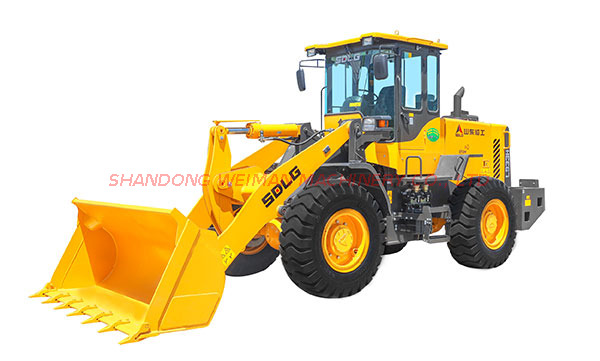

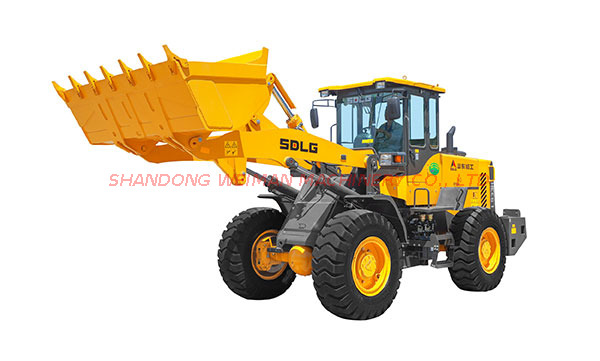

L933H Wheel Loader
SDLG
L0330W4215A29E0
92KW
1.5～3.0m³
10300
| Technical parameter | |
| Model | L933H |
| Order No | L0330W4215A29E0 |
| Operating weight(kg) | 10300kg |
| Bucket capacity(m³) | 1.5～3.0m³ |
| Rated load(kg) | 2700kg |
| Max.breakout force(KN) | 100±3 kN |
| Max.dumping height(mm) | 3278mm |
| Dumping distance(mm) | 1020mm |
| Length×Width×Height(mm) | 7370×2520×3240mm |
| Max.tractive force(kN) | ≥96kN |
| Total time(s) | ≤9.0s |
| Steering angel(°) | 36° |
| Rated power(kW) | 92kW |
| Engine Model | WP4.6NG135E501 |
| Emission standard | India IV |
