| P/N: | |
|---|---|
| MODEL : | |
| Dimension: | |
| Operating Weight: | |
| Quantity: | |

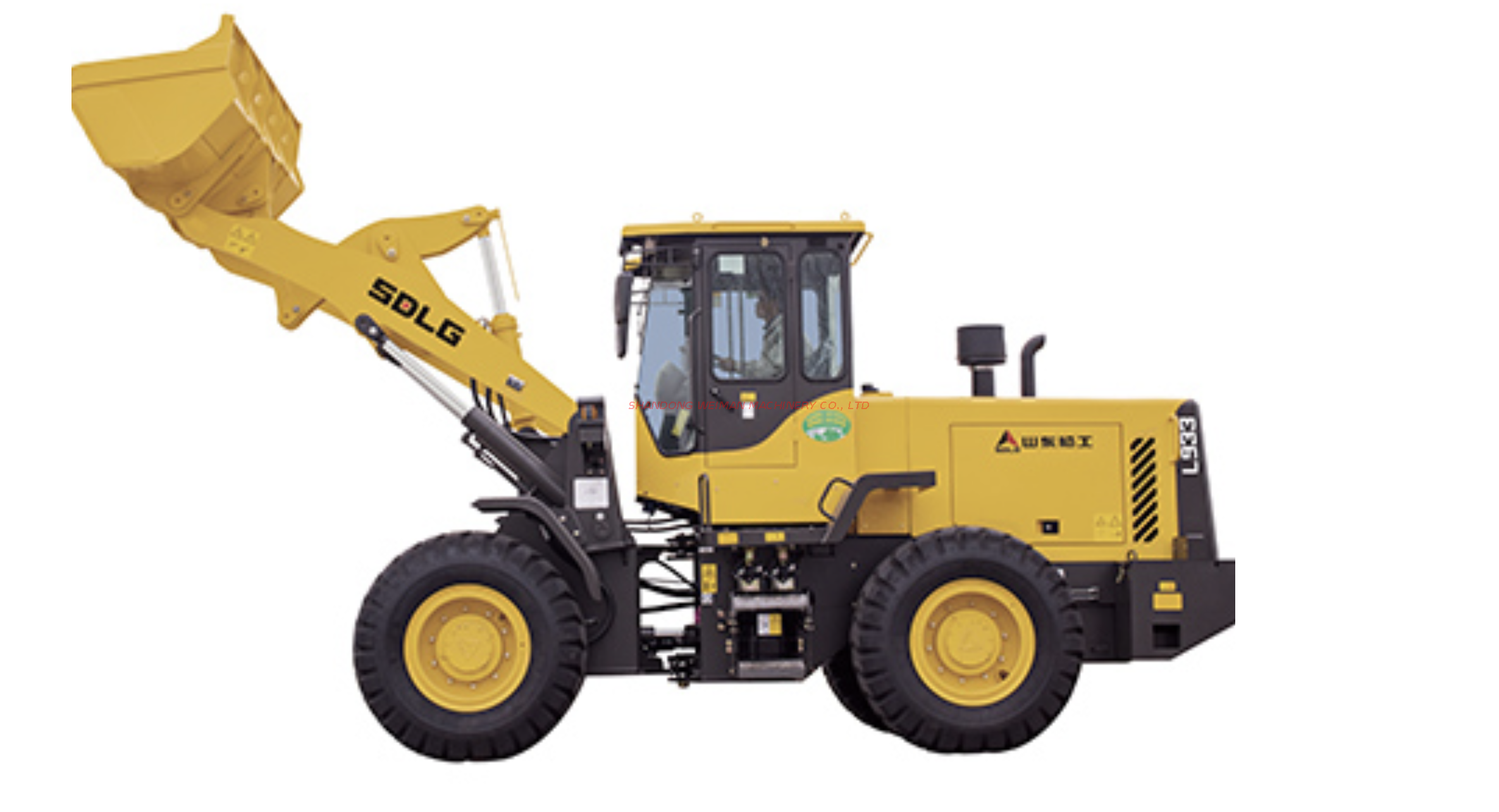

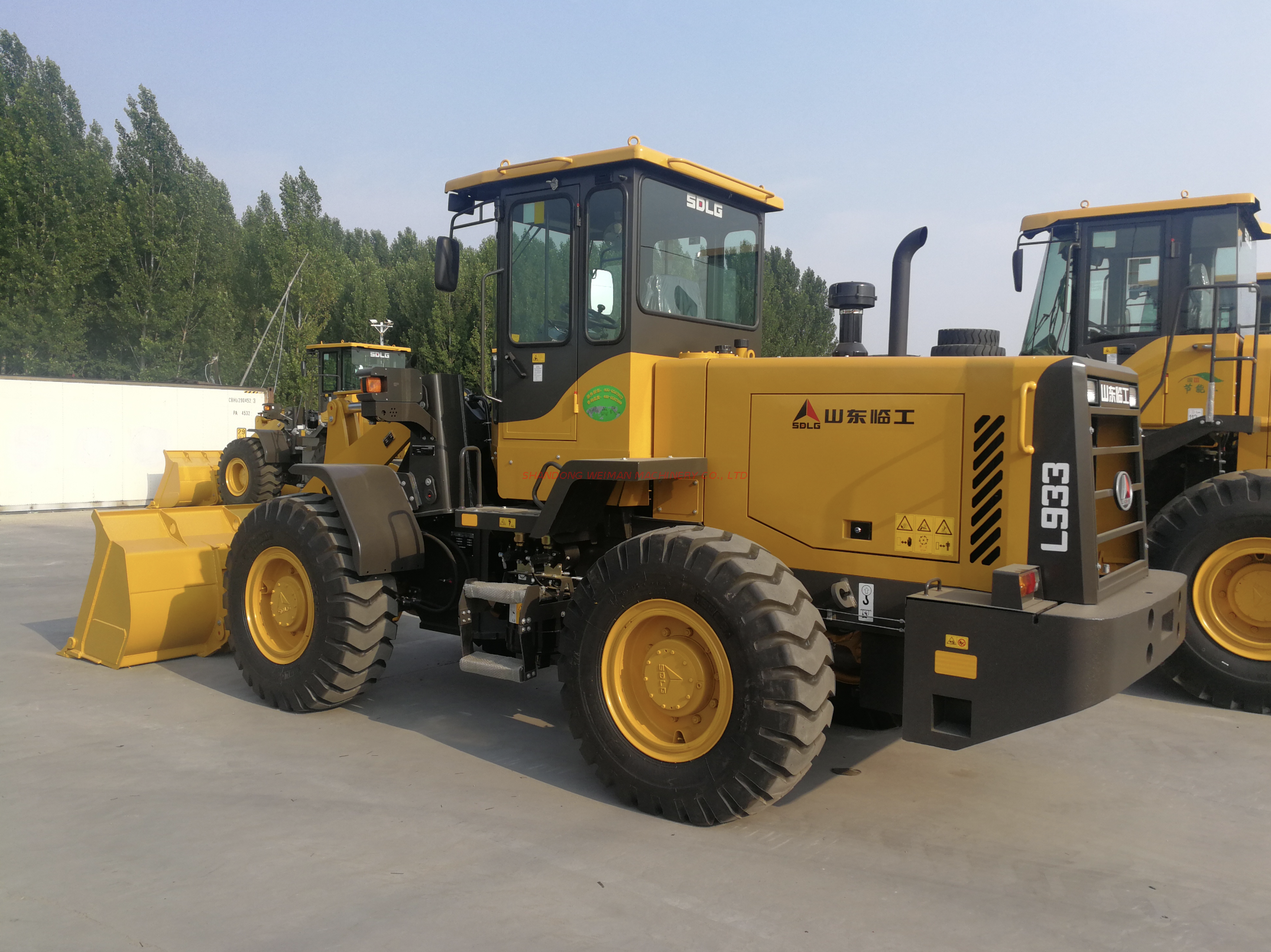

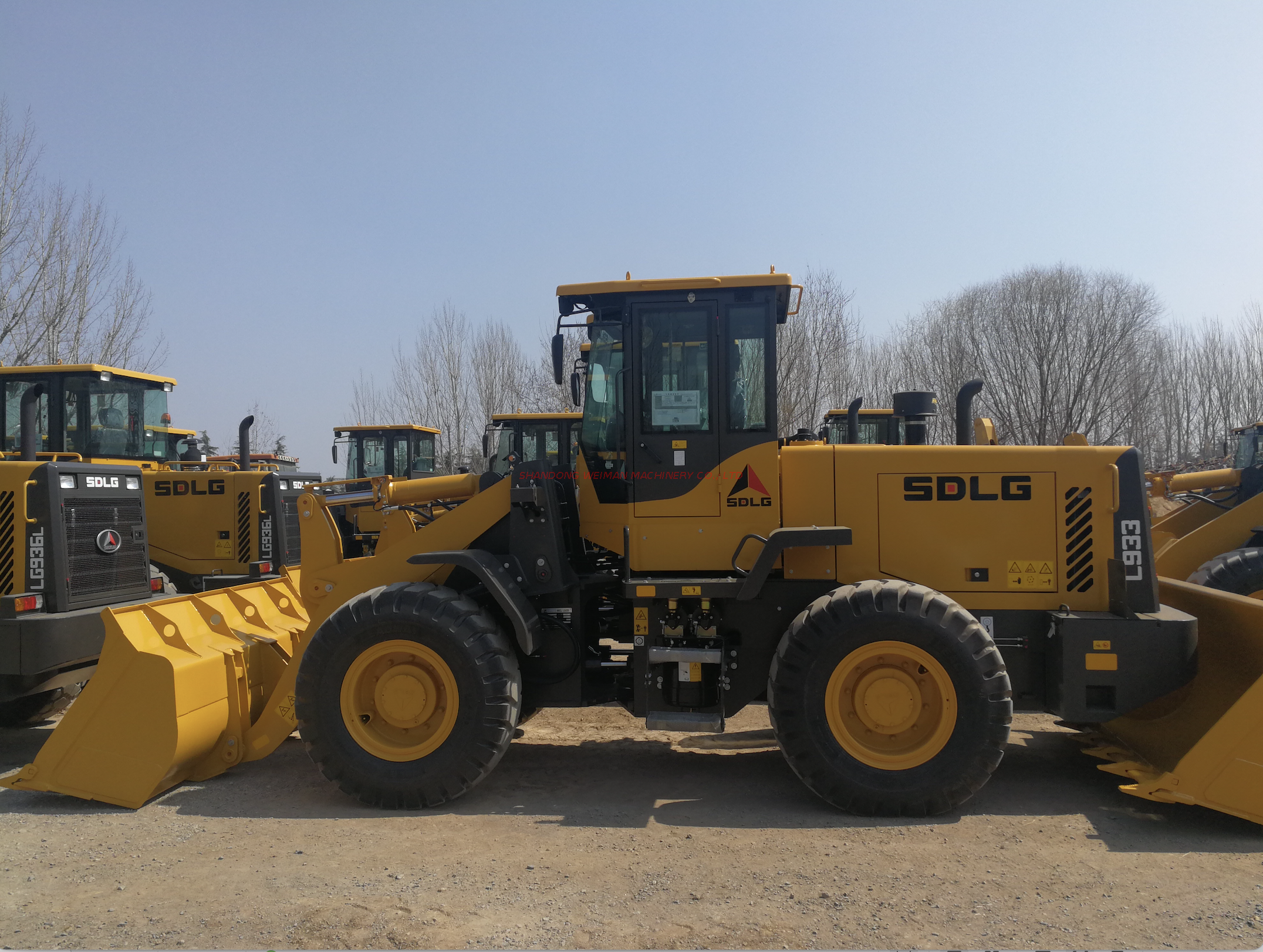

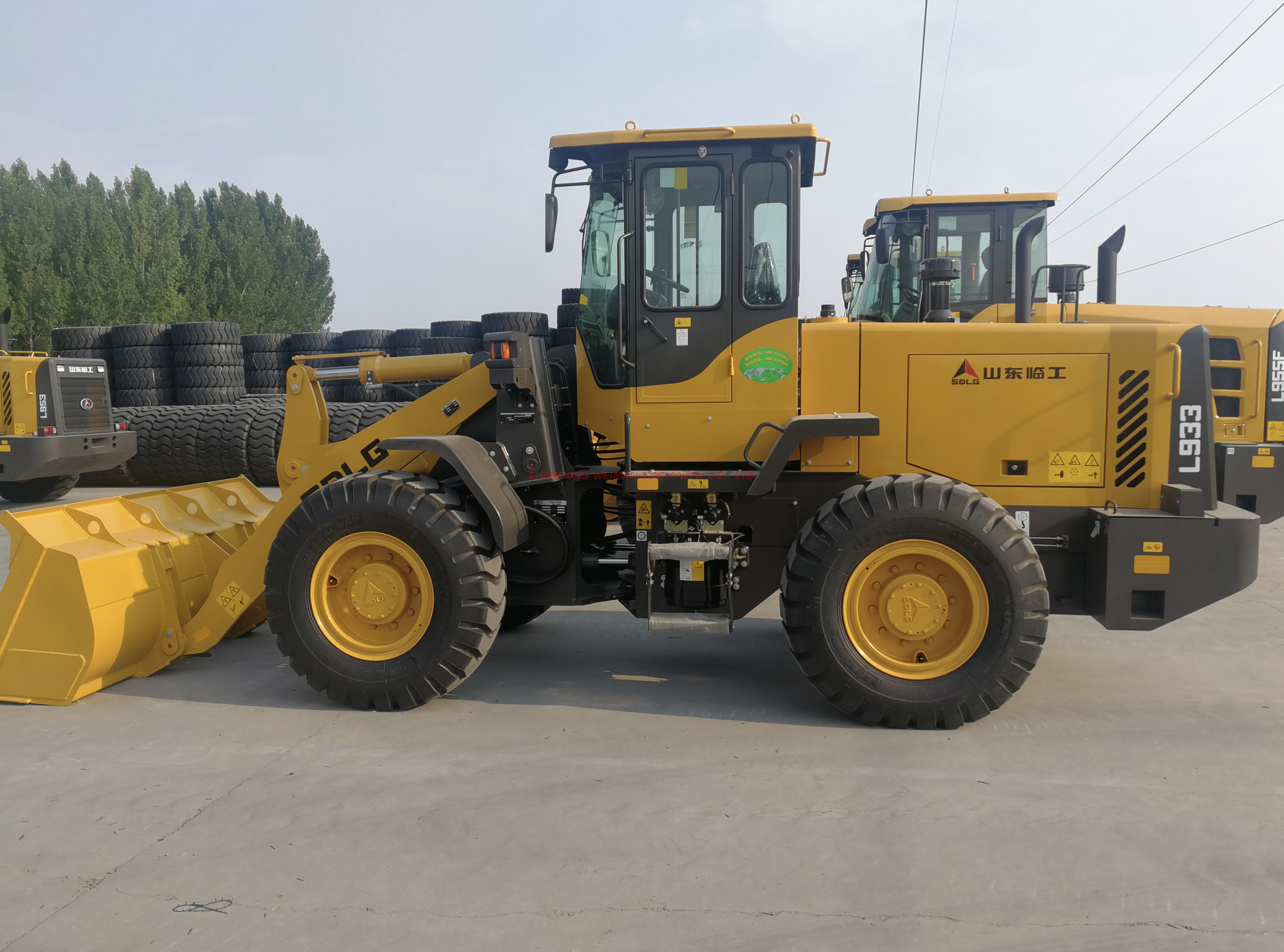

L933 Wheel Loader
SDLG
L0330W3215A29E0
92KW
1.8(1.5-3.0)
10150
| Model | L933 |
| Order No: | L0330W3215A29E0 |
| Operating weight(kg) | 10150 |

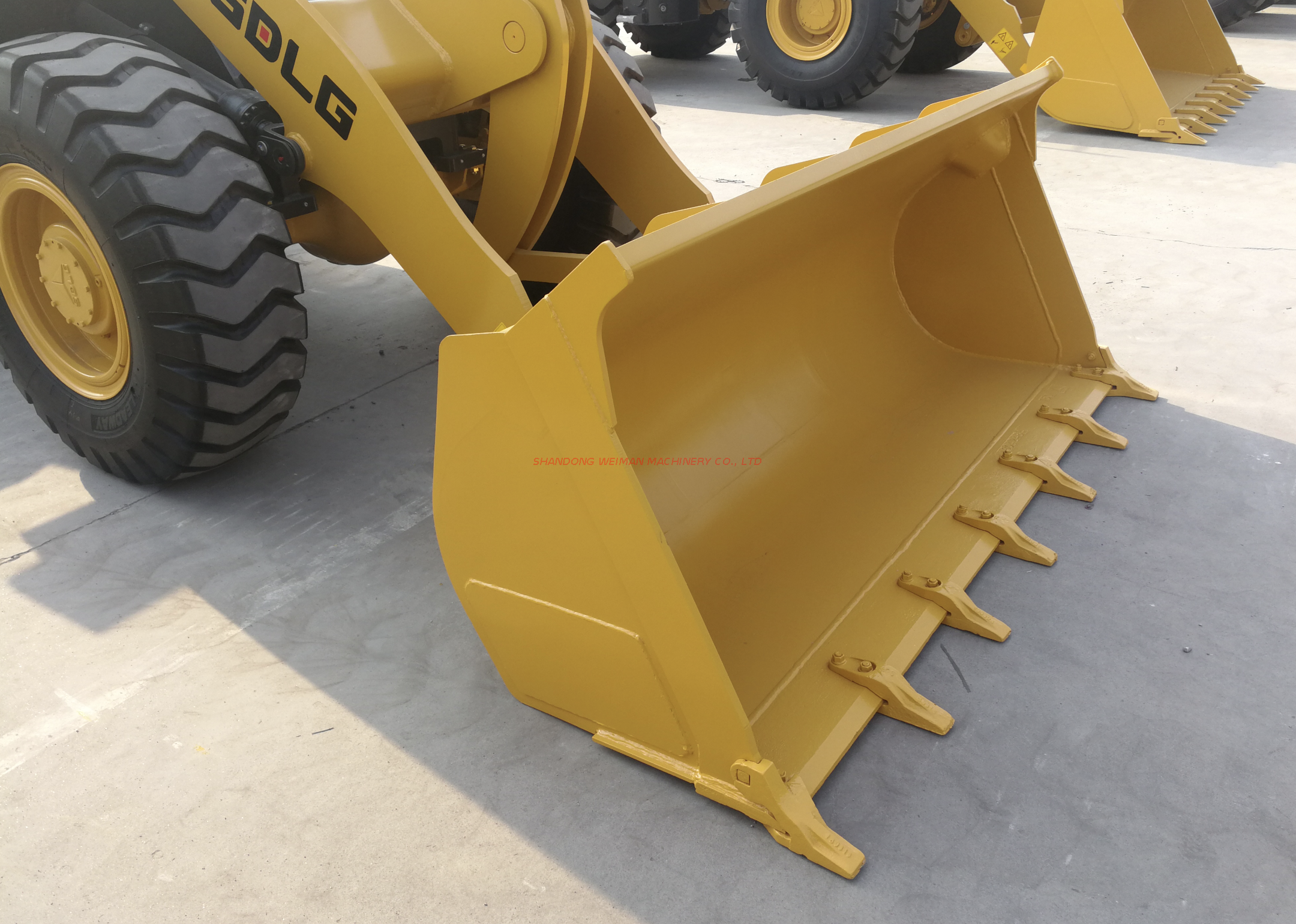

| Bucket capacity(m³) | 1.8(1.5-3.0) |
| Rated load(kg) | 3000 |
| Rated power(kW) | 92 |
| Length×Width×Height(mm) | 7100x2520x3240 |
| Wheel base(mm) | 2850 |
| Max.dumping height(mm) | 2950 |
| Dumping distance(mm) | 1050 |
| Steering angel(°) | 36 |
| Engine Model | Weichai WP6G125E331 |
| Emission standard | China Phase III |
| Max.tractive force(kN) | 96 |
| Max.breakout force(KN) | 96 |
| Gears() | Forward 4 reverse 2 |
| Total time(s) | 9 |
| Fuel tank capacity(L) | 160 |
