| P/N: | |
|---|---|
| MODEL : | |
| Dimension: | |
| Operating Weight: | |
| Quantity: | |

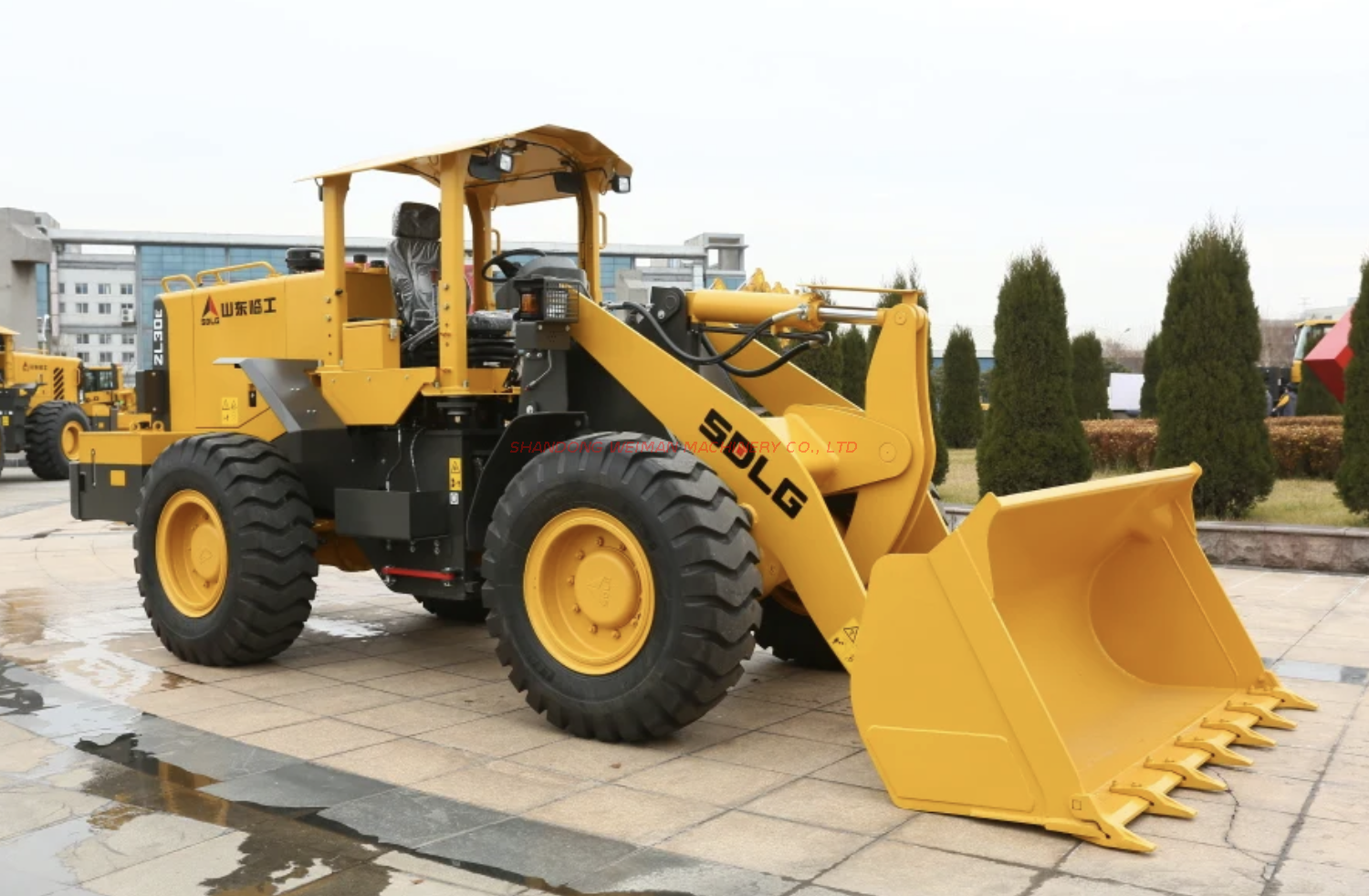

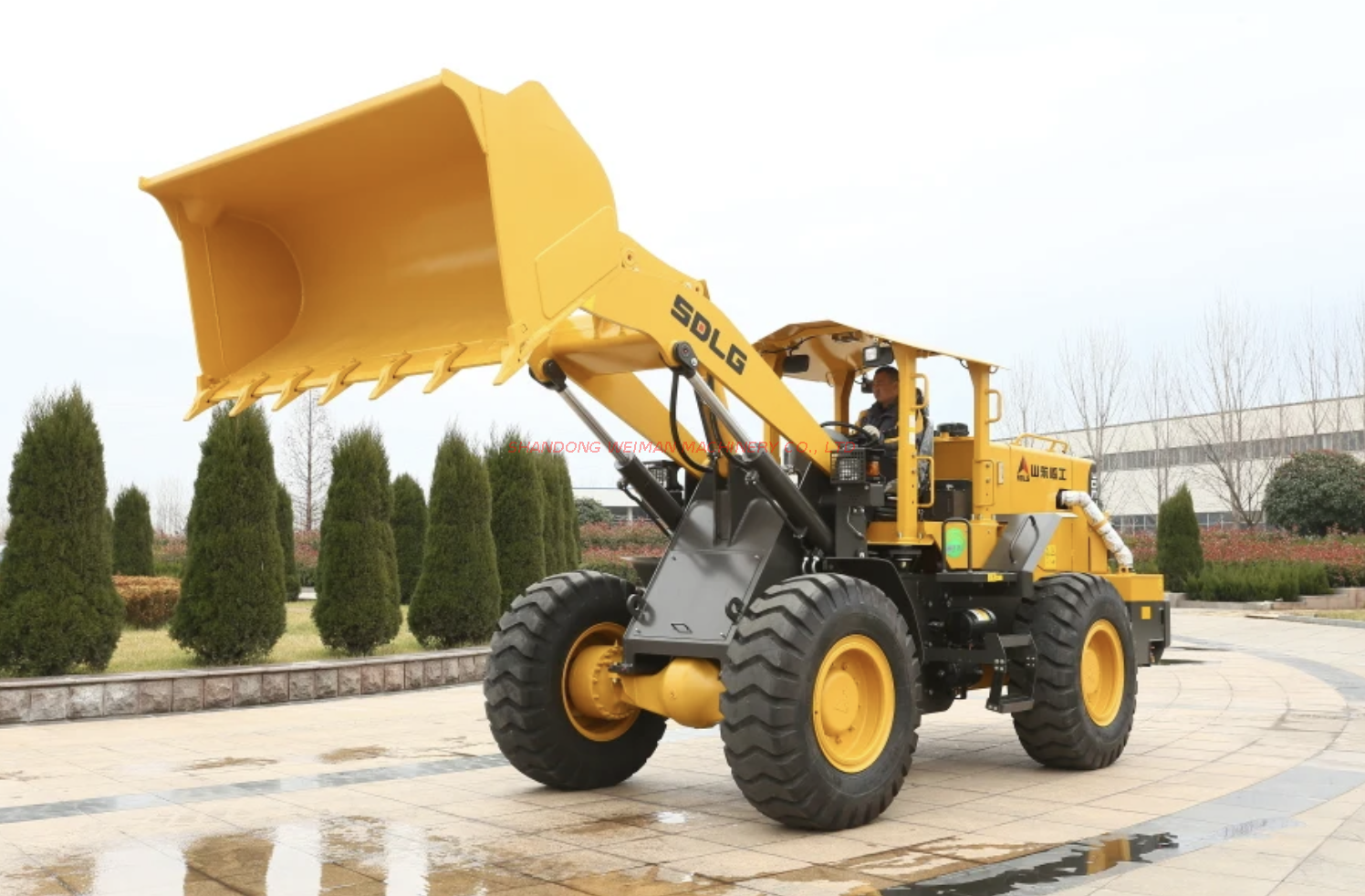

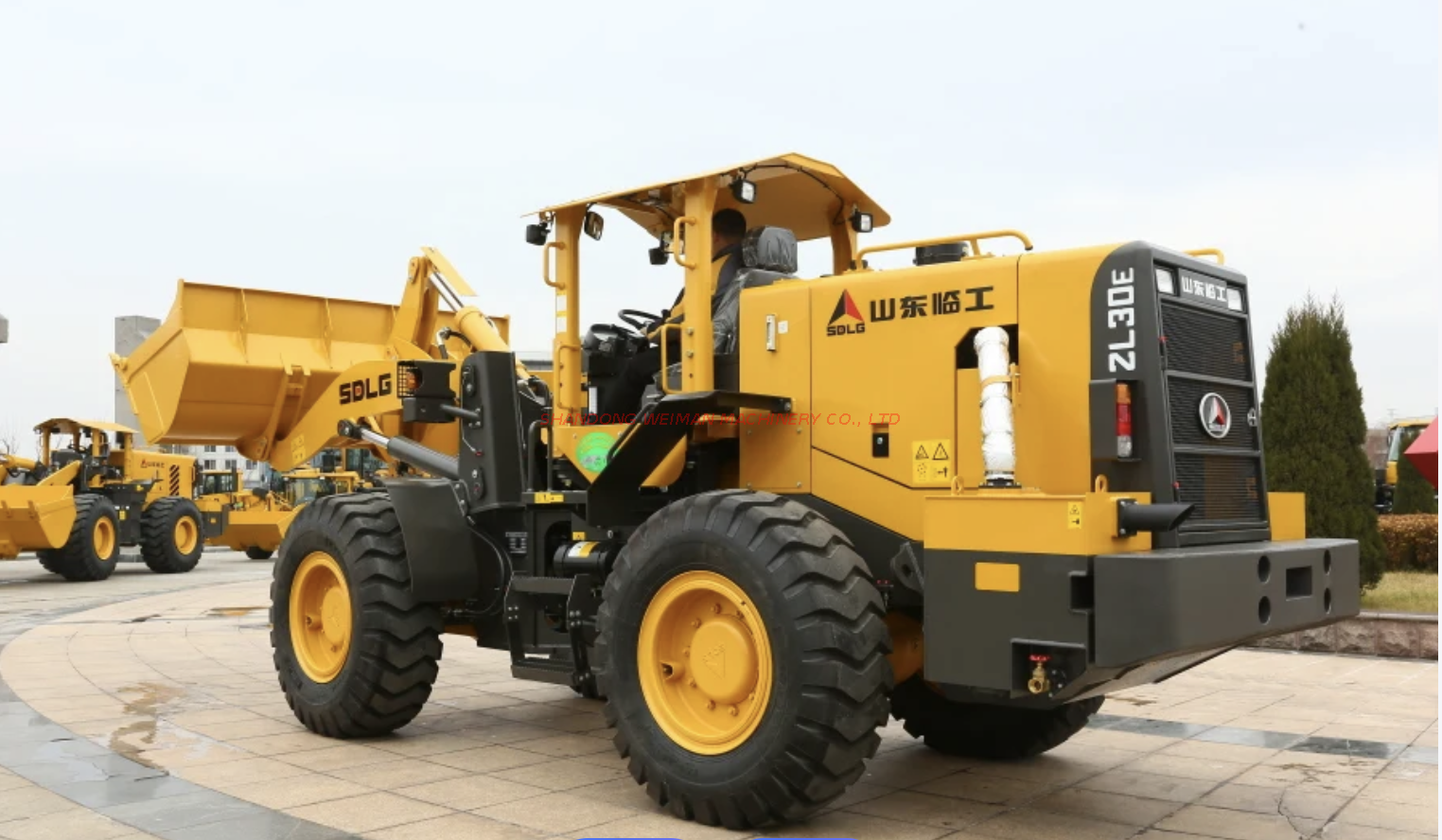

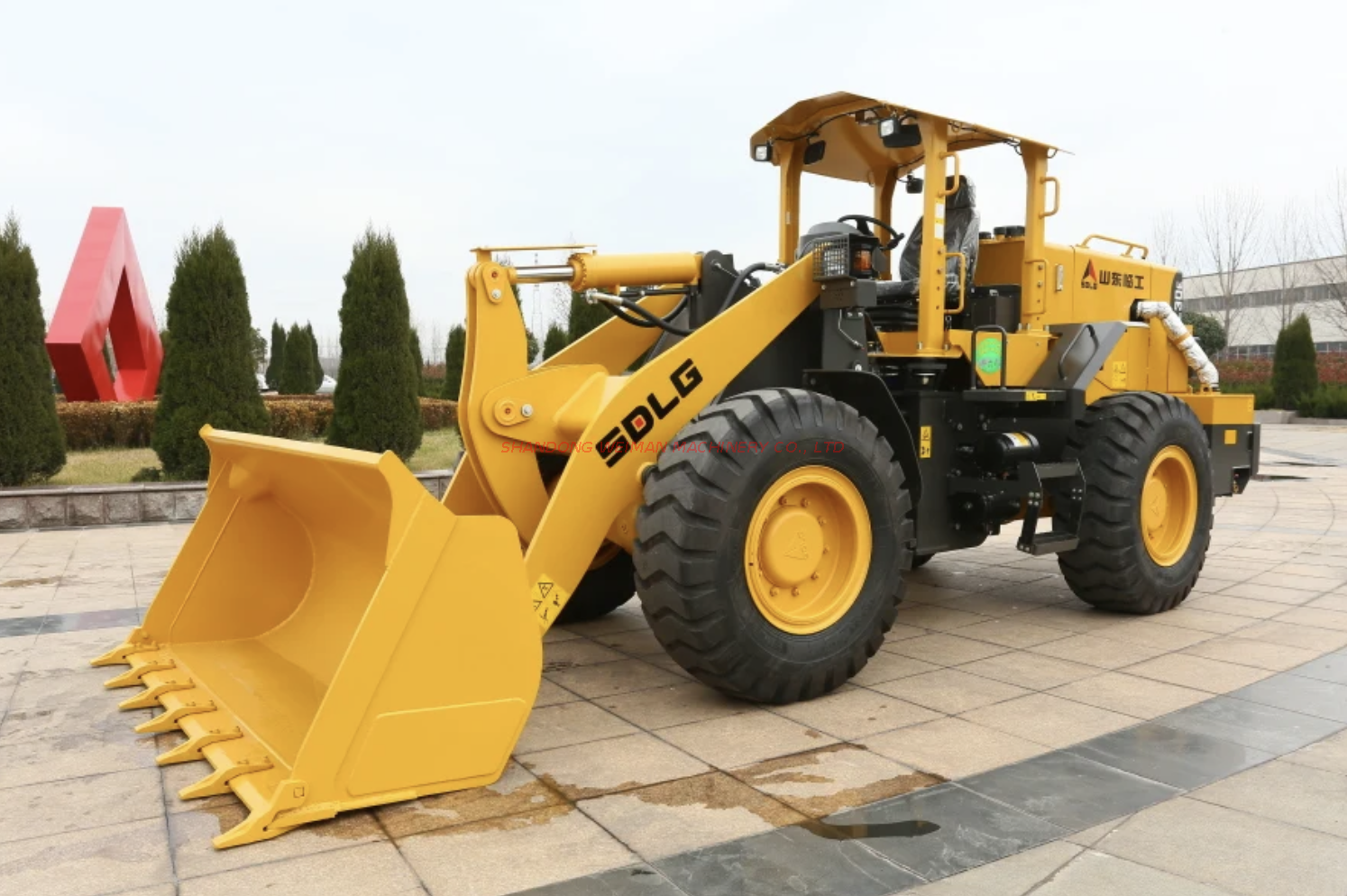

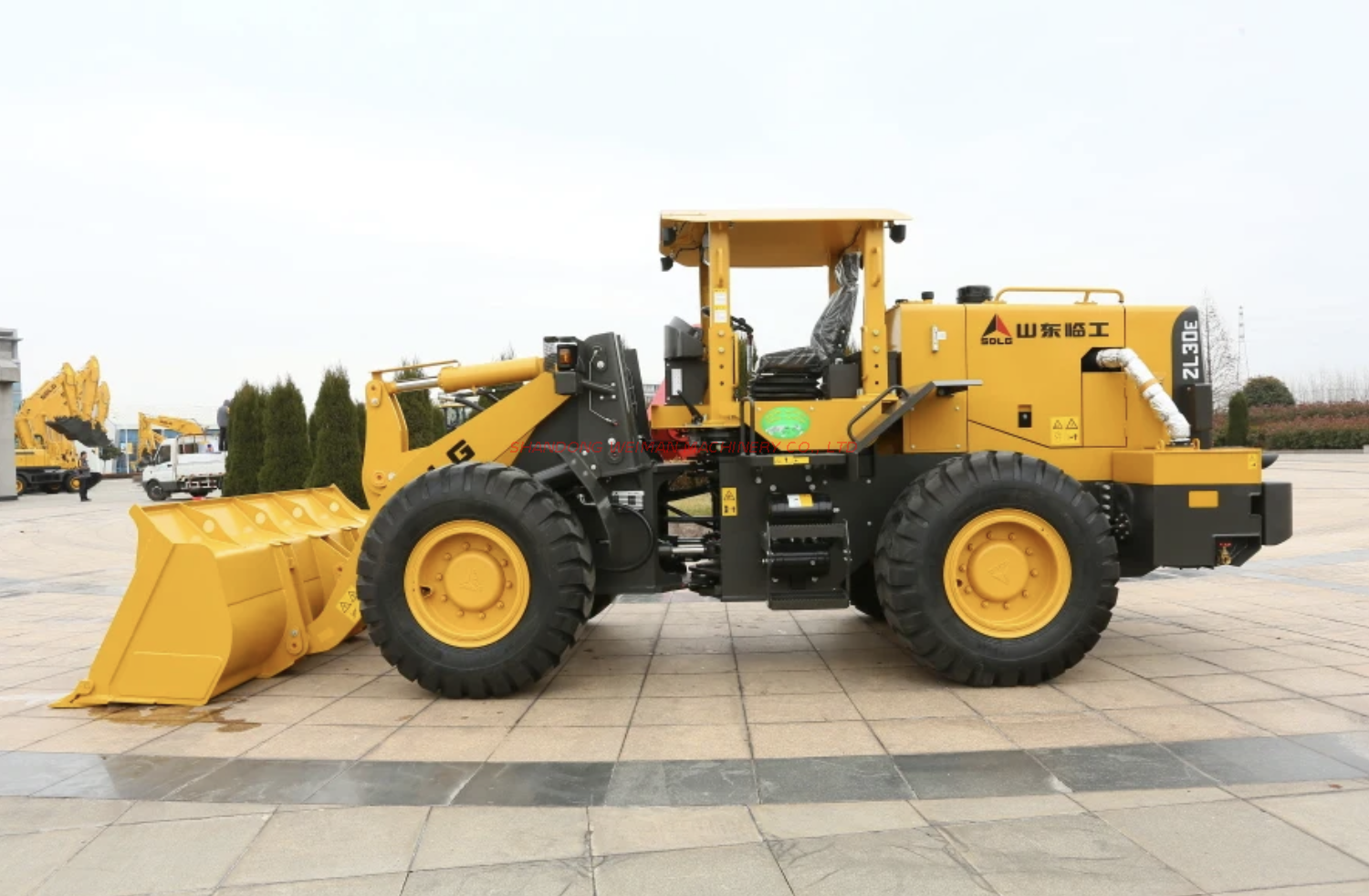

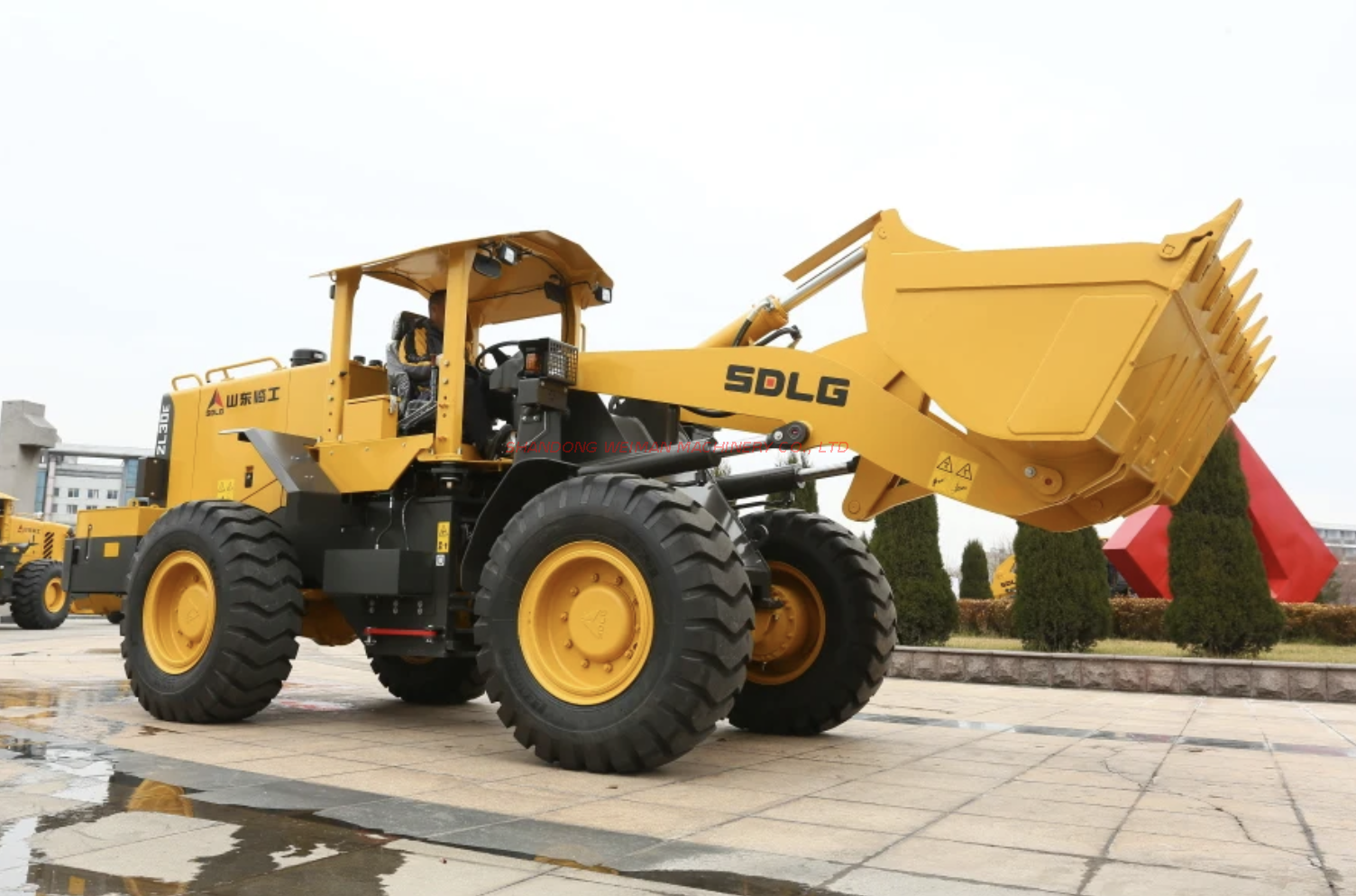

ZL30E
SDLG
L0300Y4224A23T0
92KW
1.5m³
11400
| Technical Parameter | |
| Model | ZL30E |
| Order No | L0300Y4224A23T0 |
| Operating weight(kg) | 11400 |
| Bucket capacity(m³) | 1.5 |
| Rated load(kg) | 3000 |
| Rated power(kW) | 92 |
| Minimum Fuel Consumption(g/kw.h) | ≤220 |
| Braking System Capacities(L) | 4 |
| Type of Torque Convertor | Single-stage four-element twin turbine torque converter |
| Transmission Type | Planetary power shift |
| Main Drive Type | First reduction of spiral bevel gear |
| Forward I(km/h) | 0-13 |
| Forward II(km/h) | 0-35 |
| Reverse I(km/h) | 0-16 |
| Type of working device | Mechanical manual control |
| Cycle Time(s) | ≤10.2 |
| Working Pressure of hydraulic system(MPa) | 16 |
| Service Brake Type | One-stage planetary reduction |
| Parking Brake Type | Electric air-controlled internal expansion shoe brake |
| Steering System Type | Load-sensing full hydraulic articulated steering |
| Working Pressure of Steering(MPa) | 14 |
| Hydraulic Oil Capacities(L) | 128 |
| Engine Oil Capacities(L) | 17 |
| Transmission Oil Capacities(L) | 44 |
| Axle Oil Capacities(L) | 2x28 |
| Gears() | F2R1 |
| Length×Width×Height(mm) | 7000x2510x2890 |
| Wheel base(mm) | 2850 |
| Max.dumping height(mm) | 2800 |
| Dumping distance(mm) | 1000 |
| Steering angel(°) | 37 |
| Engine Model | YC6J125-T300 |
| Emission standard | GB 20891-2014(China III emission) |
| Max.tractive force(kN) | 90 |
| Max.breakout force(kN) | ≥90 |
| Maximum Torque/Engine Speed((N.m)/(r/min)) | 580/1400-1600 |
| Fuel tank capacity(L) | 160 |
| Min. Ground Clearance(mm) | 220 |
| Dumping Angel(°) | -45 |
| Wheel Gauge(mm) | 1865 |
| Horizontal Passing Radius (Outside of Bucket)(mm) | 6500 |
| Minimum Turning Radius (Outside of Rear Wheel)(mm) | 5500 |
| Engine Type | In-line、water-cooled、four-stroke、direct injection |
| Displacement(ml) | 6494 |
