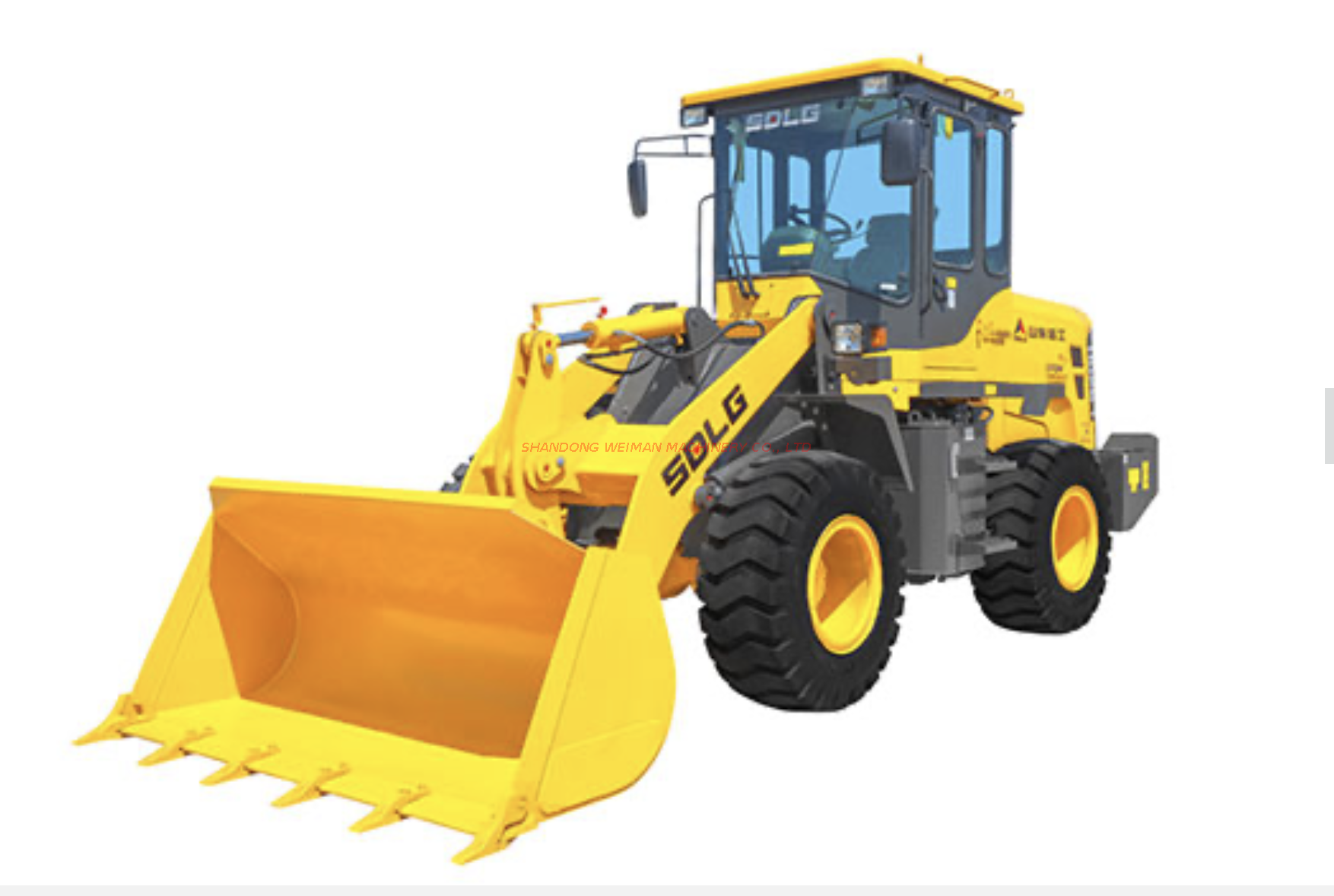

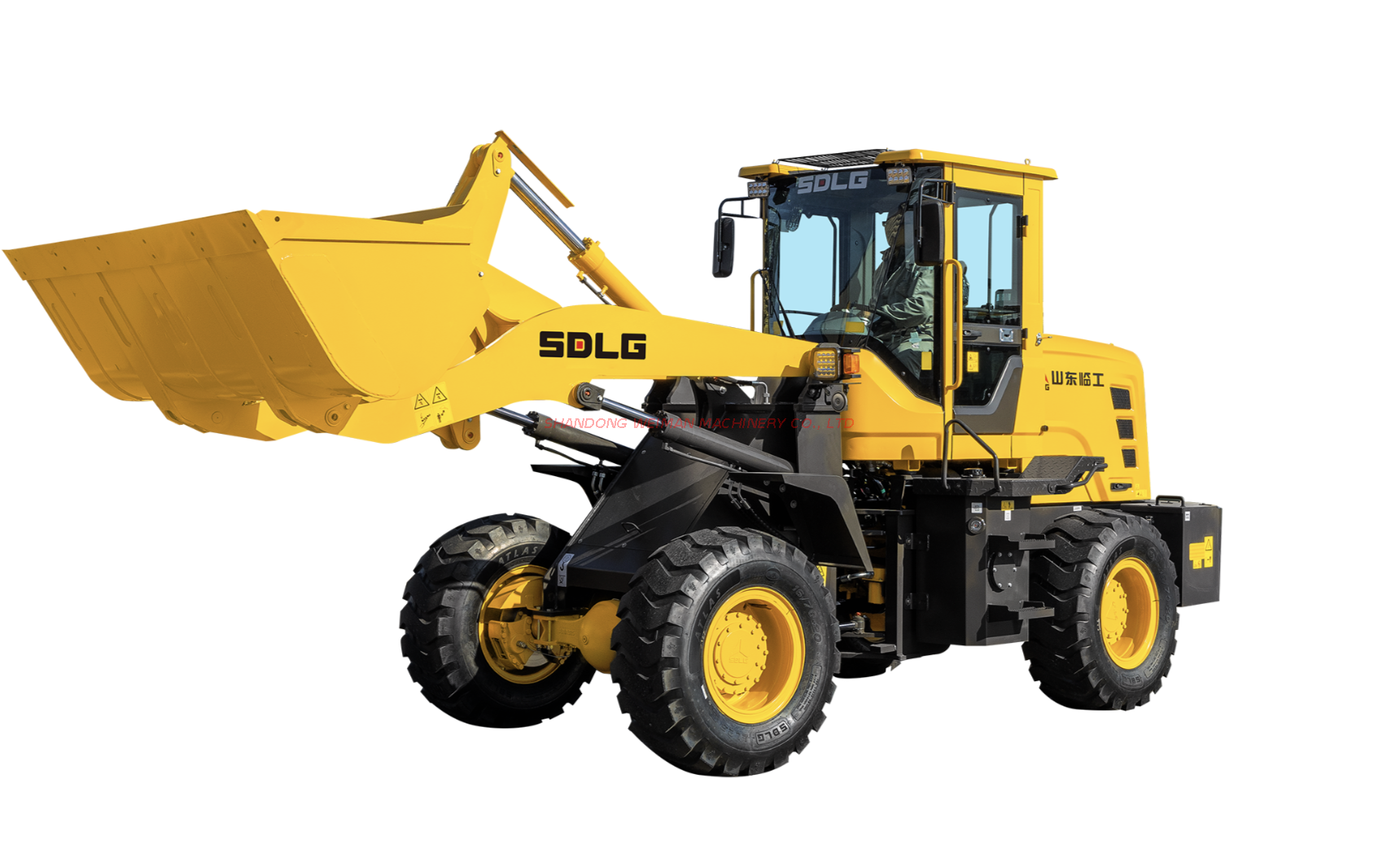

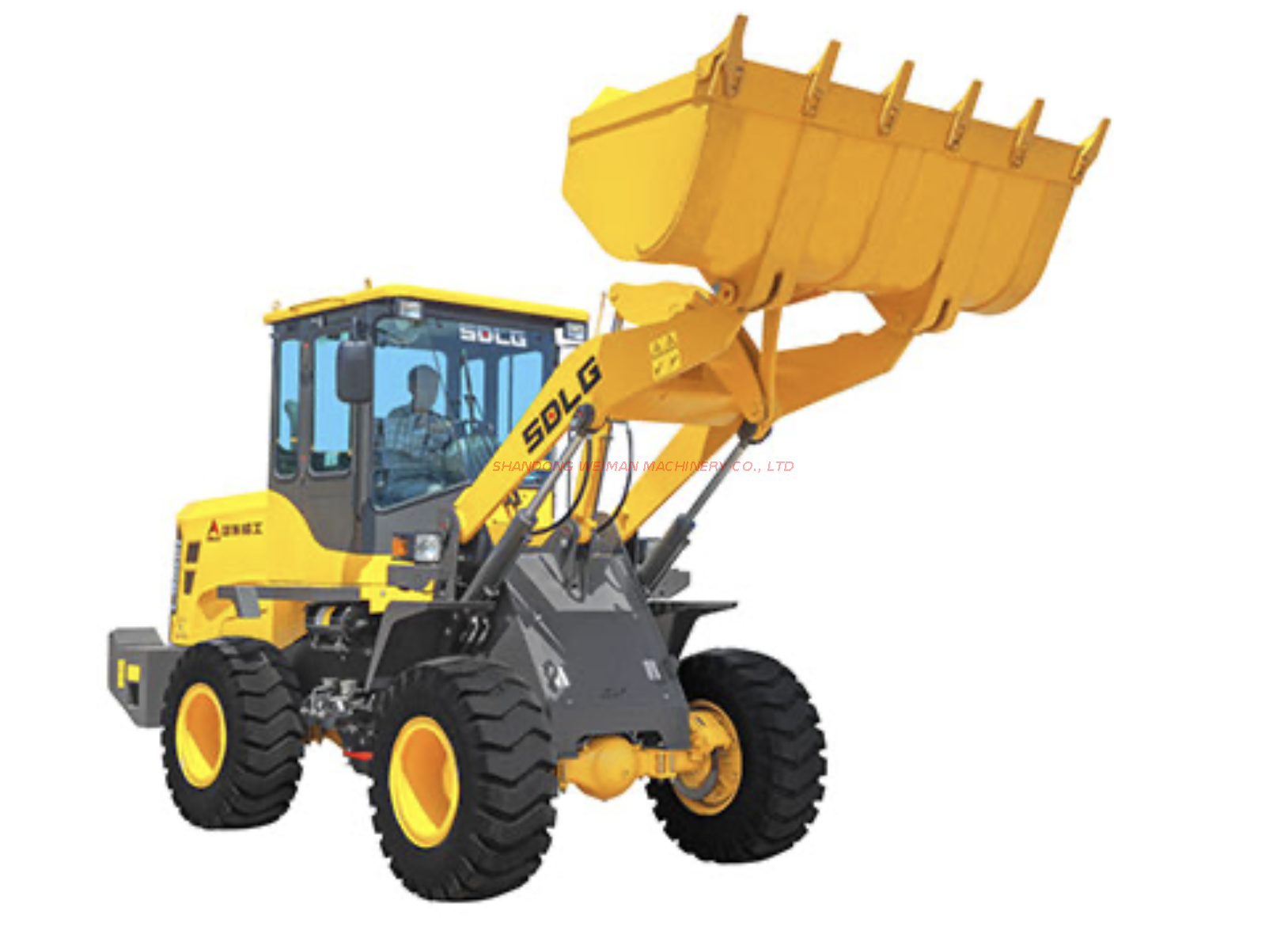

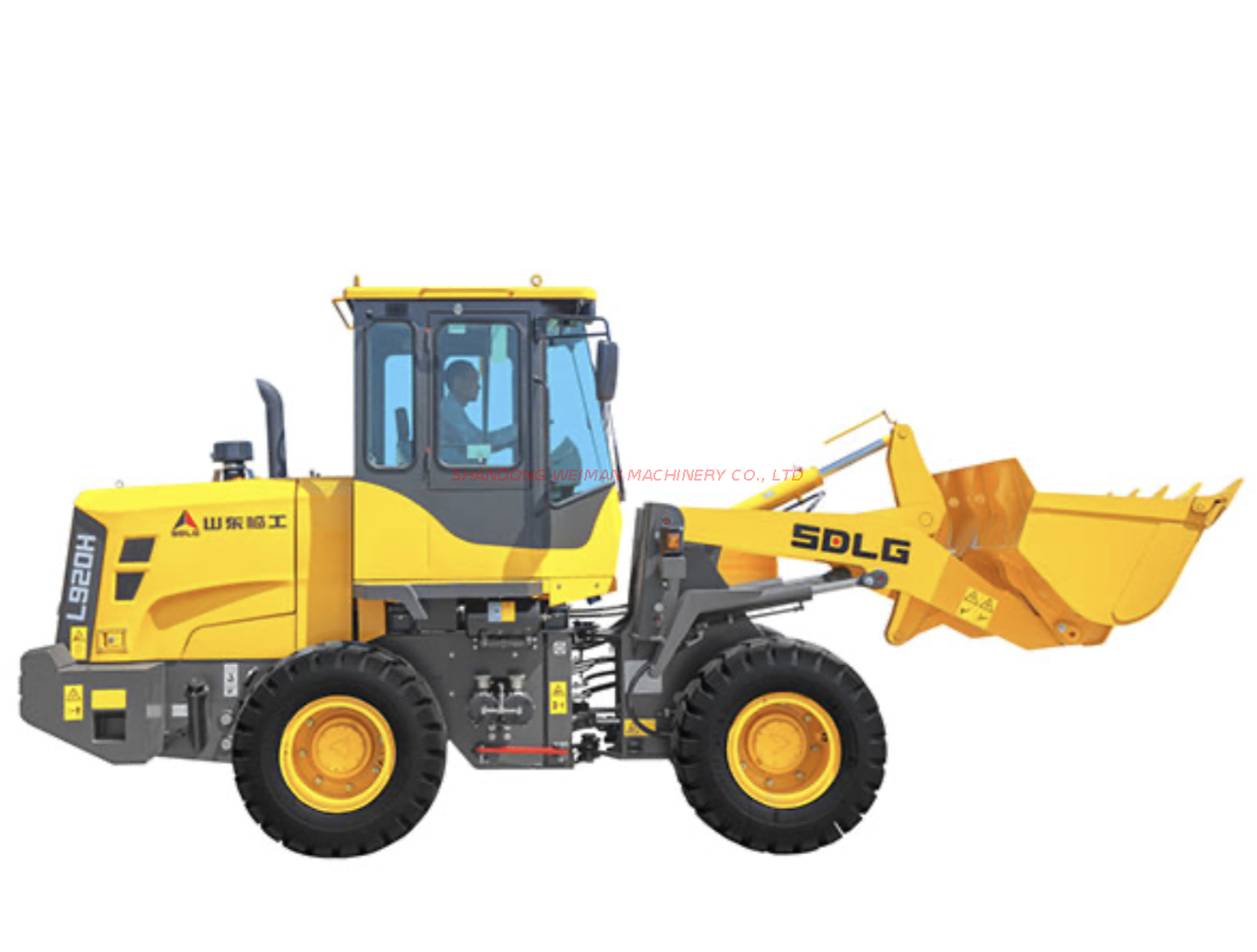

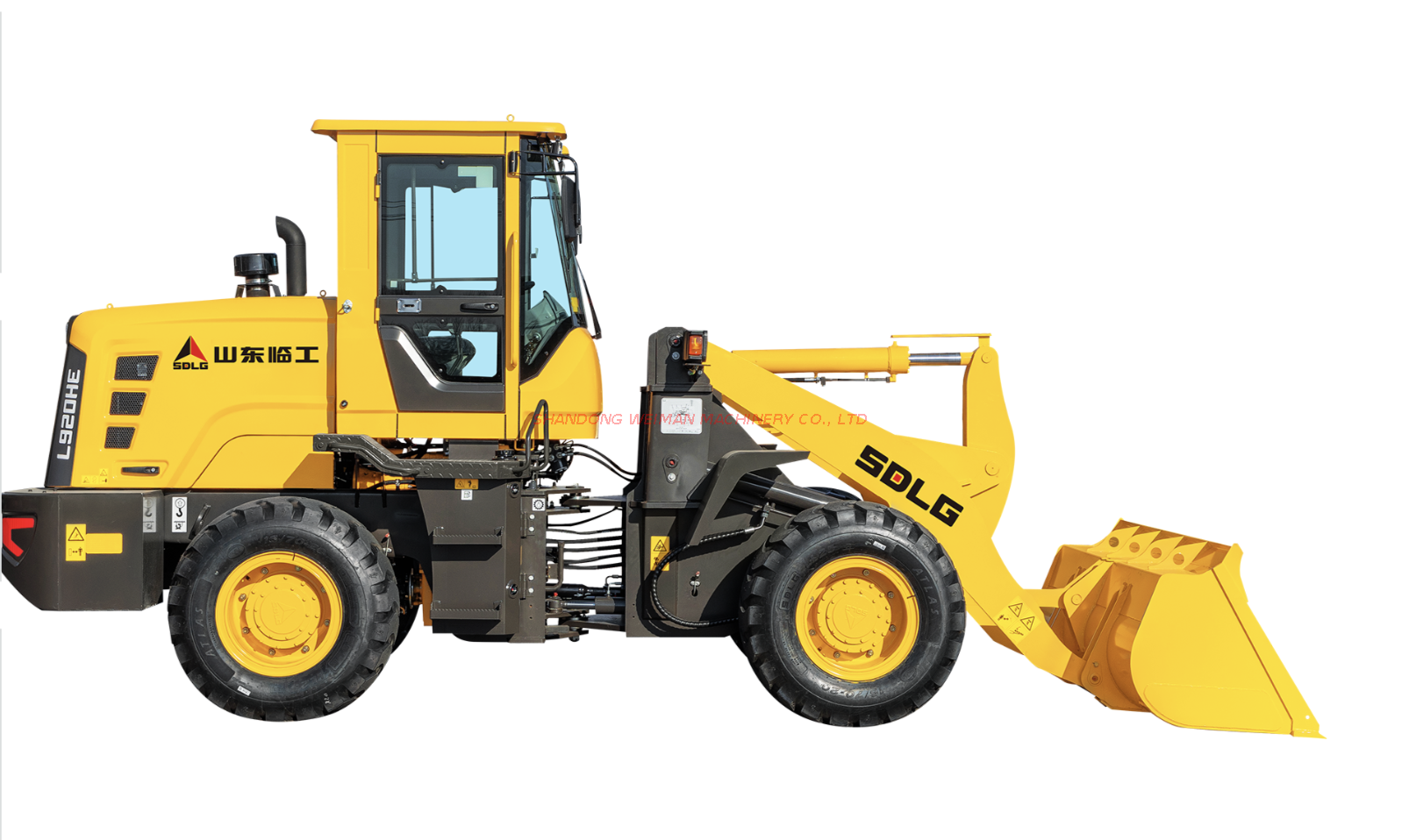

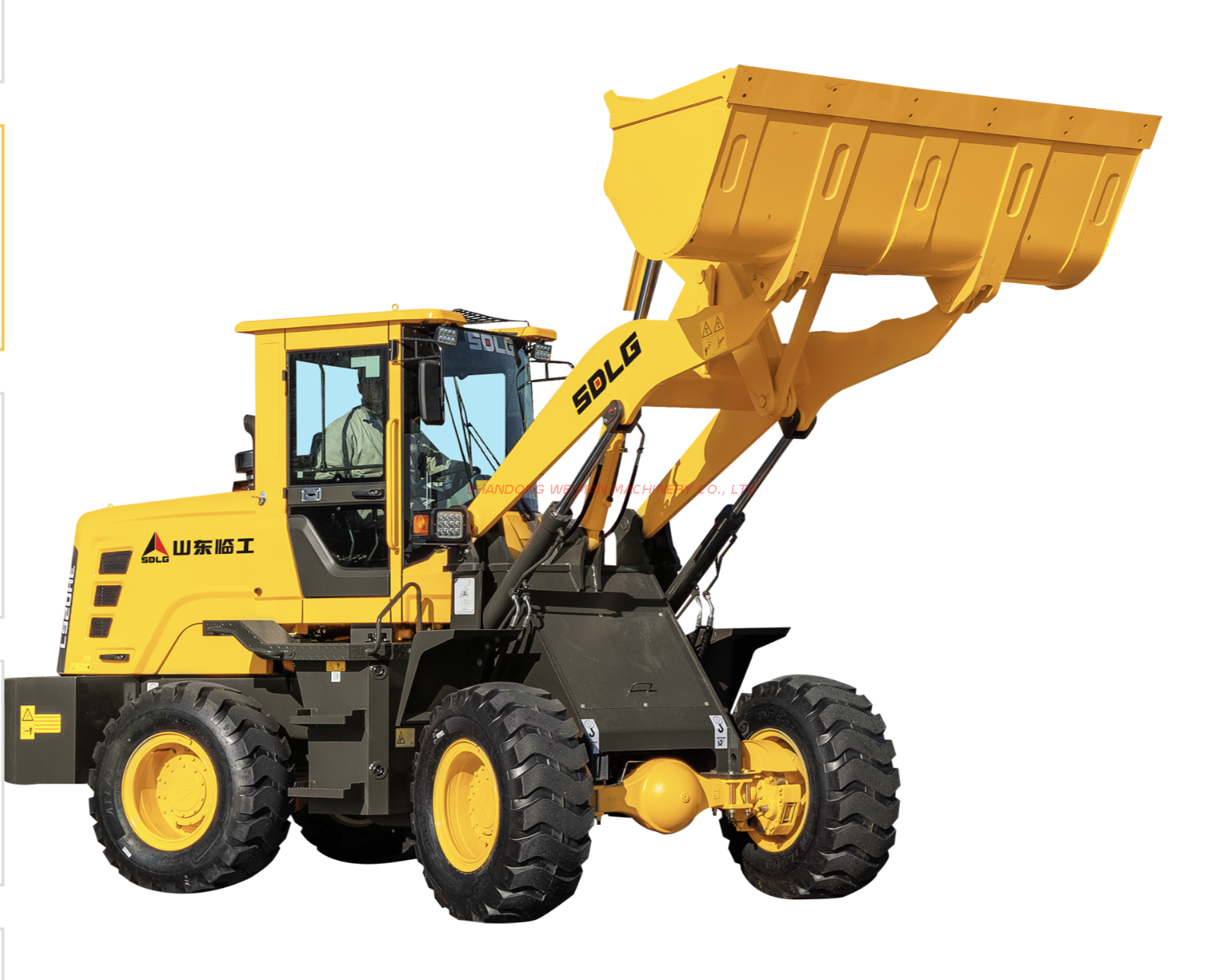

L920H Wheel Loader
SDLG
L020HY4214A29A1
66KW
1.0～1.4m³
6500KG
| Model | L920H |
| Order No | L020HY4214A29A1 |
| Operating weight(kg) | 6500kg |
| Bucket capacity(m³) | 1.0～1.4m³ |
| Rated load(kg) | 2000kg |
| Max.breakout force(KN) | ≥50kN |
| Max.dumping height(mm) | 2454mm |
| Dumping distance(mm) | 976mm |
| Length×Width×Height(mm) | 5900×2150×2920 |
| Max.tractive force(kN) | ≥58kN |
| Total time(s) | ≤9.6s |
| Steering angel(°) | 35° |
| Rated power(kW) | 66kW |
