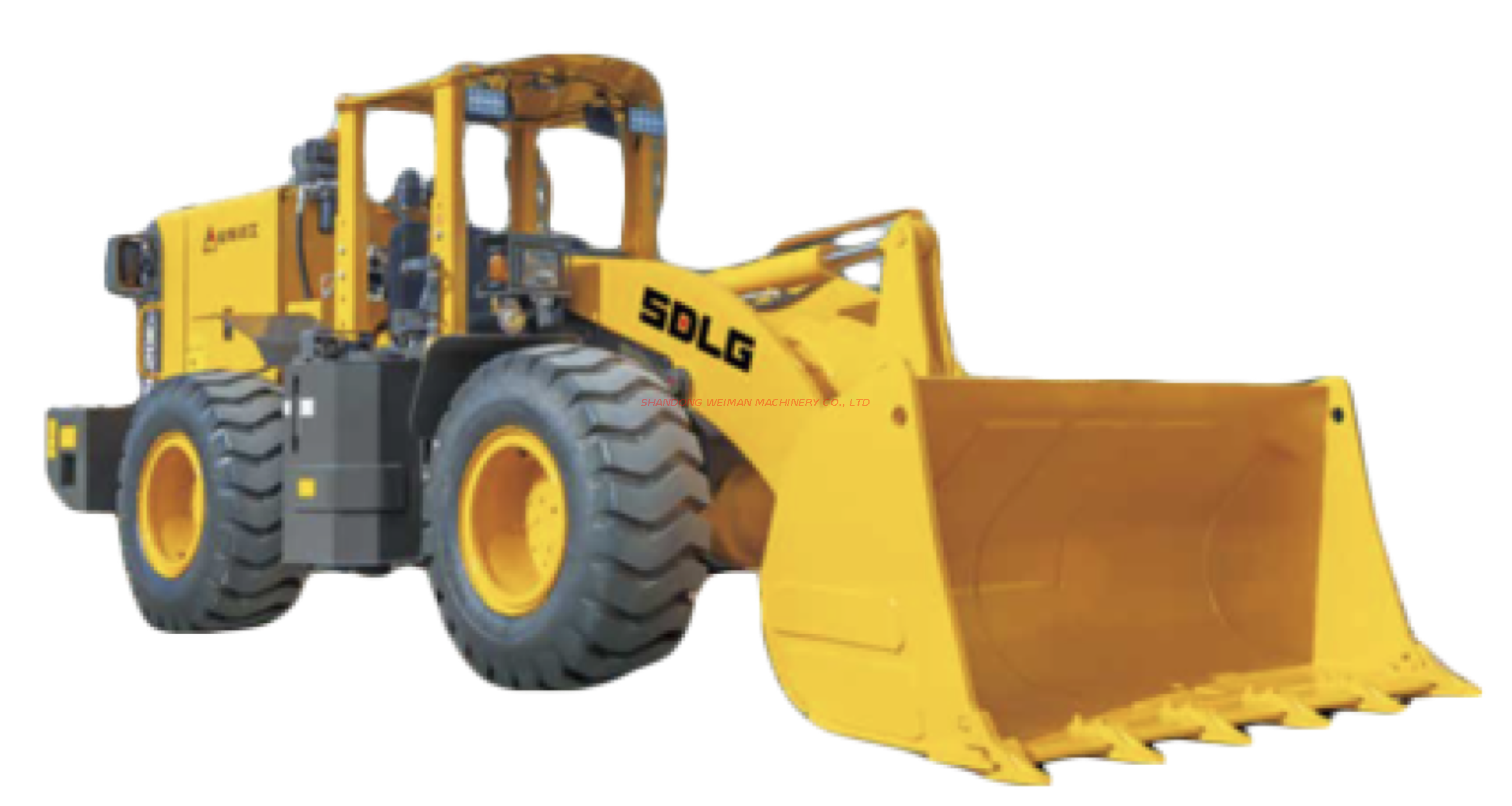

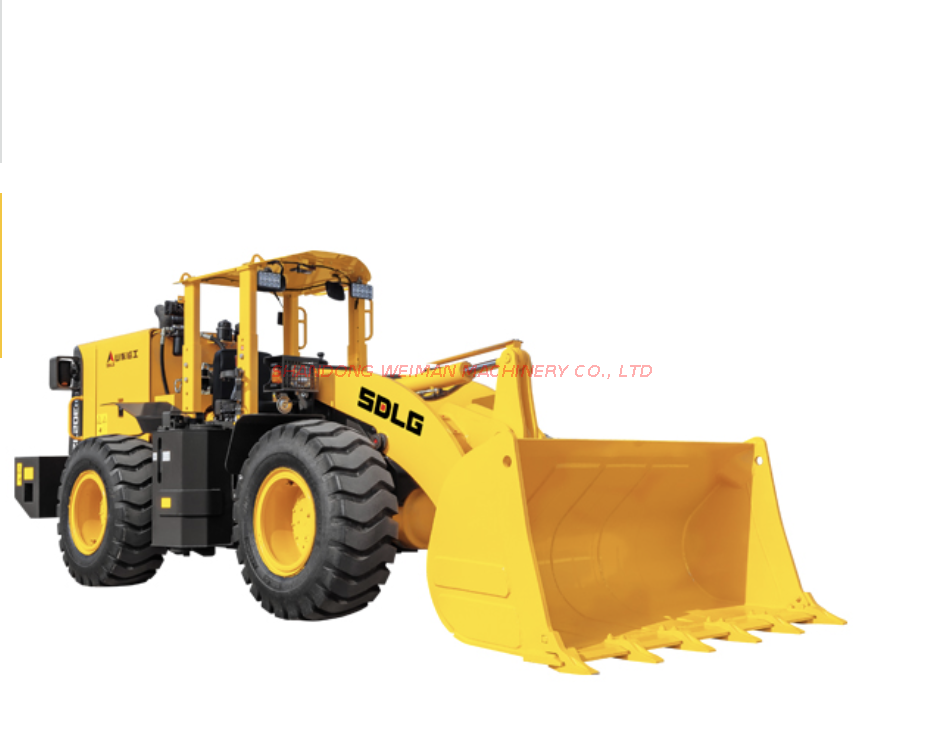

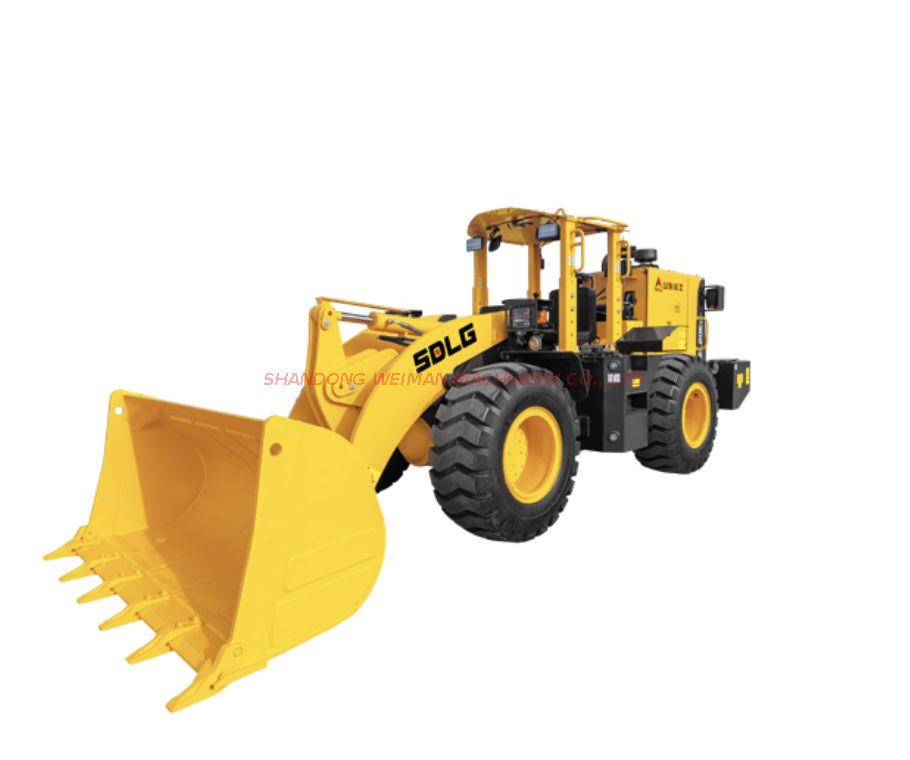

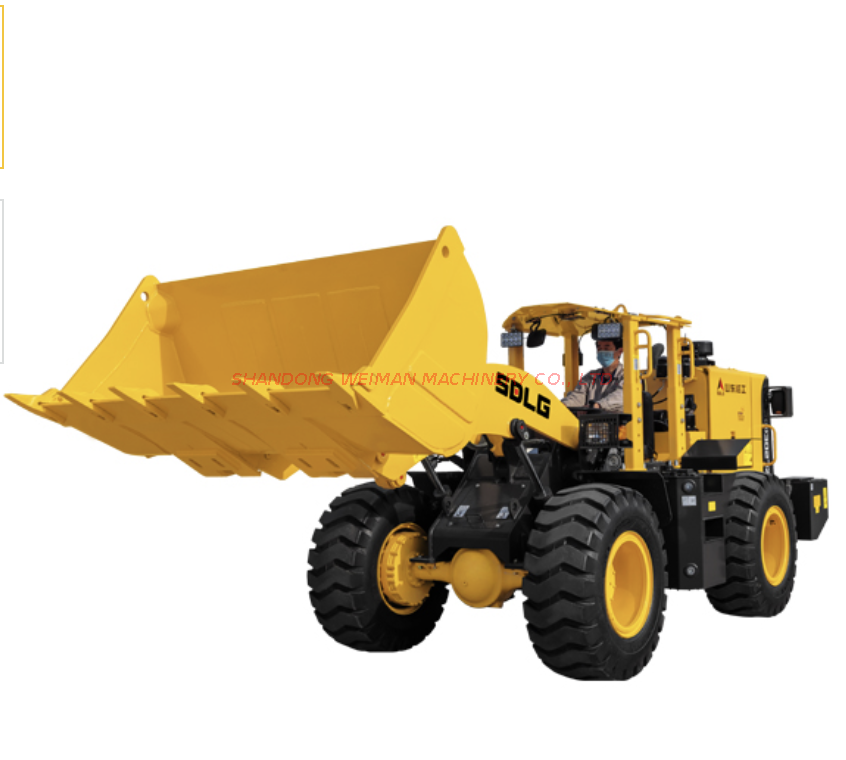

ZL20E(C) Wheel Loader
SDLG
L0200Y
66KW
1.0m³
7000KG
| Model | ZL20E（C） |
| Order No | L0200Y |
| Operating weight(kg) | 7000kg |
| Bucket capacity(m³) | 1.0m³ |
| Rated load(kg) | 2000kg |
| Max.breakout force(KN) | ≥60kN |
| Max.dumping height(mm) | 1850mm |
| Dumping distance(mm) | 920mm |
| Length×Width×Height(mm) | 6065×2000×2200mm |
| Max.tractive force(kN) | ≥50kN |
| Total time(s) | ≤10.1s |
| Steering angel(°) | 35° |
| Rated power(kW) | 66kW |
| Model | ZL20E（C） |
| Order No | L0200Y |
| Operating weight(kg) | 7000kg |
| Bucket capacity(m³) | 1.0m³ |
| Rated load(kg) | 2000kg |
| Max.breakout force(KN) | ≥60kN |
| Max.dumping height(mm) | 1850mm |
| Dumping distance(mm) | 920mm |
| Length×Width×Height(mm) | 6065×2000×2200mm |
| Max.tractive force(kN) | ≥50kN |
| Total time(s) | ≤10.1s |
| Steering angel(°) | 35° |
| Rated power(kW) | 66kW |
