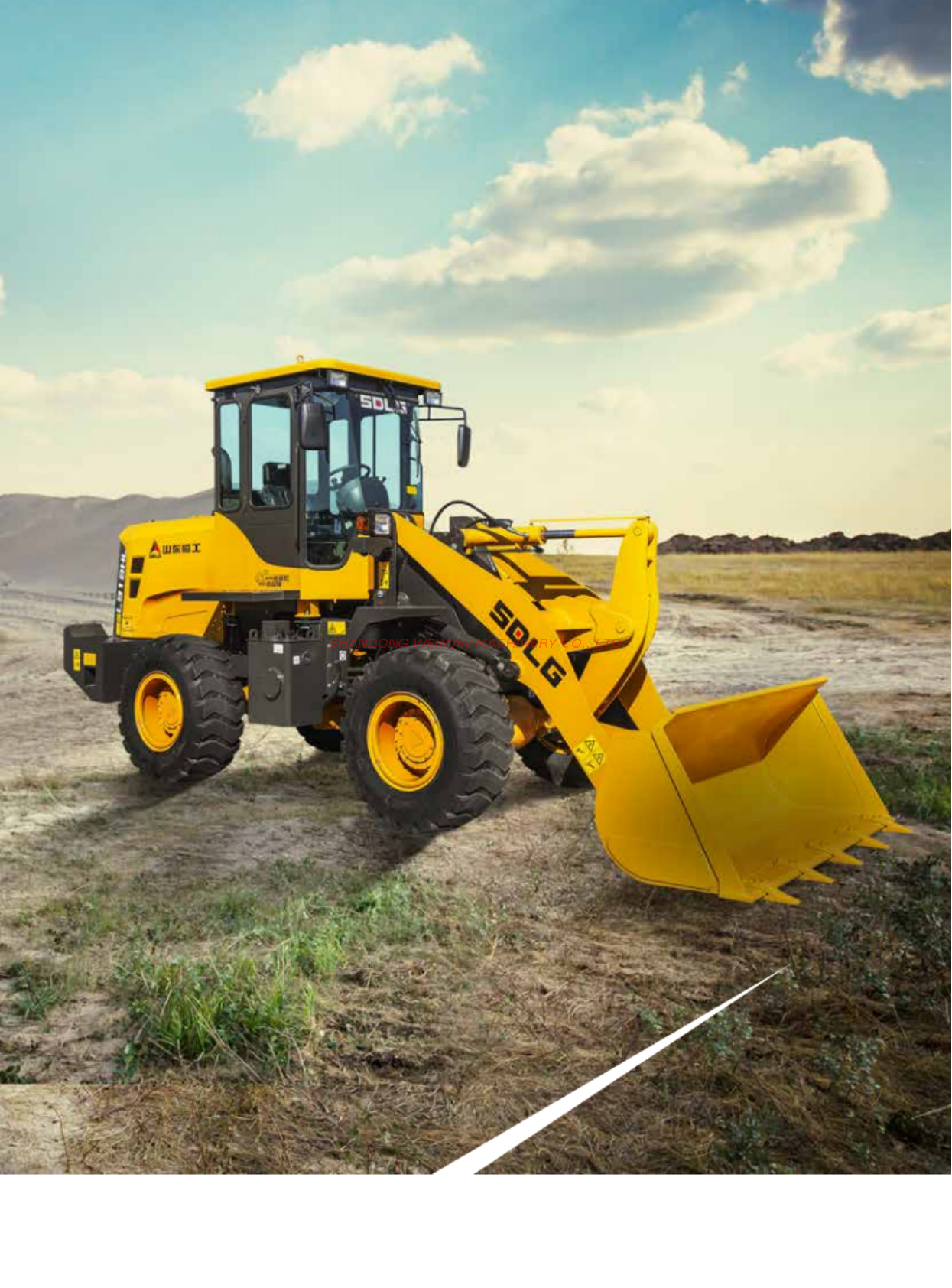

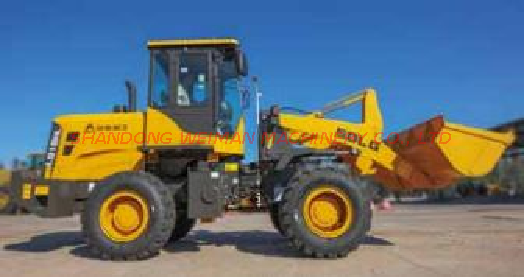

Model L918HL
Overall dimensions
Length×Width×Height (A×L×C) 6180×2140×2925mm
Wheelbase (B) 2310mm
Minimum ground clearance (D) 330mm
Maximum unloading height (E) 2850mm
Corresponding unloading distance (G) 1150mm
Unloading angle (J) -45°
Steering angle (O) 35°
Horizontal passing radius(outside the bucket) (P) 5350mm
Minimum turning radius (Q) 4595mm
Overall machine parameters
Bucket capacity 0.9m³
Rated load 1800kg
Operating weight 5700kg
Maximum traction force ≥50kN
Maximum breakout force 54kN

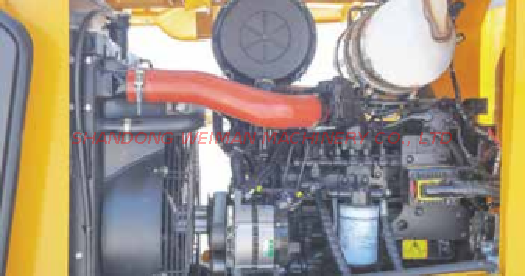

EngineModel YCF3690-T481
Type In-line, water-cooled, four-stroke, direct injection
Number of cylinders 4
Engine power 66kW
Engine rated speed 2300 r/min
Displacement 3621ml
Maximum torque/speed 360N.m/1300～1600(r/min)
Emission standard GB 20891-2014(National IV)
Minimum fuel consumption rate ≤230g/kw.h
Transmission system
Torque converter type Single-stage three-element single-turbine hydraulic torque converter
Gearbox type Fixed shaft power shift + high and low speed
Gear Four forward and four reverse
Hydraulic system of working device
Type Mechanical manual control
Three items and time ≤9.3s
Braking system
Service brake type Air-over-oil caliper disc type
Parking brake type Manual internal expanding shoe type
Steering system
Type Load sensing full hydraulic articulated steering
Refueling capacity
Fuel 90L
Hydraulic oil 52L
Engine 12L
Gearbox 20L
Drive axle 2×8.5 L
Braking system 4L
