| P/N: | |
|---|---|
| MODEL : | |
| Size: | |
| weight: | |
| Quantity: | |
L918H
SDLG
L018HY3215A36E0
66KW
1.0
7260KG

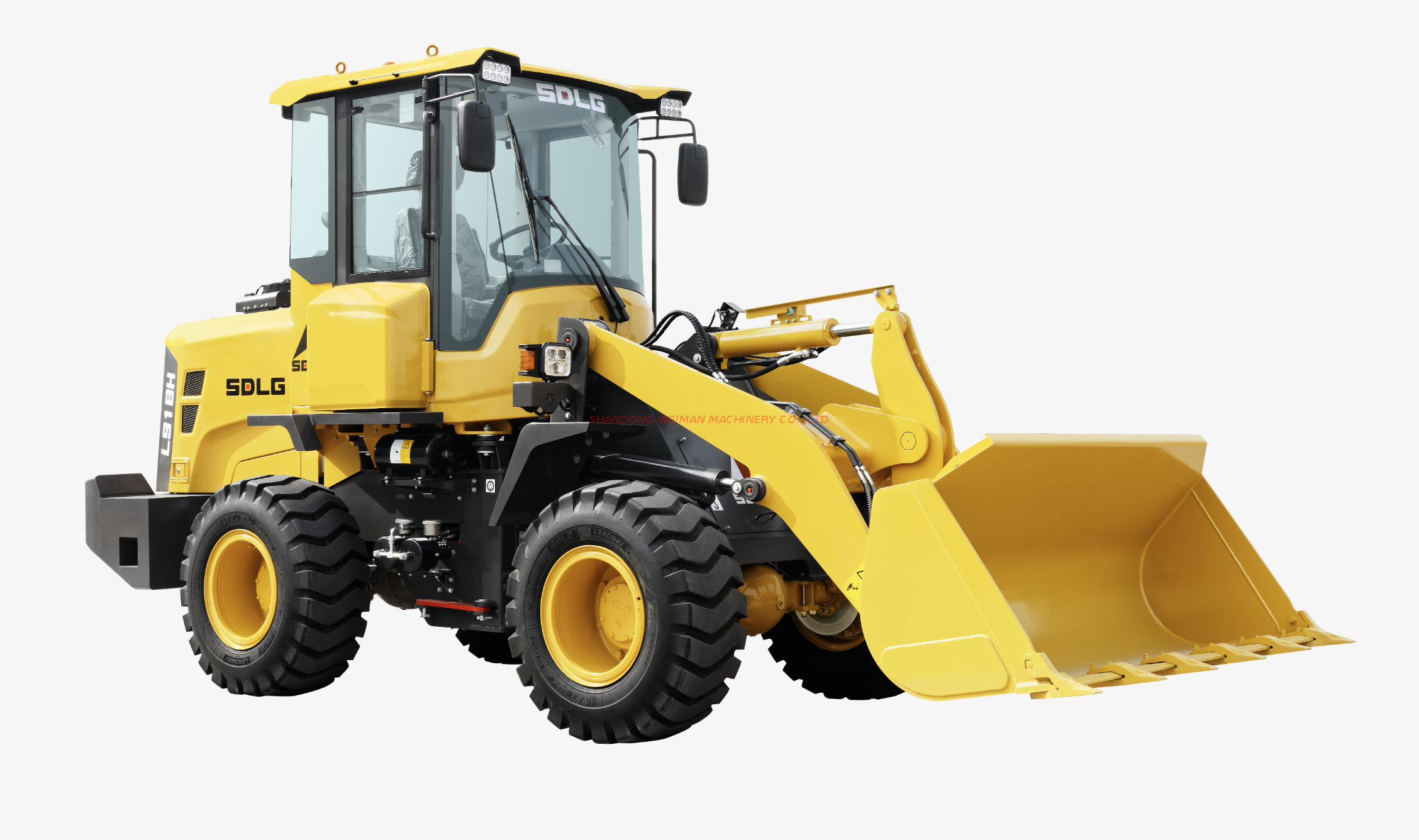

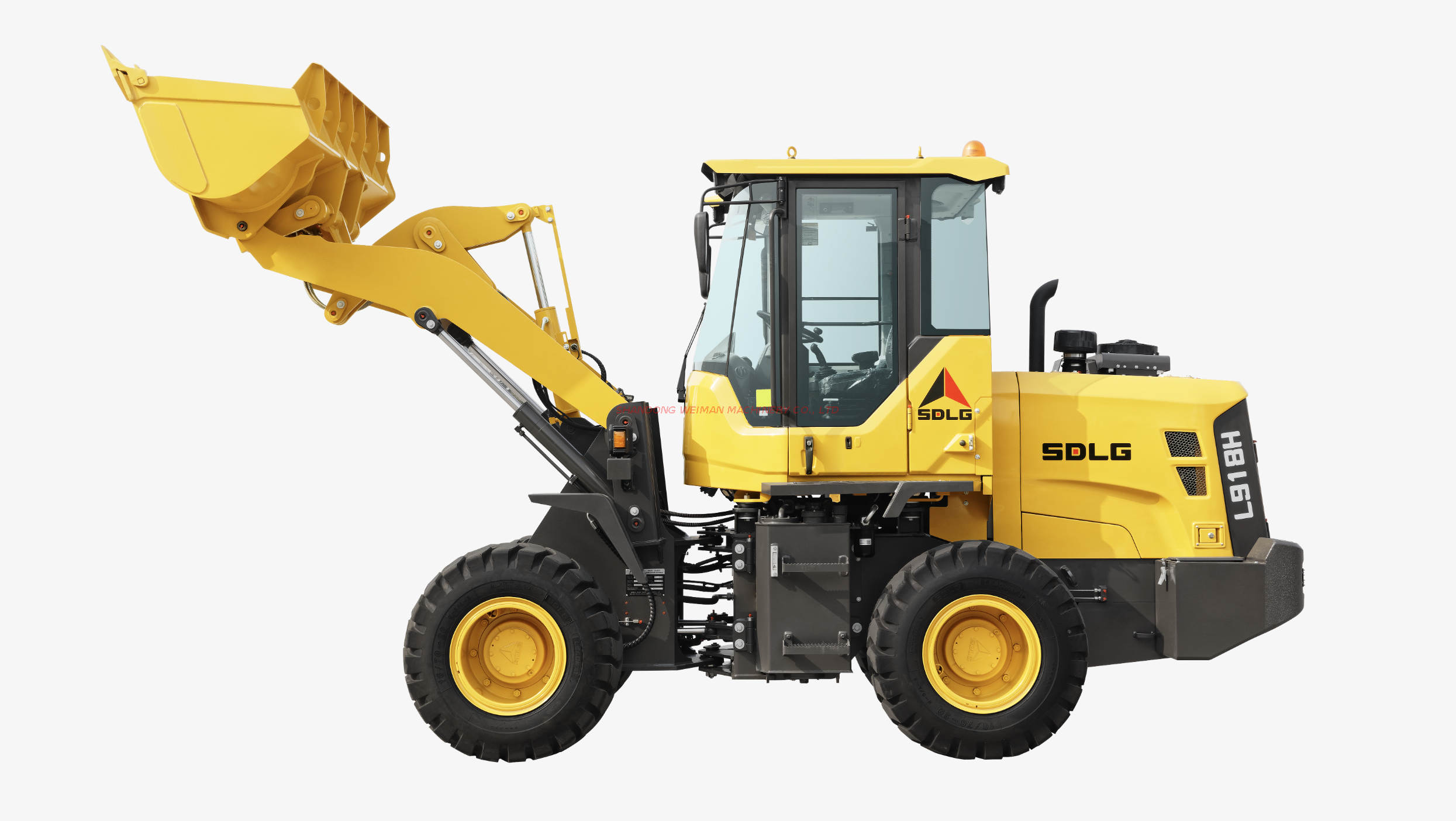

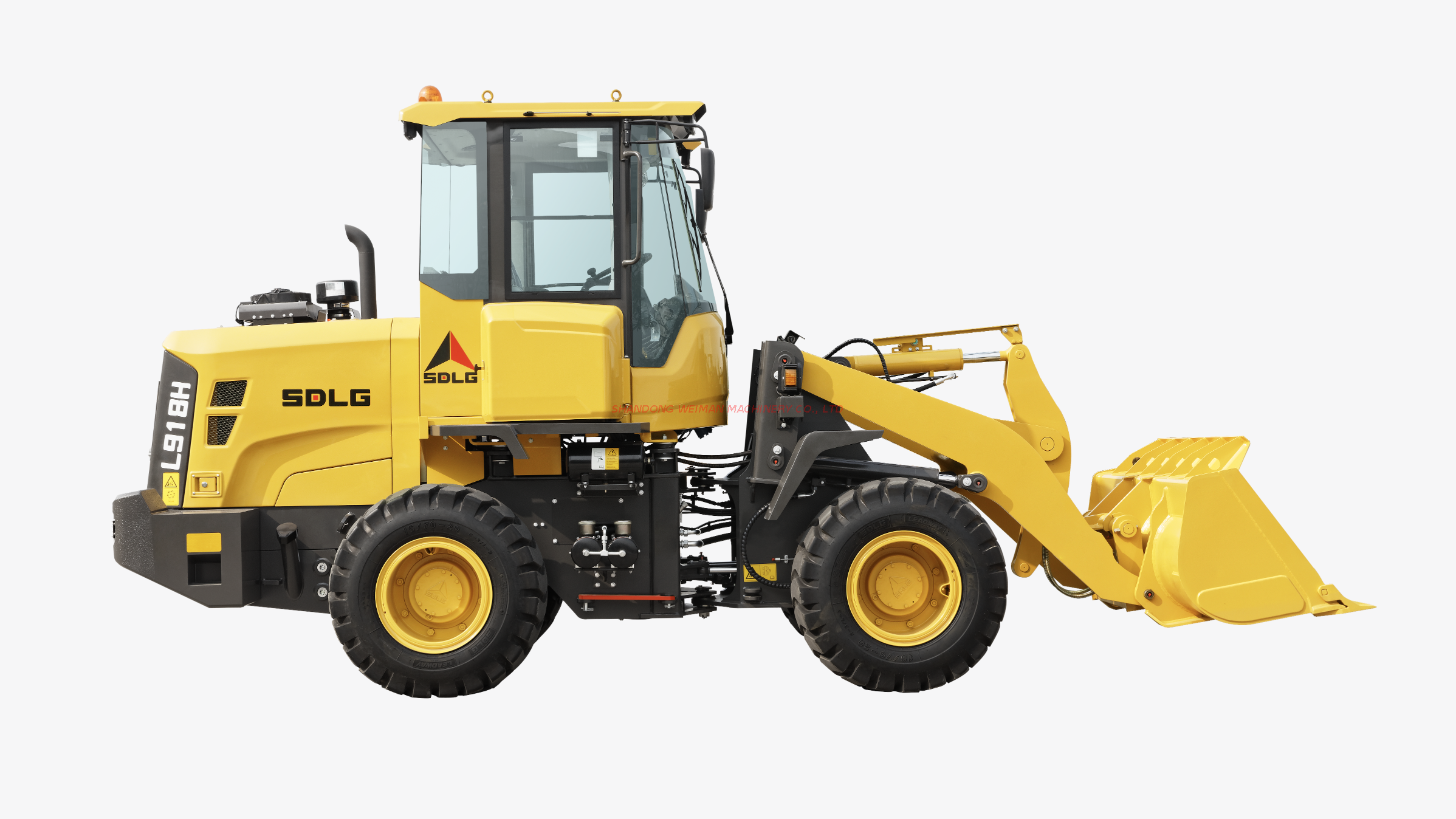

| Model | L918H |
| Order No: | L018HY3215A36E0 |
| Bucket capacity(m³) | 1 |
| Operating weight(kg) | 7260 |
| Rated load(kg) | 1800 |
| Rated power(kW) | 66 |
| Length×Width×Height(mm) | 6090x2150x3150 |
| Wheel base(mm) | 2260 |
| Max.dumping height(mm) | 2510 |
| Dumping distance(mm) | 920 |
| Steering angel(°) | 35 |
| Engine Model | YC4DK90-M300 |
| Emission standard | Brazil M3 |
| Max.tractive force(kN) | 58 |
| Max.breakout force(KN) | 58 |
| Gears() | Forward 2 reverse 2 |
| Total time(s) | 9.1 |
| Fuel tank capacity(L) | 120 |
| Bucket Type | Standard Bucket 1.0×2150（Assembled） |
| Transmission | BYD2206N10004 |
| Model | L918H |
| Order No: | L018HY3215A36E0 |
| Bucket capacity(m³) | 1 |
| Operating weight(kg) | 7260 |
| Rated load(kg) | 1800 |
| Rated power(kW) | 66 |
| Length×Width×Height(mm) | 6090x2150x3150 |
| Wheel base(mm) | 2260 |
| Max.dumping height(mm) | 2510 |
| Dumping distance(mm) | 920 |
| Steering angel(°) | 35 |
| Engine Model | YC4DK90-M300 |
| Emission standard | Brazil M3 |
| Max.tractive force(kN) | 58 |
| Max.breakout force(KN) | 58 |
| Gears() | Forward 2 reverse 2 |
| Total time(s) | 9.1 |
| Fuel tank capacity(L) | 120 |
| Bucket Type | Standard Bucket 1.0×2150（Assembled） |
| Transmission | BYD2206N10004 |
