| P/N: | |
|---|---|
| MODEL : | |
| Size: | |
| weight: | |
| Engine : | |
| Quantity: | |

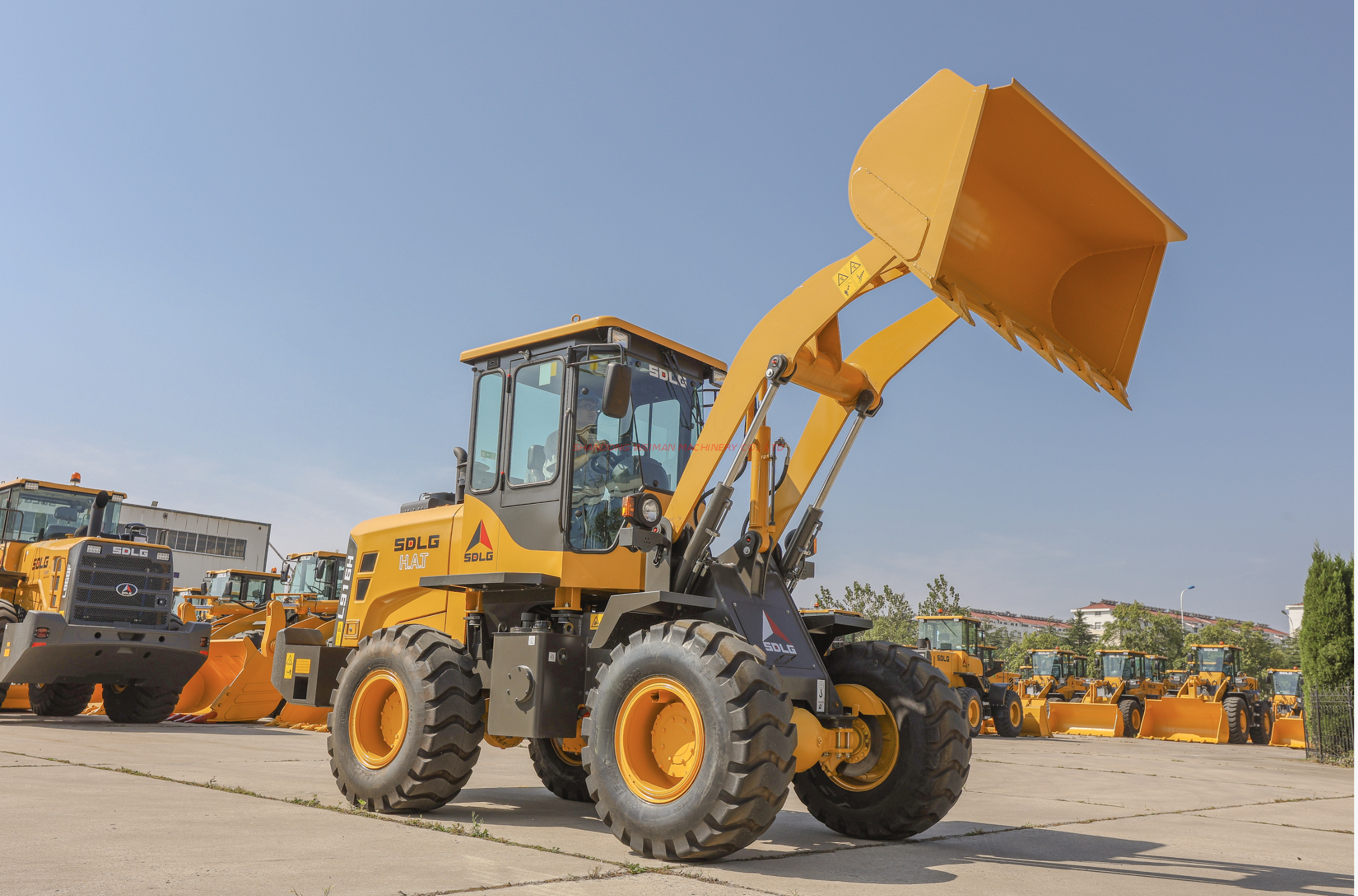

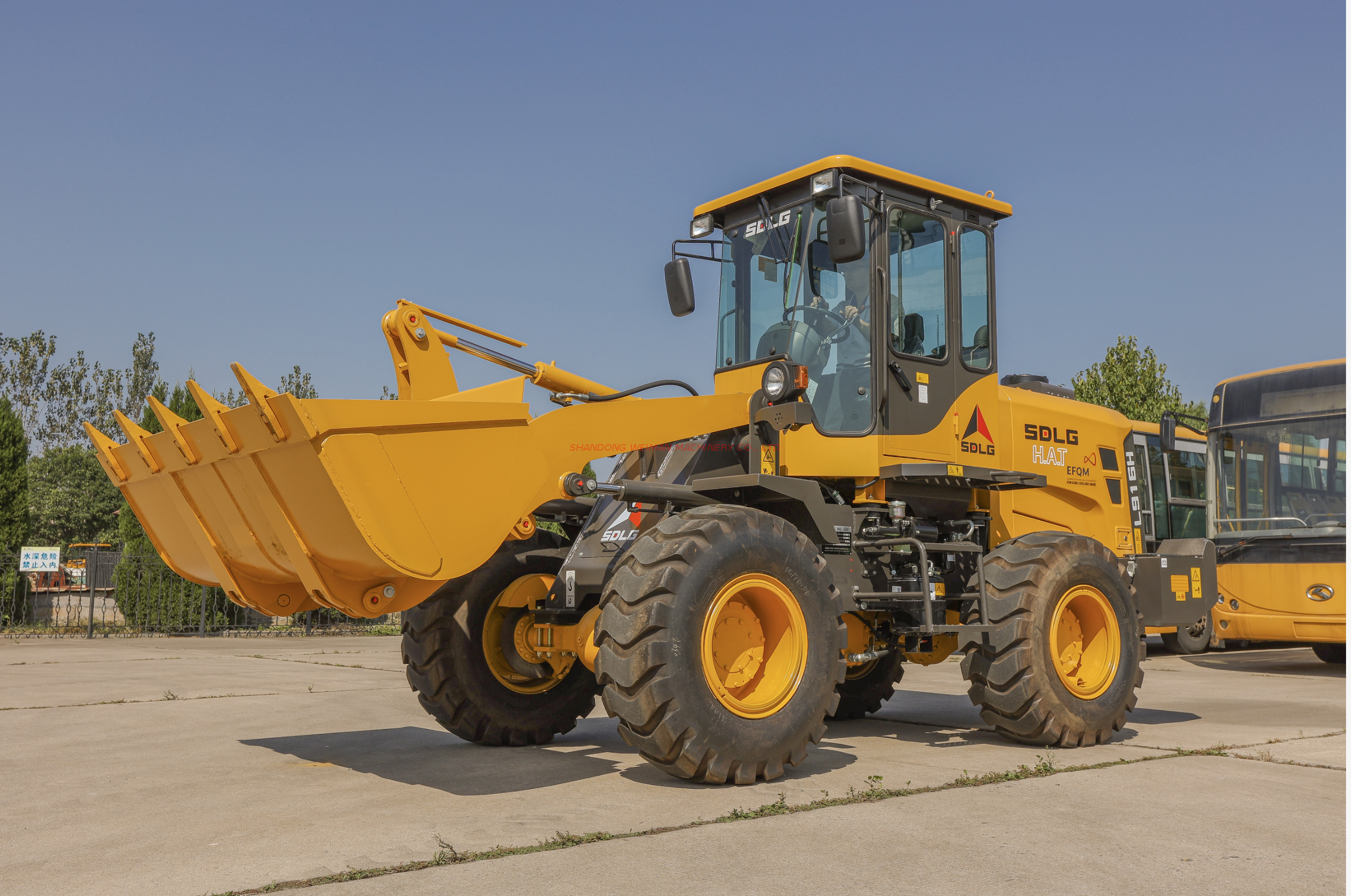

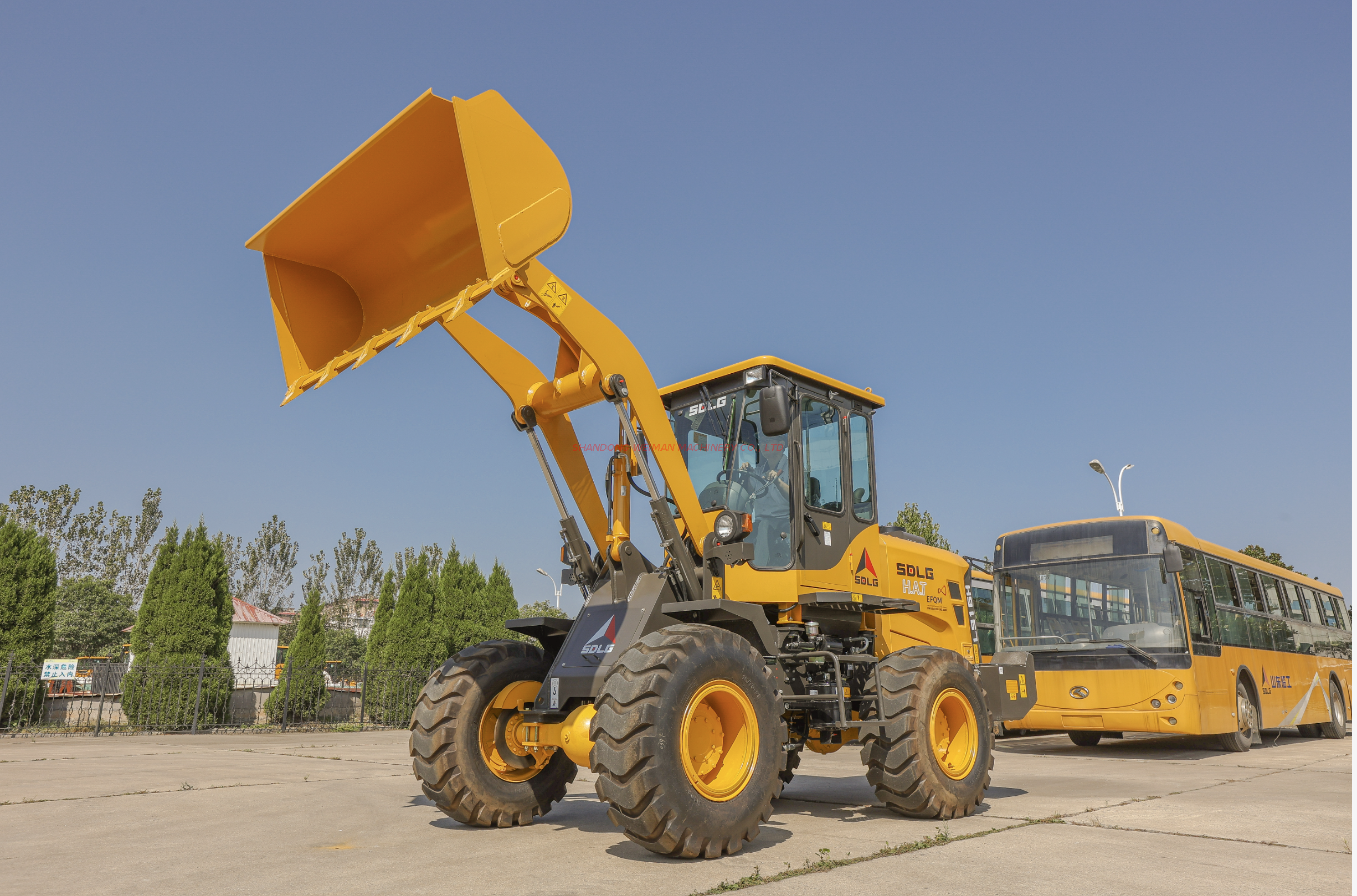

L916H
SDLG
L016HN3214A29E1
61.8KW
0.8m³
5250KG
| L916H loader overall parameters table (L016HN3214A29E1) | |||
| 1. Performance parameters of the machine | |||
| Rated Bucket capacity | 0.8m3 | Minimum turning radius (outside rear wheel) | 4490 mm |
| Rated load mass (kg) | 1600 | Height through radius (outside of bucket) | 5080 mm |
| maximum drawbar pull | ≥50kN | above sea level (m) | 2000 |
| Tipping load | ≥30 kN | ambient temperature (℃) | -25~45 |
| Maximum excavation force | 47 kN | Water depth (mm) | 400 |
| Go into first gear | 0～7km/h | Go to level ⅱ | 0～13 km/h |
| Go into first gear | 0～19km/h | Go forward in gear IV | 0～33 km/h |
| Go back to the I file | 0～7km/h | Go back two gears | 0～13 km/h |
| Go back ⅲ | 0～19km/h | Go back to IV | 0～32km/h |
| Ii. Main size and weight parameters | |||
| Exterior length (mm) | 5765 | Exterior width (mm) | 2080 |
| Width of the outer side of the wheel | 2060 mm | tread | - |
| Exterior height (mm) | 2925 | Axle spacing (mm) | 2235 |
| Unloading Angle | -45° | maximum dump clearance | 2455mm |
| number of axles | 2 | Corresponding unloading distance | 865 mm |
| Maximum lifting height of the fork horizontal section (mm) | - | Total mass (kg) | 5250 |
| Minimum ground clearance | 330mm | Maximum lift the pin height | 3080 mm |
| Axle spacing (front/rear) (mm) | 2235(745/1490) | - | - |
| 3. Engine | |||
| Engine model/drive motor model | 4EZ080-30CR | number of cylinders | 4 |
| Engine type | In-line, water-cooled, four-stroke, direct injection | Cylinder diameter/travel | 102/115mm |
| Engine power (kW) | 61.8 | Minimum fuel consumption rate | 220g/kw.h |
| Rated engine speed | 2400r/min | Maximum torque (N.m)/speed (r/min) | 291/1500～1800 |
| displacement (ml) | 3800 | effluent standard | GB 20891-2014 (National 3) |
| 4. Transmission system | |||
| Variable torque converter type | Single stage three element single turbine torque converter | torque ratio | 3.11 |
| Oil cooling method | hydrocooling | Inlet oil pressure of the variable torque converter | 0.4 |
| Oil pressure at the variable torque converter outlet | 0.2～0.3 | Transmission type | Fixed shaft power shift |
| Shift gears | Four in front, four at the back | Advance the I gear transmission ratio | 2.571 |
| Go forward in gear ⅱ | 1.321 | Go forward with a 2nd gear transmission ratio | 0.959 |
| Advance the IV gear ratio | 0.493 | Go back one gear transmission ratio | 2.628 |
| Go back to gear ⅱ | 1.351 | Go back three gears | 0.981 |
| Go back to gear IV (gear ratio) | 0.504 | Shuttle pump model | CBGj0025A |
| Change the working pressure | 1.2～1.5 MPa | Main drive type | Spiral helical gear first stage reduction |
| Main drive reduction ratio | 6.167 | Wheel edge deceleration type | Primary planetary deceleration |
| Rear wheel reduction ratio | 4.28 | Drive type | Four-wheel drive |
| tyre size | 16/70-20 | Front wheel pressure | 0.32±0.01 |
| Rear wheel pressure | 0.28±0.01 | Vehicle braking type | Air top oil clamp disc |
