Brand New Wheel Loader LG968 for Sale

sharethis sharing button
  • LG968

  • Large Loader

  • Weichai Engine

  • Vrt200 Gearbox

  • Sdlg Axle

  • Pilot Control

  • Standard

  • 3.5m3

  • sdlg

  • 1X40hq

  • 8362× 3210× 3380mm

  • China

  • 842951

brand new front loader equipment LG968 for sale

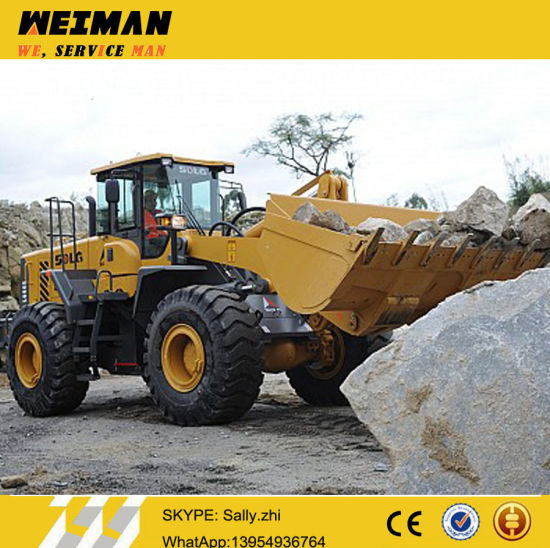

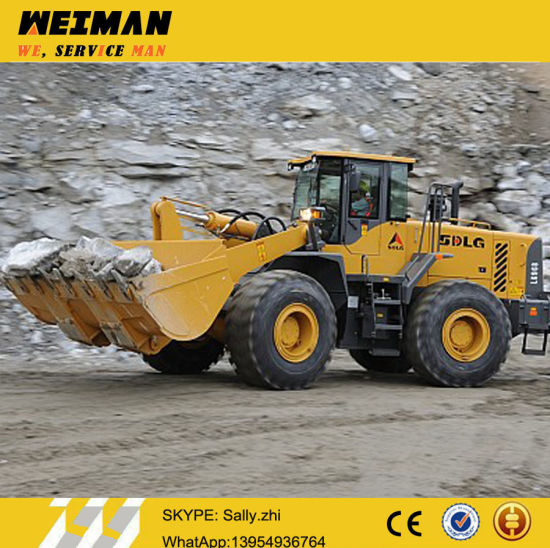

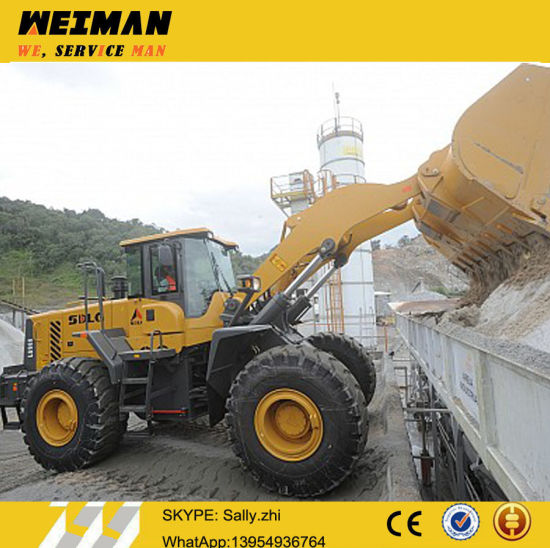

Brand New Wheel Loader LG968 for Sale

Brand New Wheel Loader LG968 for Sale

Brand New Wheel Loader LG968 for Sale

Charactors of SDLG wheel loader LG968 :

The LG968 is a luxurious loader for heavy materials handing, featuring large breakout force, comfortable operation, high efficiency and good adaptability to heavy operating conditions, and widely used in such operating conditions as construction sites, mining and urban construction.

Technical Specifications of SDLG wheel loader LG968 :
Overall Dimension
L×W×H 8362×3210×3380mm
wheelbase 3450mm
Min.ground clearance 457mm
Max.dumping height 3250~3620mm
Lifting height 4229mm
Dumping distance 1020~1033mm
Max.gradeability 30°
Dumping angle 45°
Bucket rollback at ground level 45°
Width of complete machine(outside of rear wheel) 2799mm
wheel tread 2190mm
Steering angle 38°
Horizontal crossing radius 7335mm
Min.turning radius 6721mm
Overall Parameter
Bucket capacity 3.0~5.5m3
Rated load 6000kg
Operating weight 18400~18550kg
Max.tractive force ≥165kN
Max.breakout force ≥198kN
Tipping load ≥115kN
Model WD10G240E21
Type inline,water-cooled,tubocharged, direct injection
Rated power/speed 175kw/2200r/min
Engine displacement 9726ml
Max.torque 920Nm
Emission standard GB20891-China Phase
Min.fuel-consume ratio ≤210g/kw.h
Transmission System
Torque converter single-stage three-element single-tubine fluid torque converter
Transmission Type Fixedshaft electro-liquid shift
Gears forward 4 reverse 3
speed at forward/reverse gear 0~6.5km/h
speed at forward/reverse gear 0~11.5km/h
speed at reverse/reverse gear 0~23km/h
speed at forward gear 0~36km/h
Hydraulic system of working device
Type Hydraulic pilot control
Total time ≤12s
Brake system
service brake type Air over hydraulic disc type
Parking brake type Electric air-control internal expanding shoe brake
Steering System
Type Flow amplification control
System pressure 14Mpa
Fill capacity
Fuel 300L
Hydrulic oil 210L
Engine 20L
Transmission 35L
Drive Axle 65L
Brake system 4L

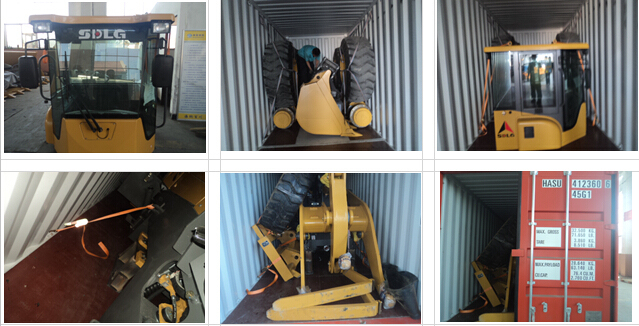

Packing photoes of sdlg wheel loader LG968 :

Brand New Wheel Loader LG968 for Sale

Brand New Wheel Loader LG968 for Sale Brand New Wheel Loader LG968 for Sale
