Brand New Vibratory Plate Compactor R8140 Forsale

Quantity:
  • R8140
  • 25cm/s
  • 15KN
  • CE, ISO 9001:2000
  • New
  • Weichai Engine
  • Mechanical Operation
  • Open Loop Vibration
  • Rear Wheel Mechanical
  • Single Steel Drum Vibratory
  • Standard Cab with A/C
  • sdlg
  • 40hq
  • China
  • 84294019
brand new vibratory plate compactor R8140 forsale

Brand New Vibratory Plate Compactor R8140 Forsale


Brand New Vibratory Plate Compactor R8140 Forsale

Brand New Vibratory Plate Compactor R8140 Forsale

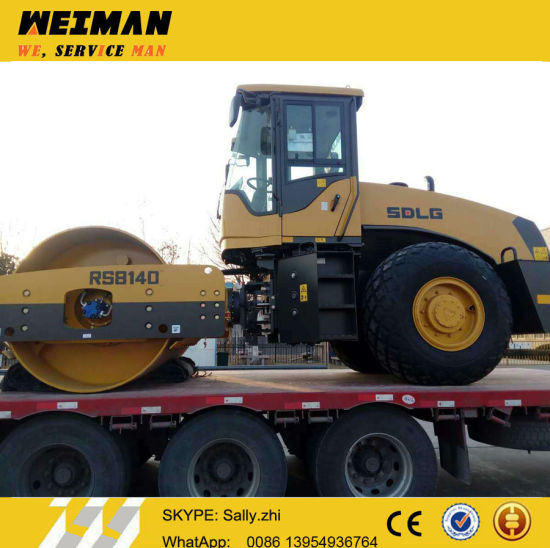

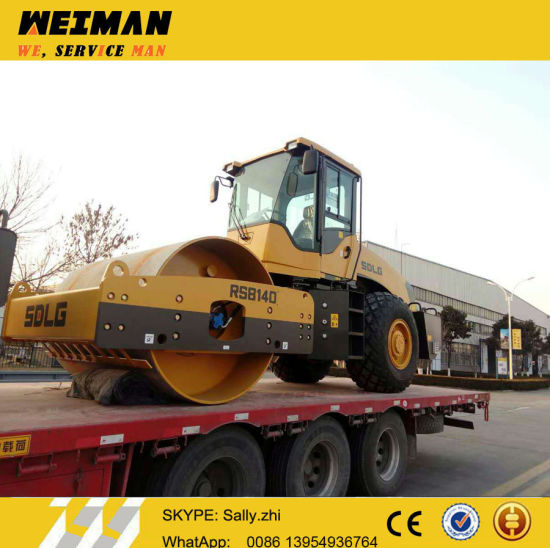

1.Charactors for SDLG vibratory plate compactor RS8140:

Sdlg RS8140 vibratory plate compactor is a heavy duty auto propelled vibratory road roller and can effectively compact various soil layer and rock fill. This machine is of industrial leading level in compacting, driving and operating performances and reliability, repair and maintenance It is ideal compacting equipment for road, airport, harbor, railway, dam and industrial site.

2.Technical Parameter of RS8140 vibratory plate compactor:

Overall dimension
LxWxH 6113*2300*3140mm
Width of vibratory drum 2130mm
Diameter of vibratory drum 1500mm
Wheeltread 1535mm
Wheelbase 3303mm
Min. ground clearance 350mm
Min. turning radius 6400mm
Compaction width 2130mm
Theoretical gradeability 30%
Swing angle 35º
Turning angle 12º
Overall parameters
Operating working weight 14000kg
Front wheel distributed weight 7000kg
Rear wheel distributed weight 7000kg
Norminal amplitude(low/high) 1.8/1.0mm
Vibration Frequency 30HZ
Static linear load 322n/cm
Engine
Model WP6G125E202
Type Inline,water-cooled, four-stroke, direct injection
Rated Power/speed 92kW/2000r/min
Displacement 6.75L
Cylinder bore/stroke 105/130mm
Emission standard gb2089-2007
Min.fuel-consume ratio ≤220g/kW.h
Max.torque 540N.m
Transmission system
Clutch type Dry single disc clutch
Transmission type Fixed shaft mechanical shifting
Speed at farward/reverse gear I 0-2.4km/h
Speed at farward/reverse gear II 0-4.1km/h
Speed at farward gear III 0-9.2km/h
Brake system
Service brake type Air over hydraulic disc brake
Packing brake type Maunal cakiper disc type
Steering system
Type Full hydraulic steering
System pressure 16Mpa
Vibration Hydraulic system
Type Open system
System pressure 20Mpa
Fill capacity
Fuel 270L
Engine oil 16L
Hydraulic oil 100L
Transmission 13L
Drive Axle(Main drive&wheel reducer) 16L+2X5L
Brake system 2L

Brand New Vibratory Plate Compactor R8140 Forsale

Brand New Vibratory Plate Compactor R8140 Forsale

Shandong Weiman Machinery Co., Ltd.
Tel: 0086 539-8199000

Fax: 0086 539-8087992



Contact person: sally zhi
Address: A1402 Kaiyuan shangcheng Linyi City Shandong .China
