LG936L
Medium-sized Loader
Weichai Engine
92kw
Sdlg
Sdlg
3.0m3
sdlg
1X40hq
China
842951

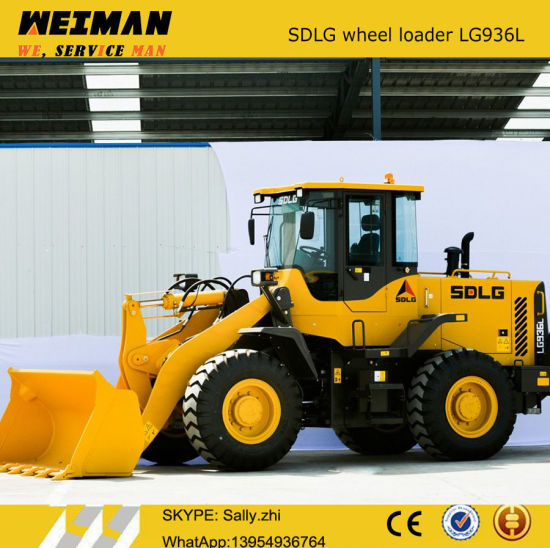

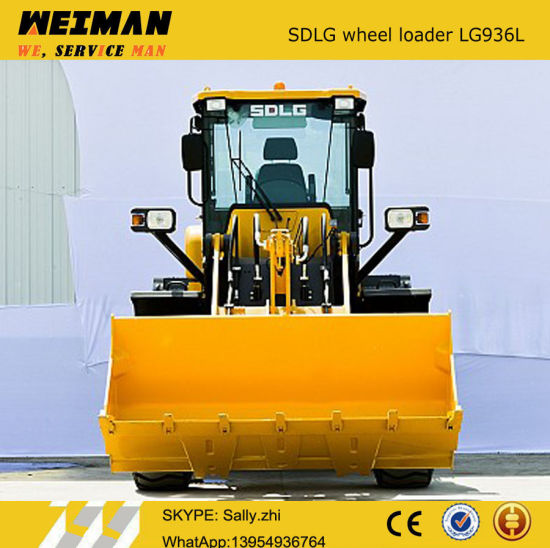

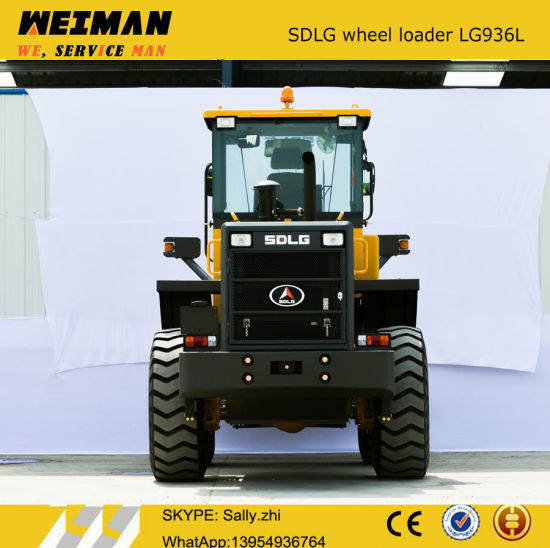

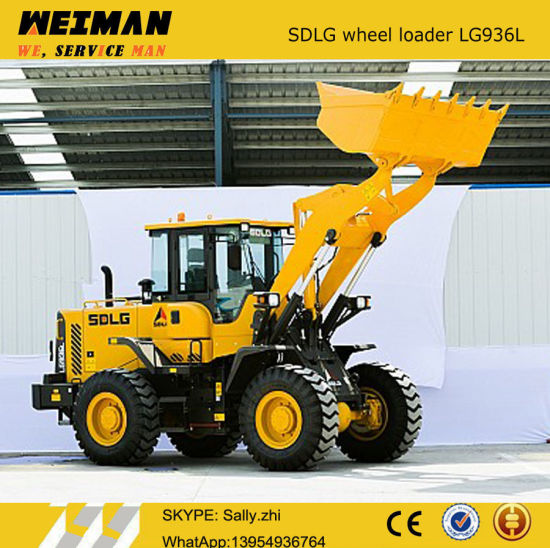

Brand new shovel loader LG936L made by volvo sdlg factory
1.The Charactors of SDLG shovel loader LG936L:

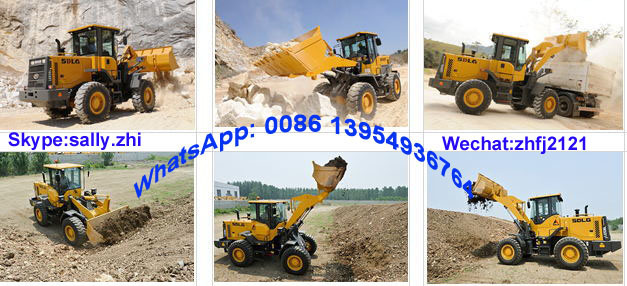

LG936L is a loader for loading and unloading loose materials, with high reliability and multiple purposes, and is widely used in farms, small mine plane, timber and towns construction and etc.
2. Descriptions of SDLG loader wheel with LM bucket 3.0m3:
| Name | sdlg shovel loader with LM bucket 3.0m3 |
| Attachment Weight | 823kgs |
| Attachment Dimension | 2915*1418*1212mm |
| Rated load | 3T |
| Max. dumpling height | 3800mm |
3.The Technical specifications of SDLG shovel loader LG936L with LM bucket 3.0m3:
| overall dimension | |
| L×W×H | 7230×2510×3170mm |
| wheelbase | 2850mm |
| Min.ground clearance | 370mm |
| Max.dumping height | 2950mm |
| Lifting height | 3789mm |
| Dumping distance | 1050~1198mm |
| Max.gradeability | 30° |
| Dumping angle | 45° |
| Bucket rollback at ground level | 45° |
| Overall width(outside of rear wheel) | 2310mm |
| wheel tread | 1865mm |
| Steering angle | 37° |
| Horizontal crossing radius | 5912mm |
| Min.turning radius | 5381mm |
| Overall parameter | |
| Bucket capacity | 1.4~3.0m3 |
| Rated load | 3000Kg |
| Operating weight | 10700~11000kg |
| Max.tractive force | ≥105kN |
| Max.breakout force | ≥96kN |
| Tipping load | ≥66kN |
| Engine | |
| Model | WP6G125E22 |
| Type | Inline,water-cooled,dry cylinder liner,direct injection |
| Rated power/speed | 92kw/2200/min |
| Cylinder bore/stroke | 105/130mm |
| Max.torque | 550Nm |
| Emission standard | GB20891-2007 China phase |
| Min.fule-consume ratio | ≤215g/kw.h |
| Transmission system | |
| Torque converter | single-stage four-element double-turbine hydraulic torque converter |
| Transmission type | Planetary power shift |
| Gears | Two fouward one reverse |
| speed at forward gear | 0~13km/h |
| speed at forward gear | 0~38km/h |
| speed at reverse gear | 0~17km/h |
| Hydraulic system of working device | |
| Type | Hydraulic pilot control |
| Total time | ≥9.2s |
| Brake system | |
| service brake type | Air over hydraulic disc type |
| Parking brake type | Electric air control disc brake |
| steering system | |
| Type | Load sensing full hydraulic articulated steering |
| System pressure | 12Mpa |
| Fill capacity | |
| Fuel | 140L |
| Hydrulic oil | 128L |
| Engine | 18L |
| Transmission | 44L |
| Drive Axle | 2×18L |
| Brake system | 4L |

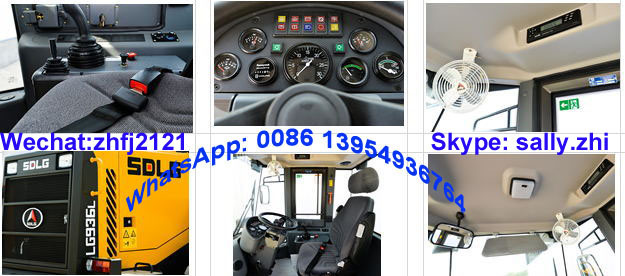

3. The inside of SDLG shovel loader LG936L with LM bucket 3.0m3:

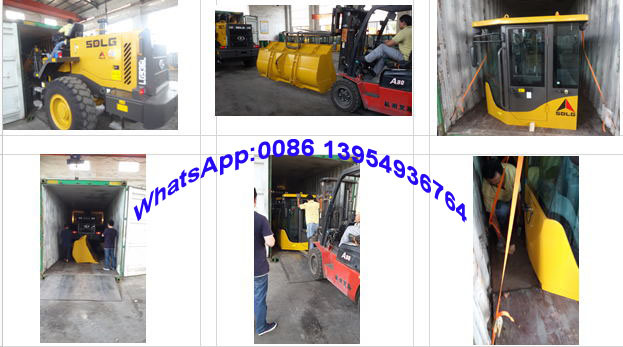

4. How to pack the SDLG shovel loader LG936L with LM bucket 3.0m3:
P.S. We are The 1st Volvo-SDLG special propose loader exporter in China.
Shandong Weiman Machinery Co., Ltd.
Tel: 0086 539-8199000
Fax: 0086 539-8087992
Contact person: sally zhi
Address: A1402 Kaiyuan shangcheng Linyi City Shandong .China
