RD730
15km/S
13KN
CE, ISO 9001:2000
New
Kubota Engine
Mechanical Operation
Open Vibration
Rear Wheel&Front Wheel Loop Hydraulic
Double Steel Drum Vibratory
Canopy
sdlg
40hq
China
84294019
1.Charactors for SDLG small plate compactor RD7300:

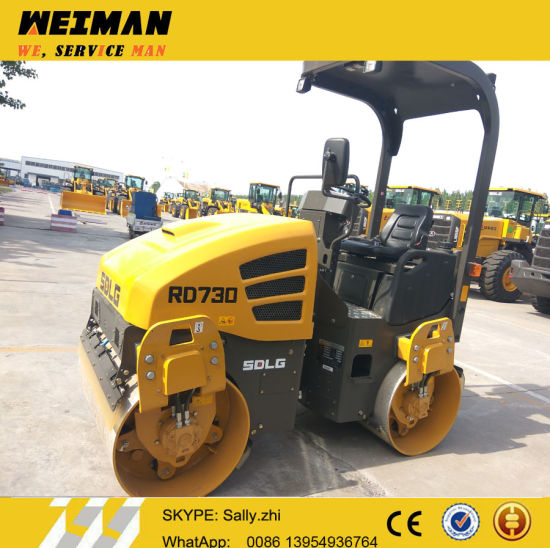

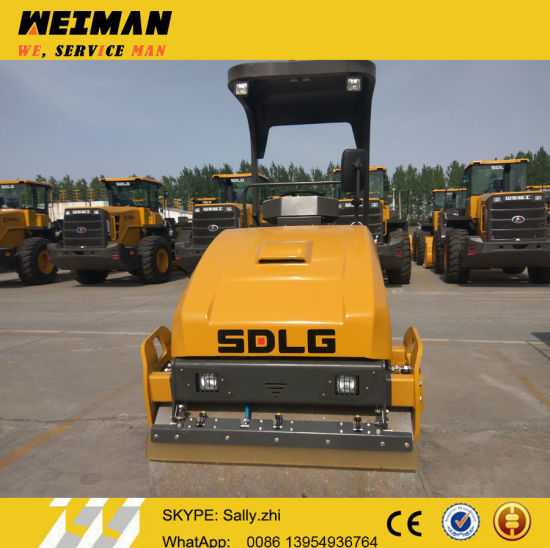

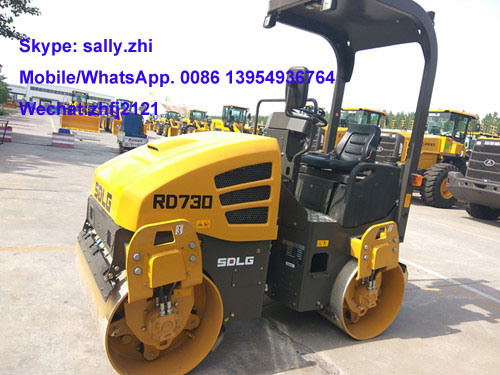

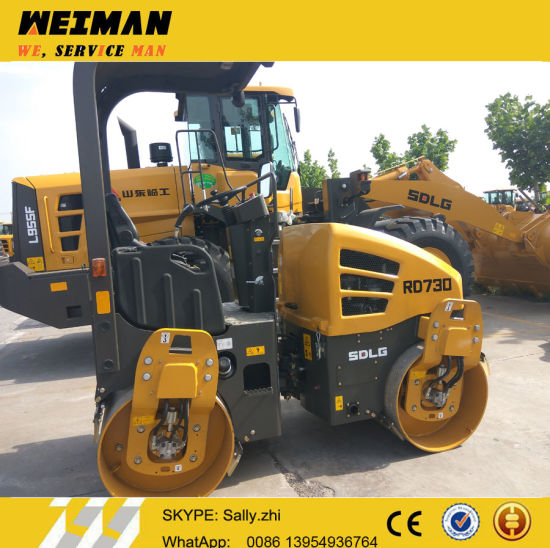

Road Roller RD730 is a new generation of hydraulic double-drum vibratory roller with high reliability, efficiency and Comfort. It has a modern designed outlook and has good vibratory function, high torque, high operating functionality and easy to maintain.
2.Technical Parameter of SDLG small plate compactor RD730:
| Overall dimension | |
| LxWxH | 2424*1337*2831mm |
| Width of vibratory drum | 1200mm |
| Diameter of vibratory drum | 700mm |
| Wheelbase | 1724mm |
| Min. ground clearance | 260mm |
| Min. turning radius | 3818mm |
| Compaction width | 1200mm |
| Theoretical gradeability | 30% |
| Swing angle | 10º |
| Turning angle | 30º |
| Overall parameters | |
| Operating weight | 3070kg |
| Front wheel distributed weight | 1535kg |
| Rear wheel distributed weight | 1535kg |
| Norminal amplitude | 0.5mm |
| Vibration Frequency (low/high) | 46/31kn |
| Static linear load | 120/131n/cm |
| Engine | |
| Model | D1803-M-DI-EU/ROW |
| Type | Inline,water-cooled, four-stroke, direct injection |
| Rated Power/speed | 24.8kW/2400r/min |
| Displacement | 1826ml |
| Cylinder bore/stroke | 87/102.4mm |
| Emission standard | Tier3 |
| Min.fuel-consume ratio | 251g/kW.h |
| Max.torque | 115N.m |
| Travelling/Swing system | |
| Gears | one forwad one reverse |
| Speed at forward/reverse gear | 0-10.5km/h |
| Brake system | |
| Service brake type | Travling control handle back to the median |
| Packing brake type | Press brake switch P |
| Emergency braking | Press red emergency braking switch ,engine flaming out power of complete machine failing |
| Steering system | |
| Type | Full hydraulic steering |
| System pressure | 14Mpa |
| Vibration Hydraulic system | |
| Type | Open system |
| System pressure | 21Mpa |
| Fill capacity | |
| Fuel | 40L |
| Engine oil | 7L |
| Hydraulic oil | 45L |
| Vibration wheel | 2×14.5L |
Shandong Weiman Machinery Co., Ltd.
Tel: 0086 539-8199000
Fax: 0086 539-8087992
Contact person: sally zhi
Address: A1402 Kaiyuan shangcheng Linyi City Shandong .China
