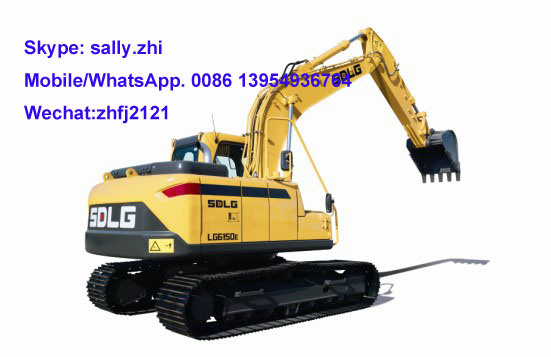

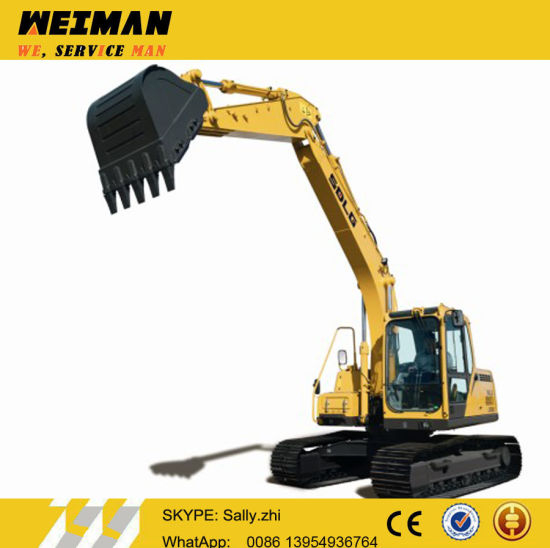

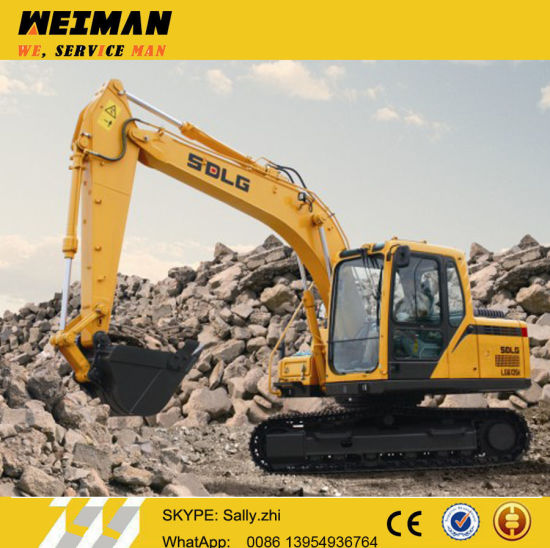

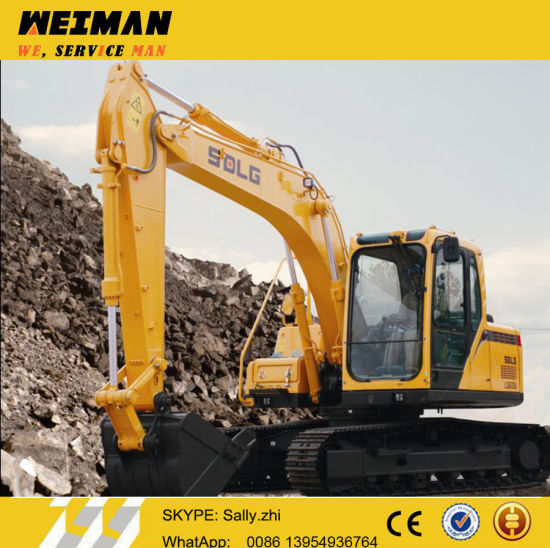

Brand new SDLG excavator LG6150E for sale

Brand New Sdlg Excavator LG6150e for Sale


Brand New Sdlg Excavator LG6150e for Sale

Brand New Sdlg Excavator LG6150e for Sale

1. Charactors of SDLG excavator LG6150E:

LG6150E excavator is a product developed by SDLG via introducing European advanced technology and integrating advantages of energy saving, reliability and comfort. It is applied with reinforced working device and optimally-matched power train and hydraulic system, applicable for various harsh working conditions.


2. Technical specifications of sdlg excavator LG6150E:
Overall dimension
Over width of upper assembly 2450mm
Over width 2590mm
Over height of cab 2700mm
Tail swing radius 2200mm
Overall height of engine hood 2080mm
Ground clearance of counterweight 900mm
Wheelbase 3000mm
Track Length 3740mm
Track gauge 1990mm
Track pad width 600mm
Min.ground clearance 430mm
Over length 7700mm
Overall height of boom 2830mm
Overall parameters
Bucket capacity 0.52m³
Overall Operating weight 13800kg
Max.excavation force 98.1kN
Swing speed 0-11r/min
Traveling speed(low/high) 3.2/5.5km/h
Average ground pressure 34.6kPa
Max.digging radius 8330mm
Max.digging depth 5530mm
Max.digging height 8420mm
Max.dumping height 8980mm
Min.front swing radius 2630mm
Engine
Model BF4M2012980Nm
Type Four-stroke,turbocharged,inter-cooled
Rated Power/speed 66kW/2100r/min
Displacement 4.04L
Cylinder bore/stroke 101× 126mm
Emission standard China
Rated fuel consumption 223g/kW.h
Max.torque 390N.m
Traveling/Swing system
Qty.of carrier rollers(single side) 1
Qty.of track rollers(single side) 7
Swing mode Wet disc
Swing brake type Hydraulic drive internal tooth single-row ball-bearing
Hydraulic system
Type Double pump,constant-power minus flow control system
Control type Pilot proportional control valve
Max.flow 2 ×118 +21L/min
Main pump model K3V63DT
Operating pressure 330/350KGF/cm²
Main valve model UX22
Arm cylinder-cylinder bore ×diameter of piston rod ×stroke 1-120×80×1045mm
Boom cylinder-cylinder bore ×diameter of piston rod ×stroke 2-105×70×980mm
Bucket cylinder-cylinder bore ×diameter of piston rod ×stroke 1-100×70×865mm
Fill capacity
Fuel 260L
Engine oil 13L
Max.flow 205L
Traveling reducer 2×3.5L
Swing reducer 3.8L
