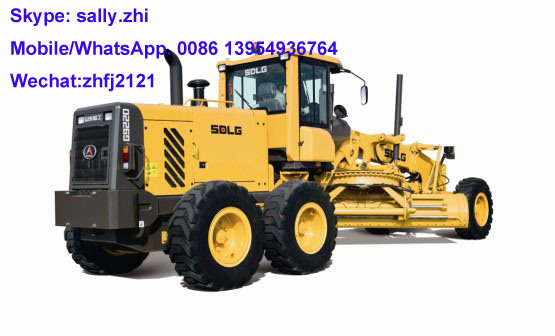

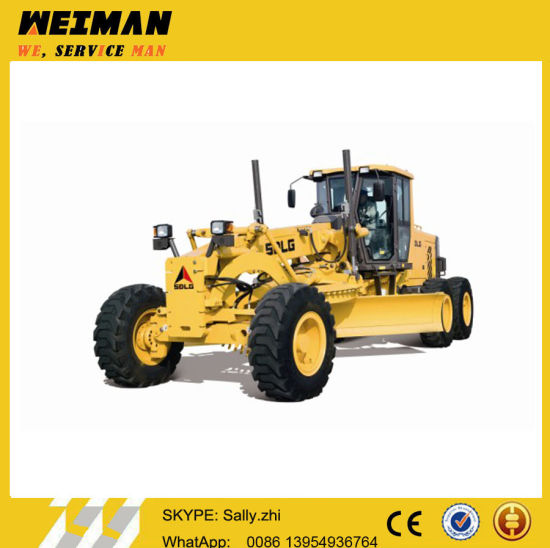

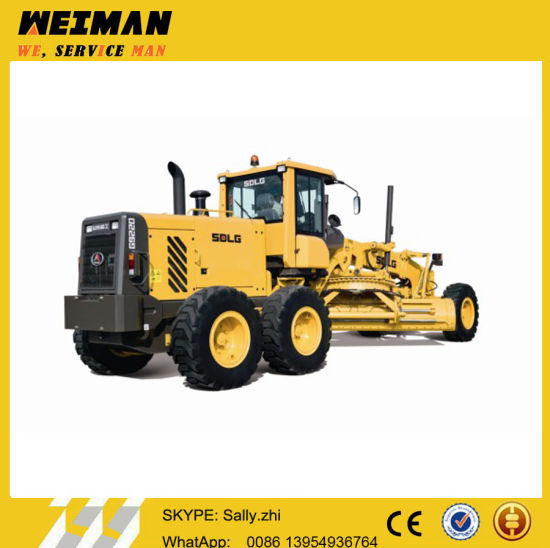

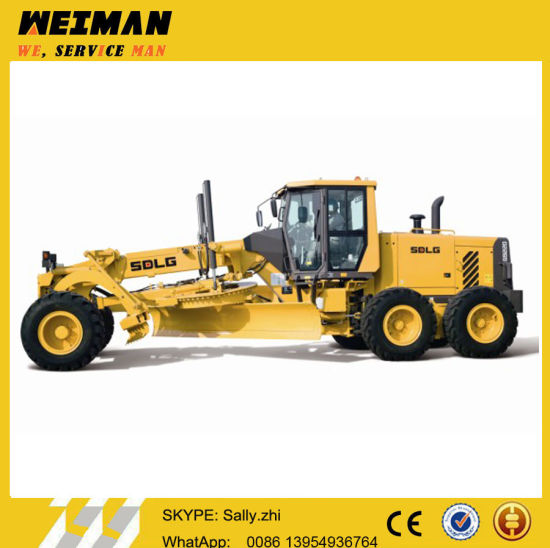

G9220
Dde Engine
Zf 6wg200
Reinforced Axle
Chain Transmission Drum Brake
Mechanical
16500kg
Rops
Rear Axle
sdlg
Roro Vessel
China
84292010
Item | specifications |
overall dimension | |
L*W*H | 8975*2710*3240mm |
Min.ground clearance of front axle | 610mm |
Ground clearance of rear axle | 430mm |
Wheel tread | 2260mm |
Wheelbase(front/rear) | 6480mm |
Wheelbase of rear axles | 1538mm |
Overall parameter | |
Overall working weight | 15800kg |
Max.inclination angle of front wheel | ±18° |
Max.swinging angle of front axle | ±16° |
Max.streering angle of front wheel | ±50° |
Steering angle of articulated frame | ±23° |
Cutter diameter(mm) | 1626mm |
Cutter size(length*height*thickness) | 3962*635*22mm |
Swing angle of blade | 360° |
Min.turning radius | 7.6m |
Ground clearance of blade | 445mm |
Cutting depth of blade | 787mm |
Inclination angle of blade | Forward47°/backward 5° |
Sliding range of blade | Left673mm/right673mm |
Max.tractive force | 82kN |
Max.speed(forward/reverse) | 38/23km/h |
Engine | |
Model | BF6M1013EC |
Type | Inline,water-cooled,Dry cylinder liner,direct injection |
Rated power/speed | 146kW/2200r/min |
Engine displacement | 7.146L |
Cylinder bore/stroke | 108/130mm |
Min.fuel-consume ratio | 210g/Kw.h |
Max.torque | 710Nm |
Emission standard | EC stage & EPA Tier |
Transmission system | |
Transmission model | ZFW320 |
Transmission Type | Fixd shaft power shift |
Torque converter | Single-stage single-phase three-element |
Gears | Six forward three reverse |
Speed at forward gear I | 0~4.8km/h |
Speed at forward gear | 0~8.4km/h |
Speed at forward gear | 0~11km/h |
Speed at forward gear | 0~18.6km/h |
Speed at forward gear | 0~23km/h |
Speed at forward gear | 0~38km/h |
Speed at reverse gear | 0~4.8km/h |
Speed at reverse gear | 0~11km/h |
Speed at reverse gear | 0~23km/h |
Hydraulic system | |
Type | Open-type system |
System pressure | 21Mpa |
Fill capacity | |
Fuel | 270L |
Hydraulic oil | 132L |
