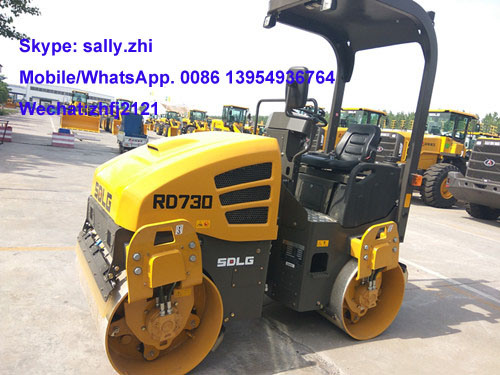

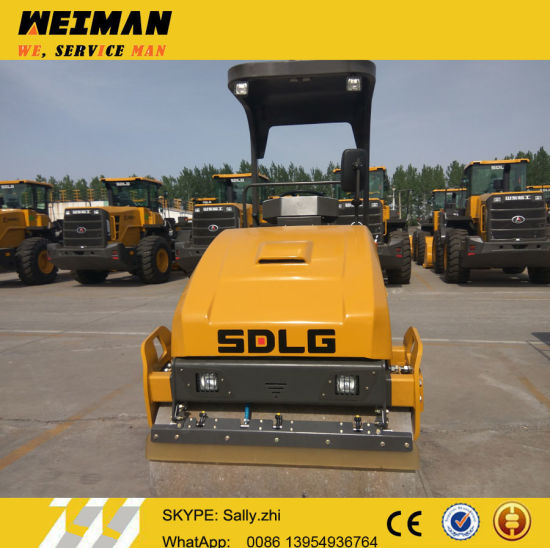

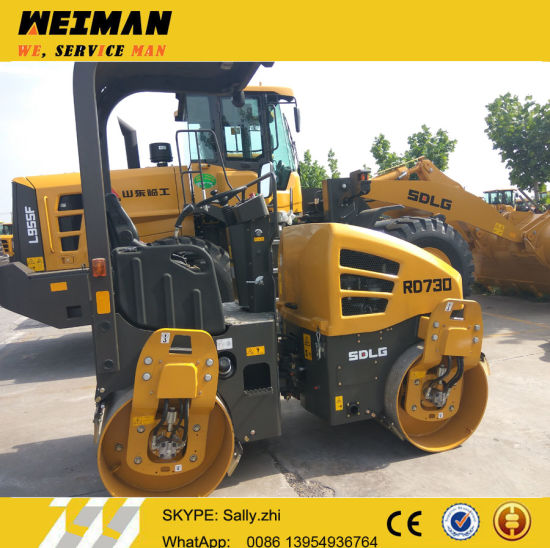

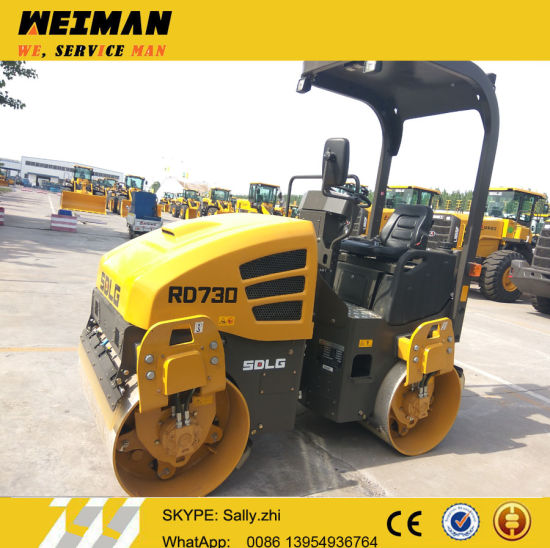

Brand new mini road roller RD730 for sale

Brand New Mini Road Roller Rd730 for Sale

Brand New Mini Road Roller Rd730 for Sale


Brand New Mini Road Roller Rd730 for Sale

1. Charactors for SDLG mini road roller RD730:

Road Roller RD730 is a new generation of hydraulic double-drum vibratory roller with high reliability, efficiency and Comfort. It has a modern designed outlook and has good vibratory function, high torque, high operating functionality and easy to maintain.

2. Technical Parameter of SDLG mini road roller RD730:

Overall dimension
LxWxH 2424*1337*2831mm
Width of vibratory drum 1200mm
Diameter of vibratory drum 700mm
Wheelbase 1724mm
Min. ground clearance 260mm
Min. turning radius 3818mm
Compaction width 1200mm
Theoretical gradeability 30%
Swing angle 10º
Turning angle 30º
Overall parameters
Operating weight 3070kg
Front wheel distributed weight 1535kg
Rear wheel distributed weight 1535kg
Norminal amplitude 0.5mm
Vibration Frequency (low/high) 46/31kn
Static linear load 120/131n/cm
Engine
Model D1803-M-DI-EU/ROW
Type Inline,water-cooled, four-stroke, direct injection
Rated Power/speed 24.8kW/2400r/min
Displacement 1826ml
Cylinder bore/stroke 87/102.4mm
Emission standard Tier3
Min.fuel-consume ratio 251g/kW.h
Max.torque 115N.m
Travelling/Swing system
Gears one forwad one reverse
Speed at forward/reverse gear 0-10.5km/h
Brake system
Service brake type Travling control handle back to the median
Packing brake type Press brake switch P
Emergency braking Press red emergency braking switch ,engine flaming out power of complete machine failing
Steering system
Type Full hydraulic steering
System pressure 14Mpa
Vibration Hydraulic system
Type Open system
System pressure 21Mpa
Fill capacity
Fuel 40L
Engine oil 7L
Hydraulic oil 45L
Vibration wheel 2×14.5L
