Brand New Mini Grader for Sale G9165

Quantity:
sharethis sharing button
  • G9165

  • Weichai Engine

  • Hangchi Yd13

  • Reinforced Axle

  • Chain Transmission Drum Brake

  • Mechanical

  • 14600kg

  • sdlg

  • 40hq

  • China

  • 84292010

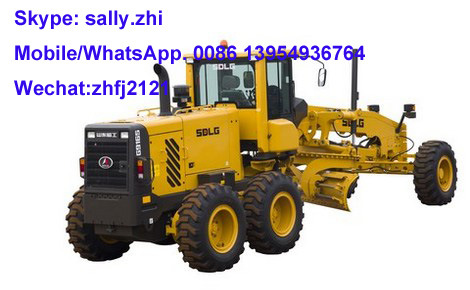

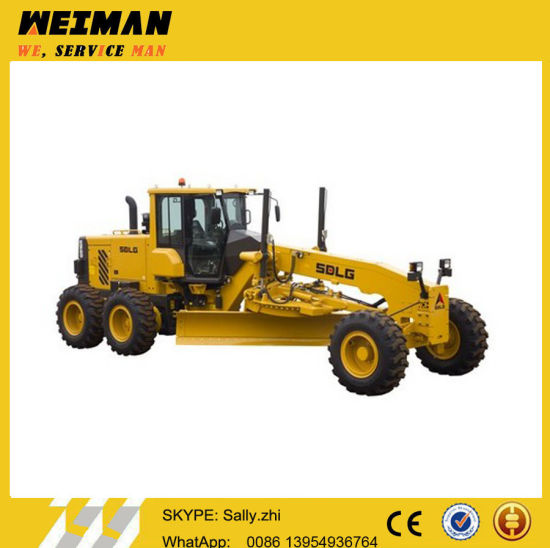

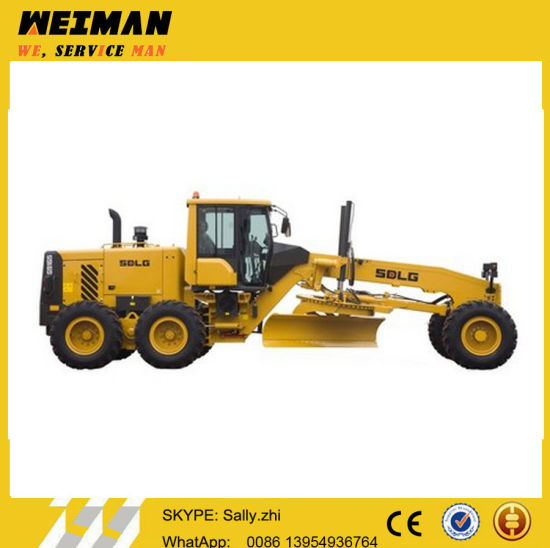

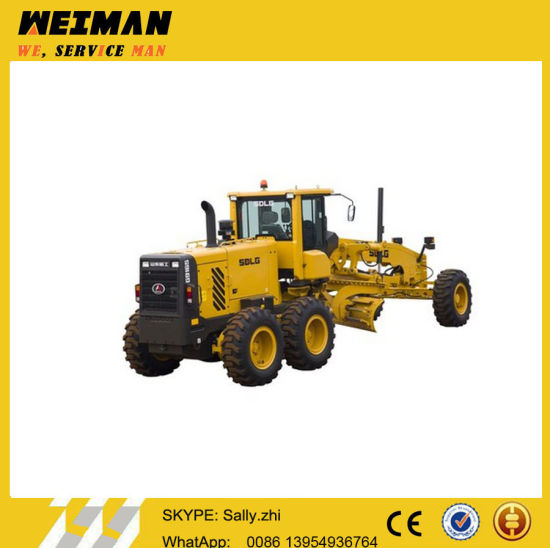

Brand new mini grader for sale G9165

Brand New Mini Grader for Sale G9165

Brand New Mini Grader for Sale G9165

Brand New Mini Grader for Sale G9165

1, Charactors of sdlg mini grader for sale G9165 :

G9165 mini grader is a product of high speed,high efficiency, high accuracy and multiple purposes developed by SDLG on the basis of advanced technology of European, can be used for ground leveling and grooving, scraping slope, bulldozing, ploughing snow, and is widely applied in construction operating condition of road, airport, defen s e engineering, mine conservancy construction and farmland improvement and so on.


2. Technical specifications of sdlg mini grader for sale G9165:
Item specifications
overall dimension
L*W*H 8972*2710*3240mm
Min.ground clearance of front axle 610mm
Ground clearance of rear axle 430mm
Wheel tread 2260mm
Wheelbase(front/rear) 6480mm
Wheelbase of rear axles 1538mm
Overall parameter
Overall working weight 14600kg
Max.inclination angle of front wheel ±18°
Max.swinging angle of front axle ±16°
Max.streering angle of front wheel ±50°
Steering angle of articulated frame ±23°
Cutter diameter(mm) 1626mm
Cutter size(length*height*thickness) 3658*635*25mm
Swing angle of blade 360°
Min.turning radius 7.6m
Ground clearance of blade 445mm
Cutting depth of blade 787mm
Inclination angle of blade Forward47°/backward 5°
Sliding range of blade Left673mm/right673mm
Max.tractive force 75kN
Max.speed(forward/reverse) 40/30km/h
Engine
Model WP6G175E21
Type Inline,water-cooled,four-stroke,direct injection
Rated power/speed 129kW/2200r/min
Engine displacement 6.750L
Cylinder bore/stroke 105/130mm
Min.fuel-consume ratio 210/Kw.h
Max.torque 680Nm
Emission standard GB20891-2007
Transmission system
Transmission type Fixed shaft power stage
Torque converter Single-stage single-phase 3-element Combined togetherwith transmission
Gears Six forward three reverse
Speed at forward gear I 0~5.3km/h
Speed at forward gear 0~8.5km/h
Speed at forward gear 0~14km/h
Speed at forward gear 0~21km/h
Speed at forward gear 0~30km/h
Speed at forward gear 0~40km/h
Speed at reverse gear 0~5.3km/h
Speed at reverse gear 0~14km/h
Speed at reverse gear 0~30km/h
Hydraulic system
Type Open-type system
System pressure 21Mpa
Fill capacity
Fuel 270L
Hydraulic oil 132L

Brand New Mini Grader for Sale G9165
Brand New Mini Grader for Sale G9165
Brand New Mini Grader for Sale G9165
