Brand new mini front end loader LG918L for sale
1.The Charactors of SDLG mini front end loader LG918L:
LG918 loader is a high-end product mainly for loading and unloading loose material. The entire machine is compact, flexible in operation, of high working efficiency, more suitable for operation in narrow and small field and is widely used in places such as farms, timber yard and municipal construction.
2. Descriptions of SDLG mini front end loader LG918L
| Name | sdlg mini front end loader LG918L |
| Total Weight | 6200kgs |
| Attachment | 5790*2140*2920mm |
| Rated load | 1.8T |
| Max. dumpling height | 2510mm |
3.The Technical specifications of mini front end loader SDLG LG918L
| Overall dimension | |
| L×W×H | 5790× 2140× 2920mm |
| wheelbase | 2260mm |
| Min.ground clearance | 290mm |
| Max.dumping height | 2510~2800mm |
| Lifting height | 3200mm |
| Dumping distance | 888~920mm |
| Max.gradeability | 30° |
| Dumping angle | 43° |
| Bucket rollback at ground level | 44° |
| Overall width(outside of rear wheel) | 2040mm |
| wheel tread | 1630mm |
| Steering angle | 35° |
| Horizontal crossing radius | 5082mm |
| Min.turning radius | 4546mm |
| Overall parameter | |
| Bucket capacity | 1.0~1.4m3 |
| Rated load | 1800 |
| Operating weight | 6200~6250 |
| Max.tractive force | ≥56kN |
| Max.breakout force | ≥58kN |
| Tipping load | ≥36kN |
| Engine | |
| Model | YC4D80-T20 |
| Type | water-cooled, fourstroke,direct injection |
| Rated power/speed | 58kw/2400/min |
| Engine displacement | 4214ml |
| Max.torque | 260Nm |
| Emission standard | GB2007China phase |
| Rated fuel consumption | ≤235g/kW.h |
| Transmission system | |
| Torque converter single-stage three-nt | single-stage three-element hydraulic torque converter |
| Transmission Type Fixedshaft power shift+high/low | Fixedshaft power shift+high/low speed |
| Gears | Two forward two reverse |
| speed at forward gear | 0~ 10km/h |
| speed at forward gear | 0~26.5km/h |
| speed at reverse gear | 0~9.6km/h |
| speed at reverse gear | 0~25km/h |
| Hydraulic system of working device | |
| Type | Hydraulic pilot control |
| Total time | ≤9.1s |
| Brake system | |
| service brake type | Air over hydraulic disc brake on 4 wheels |
| Parking brake type | Manual internal expanding shoe brake |
| steering system | |
| Type | Load sensing full hydraulic articulated steering |
| System pressure | 12Mpa |
| Fill capacity | |
| Fuel | 120L |
| Hydrulic oil | 100L |
| Engine | 13L |
| Transmission | 20L |
| Drive Axle | 2×10L |
| Brake system | 4L |

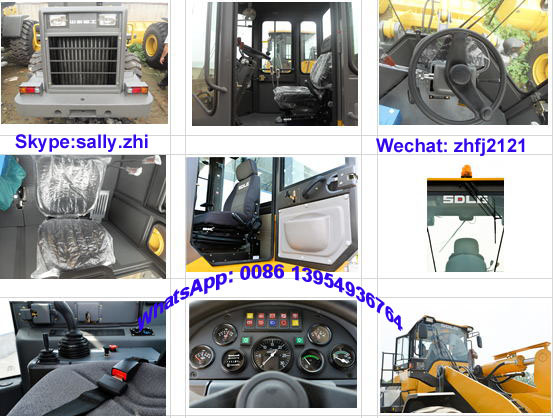

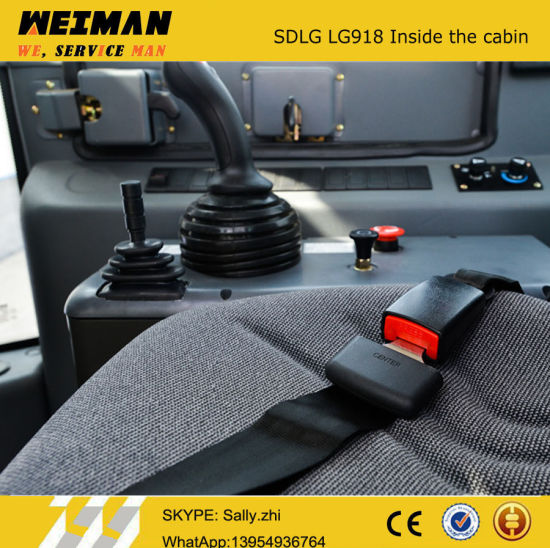

3. The inside of SDLG mini front end loader LG936L :

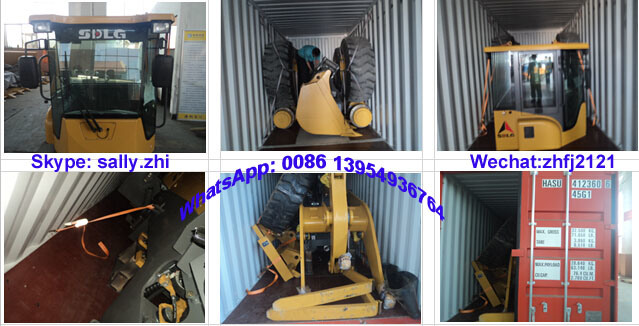

4. How to pack the SDLG mini front end loader LG918L :
P.S. We are The 1st Volvo-SDLG special propose loader exporter in China.
Shandong Weiman Machinery Co., Ltd.
Tel: 0086 539-8199000
Fax: 0086 539-8087992
Contact person: sally zhi
Address: A1402 Kaiyuan shangcheng Linyi City Shandong .China
