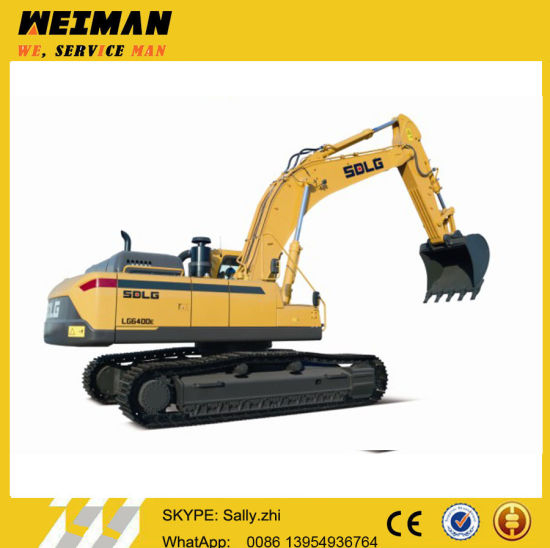

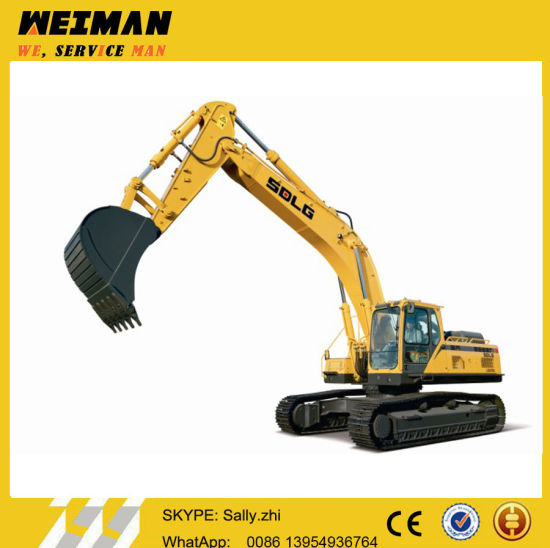

Brand New Heavy Machinery Sales LG6400e

Quantity:
  • LG6400E
  • Large-Scale
  • ISO9001: 2000
  • New
  • SD130A
  • Pilot Control
  • Hydraulic
  • Standard Cab with A/C
  • 2.0m3
  • Short
  • sdlg
  • Roro Vessel
  • 40050kgs
  • China
  • 84295212
Brand new heavy machinery sales LG6400E

Brand New Heavy Machinery Sales LG6400e

Brand New Heavy Machinery Sales LG6400e



Brand New Heavy Machinery Sales LG6400e

1. Charactors of SDLG heavy machinery sales LG6400E:

LG6400E, an upgraded product dedicatedly developed by SDLG on the basis of advanced technologies and manufacturing techniques introduced from Europe and applicable for various harsh working conditions, is the applicable for various harsh working conditions, is the perfect expression of premium configuration, global sourcing and delicate manufacture, full guaranteeing its high reliability and rate of return.

2. Technical specifications of sdlg heavy machinery sales LG6400E:
Overall dimension
Over width of upper assembly 2990mm
Over width 3340mm
Over height of cab 3190mm
Tail swing radius 3500mm
Overall herght of engine hood 2700mm
Gound clearance of counterweight 1210mm
Wheel base 4240mm
Crawler length 5180mm
Track gauge 2740mm
Track pad width 600mm
Min.ground clearance 500mm
Overall hength 11020mm
Overall height of boom 3580mm
Overall parameters
Bucket capacity 2.0m³
Overall weight 40050kg
Max.excavation force 236kN
Swing speed 0~9.7r/min
Traveling speed(low/high) 3.3/4.5km/h
Average ground pressure 69.4kPa
Max.digging radius 10610mm
Max.digging depth 6850mm
Max.digging height 10170mm
Max.dumping height 7090mm
Min.front swing radius 4380mm
Engine
Model SD130A
Type Four-stroke,supercharged,inter-cooled
Rated Power/speed 198kW/1700r/min
Displacement 12.8L
Cylinder bore/stroke 131/158mm
Emission standard China Phase
Rated fuel consumption 215g/kW.h
Max.torque 1475N.m
Travelling/Swing system
Qty.of carrier rollers(single side) 2
Qty.of track rollers(single side) 9
Traveling brake type Wet disc
Swing mode Hydraulic drive internal tooth single-row ball-bearing
Swing brake type Wet disc
Hydraulic system
Hydraulic control type Pilot proportional control valve
Hydraulic type Double-pump constant power and negative flow control system
Max.flow 2 ×280 +25.5L/min
Main pump model K3V180
Operating pressure 320/350KGF/cm²
Arm cylinder-cylinder bore ×diameter of piston rod ×stroke 1-175×115×1700mm
Boom cylinder-cylinder bore ×diameter of piston rod ×stroke 2-160×105×1530mm
Bucket cylinder-cylinder bore ×diameter of piston rod ×stroke 1-145×100×1285mm
Fill capacity
Fuel 620L
Engine oil 45L
Hydraulic oil 515L
Travelling reducer 2×6.8L
Swing reducer 6L

Brand New Heavy Machinery Sales LG6400e

Brand New Heavy Machinery Sales LG6400e
Brand New Heavy Machinery Sales LG6400e
