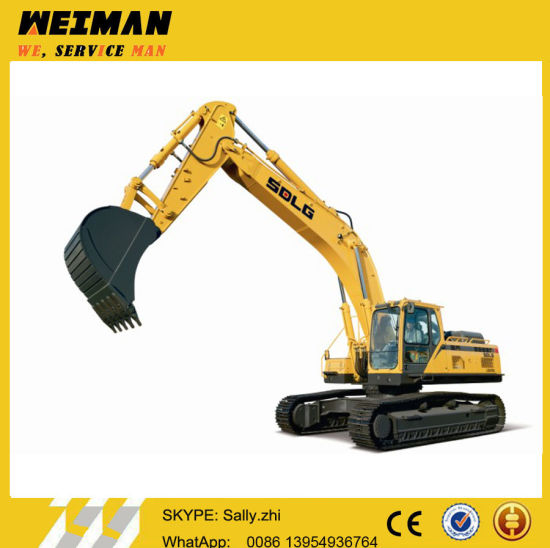

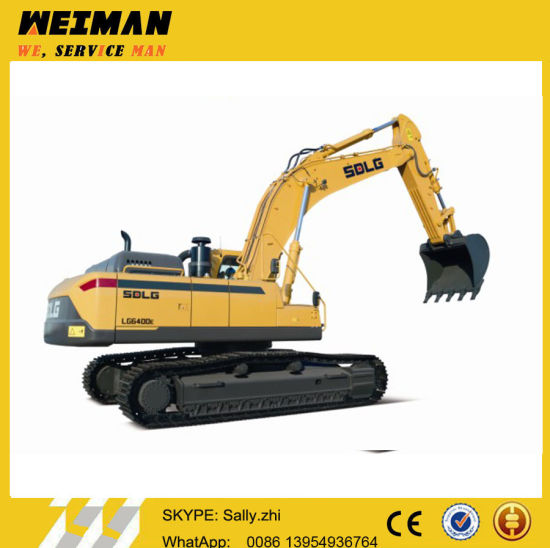

LG6440E
Large-Scale
ISO9001: 2000
New
SD130A
Pilot Control
Hydraulic
Standard Cab with A/C
2.0m3
Short
sdlg
Roro Vessel
40050kgs
China
84295212
Overall dimension | |
Over width of upper assembly | 2990mm |
Over width | 3340mm |
Over height of cab | 3190mm |
Tail swing radius | 3500mm |
Overall herght of engine hood | 2700mm |
Gound clearance of counterweight | 1210mm |
Wheel base | 4240mm |
Crawler length | 5180mm |
Track gauge | 2740mm |
Track pad width | 600mm |
Min.ground clearance | 500mm |
Overall hength | 11020mm |
Overall height of boom | 3580mm |
Overall parameters | |
Bucket capacity | 2.0m³ |
Overall weight | 40050kg |
Max.excavation force | 236kN |
Swing speed | 0~9.7r/min |
Traveling speed(low/high) | 3.3/4.5km/h |
Average ground pressure | 69.4kPa |
Max.digging radius | 10610mm |
Max.digging depth | 6850mm |
Max.digging height | 10170mm |
Max.dumping height | 7090mm |
Min.front swing radius | 4380mm |
Engine | |
Model | SD130A |
Type | Four-stroke,supercharged,inter-cooled |
Rated Power/speed | 198kW/1700r/min |
Displacement | 12.8L |
Cylinder bore/stroke | 131/158mm |
Emission standard | China Phase |
Rated fuel consumption | ≤215g/kW.h |
Max.torque | 1475N.m |
Travelling/Swing system | |
Qty.of carrier rollers(single side) | 2 |
Qty.of track rollers(single side) | 9 |
Traveling brake type | Wet disc |
Swing mode | Hydraulic drive internal tooth single-row ball-bearing |
Swing brake type | Wet disc |
Hydraulic system | |
Hydraulic control type | Pilot proportional control valve |
Hydraulic type | Double-pump constant power and negative flow control system |
Max.flow | 2 ×280 +25.5L/min |
Main pump model | K3V180 |
Operating pressure | 320/350KGF/cm² |
Arm cylinder-cylinder bore ×diameter of piston rod ×stroke | 1-175×115×1700mm |
Boom cylinder-cylinder bore ×diameter of piston rod ×stroke | 2-160×105×1530mm |
Bucket cylinder-cylinder bore ×diameter of piston rod ×stroke | 1-145×100×1285mm |
Fill capacity | |
Fuel | 620L |
Engine oil | 45L |
Hydraulic oil | 515L |
Travelling reducer | 2×6.8L |
Swing reducer | 6L |
