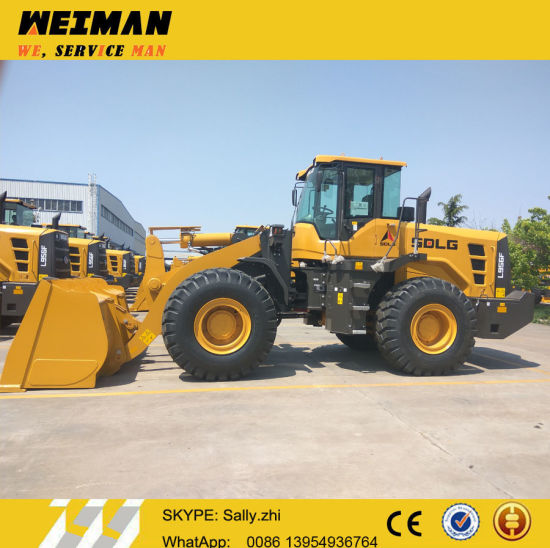

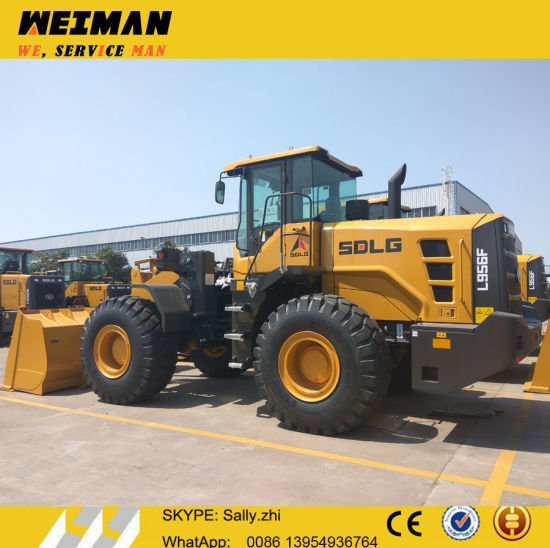

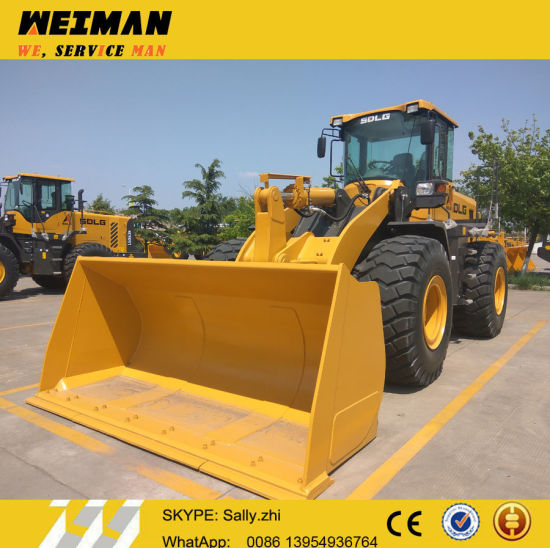

L956F
Medium-sized Loader
Weichai Engine
Sdlg Gearbox
Sdlg Axle
Pilot Control
Standard
3.0m3
sdlg
1X40hq
8230*3024*3380mm
China
842951
| overall dimension | |||
| L×W×H | 8230×3024×3380mm | ||
| wheelbase | 3300mm | ||
| Min.ground clearance | 420mm | ||
| Max.dumping height | 3110mm | ||
| Dumping distance | 1100mm | ||
| Dumping angle | -45° | ||
| wheel tread | 2190mm | ||
| Steering angle | 38° | ||
| Horizontal crossing radius | 6850mm | ||
| Min.turning radius | 5890mm | ||
| Overall parameter | |||
| Bucket capacity | 3.0m3 | ||
| Rated load | 5000kg | ||
| Operating weight | 17200kg | ||
| Max.tractive force | 165kN | ||
| Max.breakout force | ≥165kN | ||
| Tipping load | ≥110kN | ||
| Engine | |||
| Model | WD10G220E23 | ||
| Type | Inline,water-cooled,dry cylinder, direct injection | ||
| Rated power/speed | 162kw/2000r/min | ||
| Engine displacement | 9726ml | ||
| Cylinder bore/stroke | 126/130mm | ||
| Max.torque | 986Nm | ||
| Emission standard | GB20891-2007 China Phase 2 | ||
| Min.fuel-consume ratio | ≤215g/kw.h | ||
| Transmission system | |||
| Torque converter | Single-stage four-element double-turbine hydraulic torque converter | ||
| Transmission Type | Planetary power shift | ||
| Gears | Two forward one reverse | ||
| speed at forward gear 1 | 0~13km/h | ||
| speed at forward gear 2 | 0~38km/h | ||
| speed at reverse gear 3 | 0~17km/h | ||
| Hydraulic system of working device | |||
| Type | Hydraulic pilot control | ||
| Total time | 10.0s | ||
| Brake system | |||
| service brake type | Air over hydraulic disc type | ||
| Parking brake type | Electric pneumatic internal expansion shoe type | ||
| steering system | |||
| Type | Load-sensing full hydraulic articulated steering | ||
| System pressure | 16Mpa | ||
| Fill capacity | |||
| Fuel | 300L | ||
| Hydrulic oil | 240L | ||
| Engine | 20L | ||
| Transmission | 45L | ||
| Drive Axle | 2x30L | ||
| Brake system | 4L | ||
P.S. We are The 1st Volvo-SDLG special propose loader exporter in China.
Shandong Weiman Machinery Co., Ltd.
Tel: 0086 539-8199000
Fax: 0086 539-8087992
Contact person: sally zhi
Address: A1402 Kaiyuan shangcheng Linyi City Shandong .China
