QUALITY
ASSURANCE
ASSURANCE
R8140
25cm/s
15KN
CE, ISO 9001:2000
New
Weichai Engine
Mechanical Operation
Open Loop Vibration
Rear Wheel Mechanical
Single Steel Drum Vibratory
Standard Cab with A/C
sdlg
40hq
China
84294019

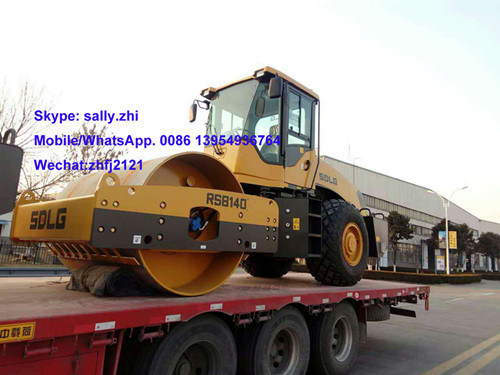

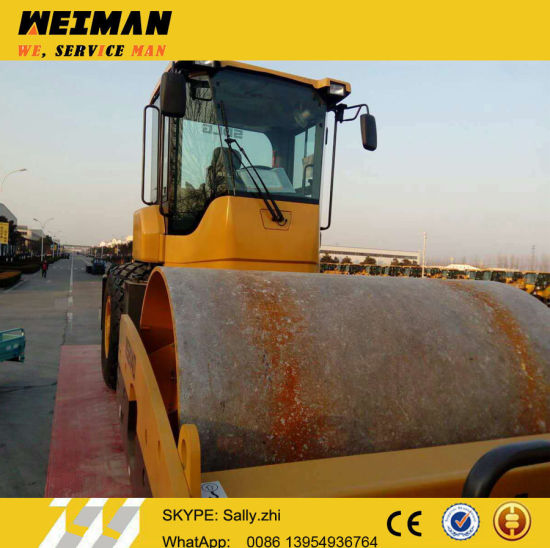

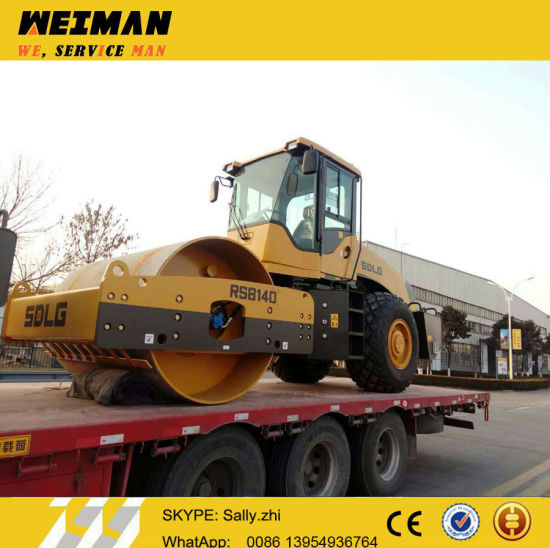

1.Charactors for SDLG drum roller compactor RS8140:
Sdlg RS8140 drum roller compactor is a heavy duty auto propelled vibratory road roller and can effectively compact various soil layer and rock fill. This machine is of industrial leading level in compacting, driving and operating performances and reliability, repair and maintenance It is ideal compacting equipment for road, airport, harbor, railway, dam and industrial site.
2.Technical Parameter of RS8140 drum roller compactor:
| Overall dimension | |
| LxWxH | 6113*2300*3140mm |
| Width of vibratory drum | 2130mm |
| Diameter of vibratory drum | 1500mm |
| Wheeltread | 1535mm |
| Wheelbase | 3303mm |
| Min. ground clearance | 350mm |
| Min. turning radius | 6400mm |
| Compaction width | 2130mm |
| Theoretical gradeability | 30% |
| Swing angle | 35º |
| Turning angle | 12º |
| Overall parameters | |
| Operating working weight | 14000kg |
| Front wheel distributed weight | 7000kg |
| Rear wheel distributed weight | 7000kg |
| Norminal amplitude(low/high) | 1.8/1.0mm |
| Vibration Frequency | 30HZ |
| Static linear load | 322n/cm |
| Engine | |
| Model | WP6G125E202 |
| Type | Inline,water-cooled, four-stroke, direct injection |
| Rated Power/speed | 92kW/2000r/min |
| Displacement | 6.75L |
| Cylinder bore/stroke | 105/130mm |
| Emission standard | gb2089-2007 |
| Min.fuel-consume ratio | ≤220g/kW.h |
| Max.torque | 540N.m |
| Transmission system | |
| Clutch type | Dry single disc clutch |
| Transmission type | Fixed shaft mechanical shifting |
| Speed at farward/reverse gear I | 0-2.4km/h |
| Speed at farward/reverse gear II | 0-4.1km/h |
| Speed at farward gear III | 0-9.2km/h |
| Brake system | |
| Service brake type | Air over hydraulic disc brake |
| Packing brake type | Maunal cakiper disc type |
| Steering system | |
| Type | Full hydraulic steering |
| System pressure | 16Mpa |
| Vibration Hydraulic system | |
| Type | Open system |
| System pressure | 20Mpa |
| Fill capacity | |
| Fuel | 270L |
| Engine oil | 16L |
| Hydraulic oil | 100L |
| Transmission | 13L |
| Drive Axle(Main drive&wheel reducer) | 16L+2X5L |
| Brake system | 2L |
Shandong Weiman Machinery Co., Ltd.
Tel: 0086 539-8199000
Fax: 0086 539-8087992
Contact person: sally zhi
Address: A1402 Kaiyuan shangcheng Linyi City Shandong .China
