RD730
15km/S
13KN
CE, ISO 9001:2000
New
Kubota Engine
Mechanical Operation
Open Vibration
Rear Wheel&Front Wheel Loop Hydraulic
Double Steel Drum Vibratory
Canopy
sdlg
40hq
China
84294019

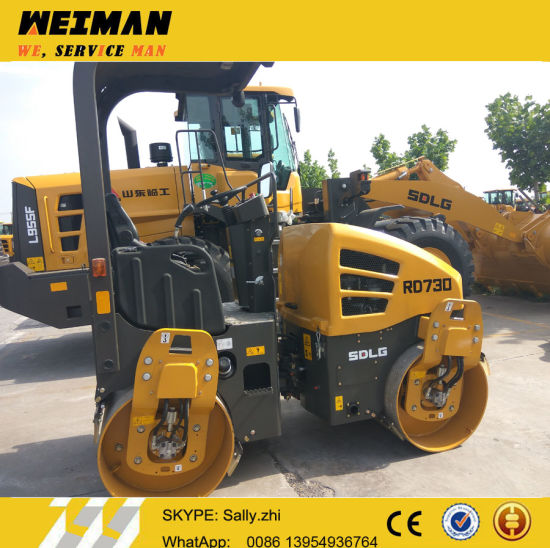

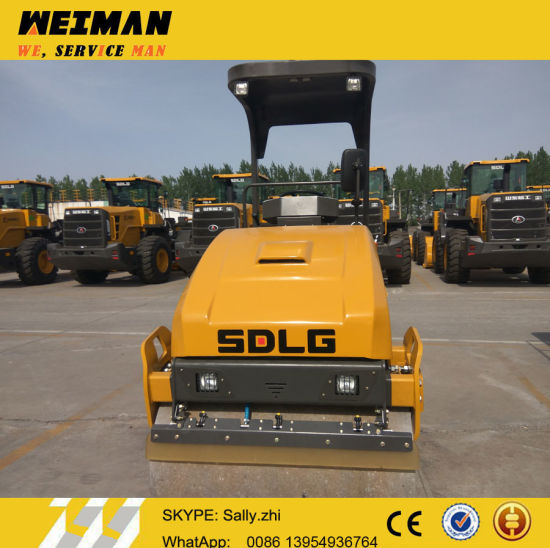

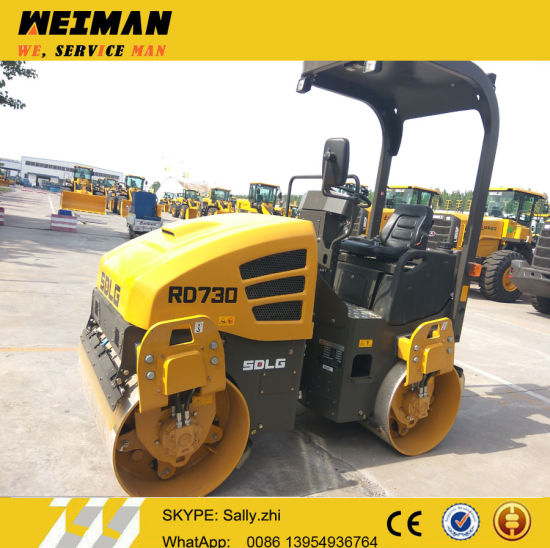

1. Charactors for SDLG double drum vibratory roller RD730:
double drum vibratory roller RD730 is a new generation of hydraulic double-drum vibratory roller with high reliability, efficiency and Comfort. It has a modern designed outlook and has good vibratory function, high torque, high operating functionality and easy to maintain.
2. Technical Parameter of SDLG double drum vibratory roller RD730:
Overall dimension | |
LxWxH | 2424*1337*2831mm |
Width of vibratory drum | 1200mm |
Diameter of vibratory drum | 700mm |
Wheelbase | 1724mm |
Min. ground clearance | 260mm |
Min. turning radius | 3818mm |
Compaction width | 1200mm |
Theoretical gradeability | 30% |
Swing angle | 10º |
Turning angle | 30º |
Overall parameters | |
Operating weight | 3070kg |
Front wheel distributed weight | 1535kg |
Rear wheel distributed weight | 1535kg |
Norminal amplitude | 0.5mm |
Vibration Frequency (low/high) | 46/31kn |
Static linear load | 120/131n/cm |
Engine | |
Model | D1803-M-DI-EU/ROW |
Type | Inline,water-cooled, four-stroke, direct injection |
Rated Power/speed | 24.8kW/2400r/min |
Displacement | 1826ml |
Cylinder bore/stroke | 87/102.4mm |
Emission standard | Tier3 |
Min.fuel-consume ratio | 251g/kW.h |
Max.torque | 115N.m |
Travelling/Swing system | |
Gears | one forwad one reverse |
Speed at forward/reverse gear | 0-10.5km/h |
Brake system | |
Service brake type | Travling control handle back to the median |
Packing brake type | Press brake switch P |
Emergency braking | Press red emergency braking switch ,engine flaming out power of complete machine failing |
Steering system | |
Type | Full hydraulic steering |
System pressure | 14Mpa |
Vibration Hydraulic system | |
Type | Open system |
System pressure | 21Mpa |
Fill capacity | |
Fuel | 40L |
Engine oil | 7L |
Hydraulic oil | 45L |
Vibration wheel | 2×14.5L |
Shandong Weiman Machinery Co., Ltd.
Tel: 0086 539-8199000
Mob : 0086 13954936764
Fax: 0086 539-8087992
Contact person: sally zhi
Address: A1402 Kaiyuan shangcheng Linyi City Shandong .China
